Manual Pallet Stacker with Straddle Legs & Adjustable Forks 1100lbs Capacity 63" Lift Height SDJAS500

$1,900.00 ~~$2,199.00~~

📦 In stock. Ships in 24–48 hours.
🚛 Free lift gate delivery. Delivered in 5–7 business days.
💲 Final price. No extra shipping cost or hidden fees.
🛡 1-year warranty included. Full support available by video, email, or phone.

1 Year Warranty

At Xilinamerica.com, we proudly back all of our trucks with a one-year limited warranty, excluding wear-and-tear parts and damages caused by misuse. Our warranty period starts from the date of receipt of the item.

Warranty Periods:

1 Year on all trucks (excluding easy-wearing parts and damages caused by human factors)
3 Months on spare parts
6 Months on batteries

Warranty Details:

Within 30 days of receipt: If there are any quality issues, we will provide free spare parts for replacement and remote technical support. If our after-sales team determines that the truck needs to be returned for repair, we will cover all round-trip shipping costs.
Between 30 days and 1 year of receipt: If any quality issues arise, we offer free spare parts and remote technical guidance. If a return for repair is required, the customer is responsible for half of the shipping costs.
After 1 year of receipt: For any quality issues, we will provide free technical support. However, replacement parts will be charged, and if a return for repair is necessary, the customer will be responsible for both the maintenance fees and shipping costs, which will be quoted based on the situation.

If you encounter any issues during the use of the truck, feel free to contact us at support@xilin.com. Our team is ready to assist you.

Free Shipping

At XilinAmerica.com, we offer fast and free shipping on most products within the contiguous United States. Please note that shipping to Hawaii, Alaska, and Puerto Rico is not included in our free shipping offer.

🚚 Free Shipping Conditions
Our FREE SHIPPING offer applies to deliveries made to commercial addresses or locations with self-unloading capability. If additional services are required—such as Lift Gate Service, Residential Delivery, or Phone Call Service—please specify at the time of ordering, as these services will incur additional fees. For more details, contact info@xilinamerica.com.

⏳ Lead Time & Delivery
Once payment is received, orders are typically processed and shipped within 48 hours, excluding holidays. Delivery time varies depending on the shipping origin and destination. While we strive for timely delivery, delays may occur, and all estimated transit times are approximate.

📦 Shipping Damage
All products are carefully inspected and securely packed before shipping. Upon delivery, please check that all packages are in good condition before signing for receipt. If there is visible damage, do not accept the delivery and refuse the shipment. Contact our sales team immediately to arrange for a replacement.

❌ Order Cancellations
Orders can be canceled before they are shipped. If an order has already been dispatched, both the outgoing and return shipping costs will be charged. Please note that a missing tracking update does not necessarily mean the item hasn’t shipped. To request a cancellation, contact us as soon as possible via phone or email during business hours. Cancellations are only valid once confirmed in writing.

✉️ Address Corrections & Changes
For any shipping address changes or corrections, reach out to us immediately to avoid additional costs.

For further details, feel free to contact us at info@xilinamerica.com.

Why Xilin

Why Choose Xilin Material Handling LLC?

The Trusted Expert in Material Handling Equipment

Xilin Material Handling LLC is a leading manufacturer specializing in the production of material handling equipment. Since our establishment, we have dedicated ourselves to creating high-quality, professional, and reliable solutions for industries worldwide. When you choose Xilin, you’re partnering with a company that values innovation, craftsmanship, and a customer-first approach.

Unmatched Product Excellence: Electric Forklifts

Our electric forklift series is at the forefront of our product range, setting new standards in material handling. Designed for optimal performance and efficiency, our electric forklifts provide:

Exceptional Performance: Engineered for a variety of material handling tasks, ensuring smooth and stable operations.
Cost-Effective Solutions: Providing high-quality equipment at competitive prices, giving you the best value for your investment.
Durability You Can Count On: Built to last with compliance to international standards, ensuring long-term reliability in the toughest environments.

Efficient Logistics and Comprehensive After-Sales Support

Fast Delivery: With strategically located warehouses, Xilin ensures prompt delivery to meet the needs of our global customers.
Expert After-Sales Service: Our dedicated after-sales team is here to assist you with everything from installation and training to regular maintenance, ensuring seamless operations and helping you overcome any challenges in your material handling needs.

Confidence in Every Partnership

At Xilin, we prioritize your success. By choosing us, you not only get access to top-tier material handling equipment but also benefit from our full range of services, designed to give you peace of mind throughout the lifecycle of your equipment. Trust Xilin for reliability, performance, and long-term value.

Choose Xilin, Choose Excellence

With Xilin Material Handling LLC, you are assured of high-quality products, dependable support, and a commitment to your business’s success. Let us help you optimize your material handling processes for greater efficiency and productivity.

For more information or inquiries, don't hesitate to contact us!

⚖️ Adjustable Forks & Straddle Legs

Works with most pallet styles—including closed-bottom pallets.

🛠️ Reinforced Steel Mast

High-strength welded frame ensures safe and durable lifting.

👟 Dual Lift: Hand or Foot

Switch between hand or foot pedal for less fatigue and higher efficiency.

📏 Compact & Easy to Use

Slim, agile frame fits in tight aisles and small storage areas.

Description

SDJAS500 Manual Hydraulic Stacker

The SDJAS500 is a compact, reliable manual stacker with straddle legs, offering 1,100 lb load capacity and 63" lift height. Designed for use in warehouses, logistics, manufacturing, and retail spaces, it features dual lifting control (hand & foot), a reinforced mast, and precise operation for everyday pallet handling.

💡 Key Features & Benefits

🔥 Spark-Free Manual Operation – Non-electric design ideal for fire-sensitive workspaces and flammable material handling.
🎯 Dual Functionality – Combines lifting and short-distance transport into a single unit.
🏗 Reinforced Steel Mast – Built from high-strength welded steel for durable, long-term use.
🎛 Hand & Foot Lift – Dual hydraulic input allows operator comfort and flexible lifting control.
📦 Forks Over Straddle Legs – Compatible with narrow-base items or custom containers without bottom clearance issues.
🛞 Compact Chassis & Turning – Lightweight body ensures easy maneuvering through tight spaces.
🧍 Safety Mesh Guard – Protects the operator from accidental mast or chain contact.
🛑 Swivel Casters with Brakes – Rear casters include brakes for secure operation during loading or parking.
⚖ Safe Load Reminder – For safety, loads must remain centered between forks to avoid tipping.

🛠 How It Works

1️⃣ Lifting – Insert forks under the load, lock the rear wheels, and pump using the handle or foot pedal to raise the forks smoothly.
2️⃣ Transporting – Manually push or pull the unit to relocate the load across the workspace.
3️⃣ Lowering – Release the handle gradually to lower the forks in a controlled motion, preventing sudden drops.

📊 Specifications

📦 Load Capacity	1,100 lbs
📐 Load Center	19.7"
↪️ Turning Radius	47.2"
📏 Aisle Width	77.7"

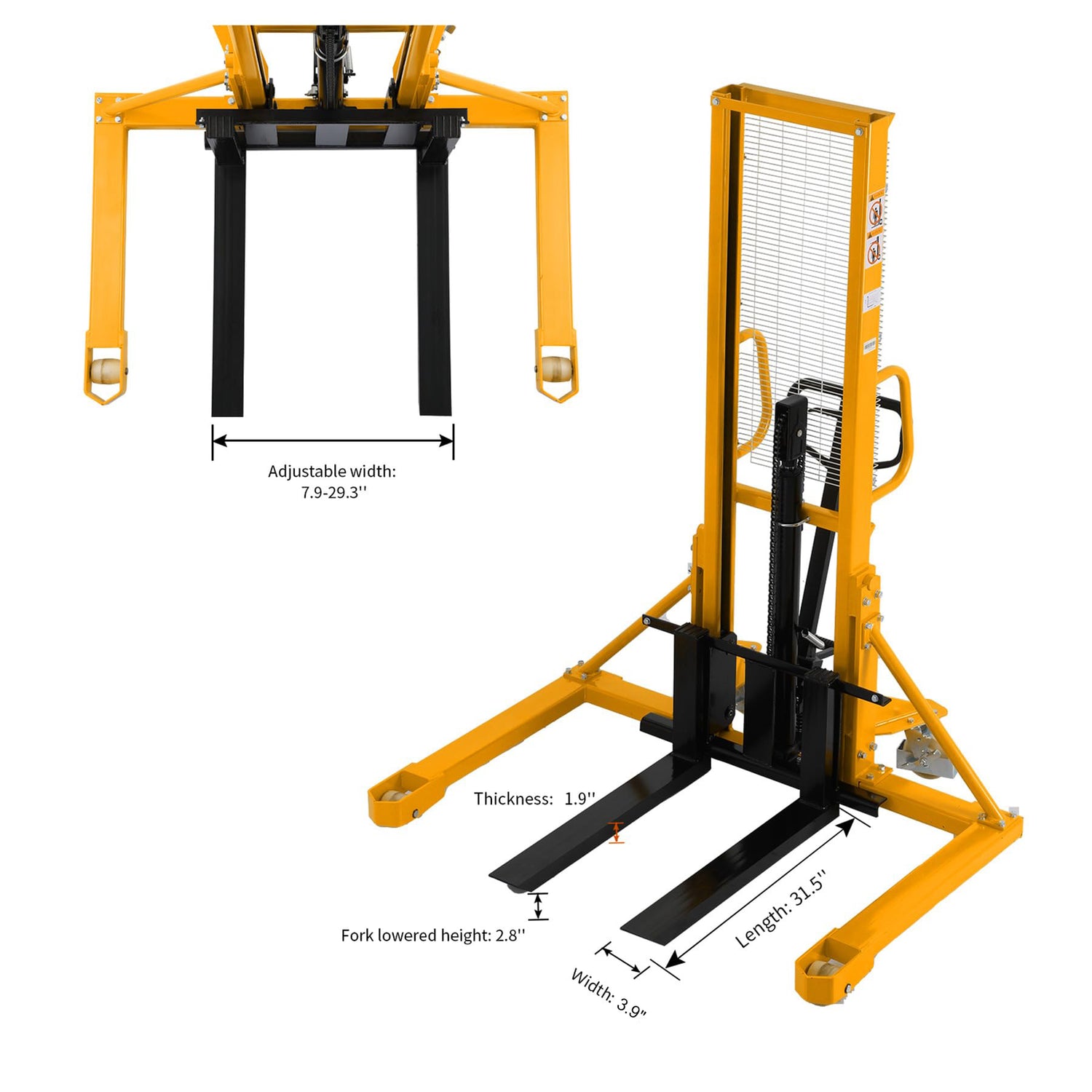

🛻 Fork Dimensions	31.5" L × 7.9–29.3" W × 1.9" Thick
📏 Inside Fork Width	0.1"–21.5"
⬇️ Fork Lowered Height	2.8"
📐 Overall Width	60"
📐 Overall Length	52.7"

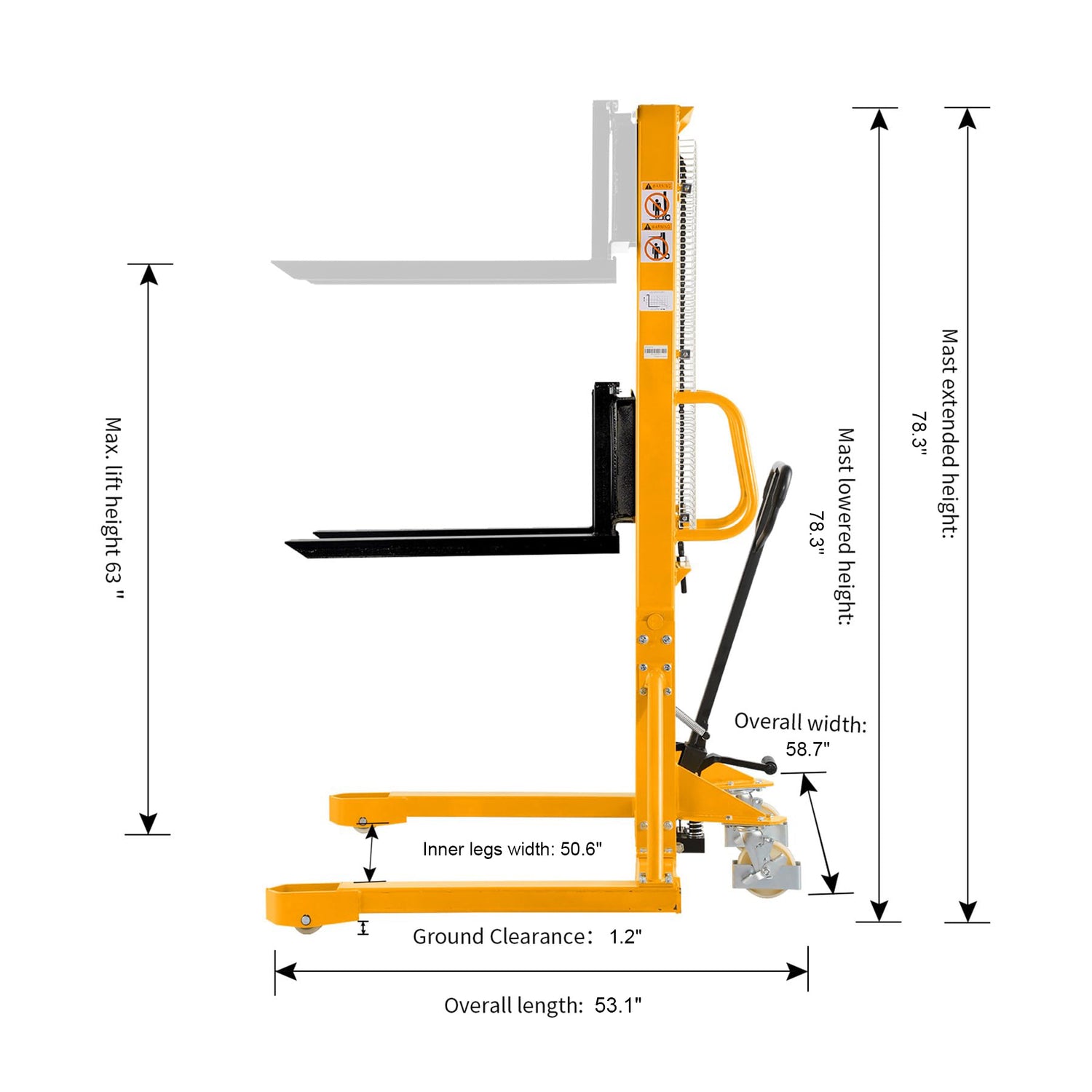

🔺 Max Lifting Height	63"
📏 Mast Height (Lowered/Extended)	78.7" / 82.7"
🧷 Wheel Type	Single Wheel
🔩 Fork Type	Channel Steel Forks

📦 What You’ll Receive

Fully assembled manual stacker (protected with film & straps)
Branded stickers, quick-start guide, and QR code for usage tutorial
Delivery note with model and serial number

📬 After You Order

Once your order is confirmed, we will send a confirmation email with your order details.
When your order ships, you'll receive another email with tracking information included.
The stacker arrives fully assembled by truck—no installation or charging needed.
If you have any questions, feel free to contact us — our team is here to help.

Reviews (0)

Standard Mast and Fork Dimensions

Equipped with a standard mast and fork width, this stacker is compatible with most U.S. pallets. It ensures smooth stacking and efficient handling across a wide range of warehouse and industrial tasks.
Adjustable Forks for Versatile Use

The adjustable fork width adapts to different pallet sizes and working conditions. This flexible design expands the range of applications, making the truck suitable for various warehouse and industrial needs.
Dual Lifting Modes: Hand and Foot

The stacker features both hand and foot pedal lifting options, reducing operator fatigue during long shifts. This flexible design improves comfort and boosts overall work efficiency in daily operations.
Compact Body for Versatile Applications

The truck features a lightweight and compact structure with a small turning radius for easy handling. Its comfortable operation makes it ideal for mold workshops, logistics, warehouses, docks, and supermarkets.

🔎 Designed for Daily Use, Backed by Real Experience

🔧 Manual Stacker for Safe Vertical Lifting

The SDJAS500 is a manual hydraulic stacker rated for 1,100 lbs with a maximum lift height of 63". It uses a high-strength welded mast, nylon wheels, and dual hydraulic lift modes (foot pedal or handle) to provide simple, stable lifting in tight indoor environments. Ideal for stockrooms, light warehouse tasks, or pallet handling near workstations.

🛠️ Reliable Manual Hydraulic System

This model features a manual pump with overload protection and a smooth lowering valve. The forks are raised by hand lever or foot pedal, with a chain-piston lift system and controlled descent via a return valve. The heavy-duty design ensures stable two-stage lifting without excessive effort.

📦 Fully Assembled & Ready to Use

According to the packing list, the SDJAS500 is shipped as a fully assembled unit. Each order includes:

1× SDJAS500 manual hydraulic stacker
1× Printed instruction manual
1× Quality certificate
1× Packing list

The truck is wrapped in protective film and strapped for safe transport.

🧯 Safety Instructions

For indoor use only, on flat solid ground
Do not overload or exceed rated lift height
Do not stand on forks or operate beneath raised goods
Use the wheel brake when lifting or operating on a slope

Lowering should always be done slowly using the control valve to avoid sudden drops.

🛡️ Warranty & Support

The SDJAS500 comes with a 1-year limited warranty on frame and hydraulic components. Wear items and misuse are not covered.

Need assistance? Contact us at support@xilin.com — our U.S.-based team is here to help.
