Capacity 📦

Rated Load Capacity 3300lbs

Aisle width ↔️

Minimum Aisle Width 88.3inch

Height ⬆️

Mast Lifting Height 98inch

lowered height ⬇️

Mast Lowered Height 74.6inch

Description

Ultra-Light Straddle Stacker (CTD15R-EN-98) – Compact, Stable & Easy to Operate

Engineered for Efficient Stacking in Tight Spaces

The CTD15R-EN-98 Ultra-Light Straddle Stacker is designed for maximum maneuverability and smooth load handling. With a 3,300 lbs lifting capacity and 98" maximum lift height, it ensures reliable and precise stacking operations.

Key Features & Benefits

🎨 Family-Style Modular Design – Built with a unified, modern industrial aesthetic and steel covers for improved durability and visual consistency across product lines.

📦 Versatile for Tight Spaces – Designed for horizontal transport, order picking, and stacking, this compact vehicle replaces manual pallet jacks in truck loading, warehouse operations, retail, and interstitial handling.

🛞 Top-Mounted Drive Motor System – The horizontal drive wheel keeps the motor higher off the ground, protecting it from dust, water, and oil—improving motor performance and reducing maintenance.

🔧 Modular Layout with Easy Maintenance – Each core component is clearly positioned for maximum accessibility. The gear system uses liquid oil lubrication for quieter operation and longer lifespan.

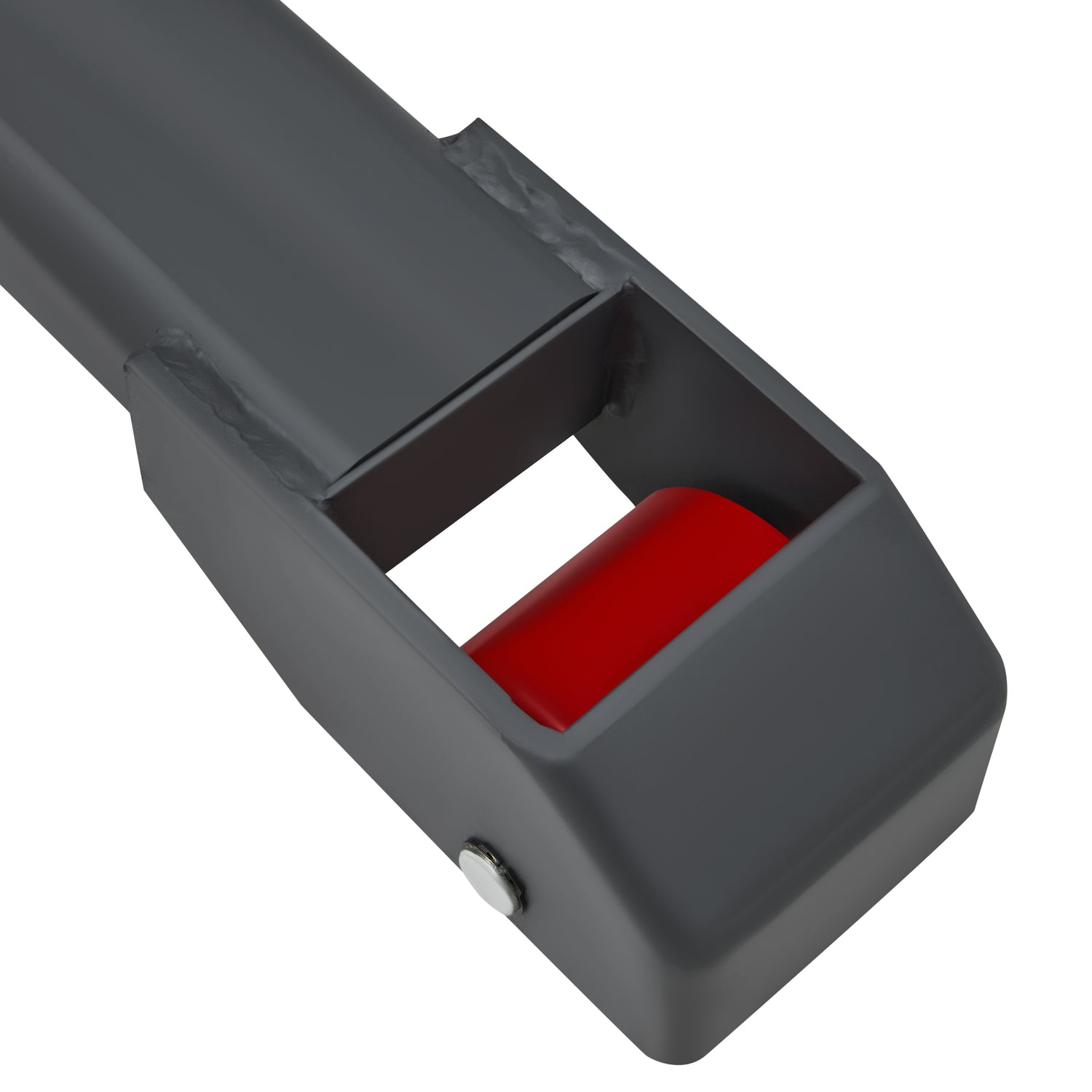

🧱 Stable 3-Point Chassis Structure – Center-mounted drive wheel with two front load wheels delivers excellent balance and avoids slipping, while the low-set battery and hydraulic system keep the center of gravity low for smoother handling.

🛠 Convenient Built-In Charger – Internal charging unit allows easy plug-and-play use at any standard outlet, no external equipment needed.

🛡 Integrated Safety Valve System – The lifting cylinder includes an explosion-proof valve to prevent free-fall if the hydraulic line fails, protecting operators during daily use.

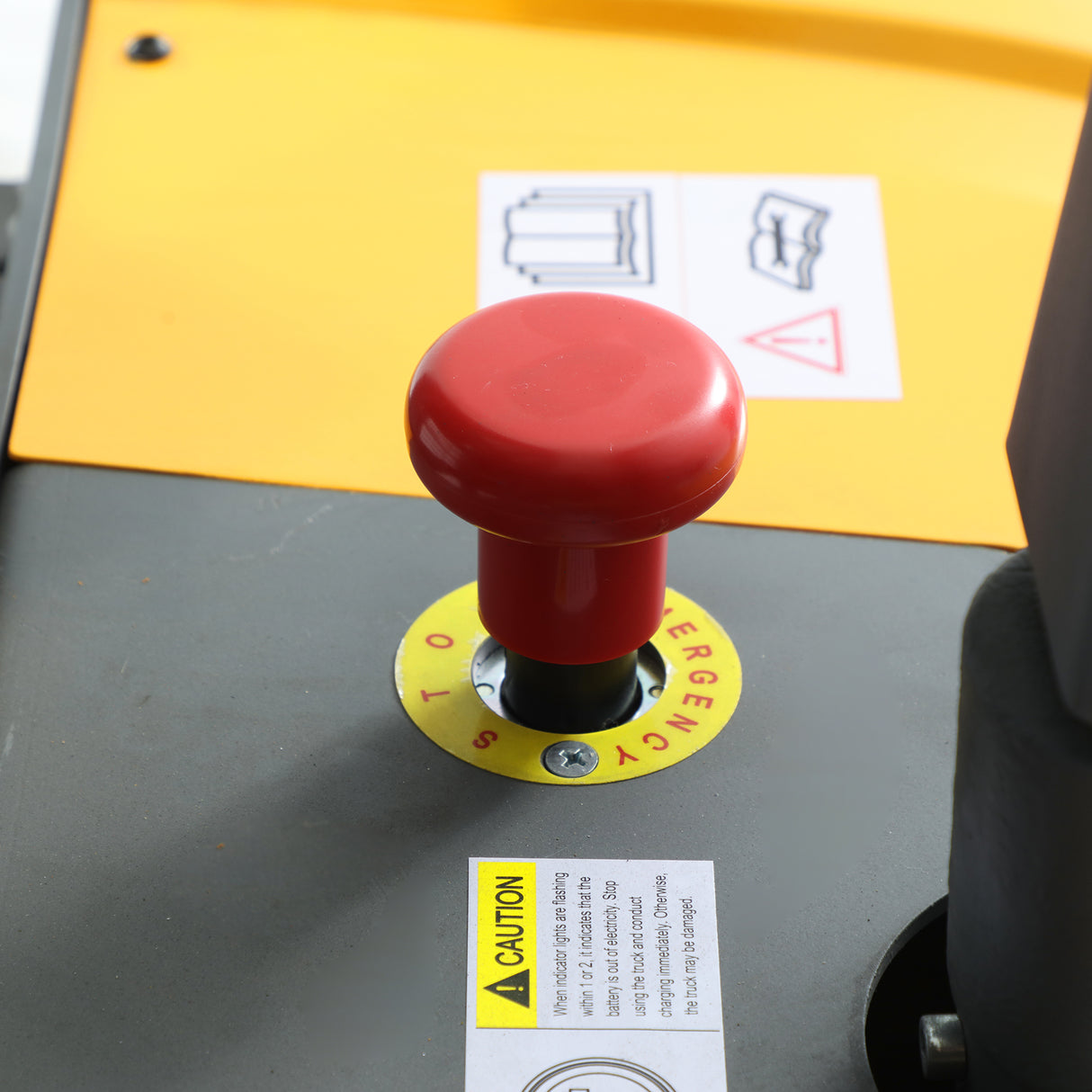

🎛 Comprehensive Control Handle – Features electric lift/lower buttons, horn, forward/reverse throttle, turtle speed mode, upright walking capability, and emergency reverse and brake buttons. Rubber-coated for comfort and cold protection.

🔋 Reliable Battery & Charging System –

24V / 0.65kW permanent magnet DC motor
Full charge time: ~10 hours
Dashboard shows real-time battery level, low-voltage lift lockout, and working hours

🧩 Flexible After-Sales Customization – Through the handheld controller module, service engineers can adjust drive speed and acceleration parameters to suit customer-specific operating conditions.

🧰 Full-System Protection – Wiring harness includes multiple fuses to safeguard each electrical component and ensure long-term reliability.

Who Is This Stacker For?

🏢 Warehouses & Distribution Centers – Improves workflow and maximizes space efficiency.

🛒 Retail & Supermarkets – Great for replenishing stock and managing inventory in small storage rooms.

📦 Loading & Unloading Zones – Balances goods flow for smooth logistics operations.

💼 Facility Operators & Small Businesses – A sustainable, cost-effective alternative to forklifts.

Why Choose the CTD15R-EN-98?

✔ Handles up to 3,300 lbs, providing stable and reliable lifting.

✔ Adjustable width (46.5"-62.3"), making it compatible with multiple pallet types.

✔ Optimized for tight spaces, requiring only an 88.3" aisle width.

✔ 24V / 105Ah battery with built-in charger, ensuring long-lasting performance with easy recharging.

✔ Lifts up to 98", making it perfect for vertical stacking in warehouses, retail spaces, and logistics centers.

Upgrade Your Material Handling Today

📞 Expert Support Available | 🚛 Fast Shipping

Reviews (0)

Specifications

Load Capacity & Dimensions

Capacity: 3,300 lbs
Load Center: 23.6"
Turning Radius: 52.9"
Aisle Width: 88.3"

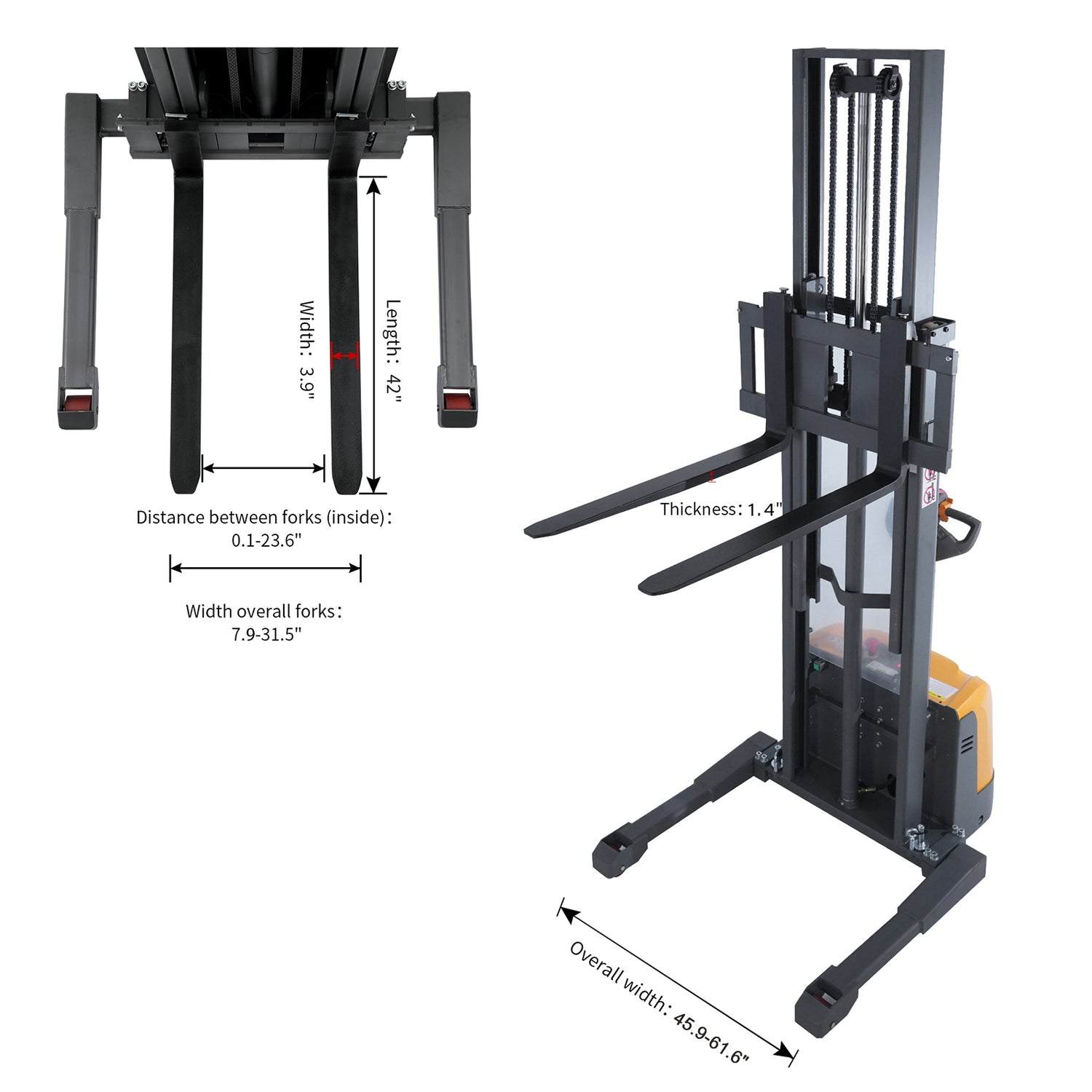

Fork Dimensions

Width Overall Forks: 7.8"-31.5"
Single Fork Width: 3.9"
Fork Length: 42"
Fork Thickness: 1.3"
Distance Between Forks (Inside): 0.1"-23.6"
Fork Lowered Height: 2.8"

Overall Dimensions

Overall Width: 46.5"-62.3"
Overall Length: 70.3"

Mast

Max. Lifting Height: 98"
Mast Extended Height: 123.8"
Mast Lowered Height: 74.6"

Battery & Charger

Battery Voltage/Capacity: 24V / 100Ah
Charger: 24V / 10A built-in

Speed & Performance

Travel Speed (Laden): 2.8 mph
Travel Speed (Unladen): 3.1 mph
Lifting Speed (Laden): 3.5 inch/s
Lifting Speed (Unladen): 5.9 inch/s
Lowering Speed (Laden): 5.9 inch/s
Lowering Speed (Unladen): 4.3 inch/0

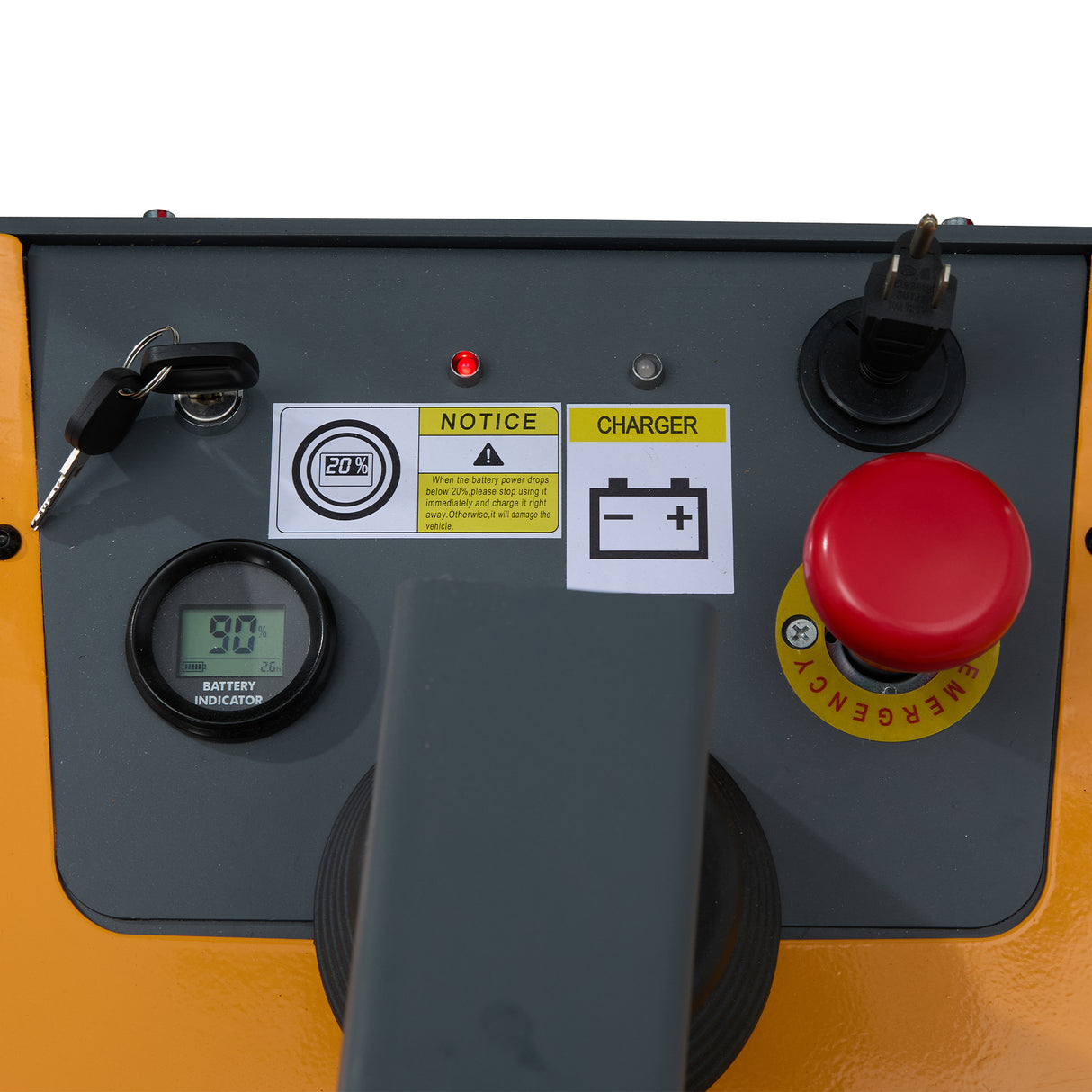

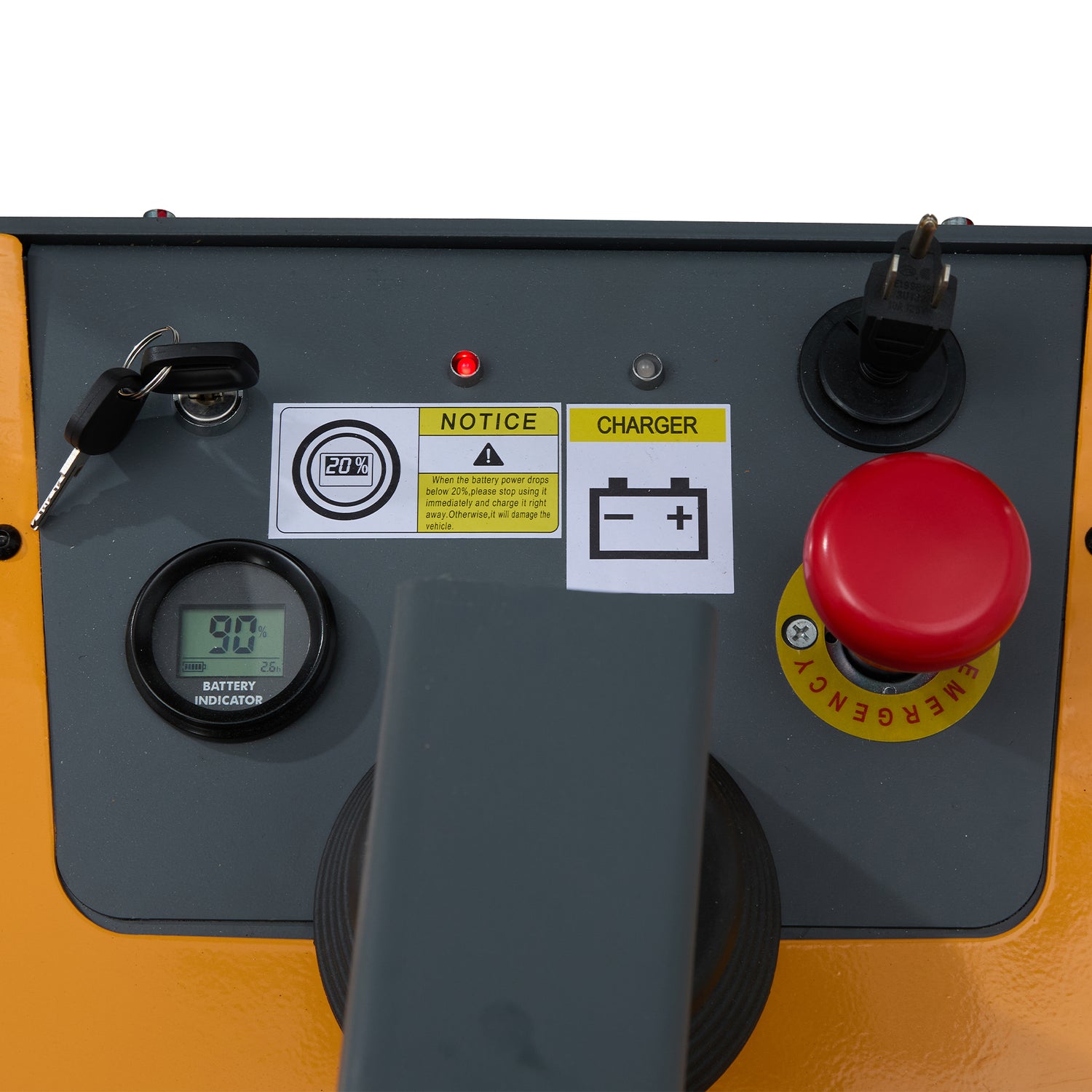

Control System Features

Equipped with lift/lower buttons, emergency brake and reverse, horn, crawl speed, and vertical walking. The rubber-coated grip provides comfort in all seasons, while forward/reverse controls ensure smooth, precise handling.
Modular Design and Efficient Layout

The modular design features well-organized components for easier maintenance and servicing. A built-in charger adds daily convenience, allowing efficient charging without removing the battery.
Magnetic Card Lock Activation

The magnetic card lock requires a swipe to start and logs each use by operator. Each card is user-specific for added security. Power can be shut off with another swipe or by pressing the emergency stop button.

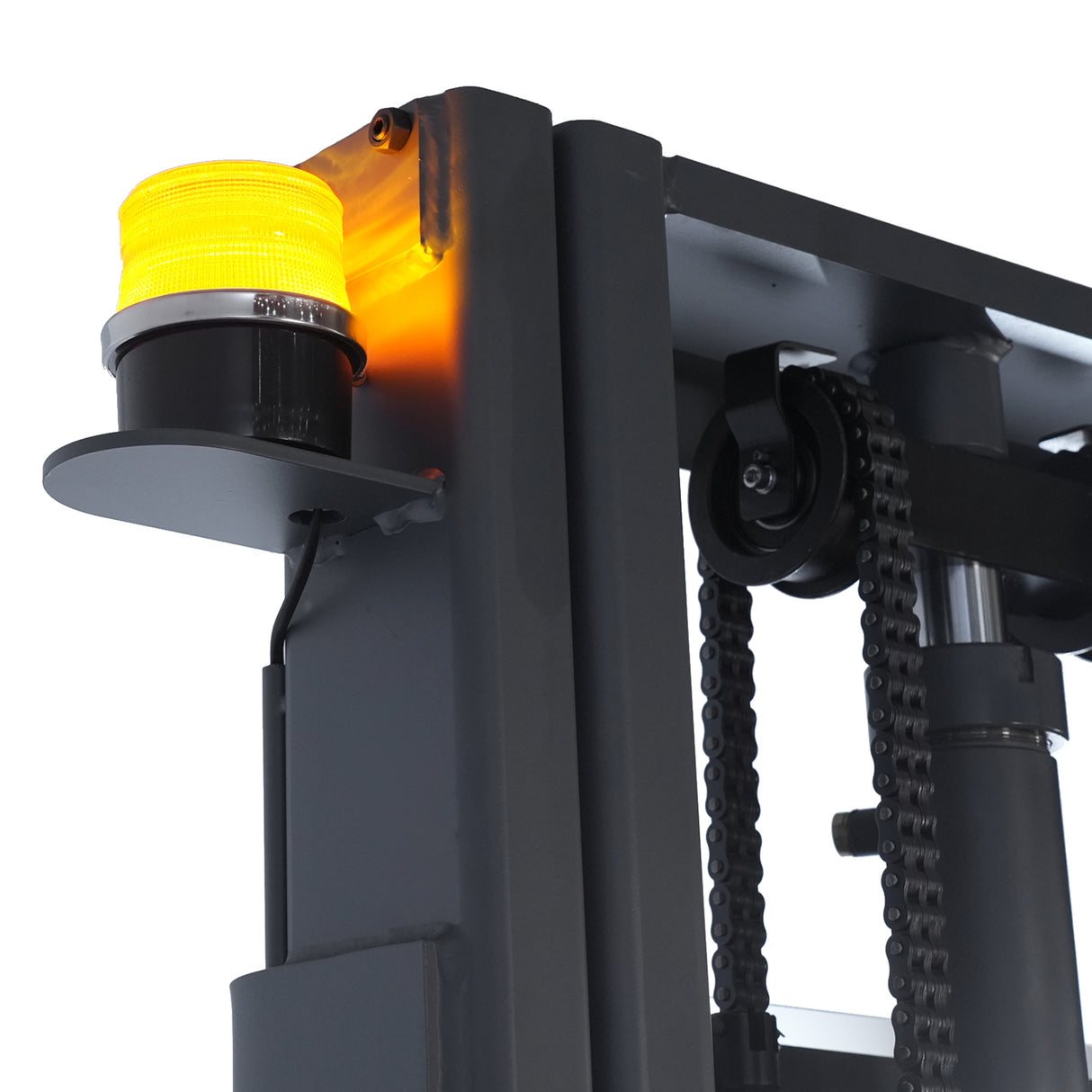

Flashing Warning Light for Safety

The warning light flashes during operation to alert nearby workers. This safety feature clearly signals that the stacker is in use, helping prevent accidents and improving overall workplace awareness.
