Xilin CQDH Series Electric Reach Stacker
Description
Description

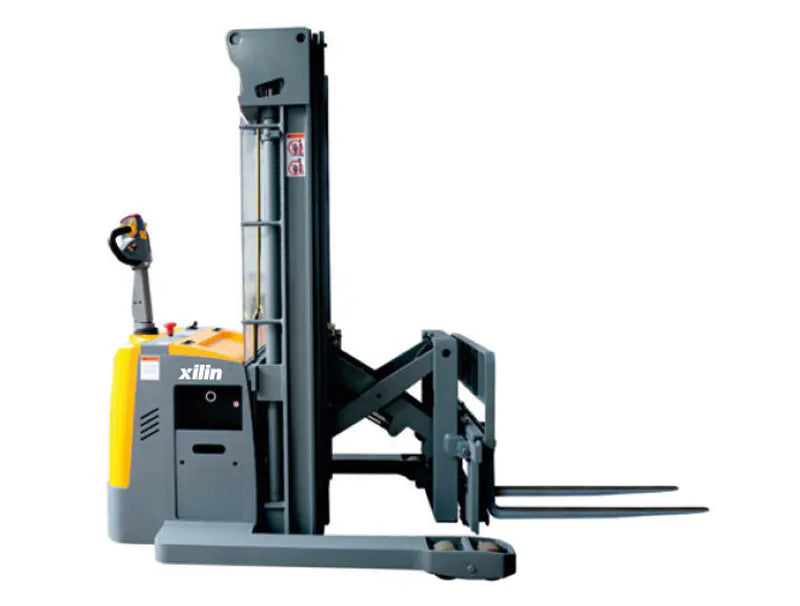

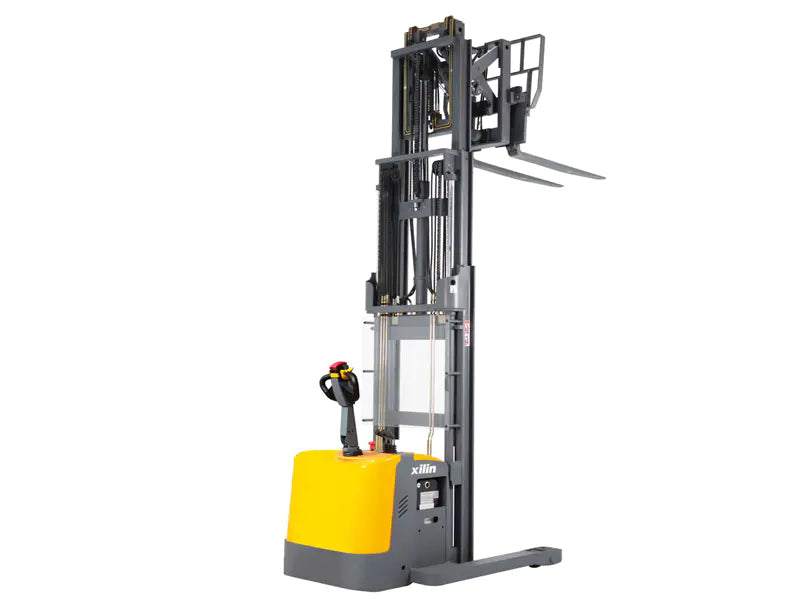

Xilin CQDH Series Electric Reach Stacker
Compact Design · Efficient Performance · Reliable Power
STRUCTURAL FEATURES
- Compact Walkie Design – Mid-handle operation ensures smooth and efficient maneuvering in narrow aisles.
- Low Center of Gravity – Enhanced stability and operator safety during lifting and travel.
- Sealed Motor Construction – Water- and dust-proof motor design extends service life for both braking and drive systems.
- Multi-Function LCD Display – Integrated BDI, hour meter, and fault code diagnostics for easy monitoring.
- Vertical Drive Wheel – Simplified maintenance and reduced turning radius.
- Modular Mast & Frame – Easy to disassemble, service, or replace individual components.
SAFETY & EFFICIENCY
- Advanced AC Drive Motor – Maintenance-free design with excellent ramp-start performance.
- German Frei Handle – Precise control over travel, lift/lower, reach, and tilt; optional sideshift available.
- Explosion-Proof Hydraulic Valves – Prevents accidental fork drop in case of hydraulic line failure.
- Auto Speed Reduction – Travel speed automatically decreases when lift height exceeds 70 in (1.8 m).
- Height Limiting Sensor – Prevents mast impact and ensures smooth operation.
- Low Voltage Protection – Preserves battery health; lifting stops automatically below 20% capacity.
- Optional EPS (Electric Power Steering) – Light and responsive steering with reliable control.
SERVICEABILITY
- Removable Platform & Guard Arms – Easy disassembly for quick maintenance access.
- Simplified Electrical System – Centralized electronic components reduce wiring complexity.
- Battery Protection Function – Automatic power cut-off when charging to ensure system safety.

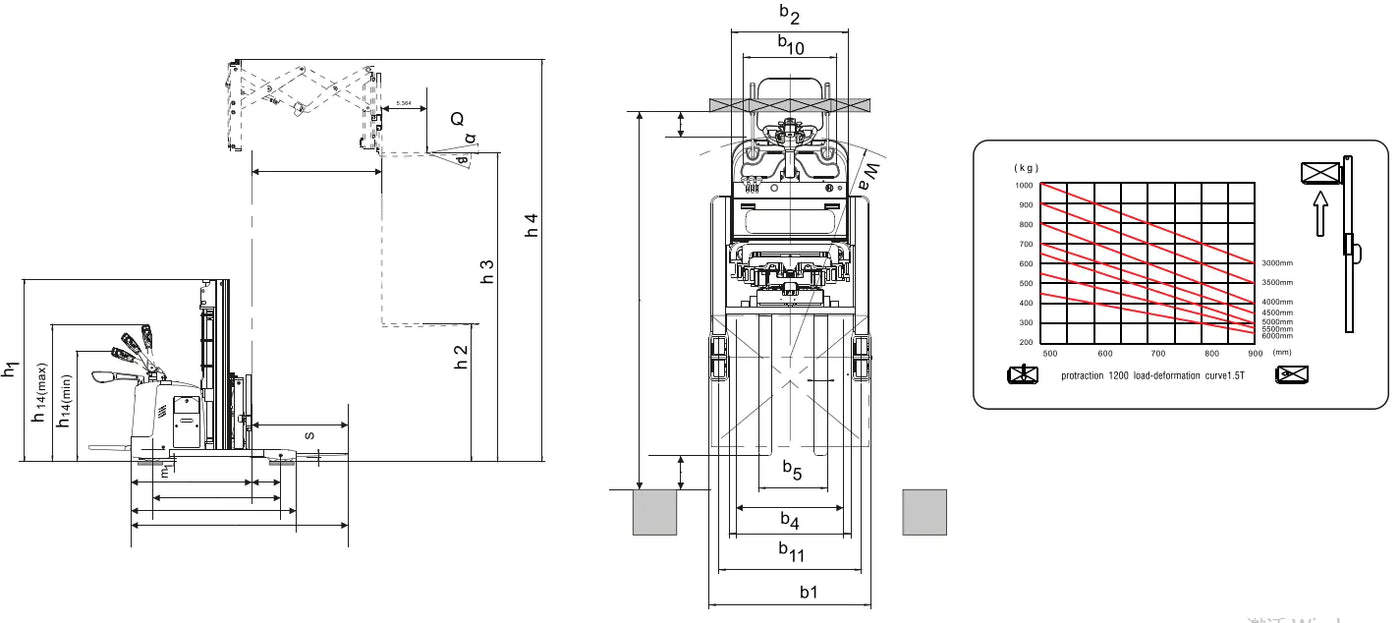

TECHNICAL SPECIFICATIONS
| Parameter | CQDH15A-III (Single Scissor) | CQDH20A-III (Single Scissor) | CQDH20A-III (Double Scissor) |
|---|---|---|---|
| Drive Type | Electric | Electric | Electric |
| Operator Type | Standing | Standing | Standing |
| Rated Load Capacity | 3,300 lb (1,500 kg) (with sideshift: 2,980 lb / 1,350 kg) |
4,400 lb (2,000 kg) | 2,200 lb (1,000 kg) |
| Load Center Distance | 19.7 in (500 mm) | 19.7 in (500 mm) | 19.7 in (500 mm) |
| Wheelbase | 54.6 in (1,388 mm) | 57.9 in (1,471 mm) | 57.9 in (1,471 mm) |
| Tire Type | Polyurethane | Polyurethane | Polyurethane |
| Mast Lowered Height | 85.8–98.4 in (2,179–2,499 mm) | Same | Same |
| Lift Height Options | 177–216 in (4,500–5,500 mm) | Same | Same |
| Max. Mast Extended Height | 212–251 in (5,381–6,381 mm) | Same | 218–257 in (5,535–6,535 mm) |
| Overall Length | 93 in (2,360 mm) | 97 in (2,465 mm) | 107 in (2,710 mm) |
| Overall Width | 35.3 in (896 mm) | Same | Same |
| Turning Radius | 61.4 in (1,560 mm) | 68.6 in (1,743 mm) | 72.6 in (1,843 mm) |
| Travel Speed (Loaded/Unloaded) | 3.8 mph / 3.8 mph (6.1 km/h) | Same | Same |
| Lift Speed (Loaded/Unloaded) | 0.30 / 0.39 ft/s (0.09 / 0.12 m/s) | Same | Same |
| Drive Motor Power | 2.0 HP (1.5 kW, AC) | 3.0 HP (2.2 kW, AC) | 3.0 HP (2.2 kW, AC) |
| Lift Motor Power | 6.0 HP (4.5 kW) | Same | Same |
| Battery Voltage / Capacity | 24V / 320Ah | 24V / 350–400Ah | 24V / 350–400Ah |
| Service Brake | Electromagnetic | Electromagnetic | Electromagnetic |
| Noise Level | ≤ 75 dB(A) | Same | Same |
RECOMMENDED APPLICATIONS
- Efficient stacking in narrow aisles
- High lift capability with low maintenance
- Reliable operation and long service life
