XILIN | SKU: SDJA1000-I

Manual Pallet Stacker 2200lbs Capacity 63" Lift fixed legs SDJA1000-I

$1,850.00 ~~$1,999.00~~

🚚 U.S. Shipping Included

Pickup available at California

Usually ready in 2-4 days

📦 In stock. Ships in 24–48 hours.
🚛 Free lift gate delivery. Delivered in 5–7 business days.
💲 Final price. No extra shipping cost or hidden fees.
🛡 1-year warranty included. Full support available by video, email, or phone.

1 Year Warranty

At Xilinamerica.com, we proudly back all of our trucks with a one-year limited warranty, excluding wear-and-tear parts and damages caused by misuse. Our warranty period starts from the date of receipt of the item.

Warranty Periods:

1 Year on all trucks (excluding easy-wearing parts and damages caused by human factors)
3 Months on spare parts
6 Months on batteries

Warranty Details:

Within 30 days of receipt: If there are any quality issues, we will provide free spare parts for replacement and remote technical support. If our after-sales team determines that the truck needs to be returned for repair, we will cover all round-trip shipping costs.
Between 30 days and 1 year of receipt: If any quality issues arise, we offer free spare parts and remote technical guidance. If a return for repair is required, the customer is responsible for half of the shipping costs.
After 1 year of receipt: For any quality issues, we will provide free technical support. However, replacement parts will be charged, and if a return for repair is necessary, the customer will be responsible for both the maintenance fees and shipping costs, which will be quoted based on the situation.

If you encounter any issues during the use of the truck, feel free to contact us at support@xilin.com. Our team is ready to assist you.

Free Shipping

At XilinAmerica.com, we offer fast and free shipping on most products within the contiguous United States. Please note that shipping to Hawaii, Alaska, and Puerto Rico is not included in our free shipping offer.

🚚 Free Shipping Conditions
Our FREE SHIPPING offer applies to deliveries made to commercial addresses or locations with self-unloading capability. If additional services are required—such as Lift Gate Service, Residential Delivery, or Phone Call Service—please specify at the time of ordering, as these services will incur additional fees. For more details, contact info@xilinamerica.com.

⏳ Lead Time & Delivery
Once payment is received, orders are typically processed and shipped within 48 hours, excluding holidays. Delivery time varies depending on the shipping origin and destination. While we strive for timely delivery, delays may occur, and all estimated transit times are approximate.

📦 Shipping Damage
All products are carefully inspected and securely packed before shipping. Upon delivery, please check that all packages are in good condition before signing for receipt. If there is visible damage, do not accept the delivery and refuse the shipment. Contact our sales team immediately to arrange for a replacement.

❌ Order Cancellations
Orders can be canceled before they are shipped. If an order has already been dispatched, both the outgoing and return shipping costs will be charged. Please note that a missing tracking update does not necessarily mean the item hasn’t shipped. To request a cancellation, contact us as soon as possible via phone or email during business hours. Cancellations are only valid once confirmed in writing.

✉️ Address Corrections & Changes
For any shipping address changes or corrections, reach out to us immediately to avoid additional costs.

For further details, feel free to contact us at info@xilinamerica.com.

Why Xilin

Why Choose Xilin Material Handling LLC?

The Trusted Expert in Material Handling Equipment

Xilin Material Handling LLC is a leading manufacturer specializing in the production of material handling equipment. Since our establishment, we have dedicated ourselves to creating high-quality, professional, and reliable solutions for industries worldwide. When you choose Xilin, you’re partnering with a company that values innovation, craftsmanship, and a customer-first approach.

Unmatched Product Excellence: Electric Forklifts

Our electric forklift series is at the forefront of our product range, setting new standards in material handling. Designed for optimal performance and efficiency, our electric forklifts provide:

Exceptional Performance: Engineered for a variety of material handling tasks, ensuring smooth and stable operations.
Cost-Effective Solutions: Providing high-quality equipment at competitive prices, giving you the best value for your investment.
Durability You Can Count On: Built to last with compliance to international standards, ensuring long-term reliability in the toughest environments.

Efficient Logistics and Comprehensive After-Sales Support

Fast Delivery: With strategically located warehouses, Xilin ensures prompt delivery to meet the needs of our global customers.
Expert After-Sales Service: Our dedicated after-sales team is here to assist you with everything from installation and training to regular maintenance, ensuring seamless operations and helping you overcome any challenges in your material handling needs.

Confidence in Every Partnership

At Xilin, we prioritize your success. By choosing us, you not only get access to top-tier material handling equipment but also benefit from our full range of services, designed to give you peace of mind throughout the lifecycle of your equipment. Trust Xilin for reliability, performance, and long-term value.

Choose Xilin, Choose Excellence

With Xilin Material Handling LLC, you are assured of high-quality products, dependable support, and a commitment to your business’s success. Let us help you optimize your material handling processes for greater efficiency and productivity.

For more information or inquiries, don't hesitate to contact us!

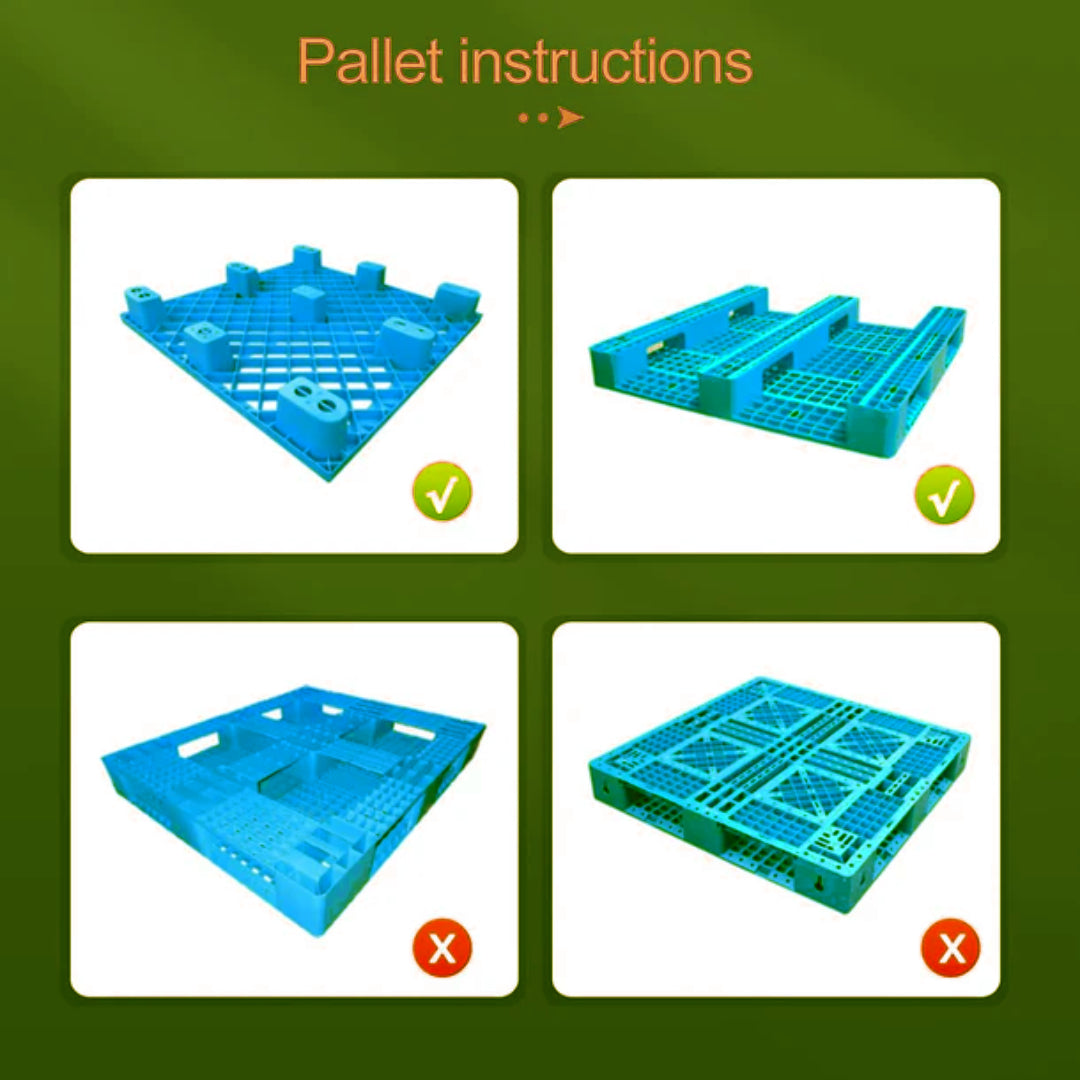

📦 For Open-Bottom Pallets Only

Fixed-leg design—simple, stable, and cost-effective.

🛠️ High-Strength Steel Frame

Strong welded mast for safe daily lifting tasks.

👟 Manual or Foot Pedal Lift

Easy-to-use pump system with less effort and more control.

📏 Compact & Easy to Maneuver

Fits tight warehouse spaces and retail stockrooms.

Description

SDJA1000-I Manual Hydraulic Stacker

The SDJA1000-I is a heavy-duty manual pallet stacker with fixed legs, offering a 2,200 lb load capacity and 63" lift height. Built for industrial, retail, and logistics operations, it features a reinforced steel mast, dual-mode lifting (hand and foot), and excellent maneuverability for precise stacking tasks.

💡 Key Features & Benefits

🔥 Non-Electric & Spark-Free – Safe for use in flammable or spark-restricted environments.
🎯 Stacking + Transport – Combines lifting and short-range movement into one compact unit.
🏗 Welded Steel Mast – Rigid structure with enhanced lifting durability and long-term reliability.
🎛 Hand & Foot Lifting – Flexible lift operation through pedal or handle for operator comfort.
📦 Forks Over Support Legs – Useful for narrow-base goods or compact pallet handling.
🛞 Compact Maneuverability – Easily operates in tight spaces with a small turning radius.
🧍 Safety Guard Shield – Steel mesh guard protects the operator from moving parts.
🛑 Rear Brake Wheels – Dual swivel casters with brakes improve safety and control.
⚖ Safe Load Centering – Keep load centered between forks to avoid instability.

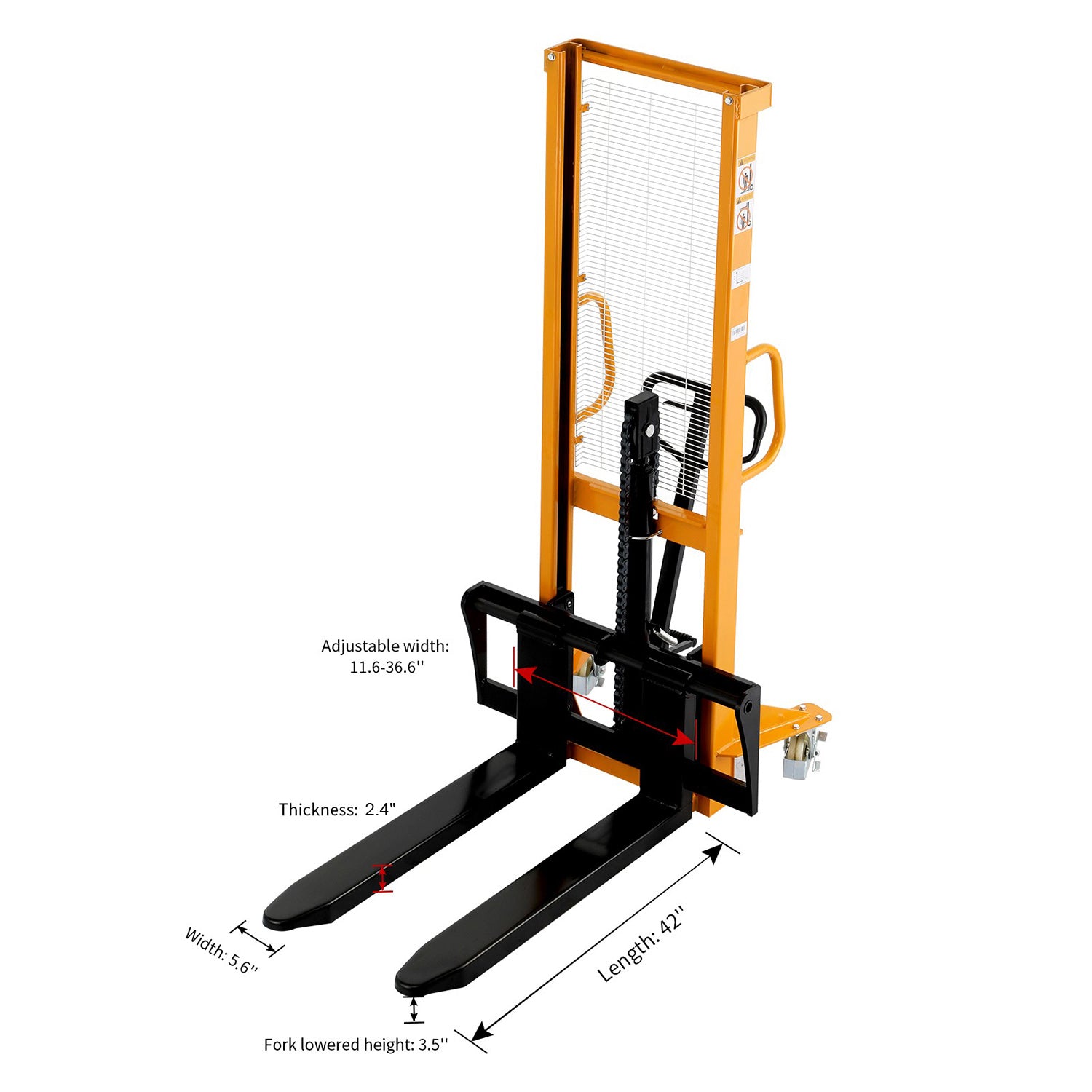

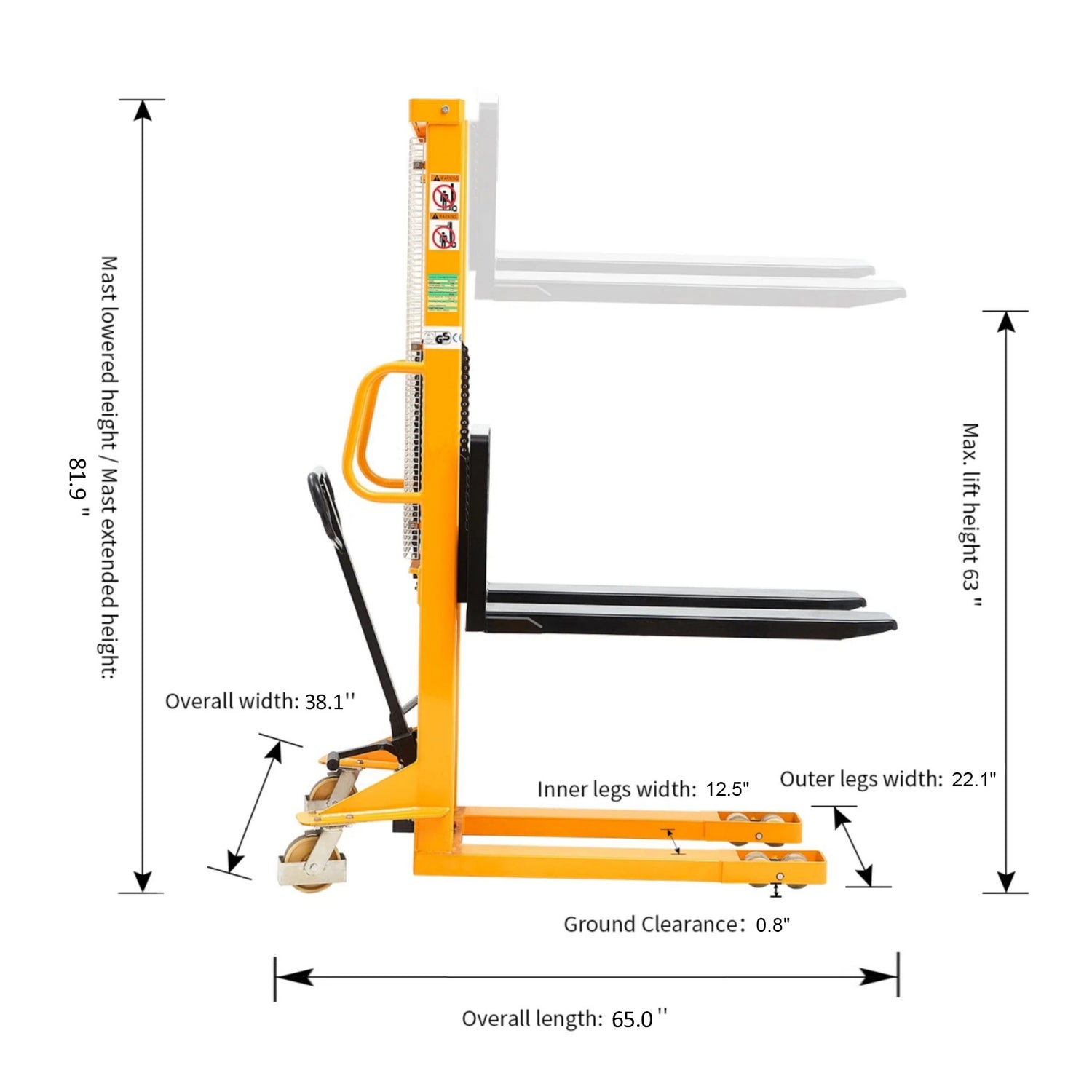

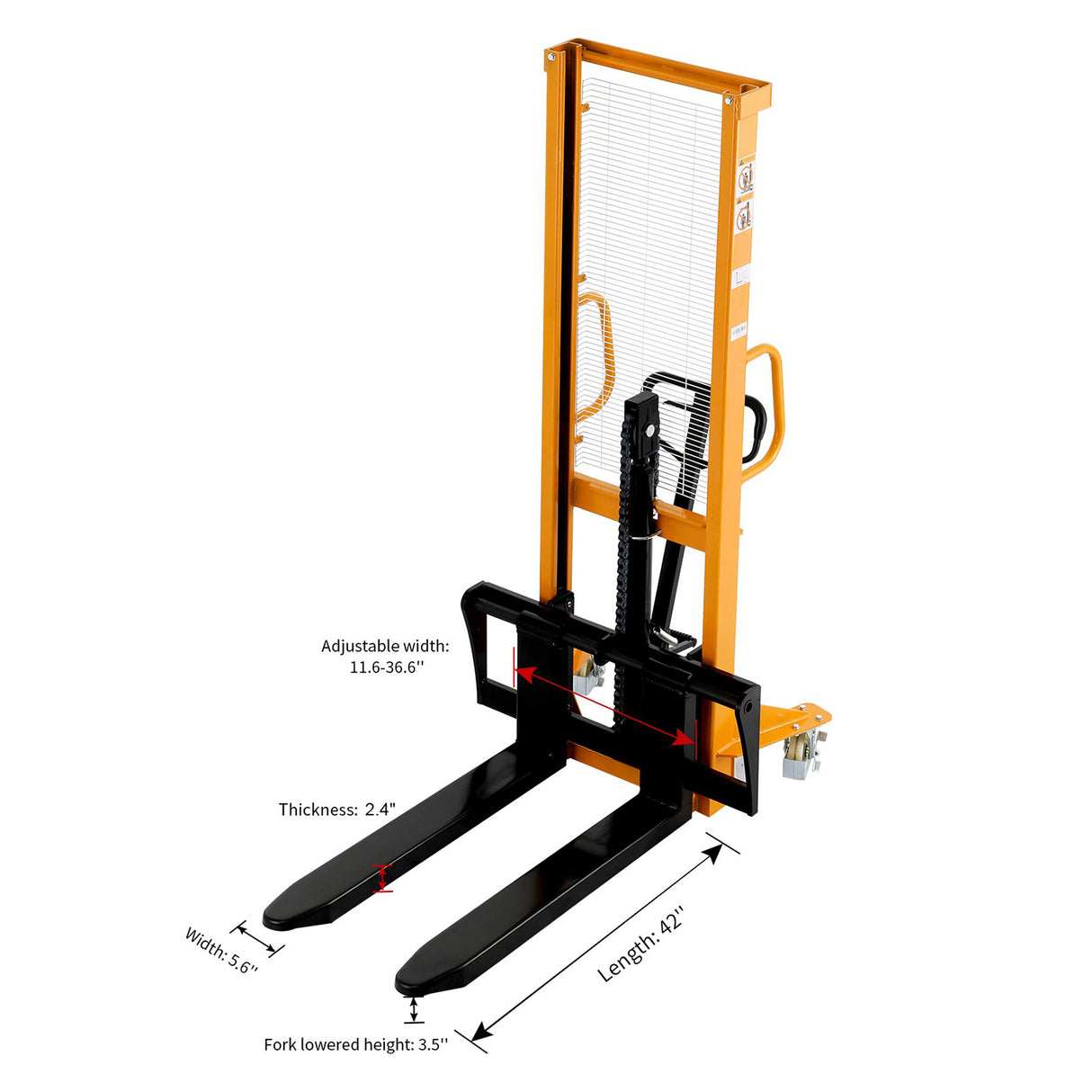

📊 Specifications

📦 Load Capacity	2,200 lbs
📐 Load Center	19.7"
↪️ Turning Radius	48.6"
📏 Aisle Width	84.5"
🛻 Fork Dimensions	42" L × 11.6–36.6" W × 2.4" Thick
📏 Inside Fork Width	0.1"–25"
⬇️ Fork Lowered Height	3.5"
📐 Overall Width	37.6"
📐 Overall Length	66.1"
🔺 Max Lifting Height	63"
📏 Mast Height (Lowered/Extended)	82.3" / 82.3"
🧷 Wheel Type	Dual Wheels
🔩 Fork Material	Stamped Forks

📦 What You’ll Receive

Fully assembled manual stacker (protected with film & straps)
Branded stickers, quick-start guide, and QR code for usage tutorial
Delivery note with model and serial number

📬 After You Order

Once your order is confirmed, we will send a confirmation email with your order details.
When your order ships, you'll receive another email with tracking information included.
The stacker arrives fully assembled by truck—no installation or charging needed.
If you have any questions, feel free to contact us — our team is here to help.

div style="font-family: Arial, sans-serif; font-size: 16px; margin-top: 30px;">

📄 Downloads

Reviews (0)

Standard Mast and Fork Dimensions

Equipped with a standard mast and fork width, this stacker is compatible with most U.S. pallets. It ensures smooth stacking and efficient handling across a wide range of warehouse and industrial tasks.
Fixed Forks for Enhanced Stability

The truck features a fixed fork design that provides greater structural stability during lifting and transport. This setup ensures safer handling of loads and reduces the risk of fork misalignment.
Dual Lifting Modes: Hand and Foot

The stacker features both hand and foot pedal lifting options, reducing operator fatigue during long shifts. This flexible design improves comfort and boosts overall work efficiency in daily operations.
Compact Body for Versatile Applications

The truck features a lightweight and compact structure with a small turning radius for easy handling. Its comfortable operation makes it ideal for mold workshops, logistics, warehouses, docks, and supermarkets.

🔎 Designed for Daily Use, Backed by Real Experience

🔧 Reinforced Manual Stacker for Heavy Loads

The SDJA1000-I is a manually operated hydraulic stacker rated for 2,200 lbs with a 63" maximum lift height. Featuring a fixed-leg structure, heavy-duty steel mast, and dual-wheel support design, this stacker is ideal for industrial and warehouse use. It offers reliable vertical lifting for skids, bins, and open-bottom pallets.

🛠️ Two-Way Hydraulic Lift Operation

Operators can raise the forks using either the foot pedal or the hand lever. The hydraulic pump is equipped with an overload relief valve and a return valve for smooth lowering. The piston-cylinder structure and reinforced chains ensure stable and consistent lifting performance over time.

📦 Fully Assembled & Securely Packaged

Each SDJA1000-I unit is shipped fully assembled and protected with stretch wrap and strapping. The delivery includes:

1× SDJA1000-I manual stacker
1× Printed operation manual
1× Quality certificate
1× Packing list

No installation or setup is required prior to use.

🧯 Safety Guidelines

Use only on solid, level indoor floors
Do not exceed rated capacity or operate with unstable loads
Use rear brake when lifting or parking
Lower forks completely before moving the unit
Never allow standing under the forks while raised

Always use the return valve gently to lower the forks under control.

🛡️ Warranty & Support

The SDJA1000-I comes with a 1-year limited warranty on the frame and hydraulic components. Parts damaged through misuse or wear are not covered.
