XILIN  |  SKU: SDJAS1016

Hydraulic Hand Stacker with Straddle Legs 2200lbs Capacity 63" Lift Height SDJAS1016

$1,770.00 $1,870.00
Shipping calculated at checkout.

Shipping Fee: $280 flat rate across the continental U.S.


✅ Xilin® | Professional manufacturer since 1985
📦 In stock in U.S. warehouse | Ships in 1–2 business days
🚚 Delivery in 3–7 business days with liftgate service
🛠️ Lifetime technical support + spare parts available
✔️ Built for daily warehouse, retail, and logistics use

1 Year Warranty

At Xilinamerica.com, we proudly back all of our trucks with a one-year limited warranty, excluding wear-and-tear parts and damages caused by misuse. Our warranty period starts from the date of receipt of the item.

Warranty Periods:

  • 1 Year on all trucks (excluding easy-wearing parts and damages caused by human factors)
  • 3 Months on spare parts
  • 6 Months on batteries

Warranty Details:

  1. Within 30 days of receipt: If there are any quality issues, we will provide free spare parts for replacement and remote technical support. If our after-sales team determines that the truck needs to be returned for repair, we will cover all round-trip shipping costs.
  2. Between 30 days and 1 year of receipt: If any quality issues arise, we offer free spare parts and remote technical guidance. If a return for repair is required, the customer is responsible for half of the shipping costs.
  3. After 1 year of receipt: For any quality issues, we will provide free technical support. However, replacement parts will be charged, and if a return for repair is necessary, the customer will be responsible for both the maintenance fees and shipping costs, which will be quoted based on the situation.

If you encounter any issues during the use of the truck, feel free to contact us at support@xilin.com. Our team is ready to assist you.

Shipping Policy

At XilinAmerica.com, shipping fees are calculated separately and displayed at checkout. Most items are shipped from our U.S. warehouse within 48 hours of order confirmation.

📦 Shipping Coverage
We currently ship to all 48 contiguous U.S. states. For deliveries to Hawaii, Alaska, and Puerto Rico, please contact us for a custom quote before placing your order.

⏳ Lead Time & Delivery
Orders are typically processed and shipped within 1–2 business days (excluding weekends and holidays). Estimated delivery times vary by destination and shipping method.

📋 Shipping Rates
Shipping costs are based on product type, weight, and delivery location. These rates are visible either on the product page or during checkout. For bulk orders or custom shipping needs, contact info@xilinamerica.com for assistance.

⚠️ Shipping Damage
All items are carefully inspected and packed before shipment. Upon delivery, please inspect your order before signing. If damage is visible, **refuse the shipment** and contact us immediately for support.

❌ Order Cancellations
Orders may be canceled before shipment. If the order has already been dispatched, shipping fees (both ways) will apply. A tracking delay does not always mean the product hasn’t shipped.

✉️ Address Changes
If you need to change the delivery address after placing an order, please contact us immediately. Additional charges may apply if the item has already shipped.

For further questions, reach out to: **info@xilinamerica.com**

Why Xilin

Why Choose Xilin Material Handling LLC?

The Trusted Expert in Material Handling Equipment

Xilin Material Handling LLC is a leading manufacturer specializing in the production of material handling equipment. Since our establishment, we have dedicated ourselves to creating high-quality, professional, and reliable solutions for industries worldwide. When you choose Xilin, you’re partnering with a company that values innovation, craftsmanship, and a customer-first approach.

Unmatched Product Excellence: Electric Forklifts

Our electric forklift series is at the forefront of our product range, setting new standards in material handling. Designed for optimal performance and efficiency, our electric forklifts provide:

  • Exceptional Performance: Engineered for a variety of material handling tasks, ensuring smooth and stable operations.
  • Cost-Effective Solutions: Providing high-quality equipment at competitive prices, giving you the best value for your investment.
  • Durability You Can Count On: Built to last with compliance to international standards, ensuring long-term reliability in the toughest environments.

Efficient Logistics and Comprehensive After-Sales Support

  • Fast Delivery: With strategically located warehouses, Xilin ensures prompt delivery to meet the needs of our global customers.
  • Expert After-Sales Service: Our dedicated after-sales team is here to assist you with everything from installation and training to regular maintenance, ensuring seamless operations and helping you overcome any challenges in your material handling needs.

Confidence in Every Partnership

At Xilin, we prioritize your success. By choosing us, you not only get access to top-tier material handling equipment but also benefit from our full range of services, designed to give you peace of mind throughout the lifecycle of your equipment. Trust Xilin for reliability, performance, and long-term value.

Choose Xilin, Choose Excellence

With Xilin Material Handling LLC, you are assured of high-quality products, dependable support, and a commitment to your business’s success. Let us help you optimize your material handling processes for greater efficiency and productivity.

For more information or inquiries, don't hesitate to contact us!

⚖️ Adjustable Forks & Straddle Legs

Works with most pallet styles—including closed-bottom pallets.

🛠️ Reinforced Steel Mast

High-strength welded frame ensures safe and durable lifting.

👟 Dual Lift: Hand or Foot

Switch between hand or foot pedal for less fatigue and higher efficiency.

📏 Compact & Easy to Use

Slim, agile frame fits in tight aisles and small storage areas.

Description

SDJAS1016 Manual Hydraulic Stacker

The SDJAS1016 is a durable manual stacker designed for safe, efficient lifting in warehouses, factories, docks, and retail storage. With a 2,200 lb capacity and 63" lift height, it features straddle legs, dual lifting modes (hand or foot), and a compact design for smooth operation in tight spaces.

💡 Key Features & Benefits

  • Spark-Free Manual Operation – No electricity, safe for flammable material handling environments.
  • Dual Functionality – Ideal for high-lift stacking and short-distance transport tasks.
  • Reinforced Steel Mast – Welded steel construction ensures long-lasting strength and reliability.
  • Hand & Foot Lifting – Dual-mode hydraulic control reduces operator fatigue and boosts flexibility.
  • Forks Over Support Legs – Suitable for narrow or non-standard loads with better ground clearance.
  • Compact Turning Radius – Easy to maneuver in small warehouse spaces and loading areas.
  • Operator Safety Guard – Protective steel mesh screen keeps the operator safe during lifts.
  • Brake-Equipped Casters – Rear wheels come with brakes for added stability while lifting or parking.
  • Safe Load Center Reminder – Operators should keep loads centered within the forks for safe operation.

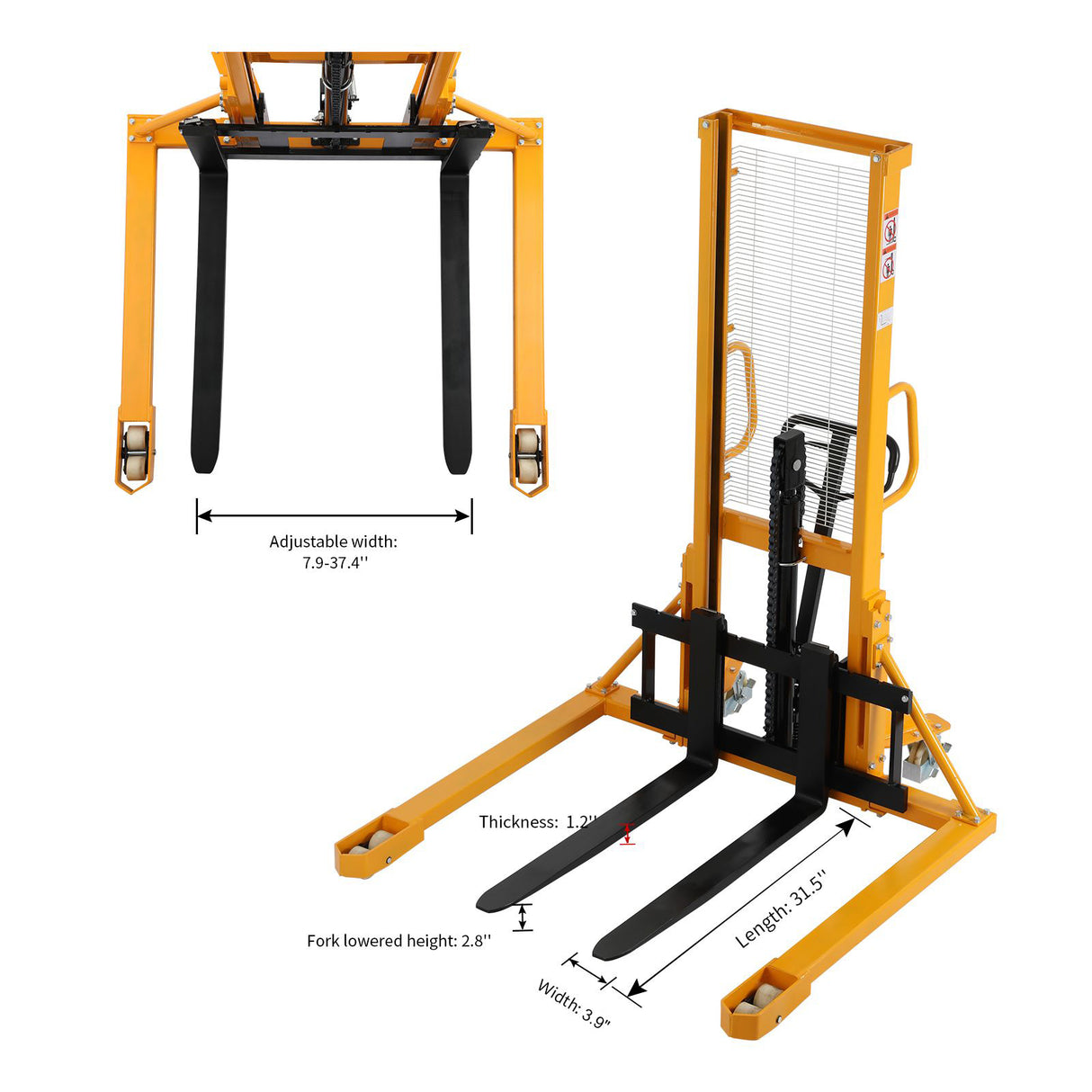

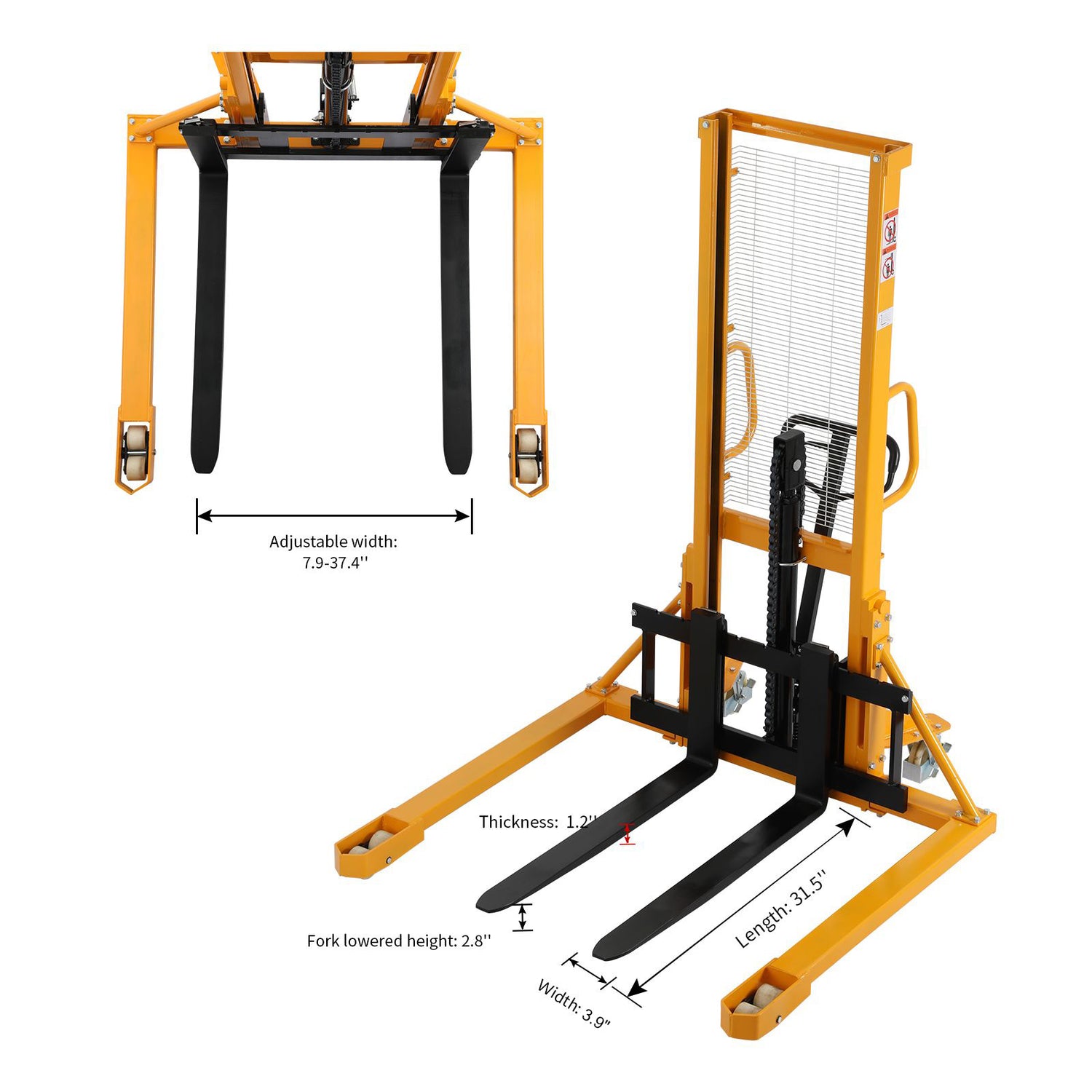

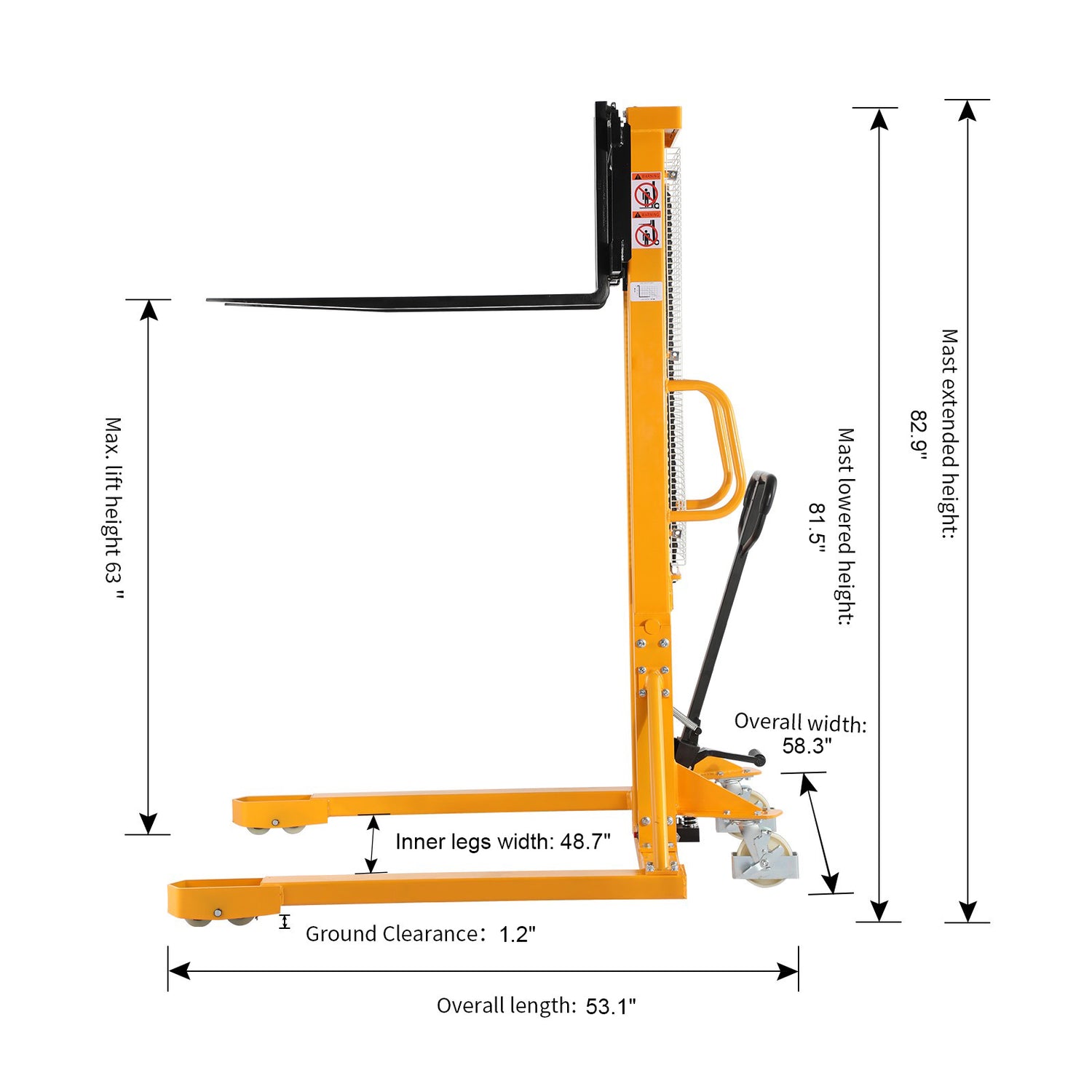

📊 Specifications

 Load Capacity 2,200 lbs
 Load Center 19.7"
 Turning Radius 47.2"
 Aisle Width 77.7"
 Fork Dimensions 31.5" L × 7.9–37.4" W × 1.2" Thick
 Inside Fork Width 0.1"–29.5"
 Fork Lowered Height 2.8"
 Overall Width 58"
 Overall Length 51.2"
 Max Lifting Height 63"
 Mast Height (Lowered/Extended) 80.7" / 84.8"
 Wheel Type Dual Wheels
 Fork Material Forged Forks
 Service Weight 660 lbs

Reviews (0)

PRODUCT HIGHLIGHTS

  • Standard Mast and Fork Dimensions

    Equipped with a standard mast and fork width, this stacker is compatible with most U.S. pallets. It ensures smooth stacking and efficient handling across a wide range of warehouse and industrial tasks.

  • Adjustable Forks for Versatile Use

    The adjustable fork width adapts to different pallet sizes and working conditions. This flexible design expands the range of applications, making the truck suitable for various warehouse and industrial needs.

  • Dual Lifting Modes: Hand and Foot

    The stacker features both hand and foot pedal lifting options, reducing operator fatigue during long shifts. This flexible design improves comfort and boosts overall work efficiency in daily operations.

  • Compact Body for Versatile Applications

    The truck features a lightweight and compact structure with a small turning radius for easy handling. Its comfortable operation makes it ideal for mold workshops, logistics, warehouses, docks, and supermarkets.

🔎 Designed for Daily Use, Backed by Real Experience


🔧 Reliable Manual Stacker for Daily Pallet Handling
The SDJAS1016 is a heavy-duty manual stacker with a 2,200 lbs load capacity and a lift height of 63". Its straddle leg design supports closed-bottom pallets and ensures stability on uneven surfaces. Reinforced steel mast, compact body, and wide wheelbase make it suitable for light warehouse lifting and tight working zones.

🛠 Dual-Mode Hydraulic Lift System
The unit allows lifting by both foot pedal and hand lever. Its sealed hydraulic system includes an overload protection valve and adjustable descent speed. No power required — just reliable manual control that minimizes fatigue and delivers stable performance.

📋 Maintenance Tips
  • Lubricate lift chains, wheel axles, and pedal joints every month
  • Inspect hydraulic oil level every 3–6 months (refill if needed)
  • Tighten nuts, bolts, and handles after regular use
  • Clean the mast and base frame to prevent rust buildup
Regular checks take under 5 minutes and help extend service life.

🧯 Safety Precautions
  • Only use on level and solid flooring
  • Engage the parking brake before lifting
  • Do not move the unit with the forks raised
  • Never exceed the rated load capacity
  • Do not operate under raised forks
The descent valve ensures slow and safe lowering at all times.


📦 What You’ll Receive

  • ✅ Fully assembled SDJAS1016 manual stacker (wrapped and strapped)
  • ✅ Printed user manual
  • ✅ Quality inspection certificate
  • ✅ Packing list

🛠 Handle Installation
No installation required. The unit is shipped fully assembled and ready to use out of the crate.


🚚 Shipping, Delivery & Warranty

  • 📦 Ships within 48 hours from U.S. warehouses in California, Georgia, and Illinois
  • 🚛 Freight delivery with liftgate included — curbside only
  • 📍 Local pickup available by appointment
  • 🛡 Includes a 1-year limited warranty on hydraulic and structural parts
  • ⚙️ Full parts support available — most components in stock at U.S. warehouse
  • ✉️ Tracking info will be emailed upon shipment
  • 📞 Carrier will contact you to schedule delivery time
  • 🔍 Please inspect your unit before signing the delivery receipt

Need assistance? Email support@xilin.com for lifetime technical help. Most replacement parts are ready to ship within 24 hours.

Still exploring your options?

We carry a full range of material handling equipment — including manual stackers, electric pallet jacks, forklifts, order pickers, tow tractors, and lift tables. Every model on our site is available for sale.

Not sure which model fits your needs?

Our team can help you choose the right equipment based on your pallet type, warehouse layout, and lifting goals.

✅ Visit our U.S. warehouse to view machines in person, or contact us to request a factory-direct customization.

📞 Email: info@xilinamerica.com

Frequently Asked Questions

Product

What comes in the Truck box?

When you receive your equipment, everything is packed for easy setup, with attention to detail. Here’s what you can expect to find:

  • Your Machine: Secured with green packing straps.
  • Branding & Labels: Stickers with brand logo, installation video QR code, and a "Delivery Attention" sticker.
  • Accessories:
  • Documentation: Photos of your machine, model, serial number barcode, and brand logo for reference.
  • Packaging: The machine is wrapped with stretch film and accompanied by the BOL (Bill of Lading) for easy identification.

Important Notes:

  • In cases where pallets are not used, the machine is securely packed with alternative methods.
  • Some machines may not include a charger or power cable, depending on the model.

We ensure you receive everything you need to get started, with a level of care you won’t find elsewhere!

How long is your warranty?

All Xilinamerica Trucks Come with a 1-Year Limited Warranty!
Enjoy peace of mind knowing that your truck is backed by our 1-Year warranty (excluding wear-and-tear parts and damages from misuse).

For full warranty details, check out our warranty page.

Shipping

How does my Truck come delivered?

All our trucks are delivered with free shipping straight to your doorstep!
Most trucks arrive fully assembled, while a few may require simple setup. You can easily follow our assembly tutorials and videos for guidance. If you need further assistance, our customer support team is always available to help!
