📦 Open-Pallet Ready Forks

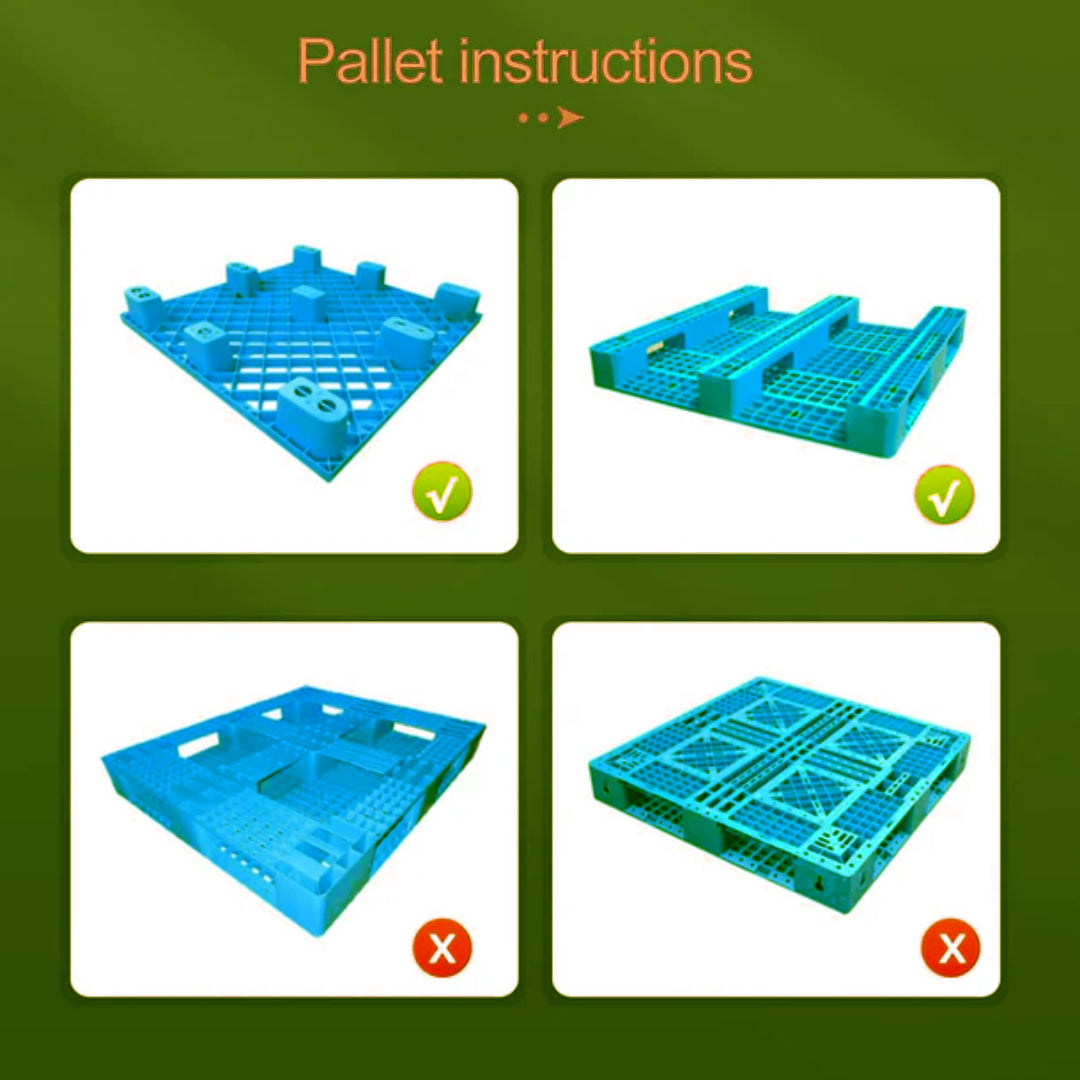

Fixed-leg design for use with open-bottom pallets and skids.
🔋 Electric Lift, Manual Push
Lifts up to 3,300 lbs with powered hydraulics—simple to operate.
📏 Compact for Tight Spaces
Slim design fits small warehouses, trucks, and shop aisles.
🏗️ Reinforced Mast & Low Center
Sturdy build with stable lifting, even at full height.
Description
Description
CDD15BE-118 Semi-Electric Pallet Stacker
The CDD15BE-118 is a reliable semi-electric stacker with a 3,300 lb capacity and 118" lift height. Featuring a fixed-leg chassis and ergonomic design, it delivers safe and stable lifting performance for industrial, warehouse, and retail operations. Powered lifting combines with manual travel for improved efficiency and control.
💡 Key Features & Benefits
- Ergonomic, Compact Design – Easy to maneuver with comfortable grip and user-friendly structure.
- Low Center of Gravity – Optimized balance for reliable control during full-load operation.
- Over-Discharge Protection – Prevents battery damage and extends system lifespan.
- Reinforced Mast Structure – High-strength steel with precision welds ensures long-term durability.
- Chain-Driven Steering – Responsive, low-effort steering improves navigation in tight spaces.
- Heavy-Duty Chain System – Reduces risk of chain failure under heavy load.
- Explosion-Proof Hydraulic Valve – Prevents sudden descent if hydraulic failure occurs.
- Manual Hydraulic Control – Smooth and accurate lift/lower via adjustable hydraulic leveler.
- Responsive Foot Brake – Enhances control and safety during daily operations.
- Upgraded Hydraulic Pump – 1.5kW configuration for consistent performance and manual lowering.
- Dual Electric Protection – Ensures electrical system safety under heavy use.
📊 Specifications
Load Capacity | 3,300 lbs |
Load Center | 15.7" |
Turning Radius | 56.1" |
Aisle Width | 90" |

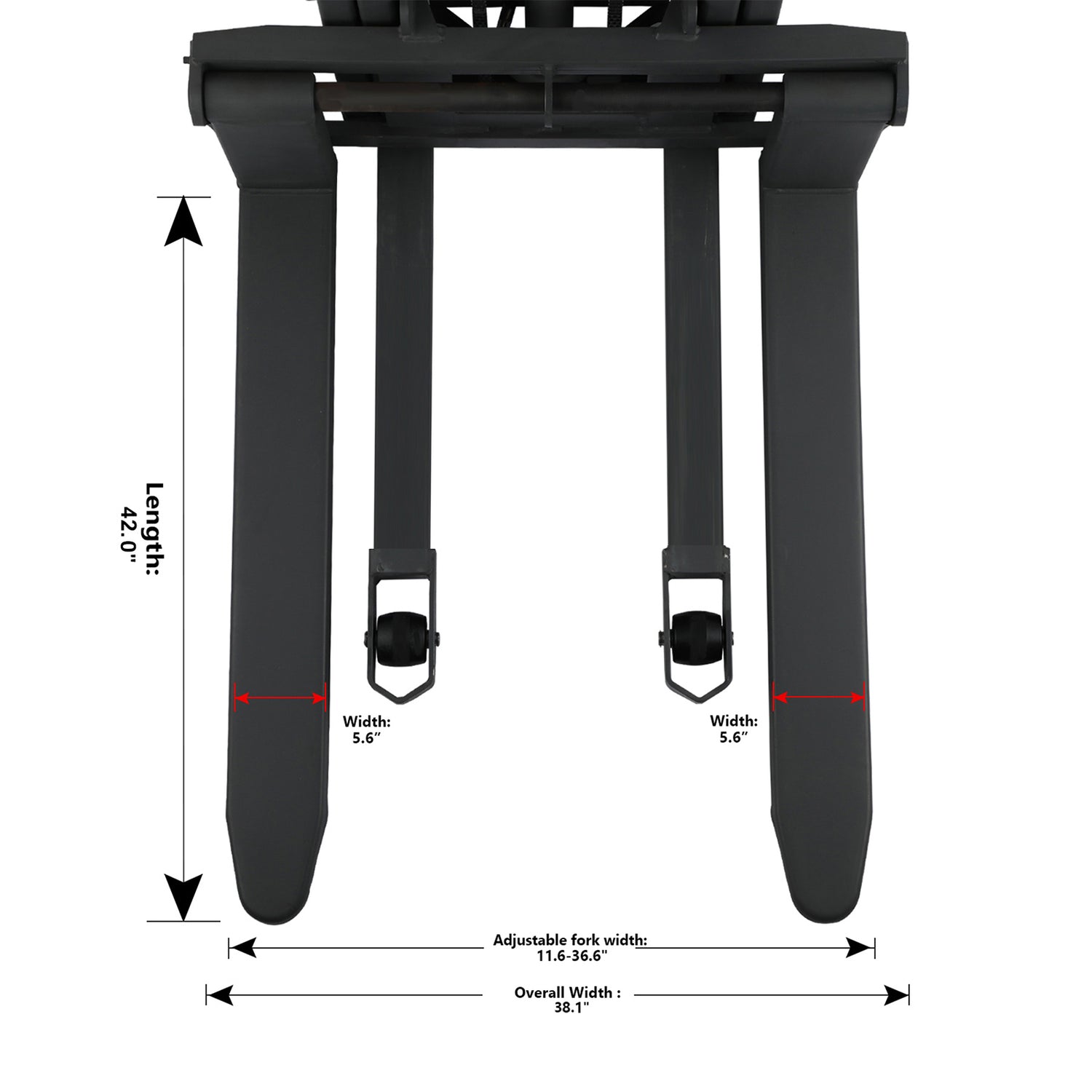

Fork Dimensions | 42.1" L × 11.6–36.6" W × 2.3" Thick |
Inside Fork Width | 0.4"–25.4" |
Fork Lowered Height | 3.5" |
Overall Width | 37.8" |
Overall Length | 68.7" |

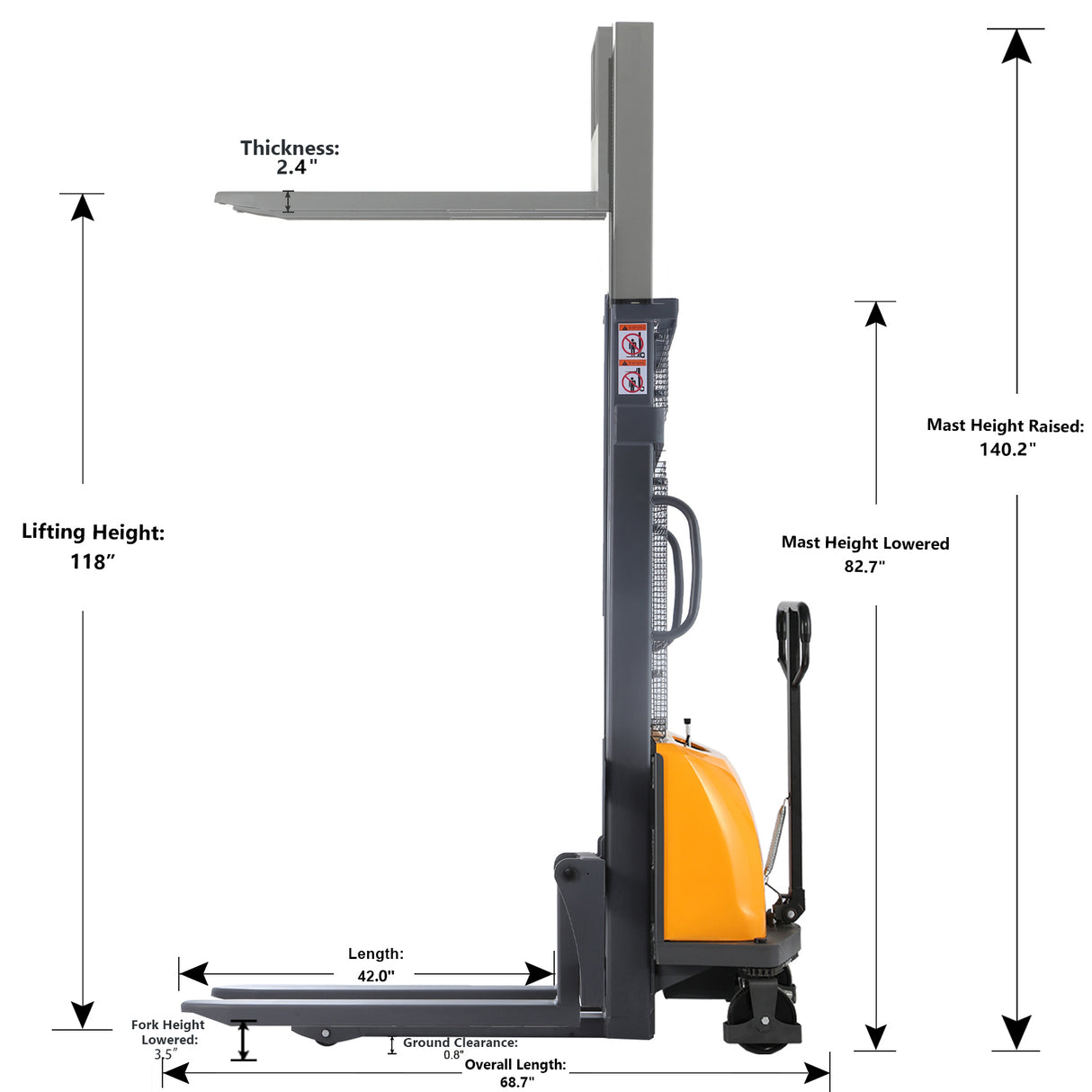

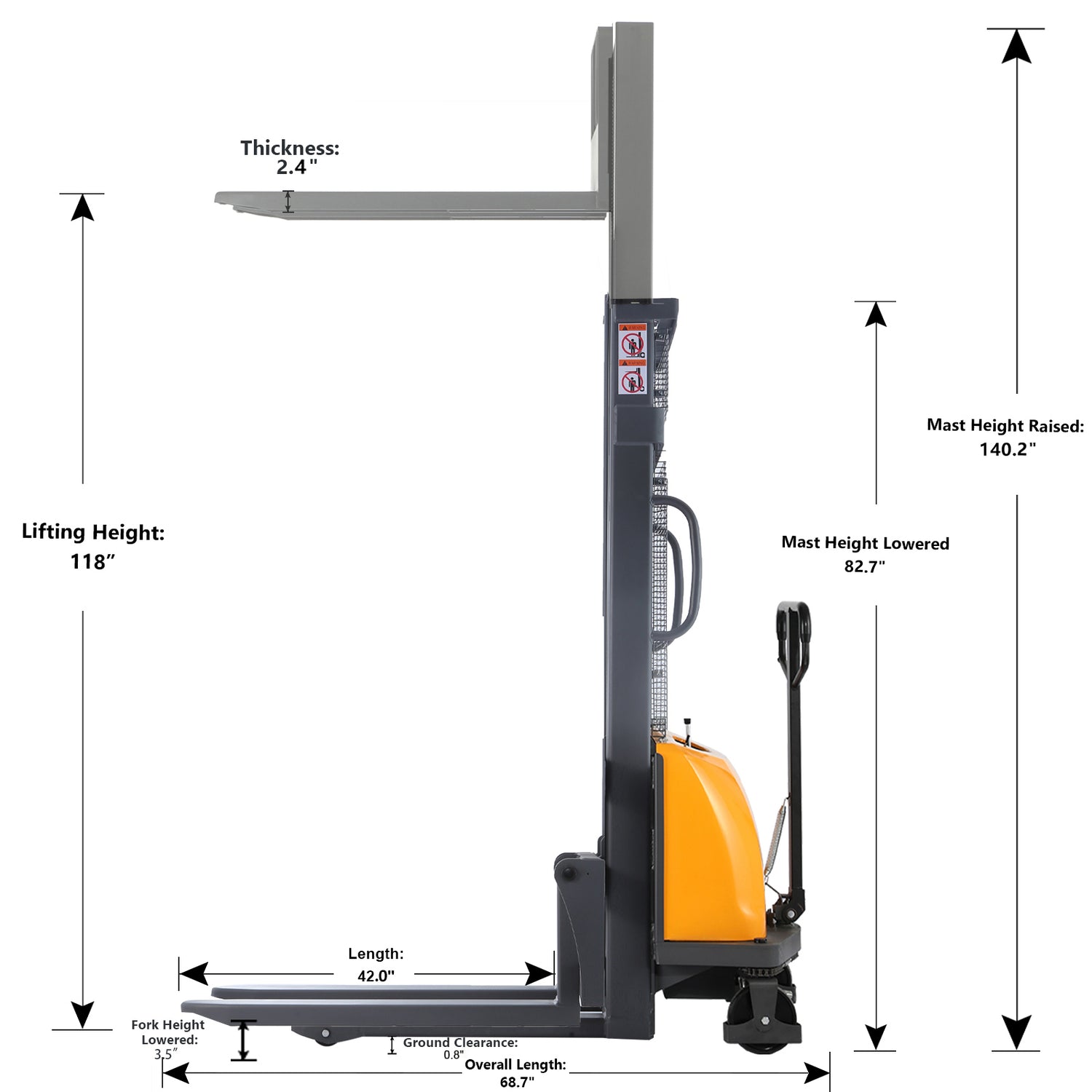

Max Lifting Height | 118" |
Mast Height (Lowered/Extended) | 82.7" / 140.3" |
Battery | 12V / 105Ah |
Charger | 12V / 10A Built-in |
Lifting Speed (L/U) | 2.0 / 3.2 inch/s |
Lowering Speed (L/U) | 3.9 / 3.5 inch/s |
Service Weight | 960 lbs |
Reviews (0)
Reviews (0)
PRODUCT HIGHLIGHTS
🔎 Designed for Daily Use, Backed by Real Experience
🔧 Fixed-Leg Semi-Electric Stacker for Indoor Lifting
The CDD15BE-118 is a semi-electric stacker with a load capacity of 3,300 lbs and a lift height of 118". It features a fixed-leg frame for open-bottom pallets and containers, making it ideal for vertical stacking tasks in warehouses, workshops, and backroom storage areas. This model combines manual travel with battery-powered lifting to offer a cost-effective solution for light to moderate indoor operations.🔋 12V Battery-Powered Hydraulic Lift
The unit is equipped with a 12V/120Ah lead-acid battery and a 1.5kW hydraulic motor. Charging is handled via the built-in charger with a standard AC plug, requiring approximately 10–12 hours per cycle. Operators should regularly check battery water levels and avoid deep discharging below 10.2V for optimal lifespan.🧯 Safety Features You Can Trust
This stacker is equipped with an electromagnetic brake and a pressure relief valve to prevent overload. For safety, lifting while in motion is prohibited. Operation is restricted to level indoor floors, and key switch access prevents unauthorized use.🛠️ Maintenance Made Simple
Routine maintenance includes:- Replace hydraulic oil annually (12L, HL-N46 or HL-N68)
- Lubricate mast rollers and bearings every 6 months
- Check battery terminals and voltage every 2–3 months
- Inspect wiring, fuses, and switch function monthly
📦 What’s in the Box
Each unit is delivered fully assembled and securely packaged with protective foam and stretch wrap. Package includes:- 1× CDD15BE-118 semi-electric stacker (fully assembled)
- 1× Accessory kit (includes charger cable, battery key, and user manual)
🚚 Shipping & Handling
We ship from U.S. warehouses in California, Georgia, or Illinois. All units are shipped via insured freight with liftgate service included. Curbside delivery only — driver will not bring the unit indoors. Tracking is provided via email once dispatched.🛡️ Warranty & Lifetime Support
This model comes with:- 1-year limited warranty for structure and hydraulic components
- 6-month warranty for battery
- 3-month warranty for electrical parts
Our support policy:
- Within 30 days: Free parts, remote support, and round-trip shipping if needed
- Day 31 to 1 year: Free parts + support, with 50% return shipping paid by customer
- After 1 year: Lifetime technical support, parts and labor quoted separately
Email our U.S. support team anytime at support@xilin.com — we’re here to help.
