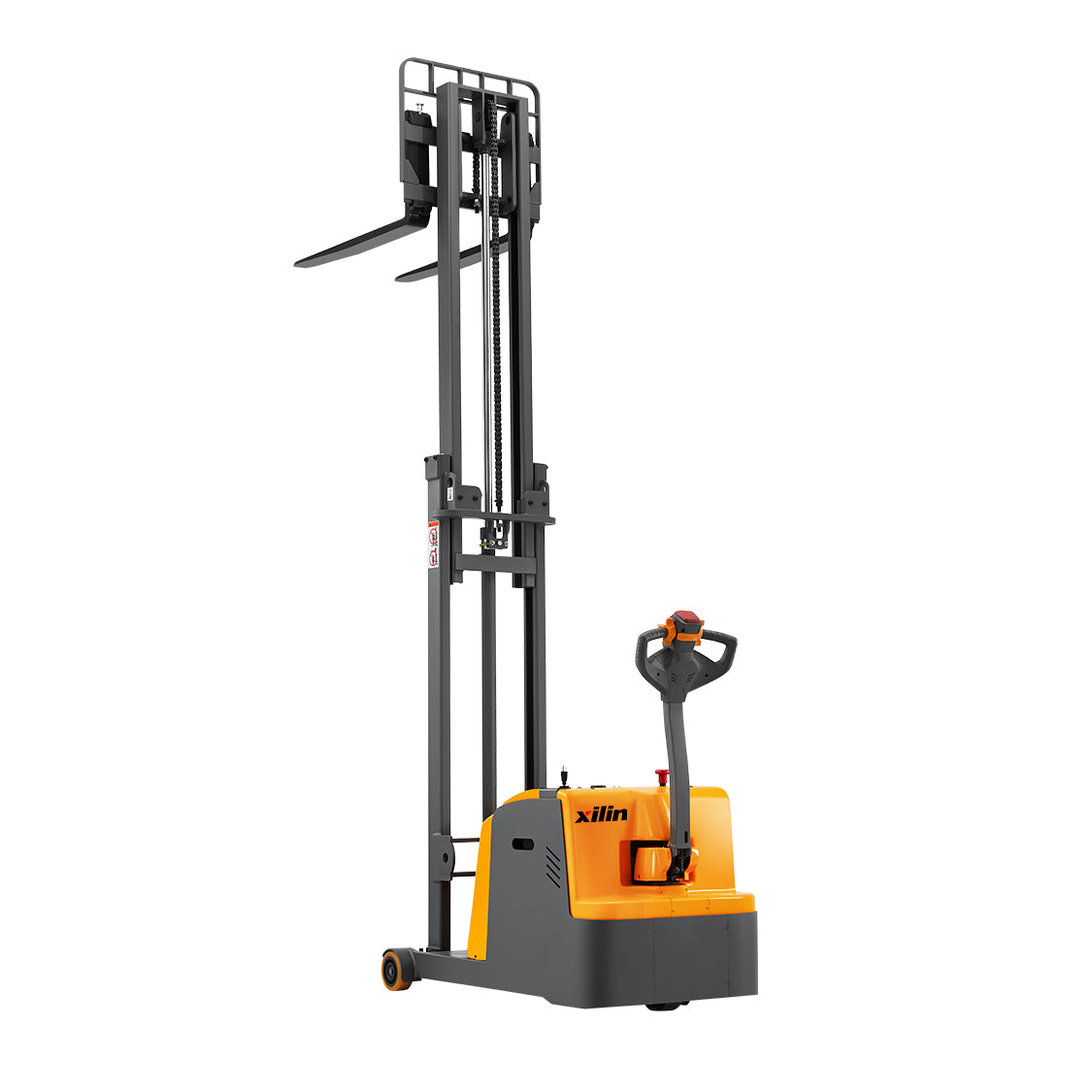

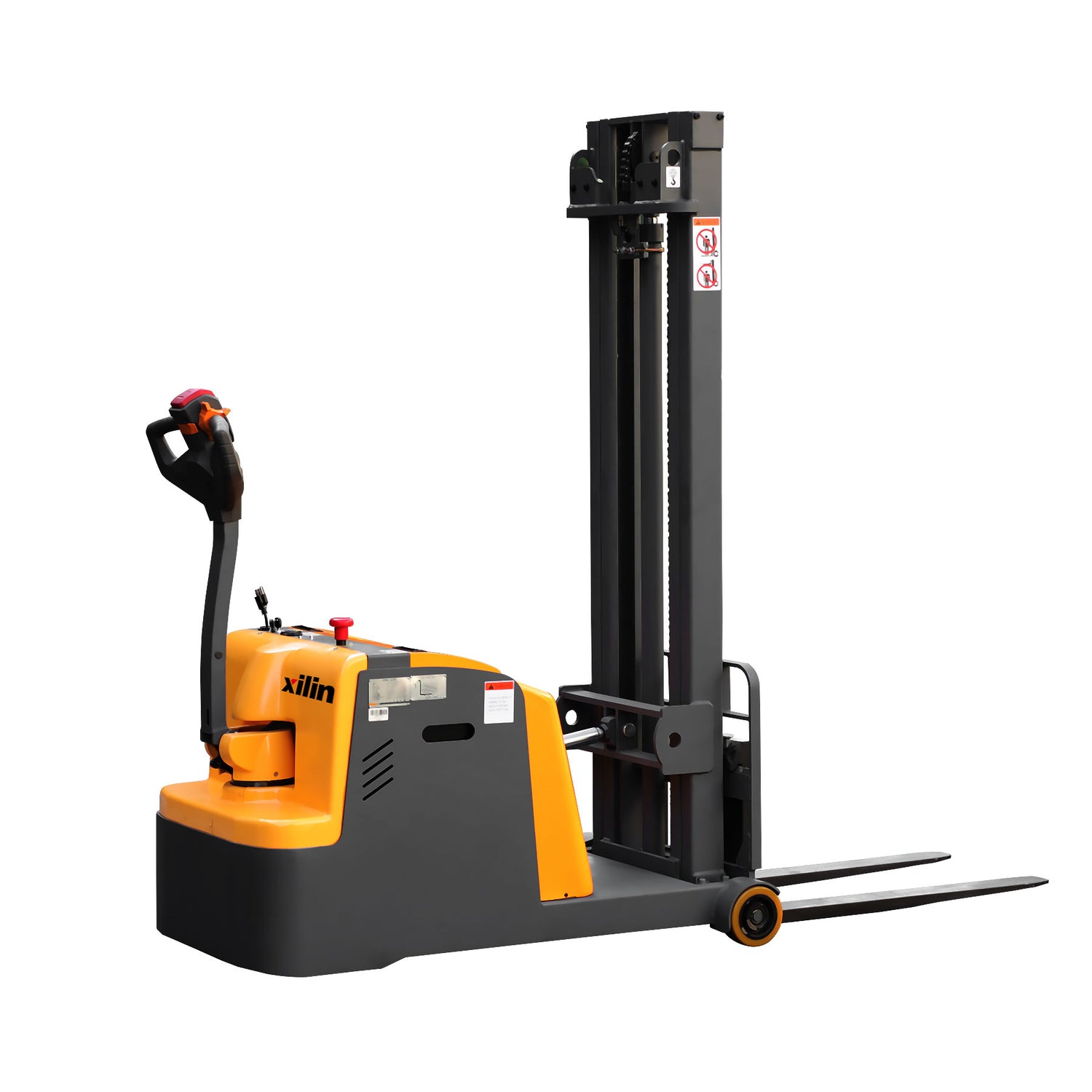

CPD10W-118 Counterbalanced Electric Stacker – Compact, Powerful & Easy to Maneuver

Built for Tight Spaces, Strong Performance & Reliable Stacking

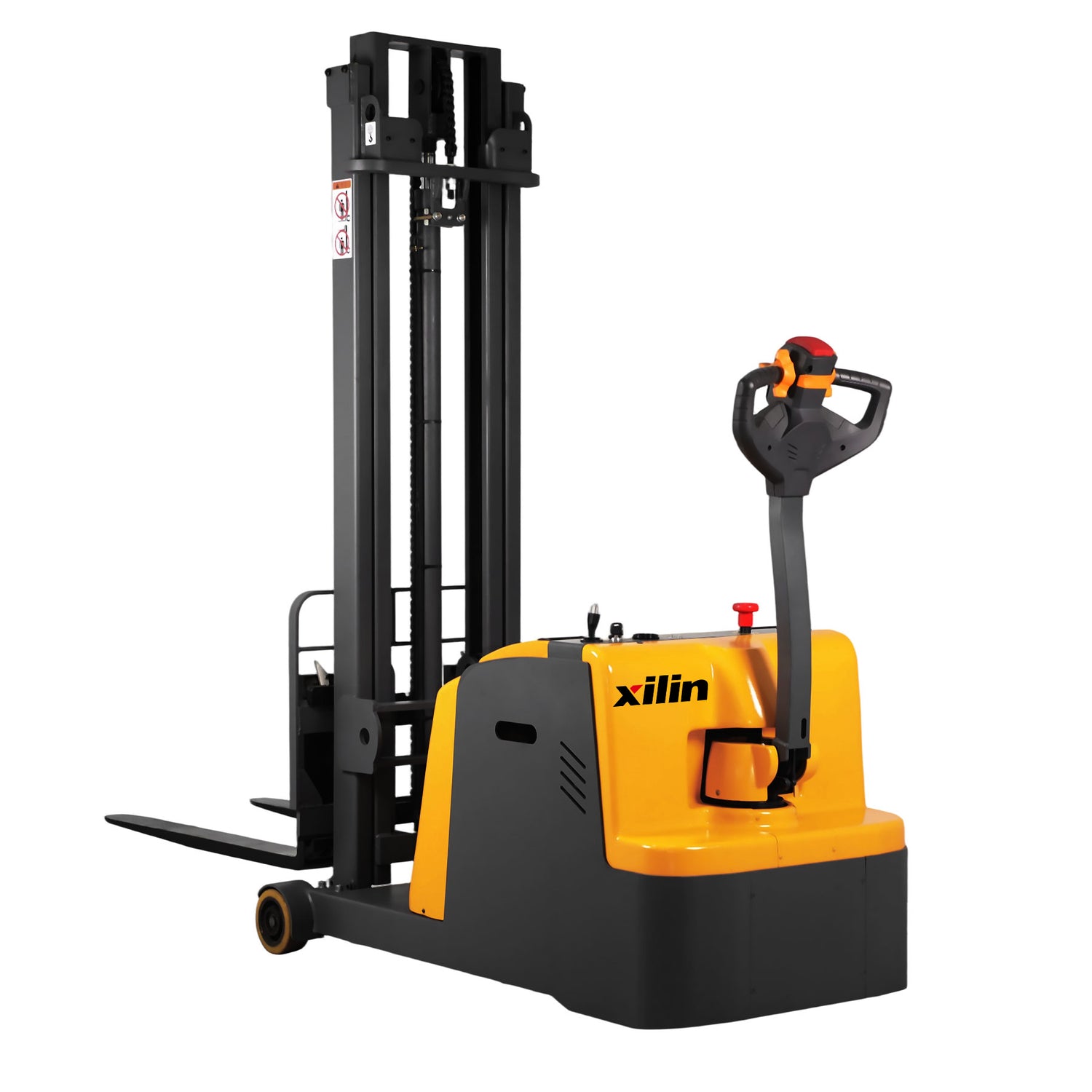

The CPD10W-118 Counterbalanced Electric Stacker is designed for efficient pallet stacking and material handling in warehouses, logistics centers, and indoor industrial spaces. With a 2,200 lbs load capacity and 118" maximum lift height, it delivers precise lifting and smooth operation. The counterbalanced design eliminates bulky front legs, making it easier to pick up pallets with minimal ground clearance and navigate tight storage areas.

Key Features & Benefits

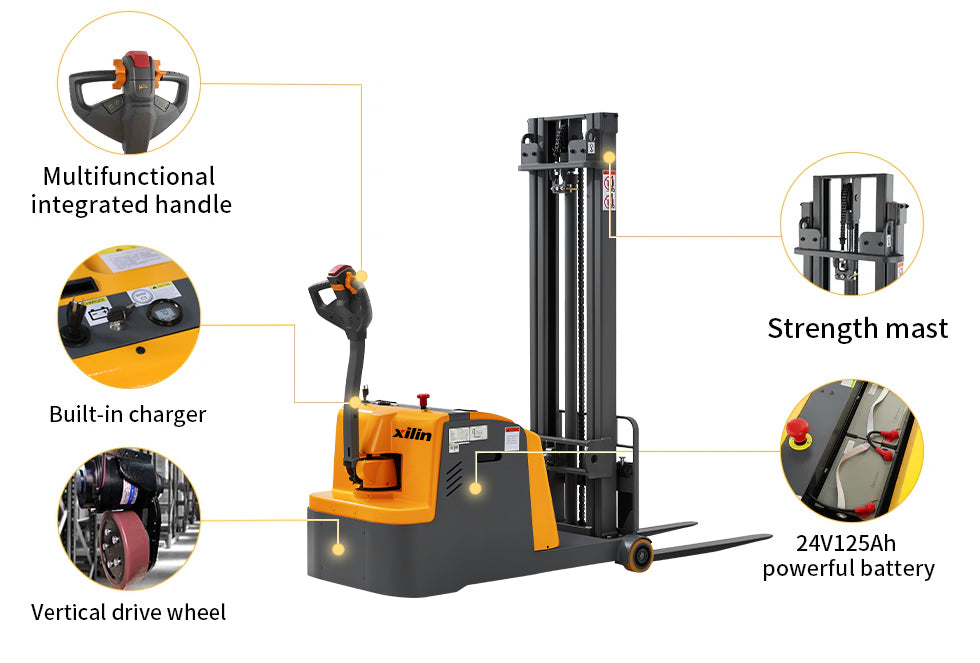

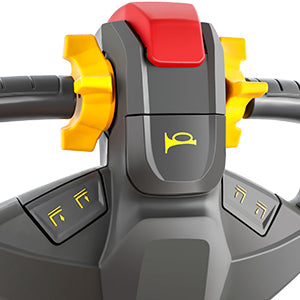

🎛 Ergonomic Multi-Function Handle – The control handle integrates lifting, lowering, forward/reverse movement, mast tilt, emergency reverse, horn, and turtle-speed mode, enabling all operations with one hand.

⚙ Streamlined, Low-Profile Design – Compact chassis with a clean internal layout, low center of gravity, and no front support legs allow access to low-clearance pallets and smooth stacking in any warehouse layout.

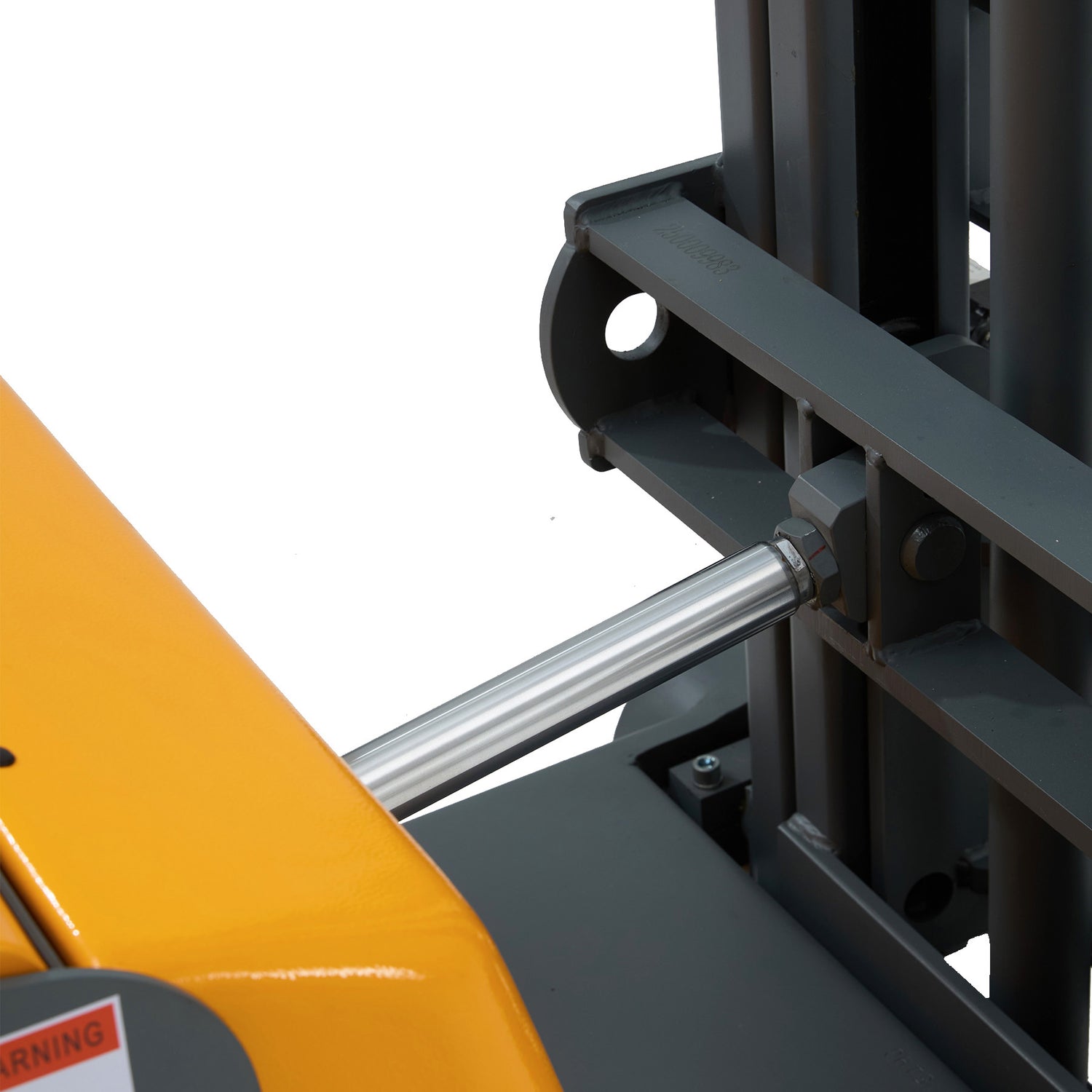

🚀 Tilt-Adjustable Mast – The mast can tilt forward and backward for easier pallet pickup, stacking, and unloading in tight areas.

🔧 Top-Mounted Drive Wheel System – The horizontally mounted drive motor sits higher from the ground to avoid dust and moisture, with a removable front panel for quick wheel or motor replacement.

🧱 Three-Point Structural Design – Two front load wheels and one rear drive wheel distribute weight evenly, offering excellent handling and stability across various floor conditions.

🛞 No Side Sway with Stable Travel – The optional floating balance wheel mechanism ensures steady, centered movement during heavy-duty operation, eliminating side-to-side wobble.

🔋 Maintenance-Free High-Capacity Battery – Equipped with a fully sealed, maintenance-free battery and low-voltage protection system to extend service life. Standard model features 24V / 125Ah lead-acid battery.

🔌 Built-In Charger for Convenience – Comes standard with an internal charger, allowing plug-and-play recharging at any outlet.

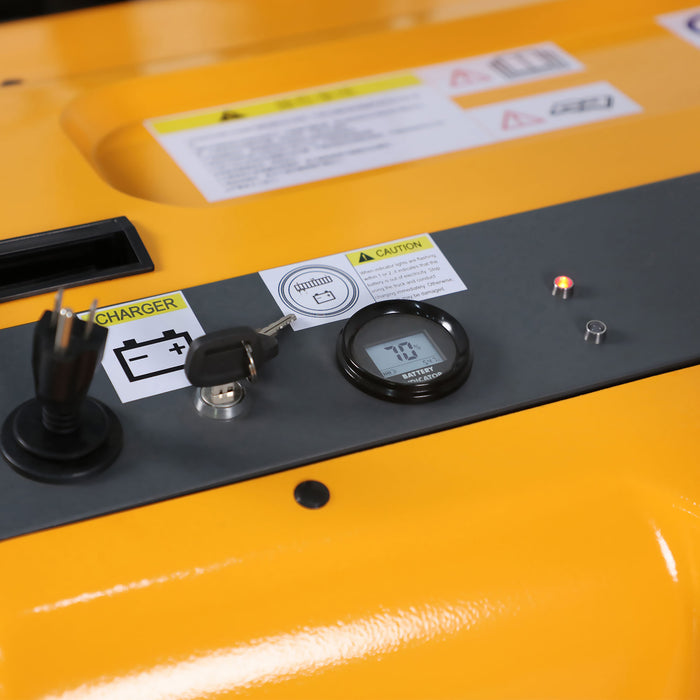

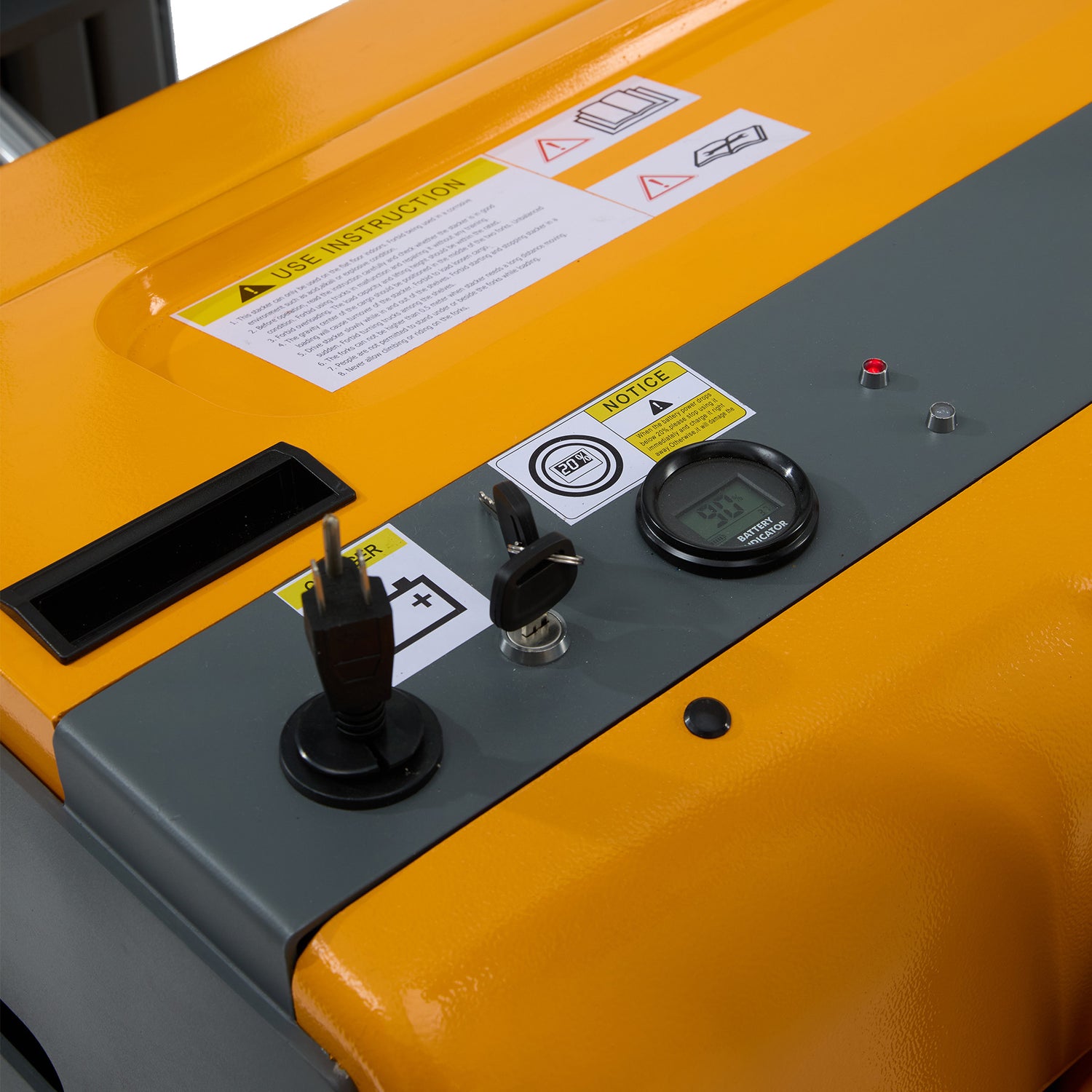

📊 Intuitive Control Panel Display – Clearly laid out interface with real-time battery status and accumulated working hours.

🛡 Full Safety System – Includes:

1. Electromagnetic braking with short stopping distance

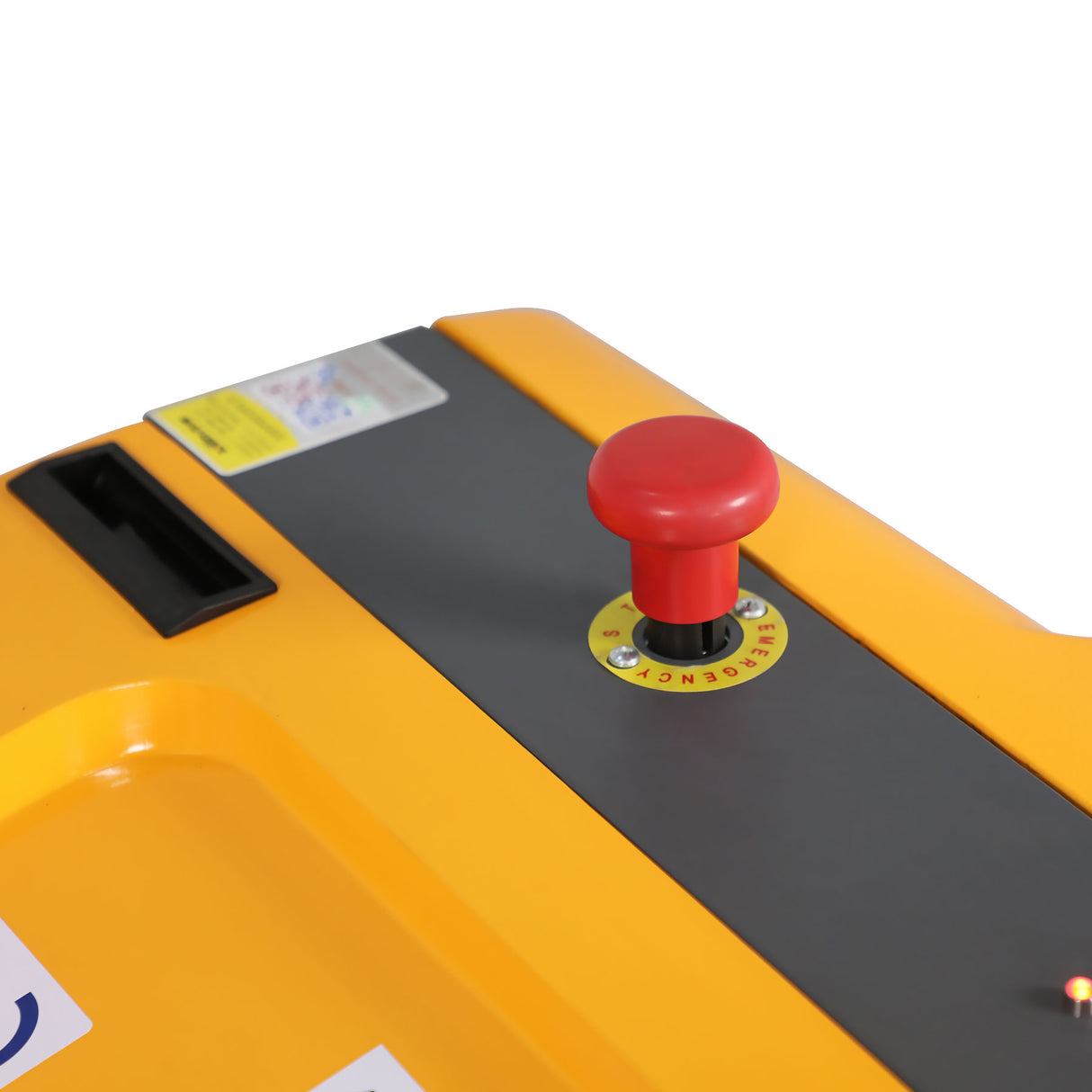

2. Emergency power-off switch
3. Belly switch for reverse retreat
4. Hydraulic overload protection
5. Explosion-proof valve in the lifting cylinder to prevent sudden free-fall
6. Mast center-located lift cylinder and chains for structural reliability

📏 Tight Turning in Narrow Aisles – Compact overall length and walk-behind operation allow smooth maneuverability in containers, trucks, and narrow indoor pathways.

🐢 Turtle Speed Upright Travel Mode – Standard turtle-speed button and vertical handle function enable safe and slow operation in confined spaces.

🔊 Quiet Operation – Driver-side noise level meets DIN 12053 standards with an average noise rating below 70 dB(A), supporting clean, low-noise work environments.

🧰 Highly Maintainable Layout – Modular electrical systems, 90% component integration, removable rear battery cover, and organized internal wiring allow fast servicing and easy part replacement.

🛠 Simple & Reliable Mechanical Steering – Uses traditional mechanical linkage for turning, delivering stable performance with minimal maintenance.

🎚 Smart Acceleration & Braking Logic –
The tiller operates based on three positional zones:

1. In Zone A or Zone C, the truck automatically enters electromagnetic brake mode and cannot move—ensuring safety during parking or standby.
2. In Zone B, the truck is ready to drive. Rotating the throttle knob forward or backward controls the direction, and the speed increases proportionally with the rotation angle.

When the tiller is in the upright position, pressing the turtle-speed button activates low-speed mode for precise, controlled movement—ideal for stacking or maneuvering in tight spaces.

Who Is This Stacker For?

🏭 Warehouses & Logistics – Optimized for space-saving, high-efficiency stacking.

🚚 Manufacturing & Production – Handles material transport smoothly in confined areas.

📦 Retail & Distribution – Reliable for stock movement and inventory management.

💼 Small & Medium Businesses – A cost-effective, durable solution for lifting operations.

Why Choose the CPD10W-118?

✔ Handles up to 2,200 lbs, ensuring stable and efficient lifting.

✔ Compact 33.3" width, making it ideal for narrow warehouse aisles.

✔ 113" aisle width, allowing for seamless navigation in tight spaces.

✔ No front legs, making it compatible with a variety of pallet types.

✔ Built-in charger, providing hassle-free power management.

Boost Your Material Handling Efficiency Today

📞 Expert Support Available | 🚛 Fast Shipping

Load Capacity & Dimensions

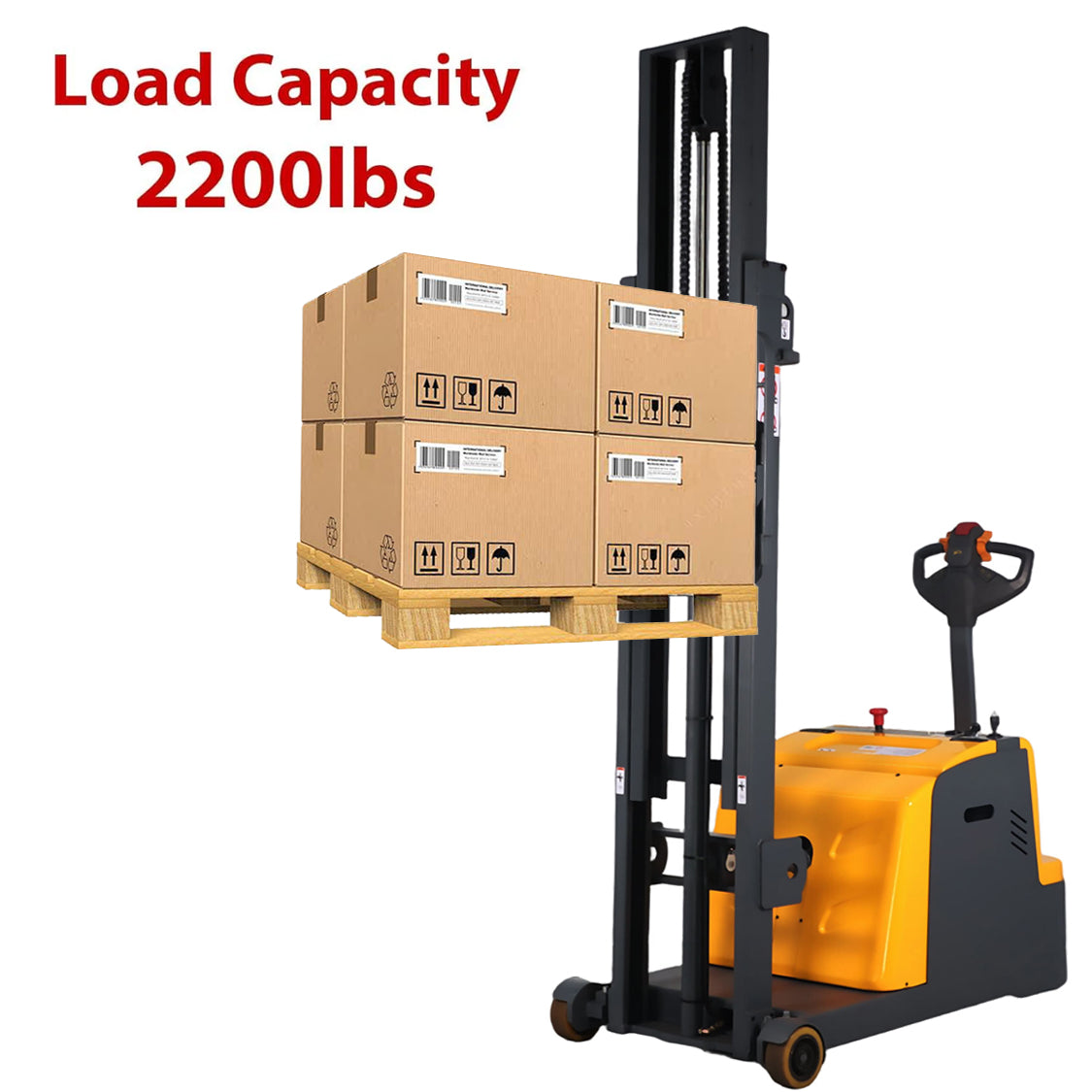

• Capacity: 2,200 lbs
• Load Center: 15.7"
• Turning Radius: 52.5"
• Aisle Width: 113"

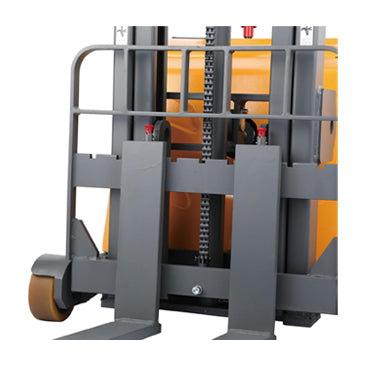

Fork Dimensions

• Width Overall Forks: 8.6"-25.4"
• Single Fork Width: 3.9"
• Fork Length: 37.4"
• Fork Thickness: 1"
• Distance Between Forks (Inside): 0.1"-17.5"
• Fork Lowered Height: 0.1"

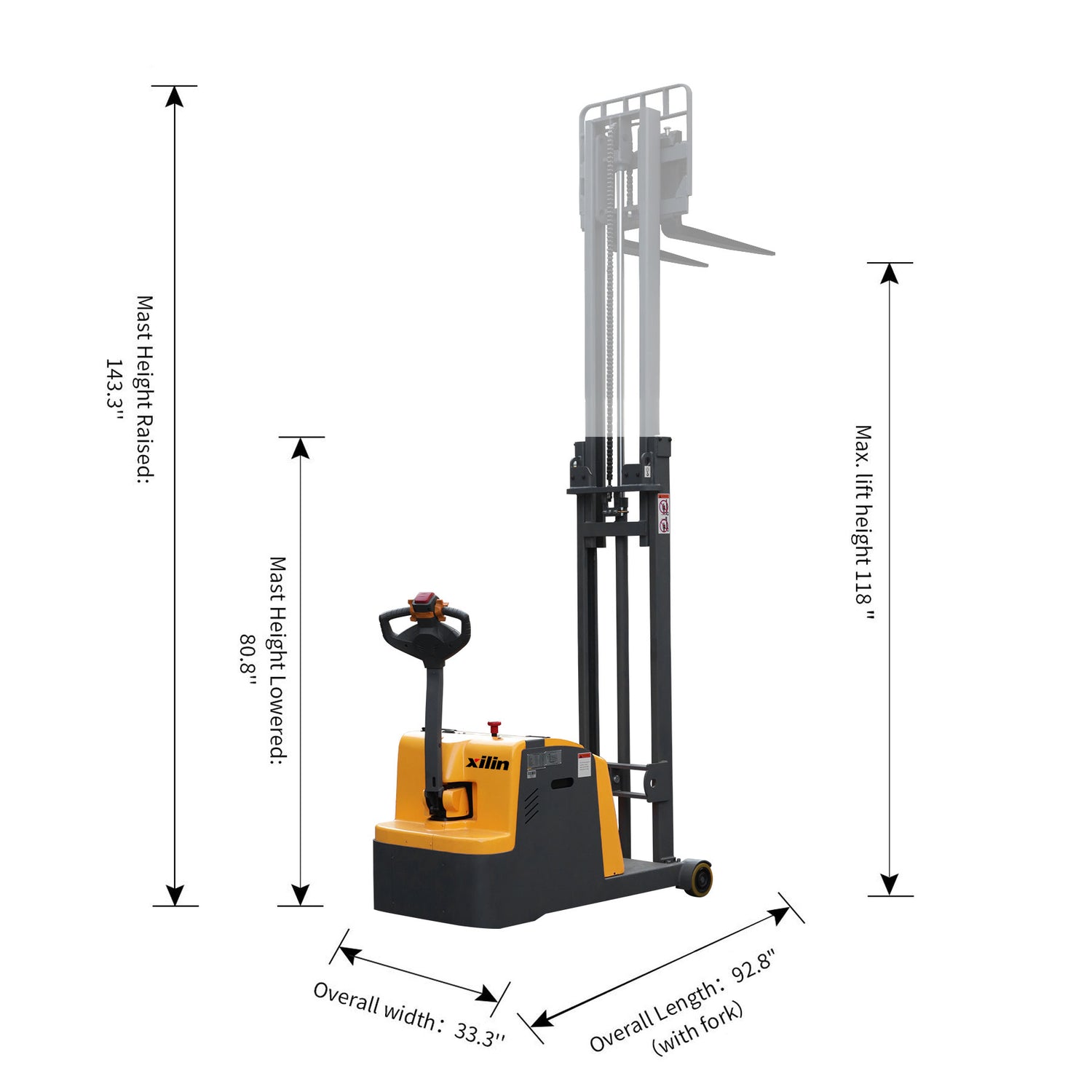

Overall Dimensions

• Overall Width: 33.3"
• Overall Length: 92.7"

Mast

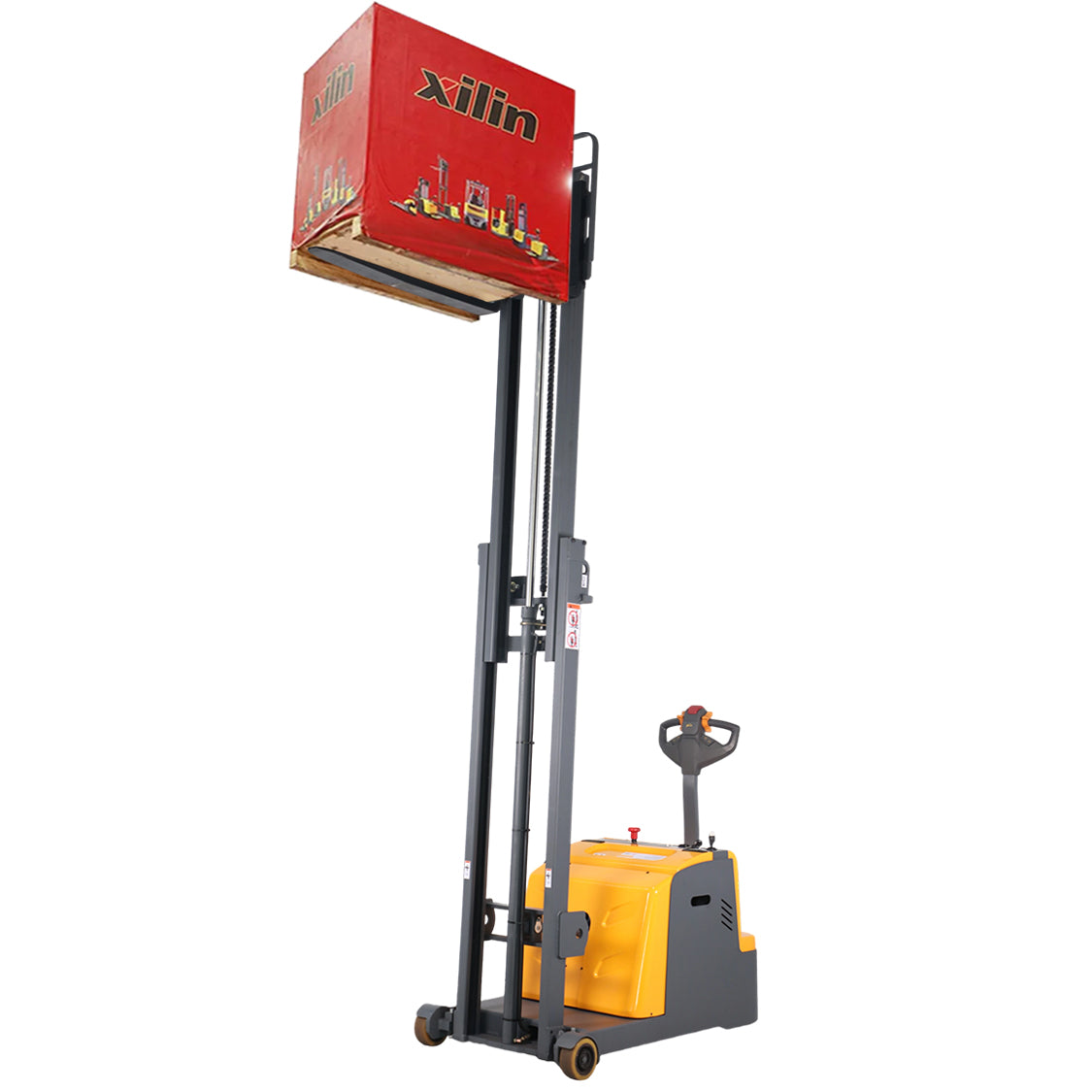

• Max. Lifting Height: 118"
• Mast Extended Height: 143.3"
• Mast Lowered Height: 80.8"

Battery & Charger

• Battery Voltage/Capacity: 24V / 125Ah
• Charger: 24V / 10A built-in

Speed & Performance

• Travel Speed (Laden): 2.3 mph
• Travel Speed (Unladen): 2.5 mph
• Lifting Speed (Laden): 6.3 inch/s
• Lifting Speed (Unladen): 9.5 inch/s
• Lowering Speed (Laden): 4.3 inch/s
• Lowering Speed (Unladen): 4.3 inch/s
