Xilin 197โ€ Fully Electric Mini Order Picker 330lbs OPSM

by Xilin
Save $600.00 Save $600.00
Original price $12,599.00
Original price $12,599.00 - Original price $12,599.00
Original price $12,599.00
Current price $11,999.00
$11,999.00 - $11,999.00
Current price $11,999.00
FREE SHIPPING

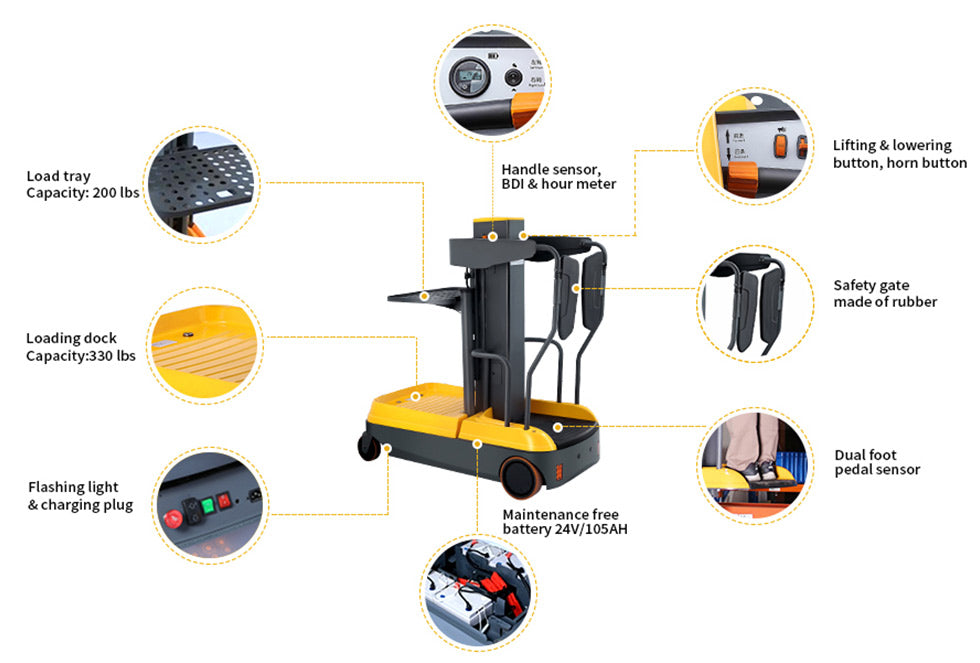

Features & Advantages

  • High-powered solution for facilities and outlets
  • The stable mast allows reachable height of up to 197"
  • Easy for picking-up or storage of items at 3rd rack level
  • Widely used for price tags exchanged, ceiling upholster and light fixing
  • It is the best order picker rising for liberation of labor.

Features & Advantages

Mini order picker OPSM is a high-powered solution for handle high lift tasks, including stock picking, inspection, maintenance and installation.

Adjustable Loading Tray

10.2" adjustable height of loading tray, offers desired position at work

On-board Charger

On-board battery charger makes it possible to charge whenever it is needed.

Dual Foot Pedals

Dual foot pedals will detect if the operator has both feet properly positioned on the platform

Safety Gate

Active sensor automatically cuts the power cycle if the platform is above 500mm and the gate is left open. Meanwhile,the lifting speed will decelerate for safety concern.

Easy Control

Accelerator, lifting&lowering, turtle speed, emergency stop button. Easy steering in tight space.

Hand Sensor

With hand sensor on the control handle to start travel, lift and lower.

Product Information

  • Product Overview
  • General Information

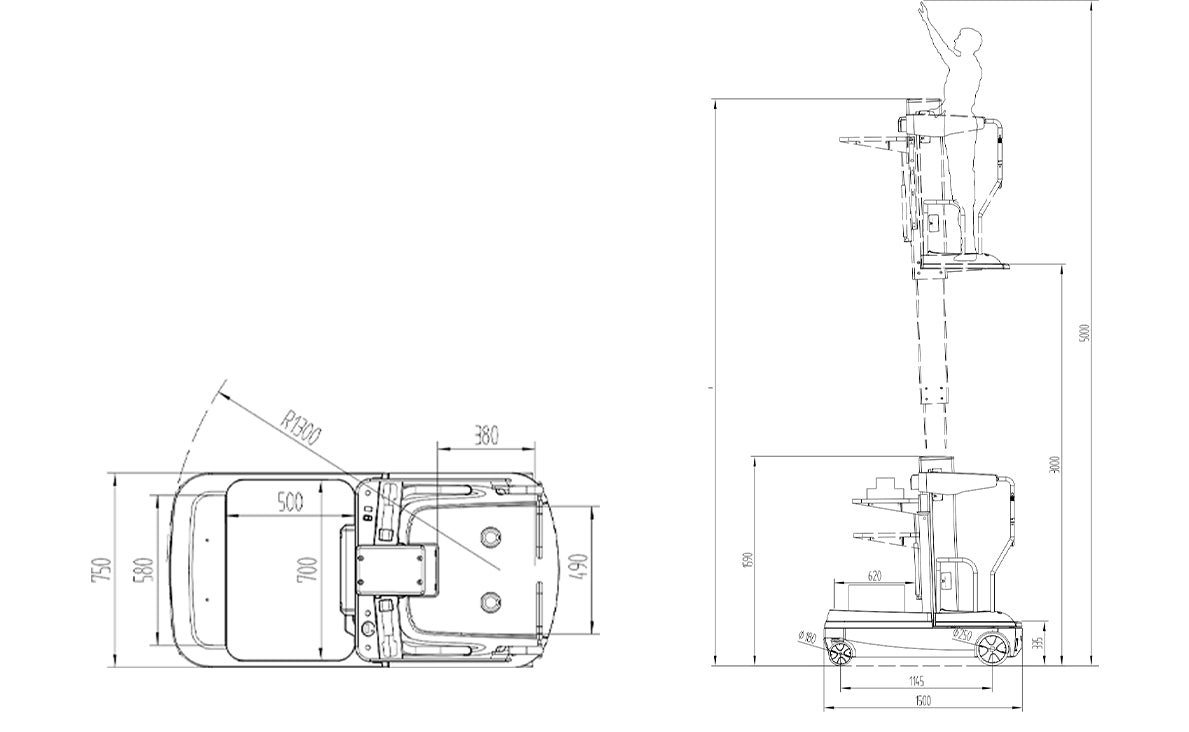

  • Dimension Drawing
Model No
OPSM
Capacity
330 lbs
Turning Radius
51.2 inch
Travel speed, laden/unladen
2.8 mph

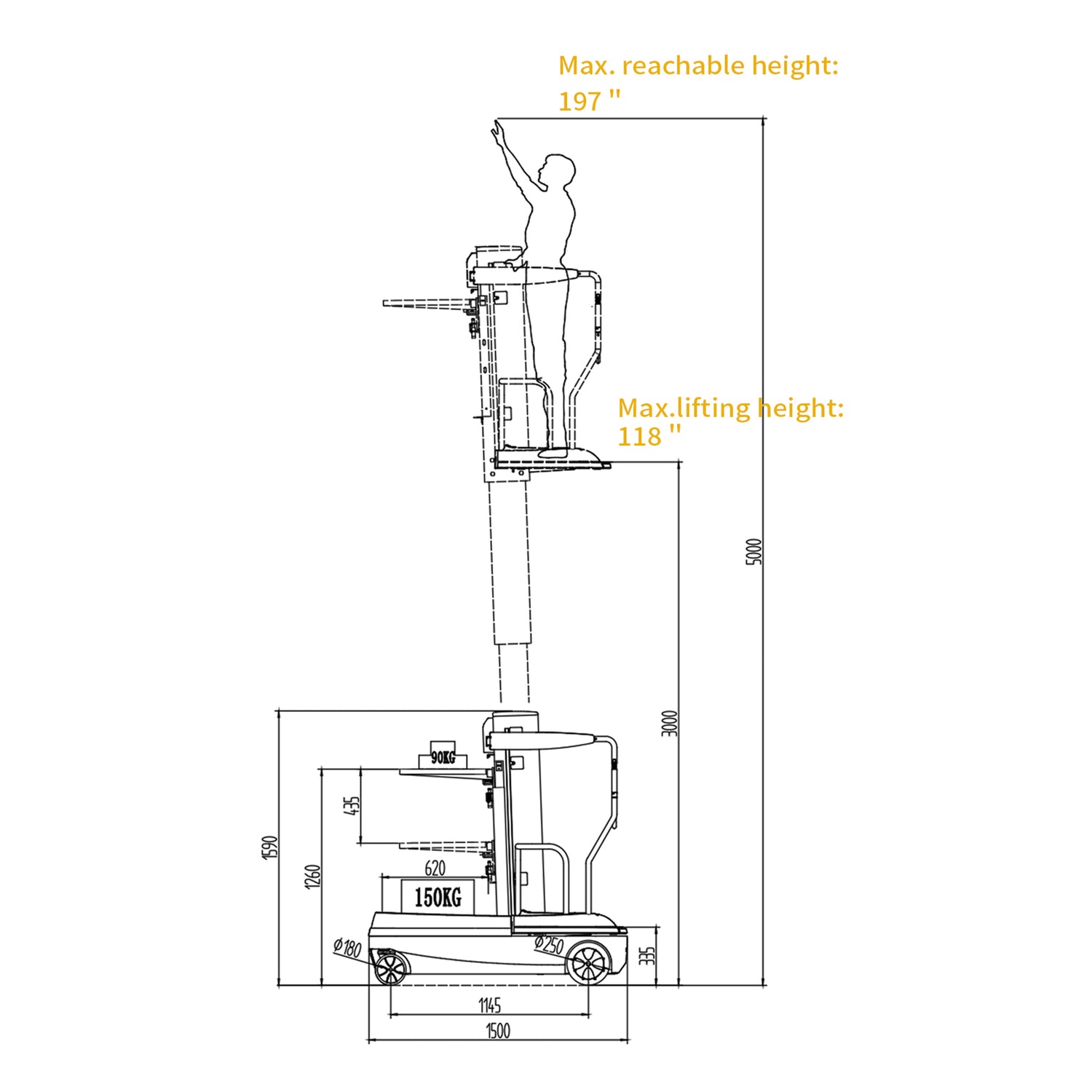

Max reachable height
197 inch
Battery Voltage
24V/105Ah
Built-in Charger
24V/10A
Service weight
1653.5 lbs

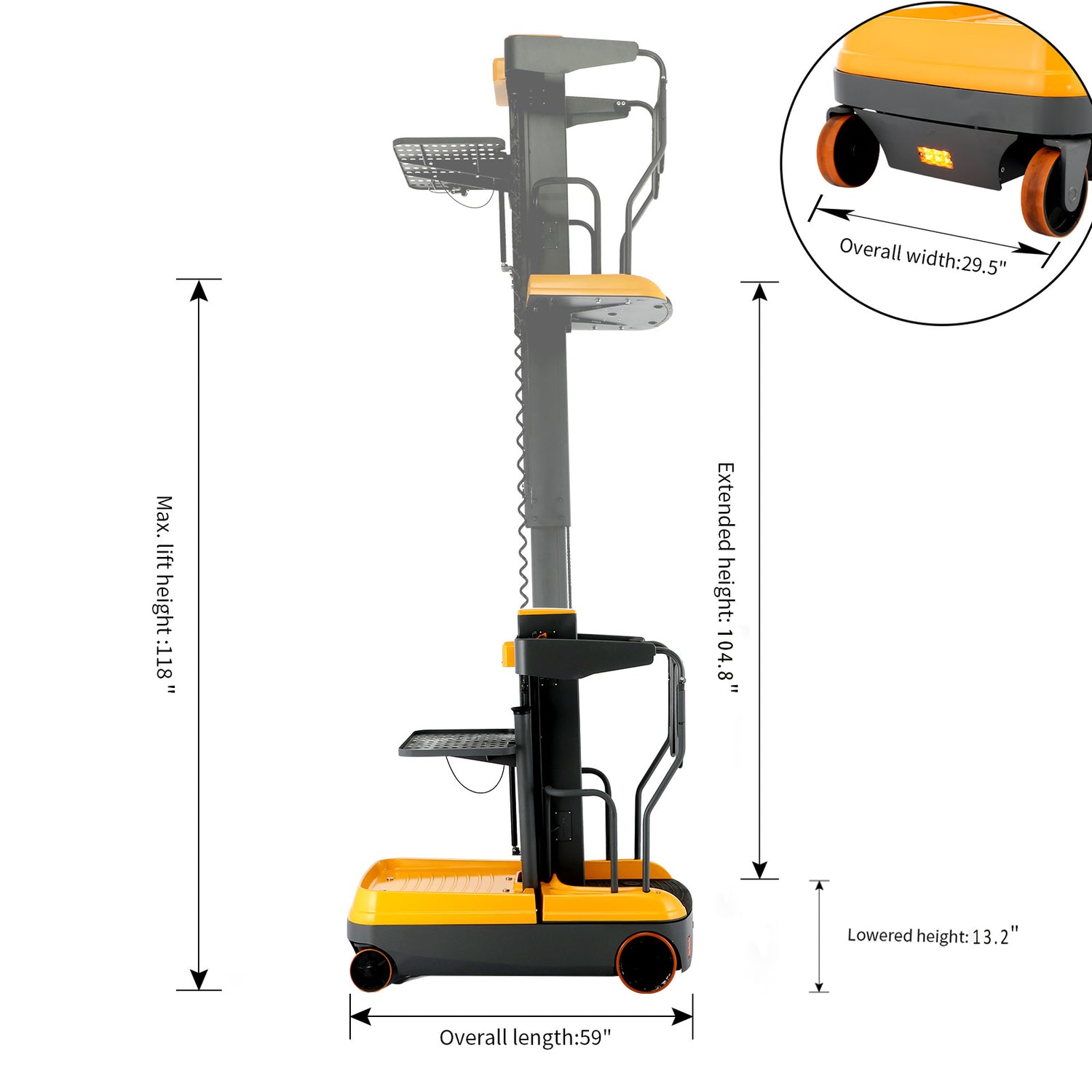

Specifications
Platform Max.lifting height 118inch
Overall length 59 inch
Overall width 29.5 inch
Size of load tray 27.5x19.7 inch
Travel speed, laden/unladen 2.8 mph
Lifting speed, laden/unladen 5.5 mph
Lowering speed, laden/unladen 5.1 mph
Truck weight 1653.5 lbs
