XILIN  |  SKU: SDJA500

Manual Pallet Stacker 1100lbs Capacity 63" Lift Fixed legs SDJA500

$1,220.00
Shipping calculated at checkout.
Customers rate us 4.9/5 based on 32 reviews.

Shipping Fee: $230 flat rate across the continental U.S.

✅ Xilin® | Professional manufacturer since 1985
📦 In stock in U.S. warehouse | Ships in 1–2 business days
🚚 Delivery in 3–7 business days with liftgate service
🛠️ Lifetime technical support + spare parts available
✔️ Built for daily warehouse, retail, and logistics use

1 Year Warranty

At Xilinamerica.com, we proudly back all of our trucks with a one-year limited warranty, excluding wear-and-tear parts and damages caused by misuse. Our warranty period starts from the date of receipt of the item.

Warranty Periods:

  • 1 Year on all trucks (excluding easy-wearing parts and damages caused by human factors)
  • 3 Months on spare parts
  • 6 Months on batteries

Warranty Details:

  1. Within 30 days of receipt: If there are any quality issues, we will provide free spare parts for replacement and remote technical support. If our after-sales team determines that the truck needs to be returned for repair, we will cover all round-trip shipping costs.
  2. Between 30 days and 1 year of receipt: If any quality issues arise, we offer free spare parts and remote technical guidance. If a return for repair is required, the customer is responsible for half of the shipping costs.
  3. After 1 year of receipt: For any quality issues, we will provide free technical support. However, replacement parts will be charged, and if a return for repair is necessary, the customer will be responsible for both the maintenance fees and shipping costs, which will be quoted based on the situation.

If you encounter any issues during the use of the truck, feel free to contact us at support@xilin.com. Our team is ready to assist you.

Shipping Policy

At XilinAmerica.com, shipping fees are calculated separately and displayed at checkout. Most items are shipped from our U.S. warehouse within 48 hours of order confirmation.

📦 Shipping Coverage
We currently ship to all 48 contiguous U.S. states. For deliveries to Hawaii, Alaska, and Puerto Rico, please contact us for a custom quote before placing your order.

⏳ Lead Time & Delivery
Orders are typically processed and shipped within 1–2 business days (excluding weekends and holidays). Estimated delivery times vary by destination and shipping method.

📋 Shipping Rates
Shipping costs are based on product type, weight, and delivery location. These rates are visible either on the product page or during checkout. For bulk orders or custom shipping needs, contact info@xilinamerica.com for assistance.

⚠️ Shipping Damage
All items are carefully inspected and packed before shipment. Upon delivery, please inspect your order before signing. If damage is visible, **refuse the shipment** and contact us immediately for support.

❌ Order Cancellations
Orders may be canceled before shipment. If the order has already been dispatched, shipping fees (both ways) will apply. A tracking delay does not always mean the product hasn’t shipped.

✉️ Address Changes
If you need to change the delivery address after placing an order, please contact us immediately. Additional charges may apply if the item has already shipped.

For further questions, reach out to: **info@xilinamerica.com**

Why Xilin

Why Choose Xilin Material Handling LLC?

The Trusted Expert in Material Handling Equipment

Xilin Material Handling LLC is a leading manufacturer specializing in the production of material handling equipment. Since our establishment, we have dedicated ourselves to creating high-quality, professional, and reliable solutions for industries worldwide. When you choose Xilin, you’re partnering with a company that values innovation, craftsmanship, and a customer-first approach.

Unmatched Product Excellence: Electric Forklifts

Our electric forklift series is at the forefront of our product range, setting new standards in material handling. Designed for optimal performance and efficiency, our electric forklifts provide:

  • Exceptional Performance: Engineered for a variety of material handling tasks, ensuring smooth and stable operations.
  • Cost-Effective Solutions: Providing high-quality equipment at competitive prices, giving you the best value for your investment.
  • Durability You Can Count On: Built to last with compliance to international standards, ensuring long-term reliability in the toughest environments.

Efficient Logistics and Comprehensive After-Sales Support

  • Fast Delivery: With strategically located warehouses, Xilin ensures prompt delivery to meet the needs of our global customers.
  • Expert After-Sales Service: Our dedicated after-sales team is here to assist you with everything from installation and training to regular maintenance, ensuring seamless operations and helping you overcome any challenges in your material handling needs.

Confidence in Every Partnership

At Xilin, we prioritize your success. By choosing us, you not only get access to top-tier material handling equipment but also benefit from our full range of services, designed to give you peace of mind throughout the lifecycle of your equipment. Trust Xilin for reliability, performance, and long-term value.

Choose Xilin, Choose Excellence

With Xilin Material Handling LLC, you are assured of high-quality products, dependable support, and a commitment to your business’s success. Let us help you optimize your material handling processes for greater efficiency and productivity.

For more information or inquiries, don't hesitate to contact us!

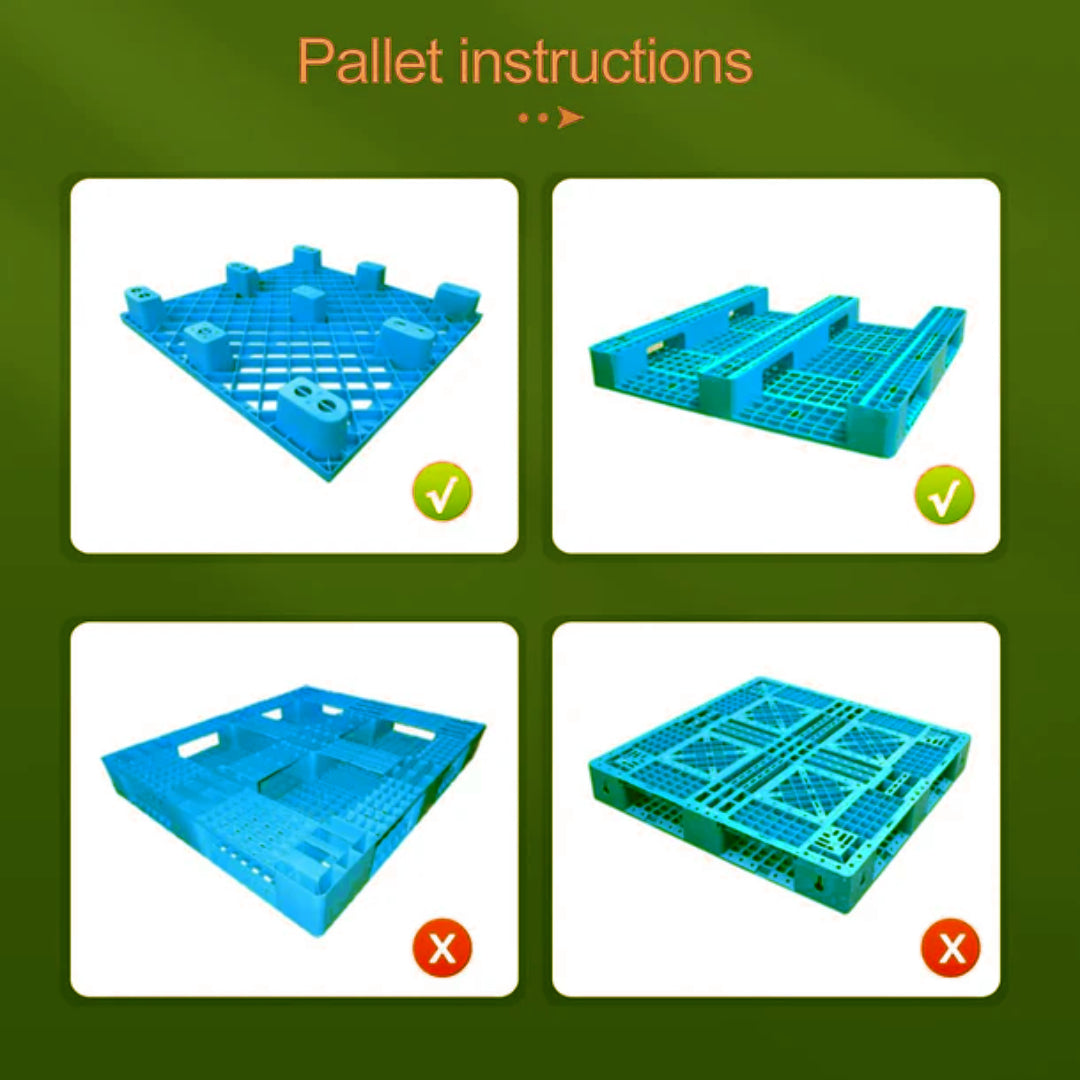

📦 For Open-Bottom Pallets Only

Fixed-leg design—simple, stable, and cost-effective.

🛠️ High-Strength Steel Frame

Strong welded mast for safe daily lifting tasks.

👟 Manual or Foot Pedal Lift

Easy-to-use pump system with less effort and more control.

📏 Compact & Easy to Maneuver

Fits tight warehouse spaces and retail stockrooms.

Description

SDJA500 Manual Hydraulic Stacker

The SDJA500 is a compact and reliable manual stacker with fixed legs, offering 1,100 lb capacity and 63" lift height. Designed for daily use in warehouses, retail, and light manufacturing, it features dual-mode lifting (hand & foot), a reinforced mast, and stable, ergonomic operation.

💡 Key Features & Benefits

  • Non-Electric & Spark-Free – Suitable for use in flammable or fire-restricted environments.
  • Stack & Move – Combines vertical stacking and manual transport in one unit.
  • Reinforced Steel Mast – Built from welded high-strength steel for long-term performance.
  • Dual Lifting Modes – Raise the forks via foot pedal or control handle as needed.
  • Forks on Top of Legs – Efficient for narrow-base goods or non-standard loads.
  • Compact Turning – Ideal for tight storage aisles or work zones.
  • Safety Guard Mesh – Protects operator from moving components during lifting.
  • Rear Brake Casters – Lockable wheels add stability during loading and unloading.
  • Safe Load Handling – Always keep the load centered between forks to avoid tipping.

📊 Specifications

 Load Capacity 1,100 lbs
 Load Center 19.7"
 Turning Radius 48.6"
 Aisle Width 75.4"
 Fork Dimensions 31.5" L × 7.9–29.3" W × 1.9" Thick
 Inside Fork Width 0.1"–21.5"
 Fork Lowered Height 3.5"
 Overall Width 31.7"
 Overall Length 54.3"
 Max Lifting Height 63"
 Mast Height (Lowered/Extended) 78.7" / 79"
 Wheel Type Single Wheel
 Fork Material Channel Steel Forks
 Service Weight 363 lbs



📄 Downloads

Reviews (0)
23

PRODUCT HIGHLIGHTS

  • Standard Mast and Fork Dimensions

    Equipped with a standard mast and fork width, this stacker is compatible with most U.S. pallets. It ensures smooth stacking and efficient handling across a wide range of warehouse and industrial tasks.

  • Fixed Forks for Enhanced Stability

    The truck features a fixed fork design that provides greater structural stability during lifting and transport. This setup ensures safer handling of loads and reduces the risk of fork misalignment.

  • Dual Lifting Modes: Hand and Foot

    The stacker features both hand and foot pedal lifting options, reducing operator fatigue during long shifts. This flexible design improves comfort and boosts overall work efficiency in daily operations.

  • Compact Body for Versatile Applications

    The truck features a lightweight and compact structure with a small turning radius for easy handling. Its comfortable operation makes it ideal for mold workshops, logistics, warehouses, docks, and supermarkets.

🔎 Designed for Daily Use, Backed by Real Experience


🔧 Compact Manual Stacker with Smooth Hydraulic Lift
The SDJA500 is a manual hydraulic stacker designed to handle loads up to 1,100 lbs with a maximum lift height of 63". It features a fixed-leg design and compact frame, making it ideal for handling skids and open-bottom pallets in tight warehouse or retail spaces. The reinforced mast and stable base ensure safe, consistent vertical lifting.

🛠 Dual-Mode Lifting System
Operators can lift the forks using either the foot pedal or hand lever. The built-in return valve allows smooth, controlled lowering, while an overload relief valve protects the hydraulic system. The chain-guided piston assembly stops automatically at maximum height to prevent overextension.

📋 Routine Maintenance Tips
  • Apply light oil to mast rollers and lift joints monthly
  • Check hydraulic oil level every 3–6 months
  • Inspect the foot pedal and handle linkage for looseness
  • Clean frame base and wheel area after use
Daily inspections take under 5 minutes and help prolong service life.

🧯 Important Safety Guidelines
  • Operate only on level, indoor flooring
  • Do not exceed the rated load or lift unstable items
  • Engage brake before lifting or when parking
  • Always lower forks before moving the unit
  • Keep clear of raised forks or supported loads
Always lower slowly using the manual return valve to prevent sudden drops.

📦 What You’ll Receive

  • ✅ Fully assembled SDJA500 stacker, secured with straps and protective wrap
  • ✅ Printed user manual
  • ✅ Quality certificate
  • ✅ Packing list

🛠 Handle Installation
No setup required. This model arrives fully assembled and ready to use out of the box.

🚚 Shipping, Delivery & Warranty

  • 📦 Ships within 48 hours from our U.S. warehouses in California, Georgia, or Illinois
  • 🚛 Curbside freight delivery with liftgate service included
  • 📍 Local warehouse pickup available by appointment
  • 🛡 Comes with a 1-year limited warranty on frame and hydraulics
  • ⚙️ Full parts support available — most common parts stocked in the U.S.
  • ✉️ Tracking information sent once shipped
  • 📞 Delivery carrier will call to schedule drop-off
  • 🔍 Please inspect before signing the delivery receipt

Questions or need support? Email us at support@xilin.com. We offer lifetime tech support and fast turnaround on parts.
