XILIN | SKU: CPD10W-98

2200 lb Capacity 98" Lift Compact Counterbalanced Electric Stacker Adjustable Forks | CPD10W-98

Q: What comes in the Truck box?

When you receive your equipment, everything is packed for easy setup, with attention to detail. Here’s what you can expect to find: Your Machine : Secured with green packing straps. Branding & Labels : Stickers with brand logo, installation video QR code, and a "Delivery Attention" sticker. Accessories : Documentation : Photos of your machine, model, serial number barcode, and brand logo for reference. Packaging : The machine is wrapped with stretch film and accompanied by the BOL (Bill of Lading) for easy identification. Important Notes : In cases where pallets are not used, the machine is securely packed with alternative methods. Some machines may not include a charger or power cable, depending on the model. We ensure you receive everything you need to get started, with a level of care you won’t find elsewhere!

Q: How long is your warranty?

All Xilinamerica Trucks Come with a 1-Year Limited Warranty! Enjoy peace of mind knowing that your truck is backed by our 1-Year warranty (excluding wear-and-tear parts and damages from misuse). For full warranty details, check out our warranty page.

Q: How does my Truck come delivered?

All our trucks are delivered with free shipping straight to your doorstep! Most trucks arrive fully assembled, while a few may require simple setup. You can easily follow our assembly tutorials and videos for guidance. If you need further assistance, our customer support team is always available to help!

$8,600.00 ~~$8,800.00~~

📦 In stock. Ships in 24–48 hours.
🚛 Free lift gate delivery. Delivered in 5–7 business days.
💲 Final price. No extra shipping cost or hidden fees.
🛡 1-year warranty included. Full support available by video, email, or phone.

1 Year Warranty

At Xilinamerica.com, we proudly back all of our trucks with a one-year limited warranty, excluding wear-and-tear parts and damages caused by misuse. Our warranty period starts from the date of receipt of the item.

Warranty Periods:

1 Year on all trucks (excluding easy-wearing parts and damages caused by human factors)
3 Months on spare parts
6 Months on batteries

Warranty Details:

Within 30 days of receipt: If there are any quality issues, we will provide free spare parts for replacement and remote technical support. If our after-sales team determines that the truck needs to be returned for repair, we will cover all round-trip shipping costs.
Between 30 days and 1 year of receipt: If any quality issues arise, we offer free spare parts and remote technical guidance. If a return for repair is required, the customer is responsible for half of the shipping costs.
After 1 year of receipt: For any quality issues, we will provide free technical support. However, replacement parts will be charged, and if a return for repair is necessary, the customer will be responsible for both the maintenance fees and shipping costs, which will be quoted based on the situation.

If you encounter any issues during the use of the truck, feel free to contact us at support@xilin.com. Our team is ready to assist you.

Free Shipping

At XilinAmerica.com, we offer fast and free shipping on most products within the contiguous United States. Please note that shipping to Hawaii, Alaska, and Puerto Rico is not included in our free shipping offer.

🚚 Free Shipping Conditions
Our FREE SHIPPING offer applies to deliveries made to commercial addresses or locations with self-unloading capability. If additional services are required—such as Lift Gate Service, Residential Delivery, or Phone Call Service—please specify at the time of ordering, as these services will incur additional fees. For more details, contact info@xilinamerica.com.

⏳ Lead Time & Delivery
Once payment is received, orders are typically processed and shipped within 48 hours, excluding holidays. Delivery time varies depending on the shipping origin and destination. While we strive for timely delivery, delays may occur, and all estimated transit times are approximate.

📦 Shipping Damage
All products are carefully inspected and securely packed before shipping. Upon delivery, please check that all packages are in good condition before signing for receipt. If there is visible damage, do not accept the delivery and refuse the shipment. Contact our sales team immediately to arrange for a replacement.

❌ Order Cancellations
Orders can be canceled before they are shipped. If an order has already been dispatched, both the outgoing and return shipping costs will be charged. Please note that a missing tracking update does not necessarily mean the item hasn’t shipped. To request a cancellation, contact us as soon as possible via phone or email during business hours. Cancellations are only valid once confirmed in writing.

✉️ Address Corrections & Changes
For any shipping address changes or corrections, reach out to us immediately to avoid additional costs.

For further details, feel free to contact us at info@xilinamerica.com.

Why Xilin

Why Choose Xilin Material Handling LLC?

The Trusted Expert in Material Handling Equipment

Xilin Material Handling LLC is a leading manufacturer specializing in the production of material handling equipment. Since our establishment, we have dedicated ourselves to creating high-quality, professional, and reliable solutions for industries worldwide. When you choose Xilin, you’re partnering with a company that values innovation, craftsmanship, and a customer-first approach.

Unmatched Product Excellence: Electric Forklifts

Our electric forklift series is at the forefront of our product range, setting new standards in material handling. Designed for optimal performance and efficiency, our electric forklifts provide:

Exceptional Performance: Engineered for a variety of material handling tasks, ensuring smooth and stable operations.
Cost-Effective Solutions: Providing high-quality equipment at competitive prices, giving you the best value for your investment.
Durability You Can Count On: Built to last with compliance to international standards, ensuring long-term reliability in the toughest environments.

Efficient Logistics and Comprehensive After-Sales Support

Fast Delivery: With strategically located warehouses, Xilin ensures prompt delivery to meet the needs of our global customers.
Expert After-Sales Service: Our dedicated after-sales team is here to assist you with everything from installation and training to regular maintenance, ensuring seamless operations and helping you overcome any challenges in your material handling needs.

Confidence in Every Partnership

At Xilin, we prioritize your success. By choosing us, you not only get access to top-tier material handling equipment but also benefit from our full range of services, designed to give you peace of mind throughout the lifecycle of your equipment. Trust Xilin for reliability, performance, and long-term value.

Choose Xilin, Choose Excellence

With Xilin Material Handling LLC, you are assured of high-quality products, dependable support, and a commitment to your business’s success. Let us help you optimize your material handling processes for greater efficiency and productivity.

For more information or inquiries, don't hesitate to contact us!

⚖️ Counterbalance, No Front Legs

No fixed legs—easily handles closed-bottom pallets.

👆 Easy One-Person Operation

Simple controls with upright walk function & turtle mode.

🛣️ 6% Ramp Gradeability

Climbs ramps fully loaded—safe and stable performance.

🔄 Compact & Maneuverable

Fits narrow aisles, turns smoothly even in tight spaces.

Description

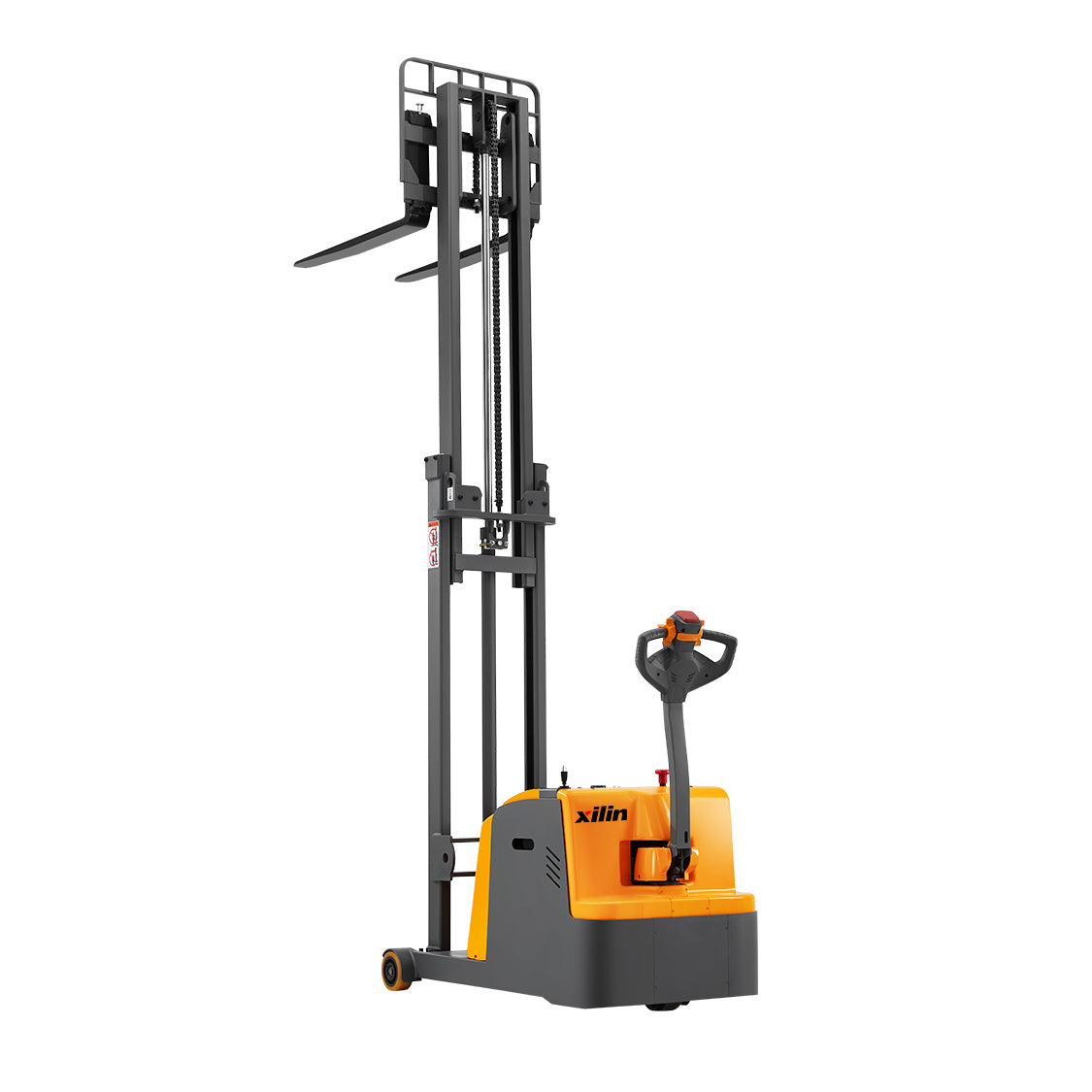

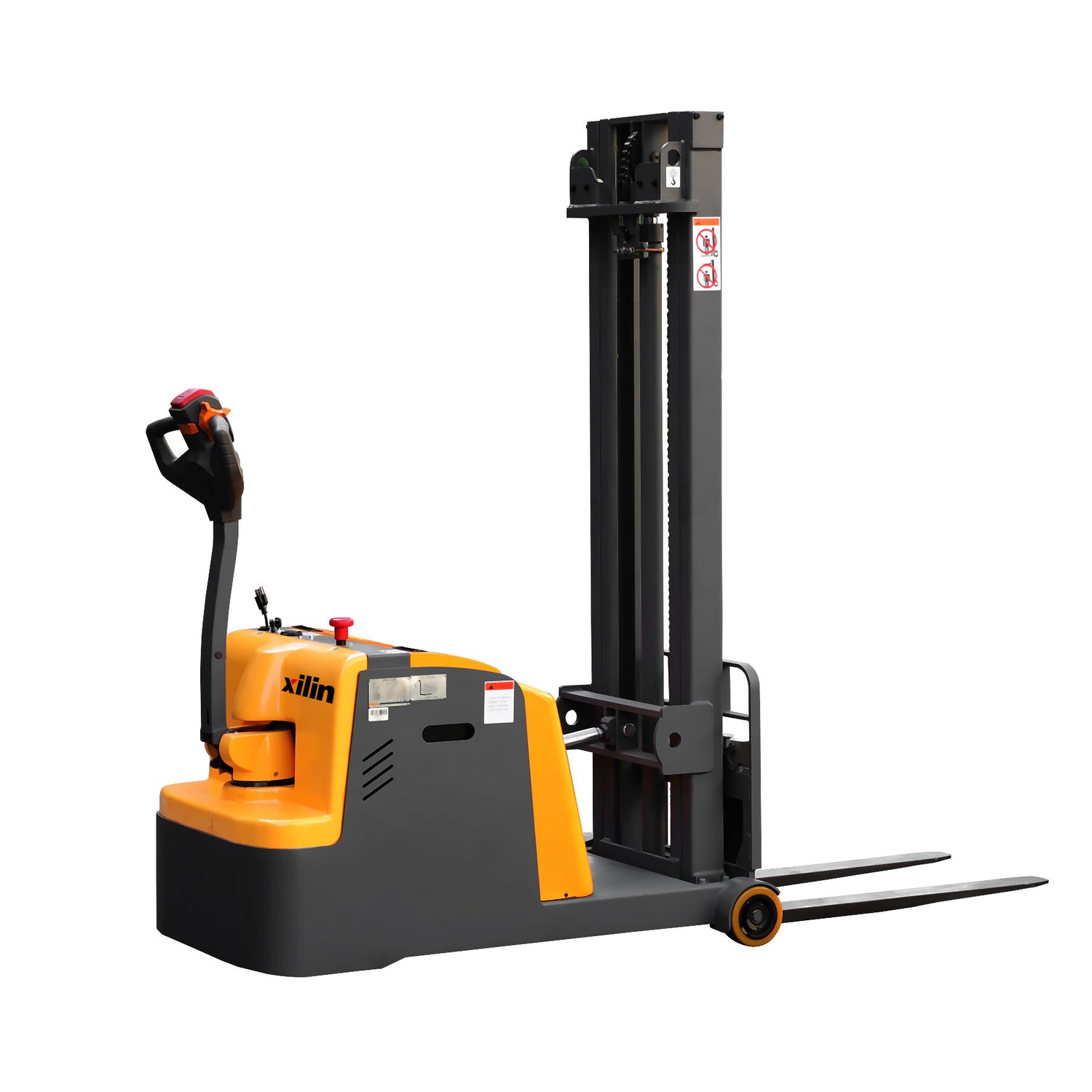

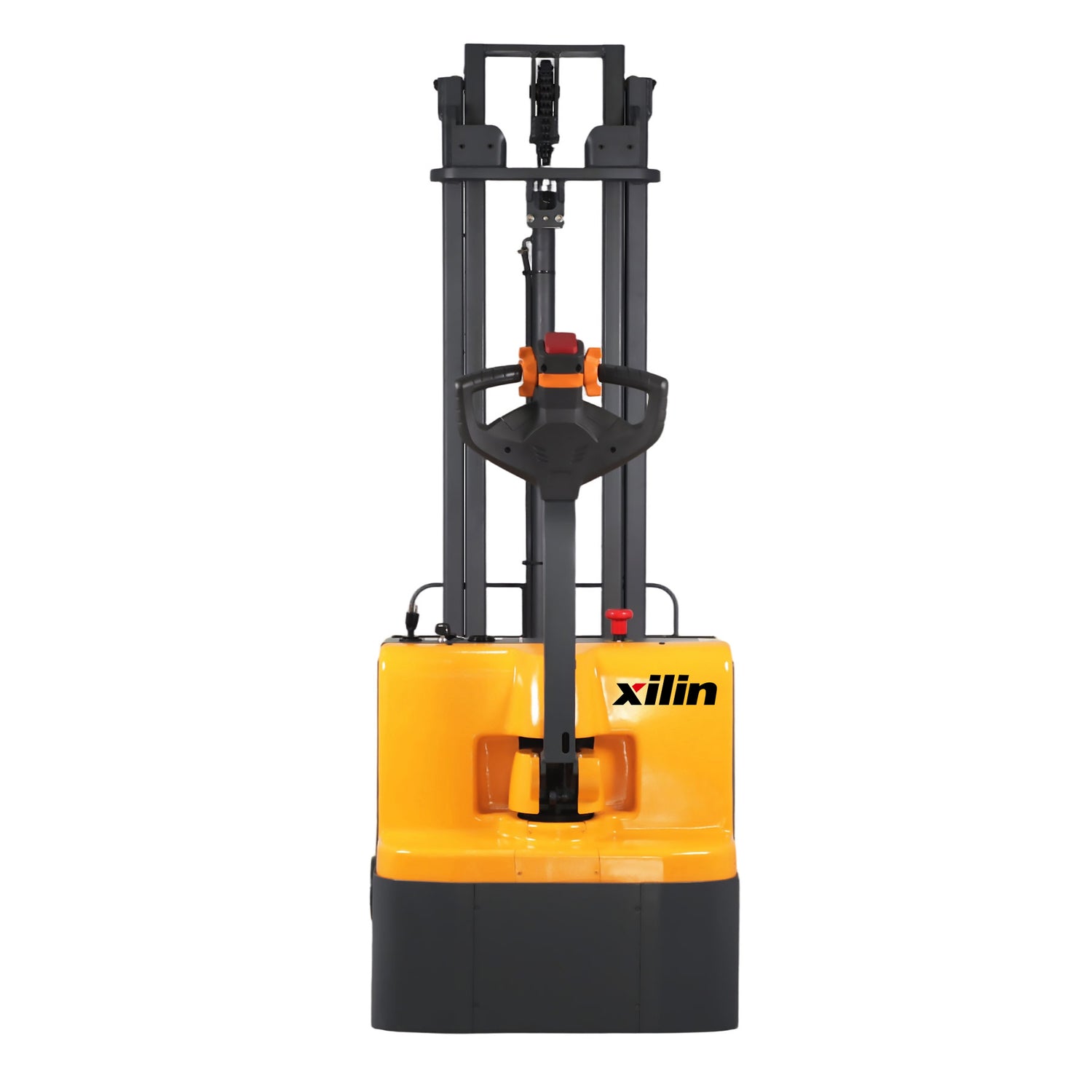

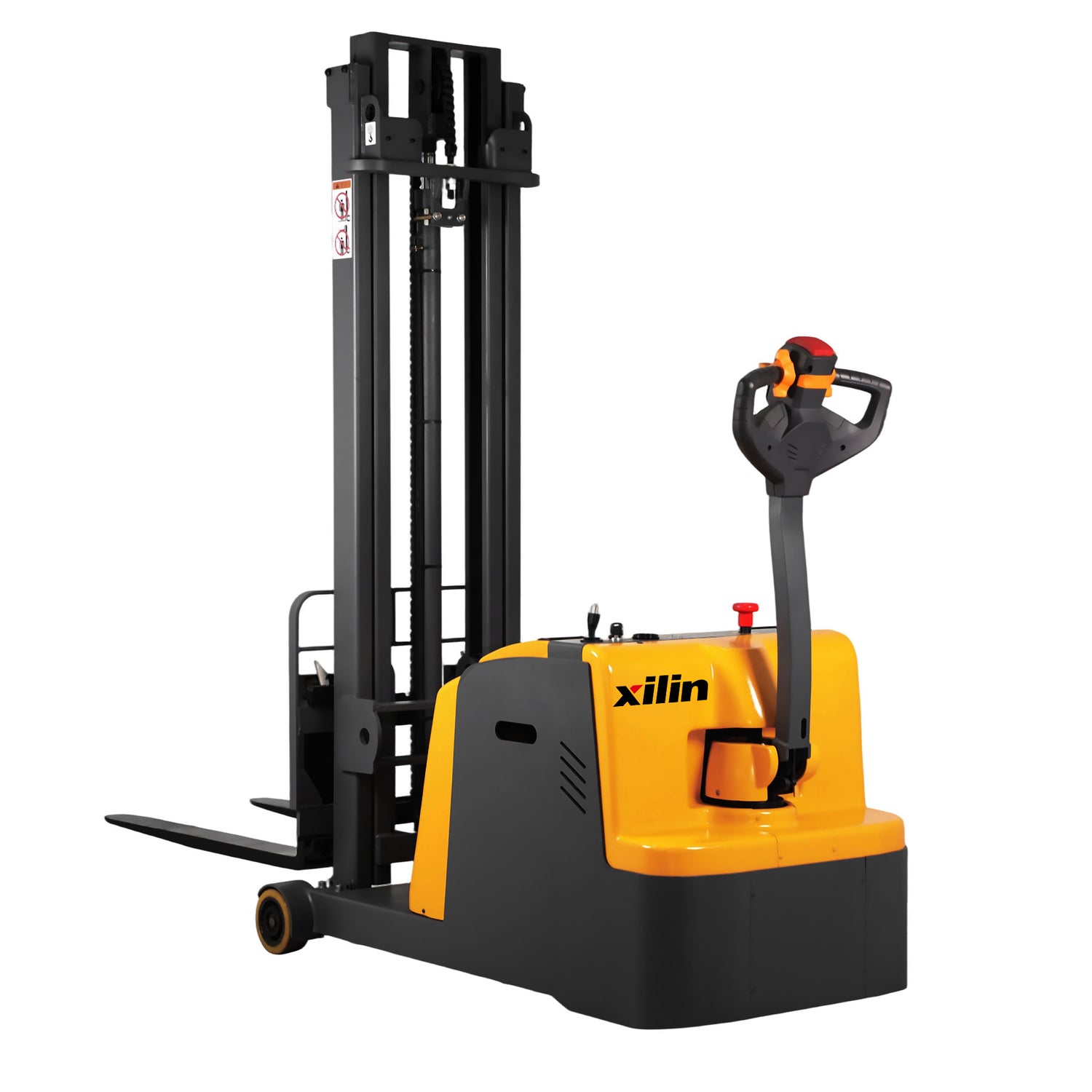

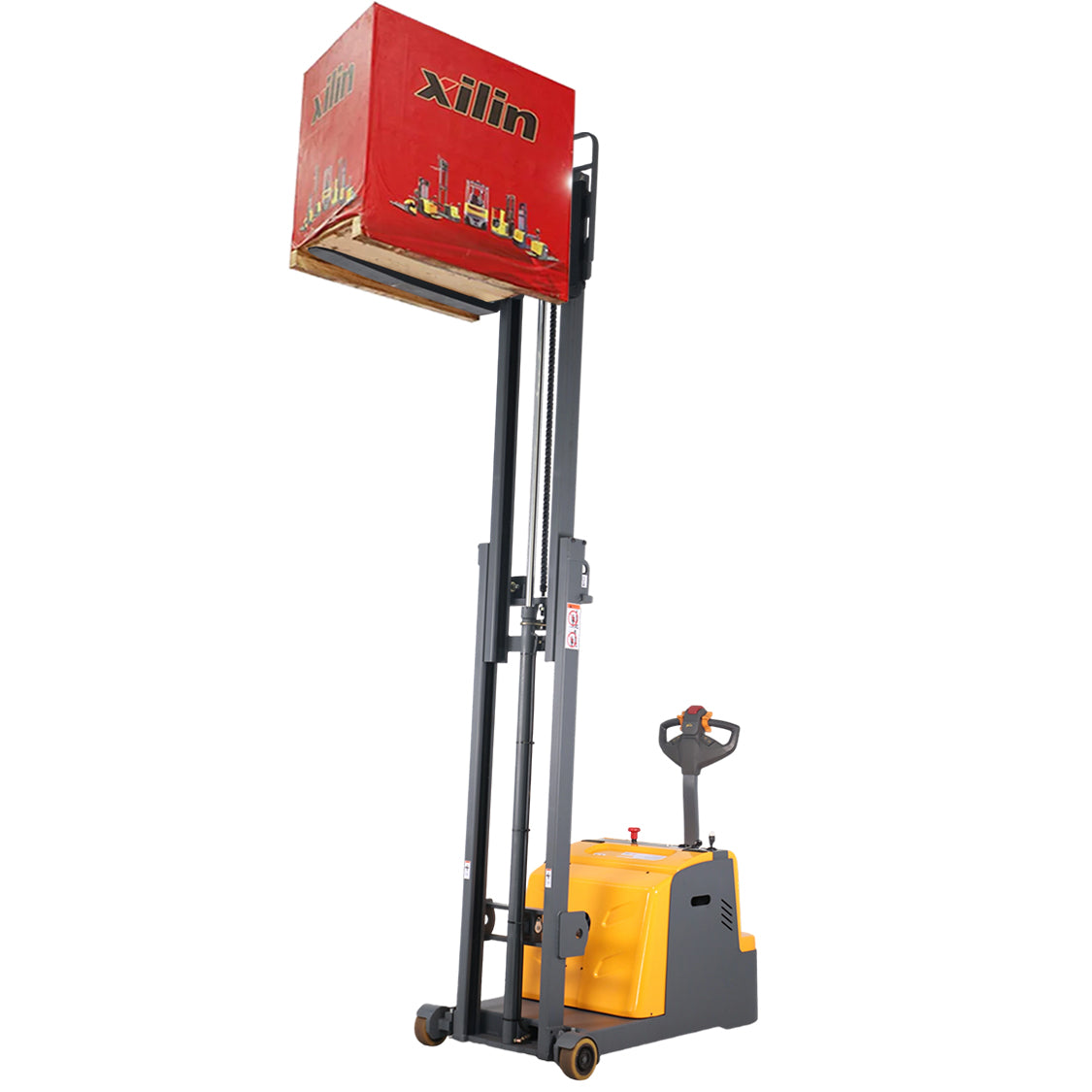

CPD10W-98 Counterbalanced Electric Stacker

The CPD10W-98 delivers efficient stacking in tight warehouse areas with a 2,200 lb capacity and 98" lift height. Its leg-free design easily handles closed-bottom pallets and narrow aisles. Powered by a sealed 24V/125Ah battery with built-in charger, it’s ideal for retail, logistics, and light industry.

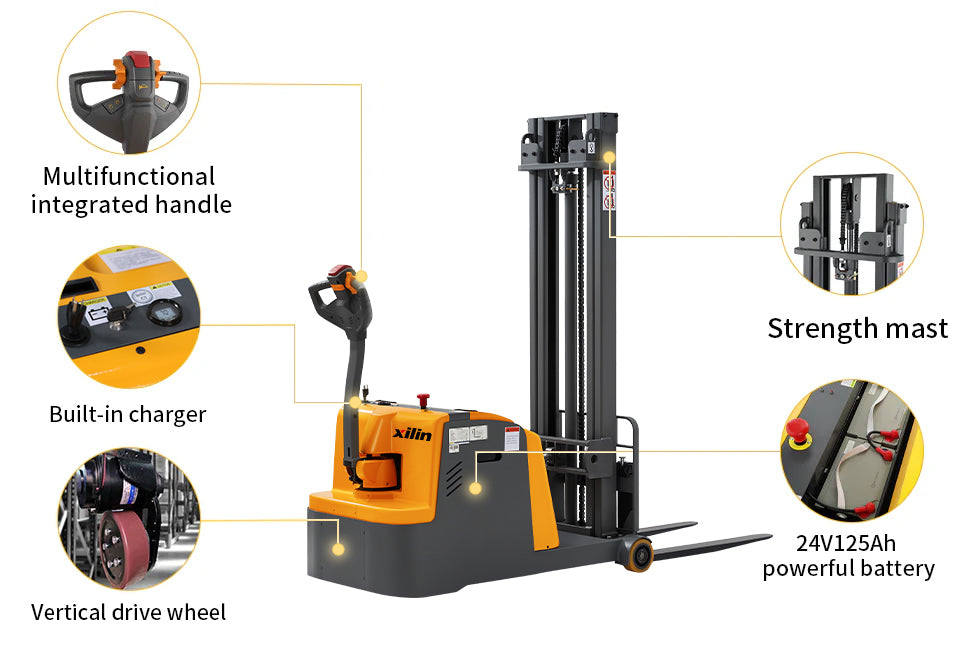

💡 Key Features & Benefits

🎛 Multi-Function Handle – Lift, lower, drive, tilt, horn, reverse, and turtle mode in one grip.
⚙ Leg-Free, Low-Profile Design – Works with closed pallets and fits tight warehouse layouts.
🚀 Tilt-Adjustable Mast – Forward/back tilt simplifies stacking and unloading in narrow spaces.
🔧 Top-Mounted Drive Motor – Elevated motor resists dust, with removable front for fast servicing.
🧱 Three-Point Stability – Load evenly distributed with two front load wheels and rear drive wheel.
🛞 Optional Balance Wheel – Minimizes sway, ensures centered travel during heavy-duty use.
🔋 Maintenance-Free Battery – 24V/125Ah lead-acid battery with sealed casing and low-voltage protection.
🔌 Built-In Charger – Recharge from any outlet with onboard 24V/10A charger.
📊 Control Panel Display – Real-time battery level and hour meter display.
🛡 Full Safety System – Includes belly switch, lift limit, e-stop, overload valve, and anti-drop mast cylinder.
📏 Compact Turning Radius – Just 52.5", perfect for truck beds and narrow indoor spaces.
🐢 Turtle-Speed Mode – Allows slow, safe upright walking inside tight areas or containers.
🔇 Low Noise Design – Quiet operation <70 dB(A), meets DIN 12053 indoor noise standards.
🧰 Modular Layout – 90% component integration, rear battery access, and easy wiring layout.
🛠 Mechanical Steering – Simple linkage system offers smooth and reliable directional control.
🎚 Smart Throttle Zones – Electromagnetic braking in parked positions, safe speed in upright mode.

🎥 Watch the CPD10W in Action

📊 Specifications

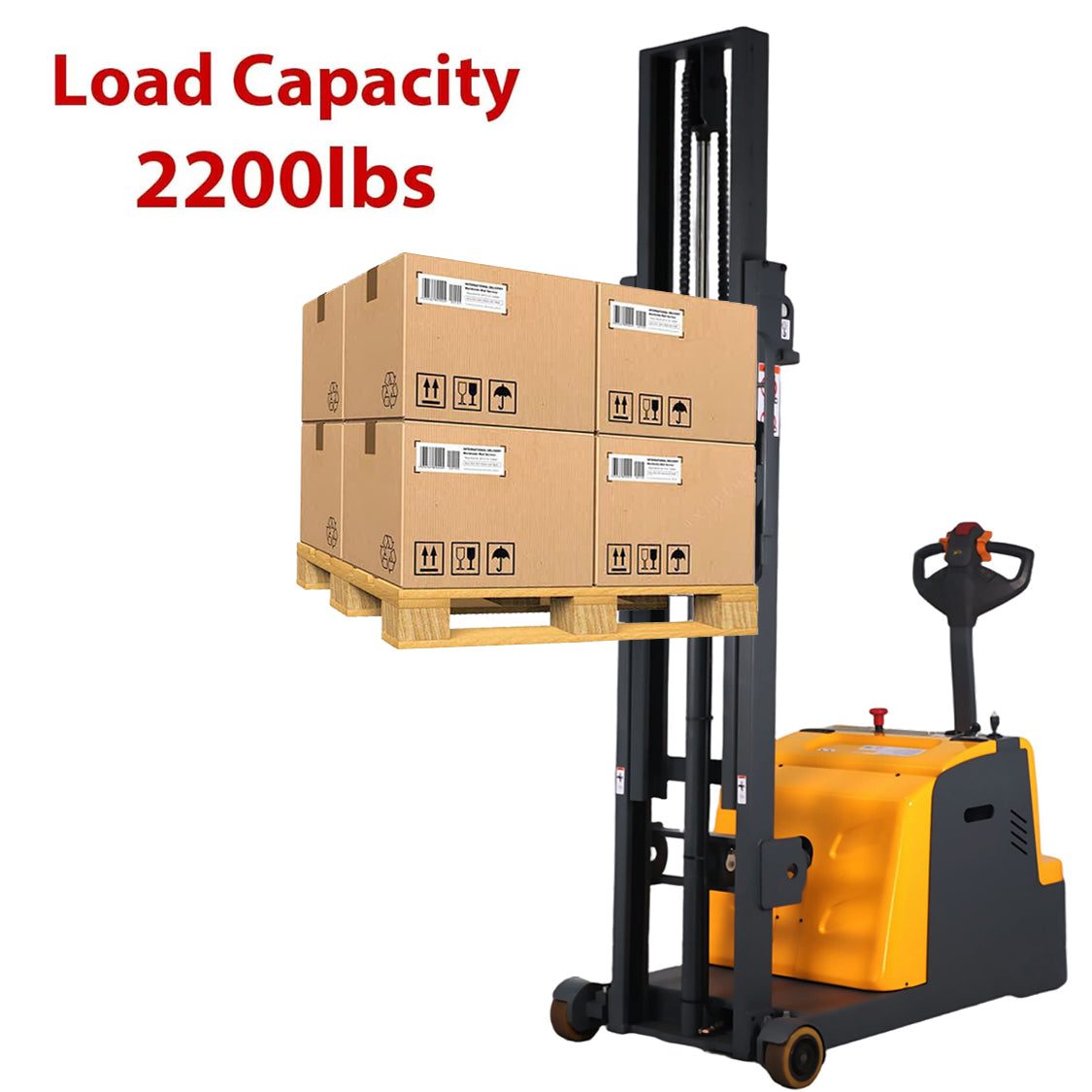

📦 Load Capacity	2,200 lbs
📐 Load Center	15.7"
↪️ Turning Radius	52.5"
📏 Aisle Width	113"
🛻 Fork Dimensions	37.4" L × 8.6–25.4" W × 1" Thick
📏 Inside Fork Width	0.1"–17.5"
📐 Overall Dimensions	92.7" L × 33.3" W
🔺 Max Lifting Height	98"
📏 Mast Height (Lowered/Extended)	71.3" / 123.3"
⬇️ Fork Lowered Height	0.1"
🔋 Battery	24V / 125Ah (Maintenance-Free)
🔌 Charger	24V / 10A Built-in
🚚 Travel Speed (L/U)	2.3 / 2.5 mph
⬆️ Lifting Speed (L/U)	6.3 / 9.5 inch/s
⬇️ Lowering Speed (L/U)	4.3 / 4.3 inch/s

📦 What You’ll Receive

Fully assembled CPD10W-98 electric stacker (protected with film & straps)
Built-in 24V charger (already installed – just plug into a standard outlet, no separate charger needed)
Branded stickers, quick-start guide, and QR code for video tutorial
Delivery note with model and serial number

📬 After You Order

Once your order is confirmed, we will send a confirmation email with your order details.
When your order ships, you'll receive another email with tracking information included.
The stacker arrives fully assembled by truck—no installation needed.
If you have any questions, feel free to contact us — our team is here to help.

📄 Downloads

Reviews (0)

Well-Organized Control Panel

The CPD05W/10W stacker features a user-friendly layout with hydraulic buttons built into the handle. Key functions like the ignition, display, emergency stop, and charger port are clearly arranged for easy access and better visibility. Designed for comfort and smooth operation.
Powerful Handle Controls

The multifunction handle includes speed control, slow-mode for tight turns, reverse safety button, horn, lift/lower switch, and tilt controls. Every function is designed for smooth, precise, and safe operation.

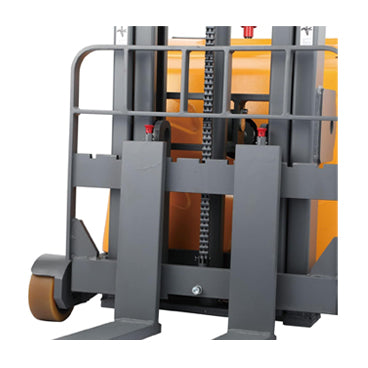

Leg-Free Design

No front support legs, so it works easily with all types of pallets and racks. Smooth steering and great maneuverability make it perfect for tight aisles in factories, warehouses, and logistics spaces.
Easy Battery Access

The battery cover opens from the top, and the side screw can be quickly removed to lift out the battery. This makes daily battery replacement, charging, and maintenance much easier, saving time and effort in busy warehouse operations.

🔎 Designed for Daily Use, Backed by Real Experience

🔧 Built for Precision Stacking in Tight Areas

The CPD10W-98 is a fully electric counterbalance stacker engineered for precise lifting, stacking, and pallet placement in confined environments. With a rated capacity of 2,200 lbs and a maximum lift height of 98", this model eliminates the need for outriggers, allowing close access to racks and pallets. Its compact chassis and tight turning radius support smooth operation in small warehouses, store backrooms, and narrow passages.

🔋 Reliable 24V Power System with Onboard Charging

The truck operates on a 24V lead-acid battery system using two 12V units in series. An onboard AC charger is integrated into the chassis, allowing users to plug directly into a standard outlet for convenient overnight charging. Proper battery maintenance—such as topping off water levels and avoiding deep discharges—is essential for optimal performance and battery life. The charger includes visual status indicators for charging progress.

🛠️ Low-Maintenance Drive and Hydraulic System

Designed with serviceability in mind, the CPD10W-98 provides tool-free access to core components. Key maintenance tasks include:

Replacing hydraulic oil annually (12L, L-HV32 grade)
Inspecting wheel assemblies and axles for wear or damage
Checking fuses, oil lines, and battery terminals monthly
Maintaining proper gear oil levels (GL-5 85W/90) in the drive unit

Maintenance points are clearly marked, and the open layout facilitates quick service routines, reducing downtime.

🧯 Built-In Safety Systems for Operator Confidence

The tiller head is equipped with lift and lower buttons, direction throttle, horn, and a red emergency reverse button. The truck uses regenerative braking during deceleration and an electromagnetic brake that engages automatically when the tiller is released or upright. Travel speed is automatically limited when the mast is raised, reducing the risk of tip-over during high-lift operations. An emergency stop switch is positioned for immediate power cut-off.

📦 Secure Delivery, No Installation Required

According to the manual, the CPD10W-98 is delivered fully assembled, including the handle structure. No installation of electrical or hydraulic parts is required. Each unit is carefully protected with foam and stretch film during transit. The included accessory kit contains the battery key, fuses, charger cable, and printed operation manual.

🛡️ Warranty & Support You Can Count On

The CPD10W-98 includes a 1-year limited warranty covering all major mechanical and electrical systems under normal use. The 24V lead-acid battery is covered for 6 months, and fuses, switches, and other serviceable parts are covered for 3 months. Damage due to improper use, collisions, or wear-and-tear is not included.

Here’s how our support works:

Within 30 days: Free parts, remote technical support, and round-trip shipping if required
Day 31 to 1 year: Free parts and tech support; customer covers 50% of return shipping
After 1 year: Free lifetime tech support; parts and shipping quoted per case

Need help? Email support@xilin.com — our U.S.-based support team is here to help.
