Compact Counterbalanced Electric Stacker – 1,200 lbs Load, 118" Lift, Adjustable Forks | CPD05W-118

$7,700.00 ~~$7,999.00~~

Click here to download the product line drawing(PDF, 0.83MB)
Click here to download the Product User Manual (PDF, 2.56MB)

1 Year Warranty

At Xilinamerica.com, we proudly back all of our trucks with a one-year limited warranty, excluding wear-and-tear parts and damages caused by misuse. Our warranty period starts from the date of receipt of the item.

Warranty Periods:

1 Year on all trucks (excluding easy-wearing parts and damages caused by human factors)
3 Months on spare parts
6 Months on batteries

Warranty Details:

Within 30 days of receipt: If there are any quality issues, we will provide free spare parts for replacement and remote technical support. If our after-sales team determines that the truck needs to be returned for repair, we will cover all round-trip shipping costs.
Between 30 days and 1 year of receipt: If any quality issues arise, we offer free spare parts and remote technical guidance. If a return for repair is required, the customer is responsible for half of the shipping costs.
After 1 year of receipt: For any quality issues, we will provide free technical support. However, replacement parts will be charged, and if a return for repair is necessary, the customer will be responsible for both the maintenance fees and shipping costs, which will be quoted based on the situation.

If you encounter any issues during the use of the truck, feel free to contact us at support@xilin.com. Our team is ready to assist you.

Free Shipping

At XilinAmerica.com, we offer fast and free shipping on most products within the contiguous United States. Please note that shipping to Hawaii, Alaska, and Puerto Rico is not included in our free shipping offer.

🚚 Free Shipping Conditions
Our FREE SHIPPING offer applies to deliveries made to commercial addresses or locations with self-unloading capability. If additional services are required—such as Lift Gate Service, Residential Delivery, or Phone Call Service—please specify at the time of ordering, as these services will incur additional fees. For more details, contact info@xilinamerica.com.

⏳ Lead Time & Delivery
Once payment is received, orders are typically processed and shipped within 48 hours, excluding holidays. Delivery time varies depending on the shipping origin and destination. While we strive for timely delivery, delays may occur, and all estimated transit times are approximate.

📦 Shipping Damage
All products are carefully inspected and securely packed before shipping. Upon delivery, please check that all packages are in good condition before signing for receipt. If there is visible damage, do not accept the delivery and refuse the shipment. Contact our sales team immediately to arrange for a replacement.

❌ Order Cancellations
Orders can be canceled before they are shipped. If an order has already been dispatched, both the outgoing and return shipping costs will be charged. Please note that a missing tracking update does not necessarily mean the item hasn’t shipped. To request a cancellation, contact us as soon as possible via phone or email during business hours. Cancellations are only valid once confirmed in writing.

✉️ Address Corrections & Changes
For any shipping address changes or corrections, reach out to us immediately to avoid additional costs.

For further details, feel free to contact us at info@xilinamerica.com.

Why Xilin

Why Choose Xilin Material Handling LLC?

The Trusted Expert in Material Handling Equipment

Xilin Forklift Company, with 38 years of expertise, is a leading manufacturer specializing in the production of material handling equipment. Since our establishment, we have dedicated ourselves to creating high-quality, professional, and reliable solutions for industries worldwide. When you choose Xilin, you’re partnering with a company that values innovation, craftsmanship, and a customer-first approach.

Unmatched Product Excellence: Electric Forklifts

Our electric forklift series is at the forefront of our product range, setting new standards in material handling. Designed for optimal performance and efficiency, our electric forklifts provide:

Exceptional Performance: Engineered for a variety of material handling tasks, ensuring smooth and stable operations.
Cost-Effective Solutions: Providing high-quality equipment at competitive prices, giving you the best value for your investment.
Durability You Can Count On: Built to last with compliance to international standards, ensuring long-term reliability in the toughest environments.

Efficient Logistics and Comprehensive After-Sales Support

Fast Delivery: With strategically located warehouses, Xilin ensures prompt delivery to meet the needs of our global customers.
Expert After-Sales Service: Our dedicated after-sales team is here to assist you with everything from installation and training to regular maintenance, ensuring seamless operations and helping you overcome any challenges in your material handling needs.

Confidence in Every Partnership

At Xilin, we prioritize your success. By choosing us, you not only get access to top-tier material handling equipment but also benefit from our full range of services, designed to give you peace of mind throughout the lifecycle of your equipment. Trust Xilin for reliability, performance, and long-term value.

Choose Xilin, Choose Excellence

With Xilin Material Handling LLC, you are assured of high-quality products, dependable support, and a commitment to your business’s success. Let us help you optimize your material handling processes for greater efficiency and productivity.

For more information or inquiries, don't hesitate to contact us!

Capacity 📦

Rated Load Capacity 1200lbs

Aisle width ↔️

Minimum Aisle Width 108.3inch

Height ⬆️

Mast Lifting Height 118inch

lowered height ⬇️

Mast Lowered Height 80.8inch

Description

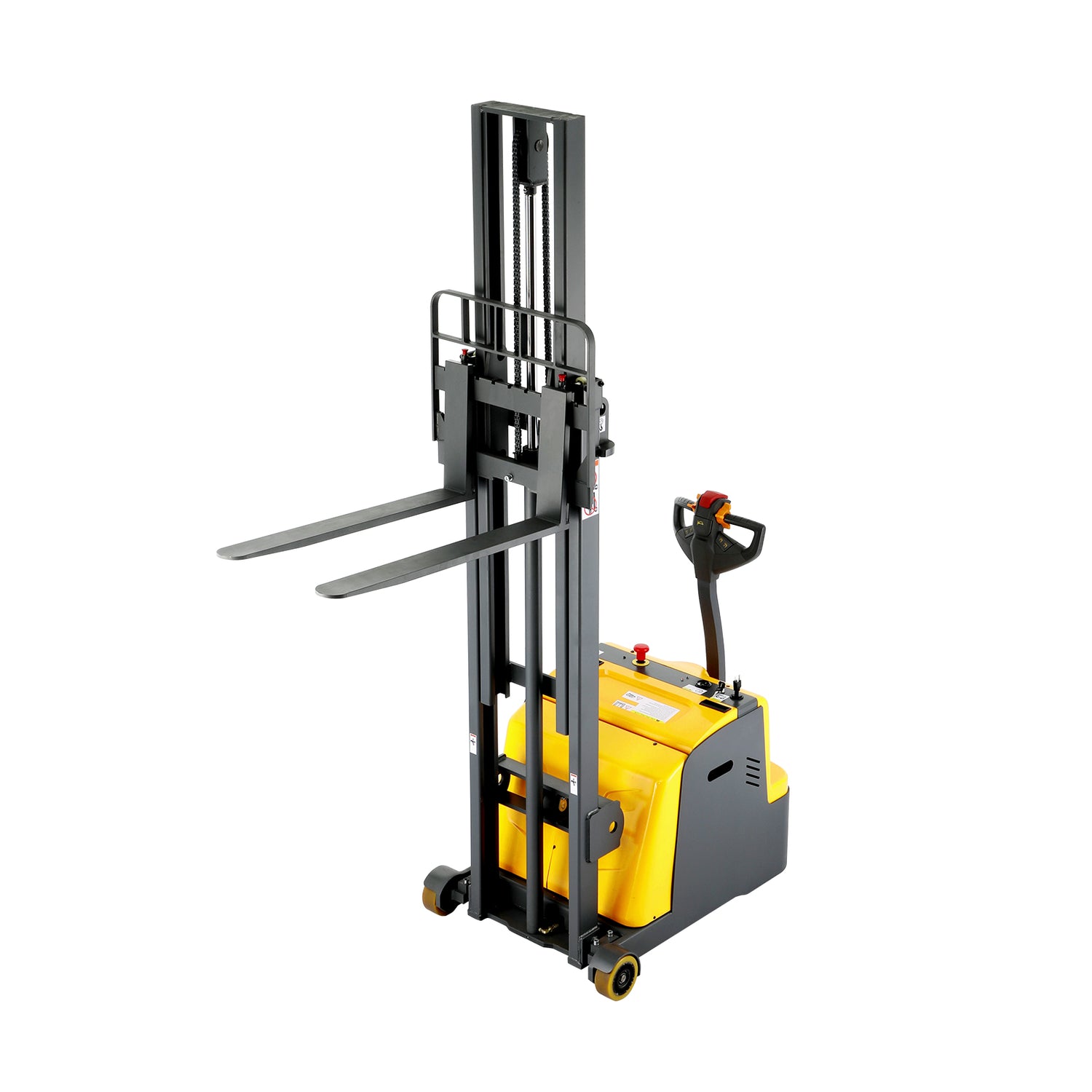

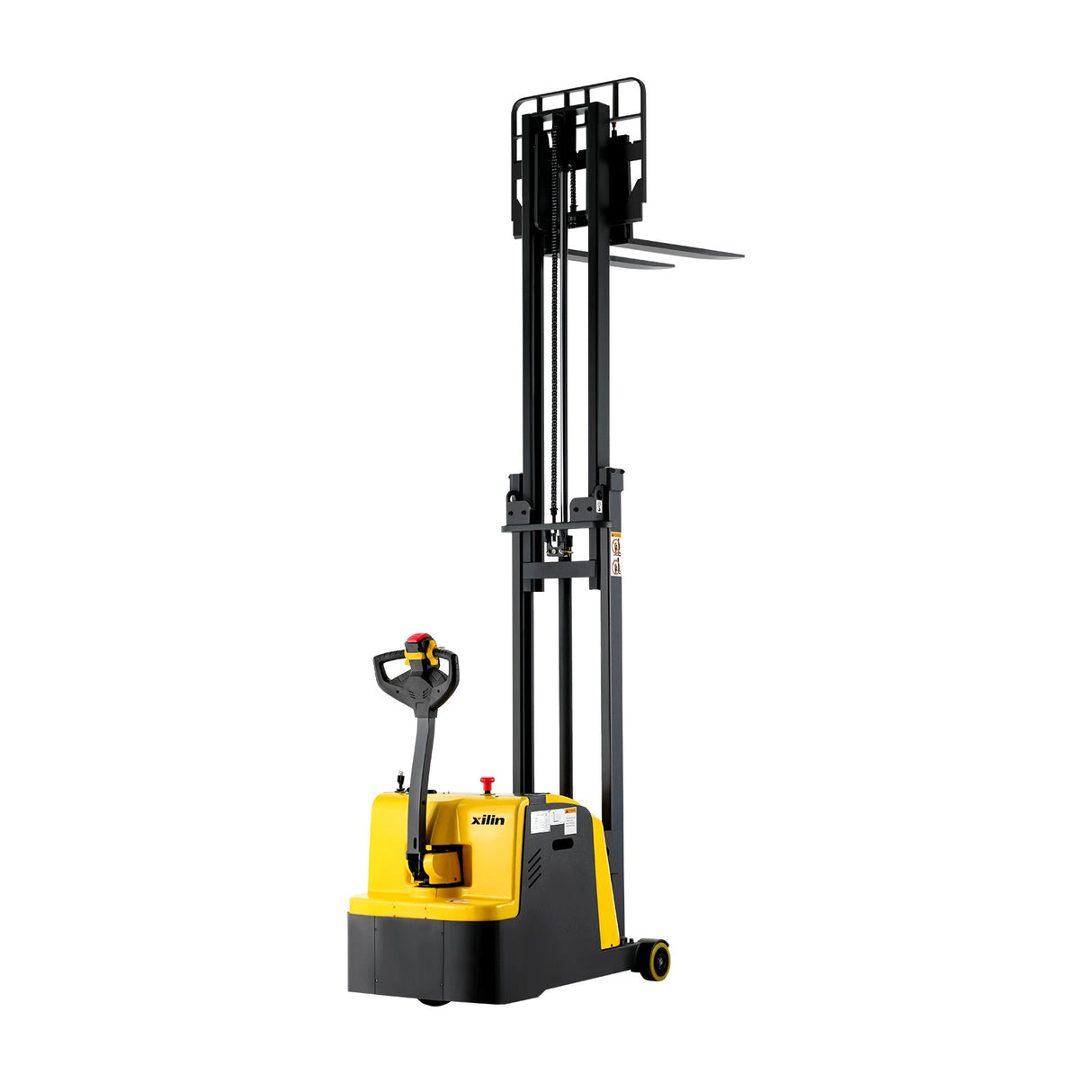

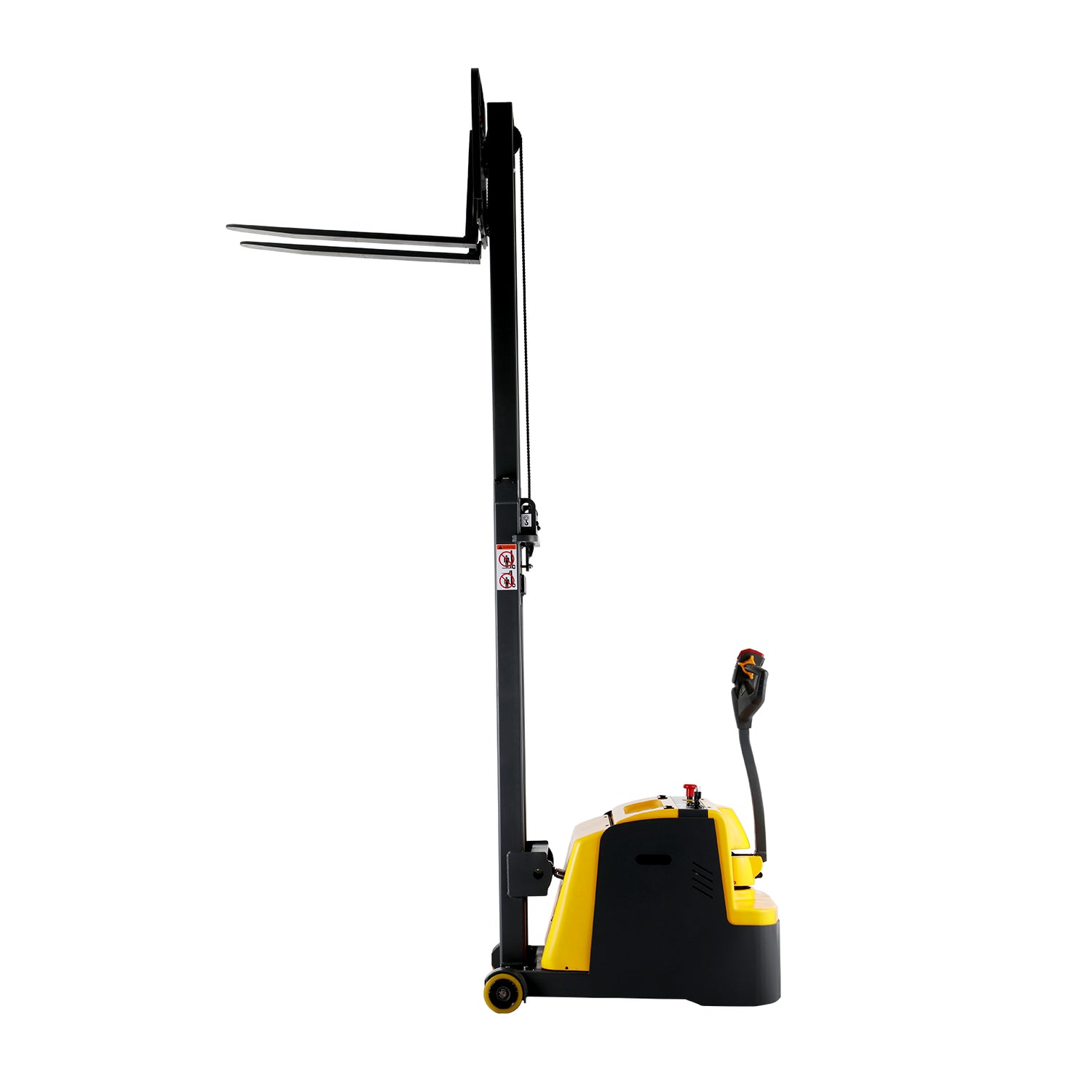

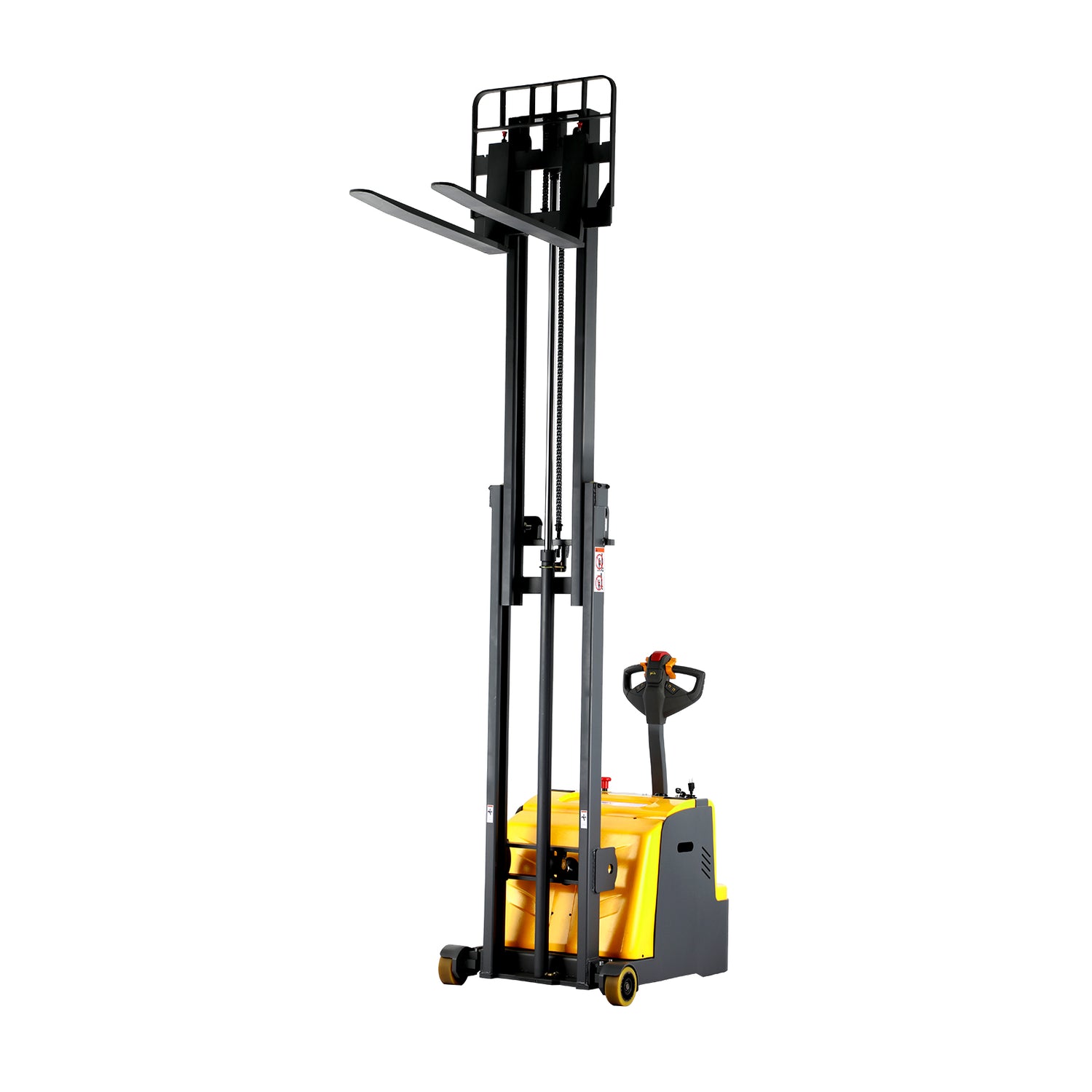

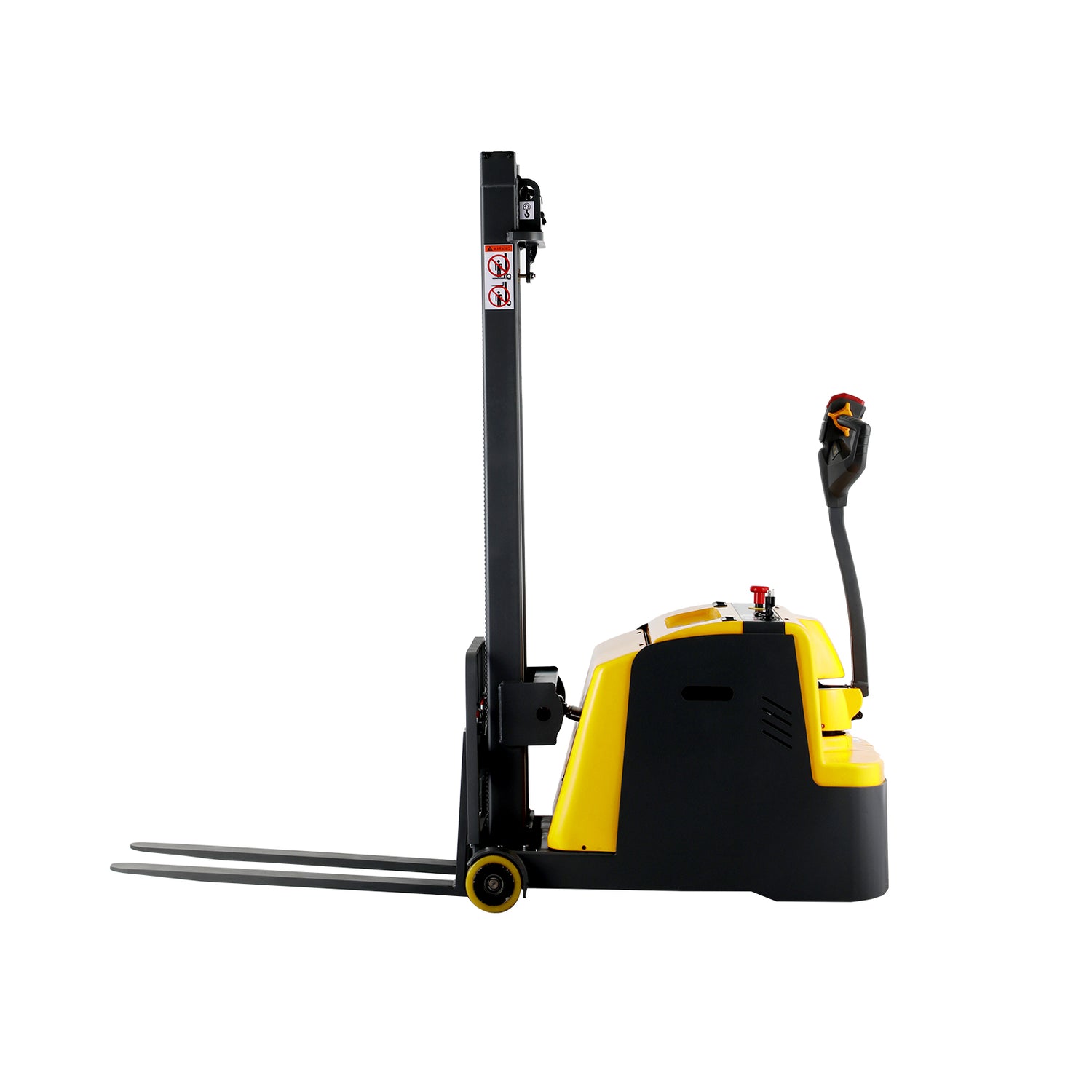

CPD05W-118 Counterbalanced Electric Stacker – Compact & Efficient

Versatile Stacker for Tight Spaces

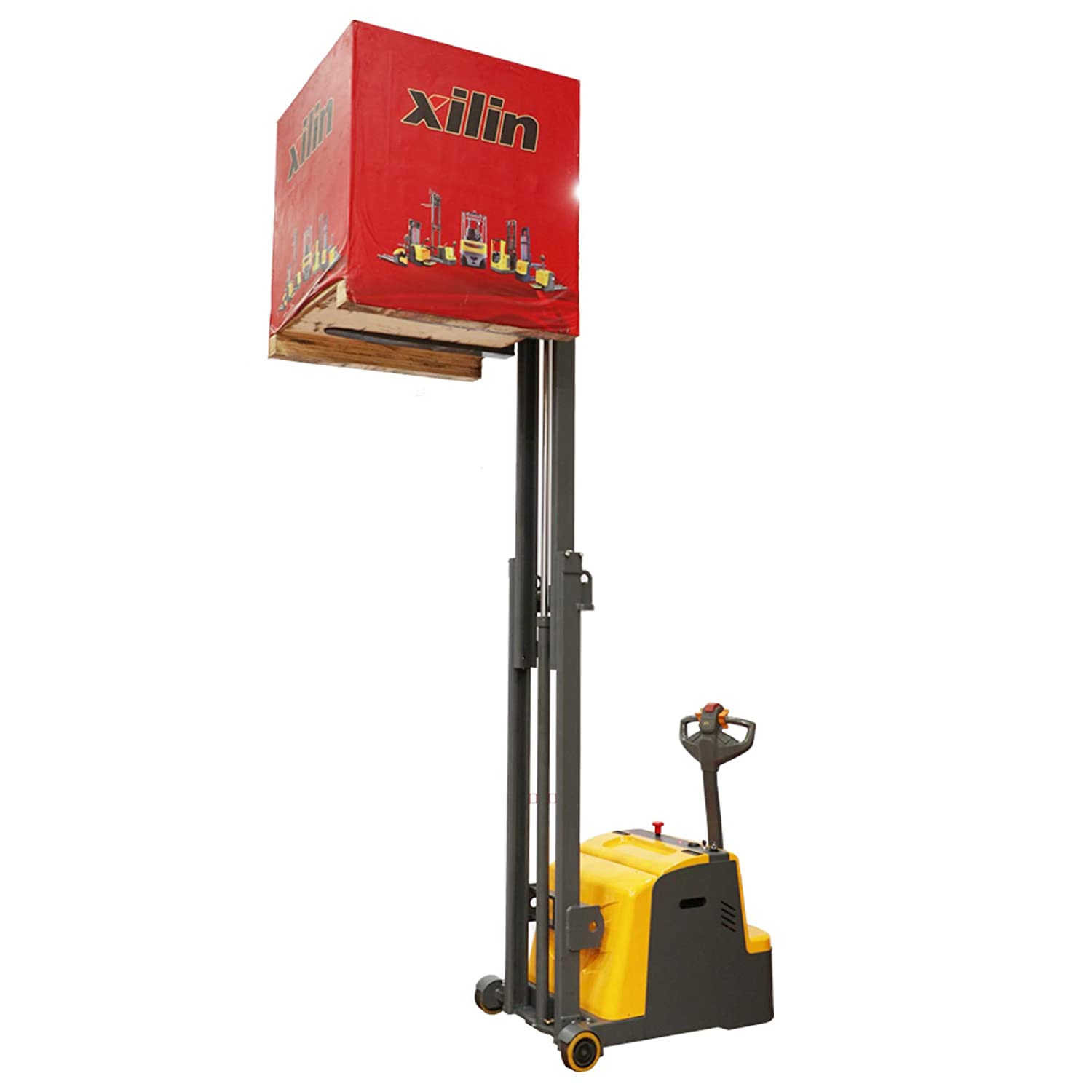

The CPD05W-118 Counterbalanced Electric Stacker is designed for efficient lifting and stacking in warehouses, logistics, and production facilities. With a 1,200 lbs load capacity and 118" maximum lift height, it handles pallets with low ground clearance and operates smoothly in tight spaces. Its counterbalanced design eliminates front support legs, improving accessibility and flexibility in diverse environments.

Key Features & Benefits

🎛 Ergonomic Multi-Function Handle – The control handle integrates lifting, lowering, forward/reverse movement, mast tilt, emergency reverse, horn, and turtle-speed mode, enabling all operations with one hand.

⚙ Streamlined, Low-Profile Design – Compact chassis with a clean internal layout, low center of gravity, and no front support legs allow access to low-clearance pallets and smooth stacking in any warehouse layout.

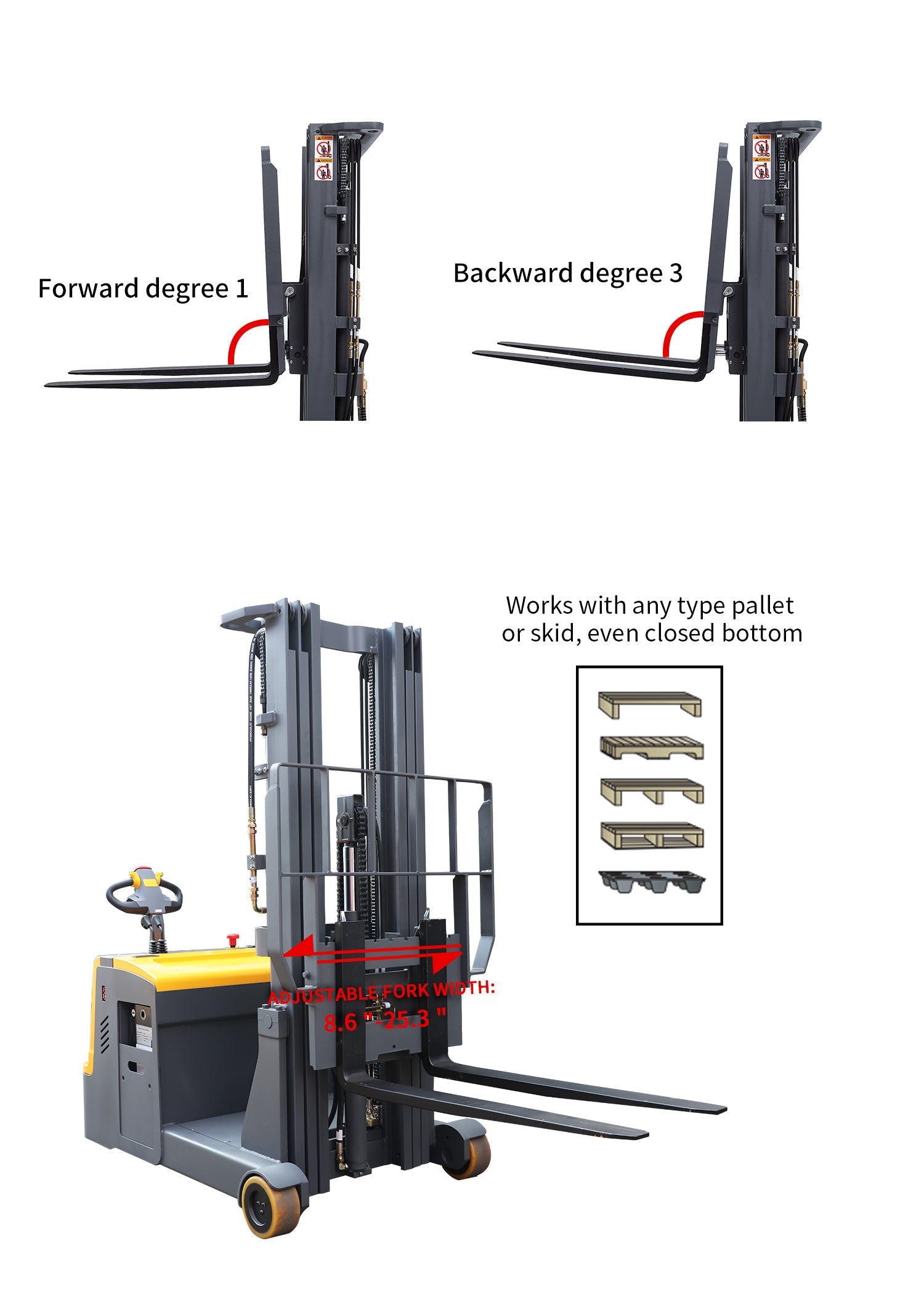

🚀 Tilt-Adjustable Mast – The mast can tilt forward and backward for easier pallet pickup, stacking, and unloading in tight areas.

🔧 Top-Mounted Drive Wheel System – The horizontally mounted drive motor sits higher from the ground to avoid dust and moisture, with a removable front panel for quick wheel or motor replacement.

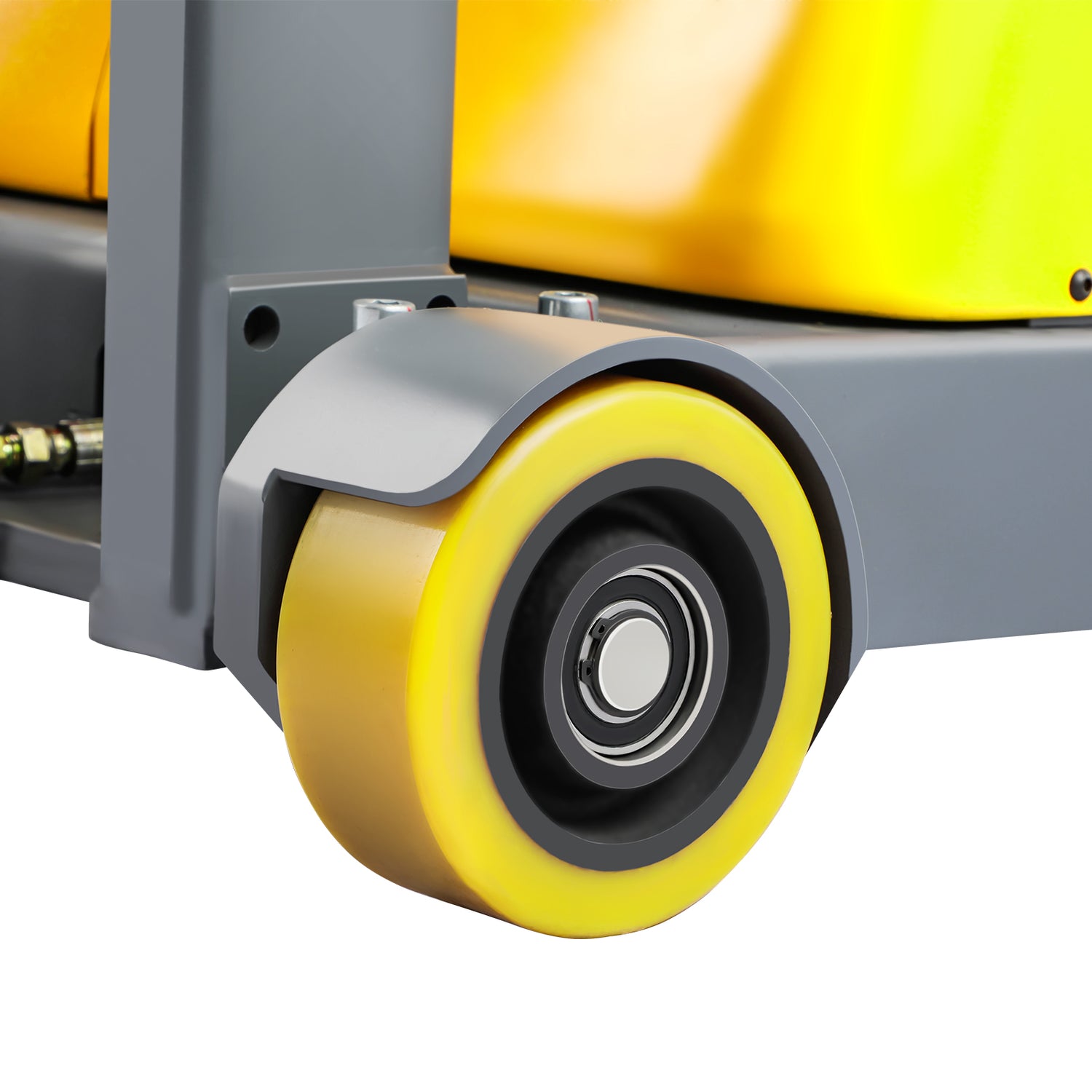

🧱 Three-Point Structural Design – Two front load wheels and one rear drive wheel distribute weight evenly, offering excellent handling and stability across various floor conditions.

🛞 No Side Sway with Stable Travel – The optional floating balance wheel mechanism ensures steady, centered movement during heavy-duty operation, eliminating side-to-side wobble.

🔋 Maintenance-Free High-Capacity Battery – Equipped with a fully sealed, maintenance-free battery and low-voltage protection system to extend service life. Standard model features 24V / 105Ah lead-acid battery.

🔌 Built-In Charger for Convenience – Comes standard with an internal charger, allowing plug-and-play recharging at any outlet.

📊 Intuitive Control Panel Display – Clearly laid out interface with real-time battery status and accumulated working hours.

🛡 Full Safety System – Includes:

Electromagnetic braking with short stopping distance
Emergency power-off switch
Belly switch for reverse retreat
Hydraulic overload protection
Explosion-proof valve in the lifting cylinder to prevent sudden free-fall

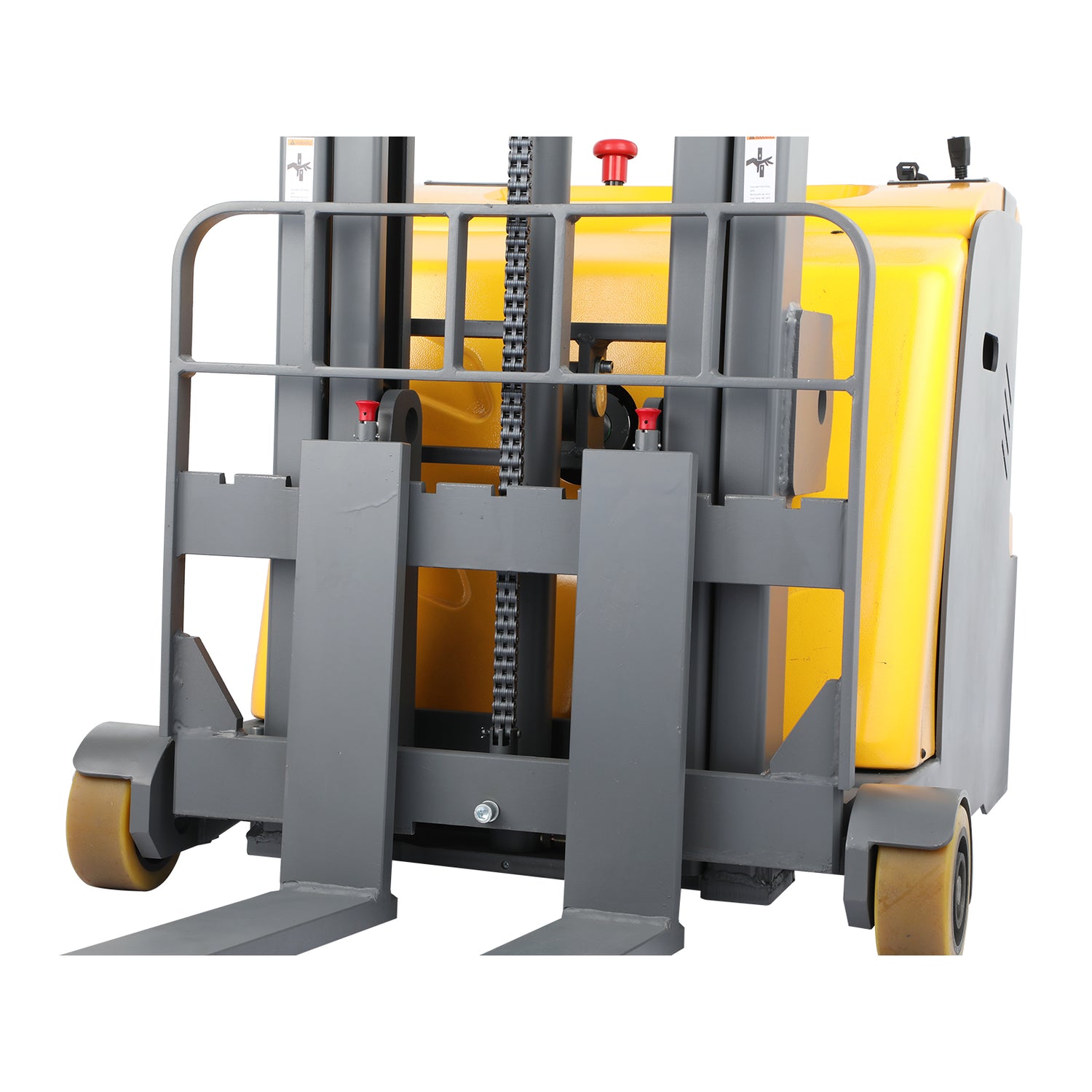

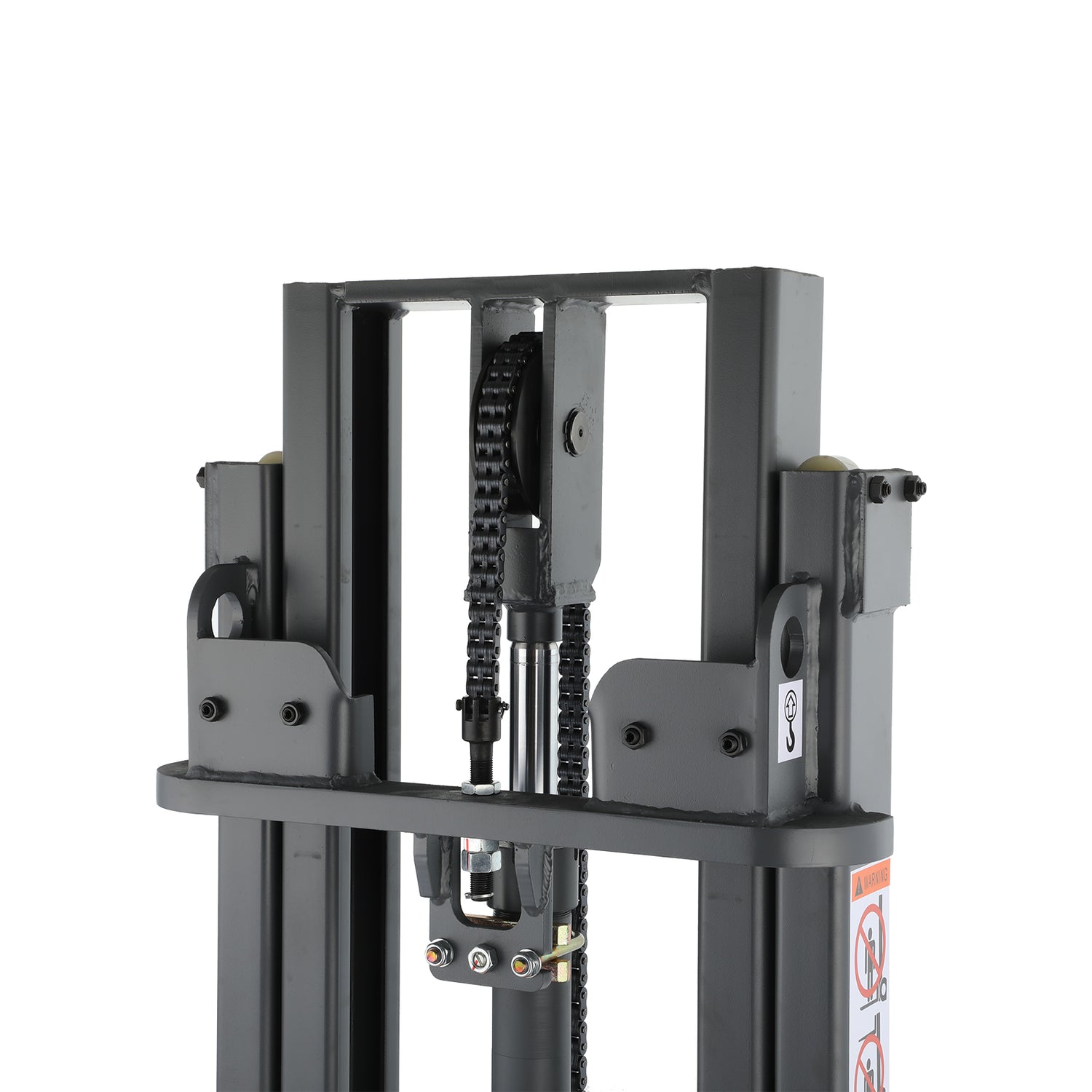

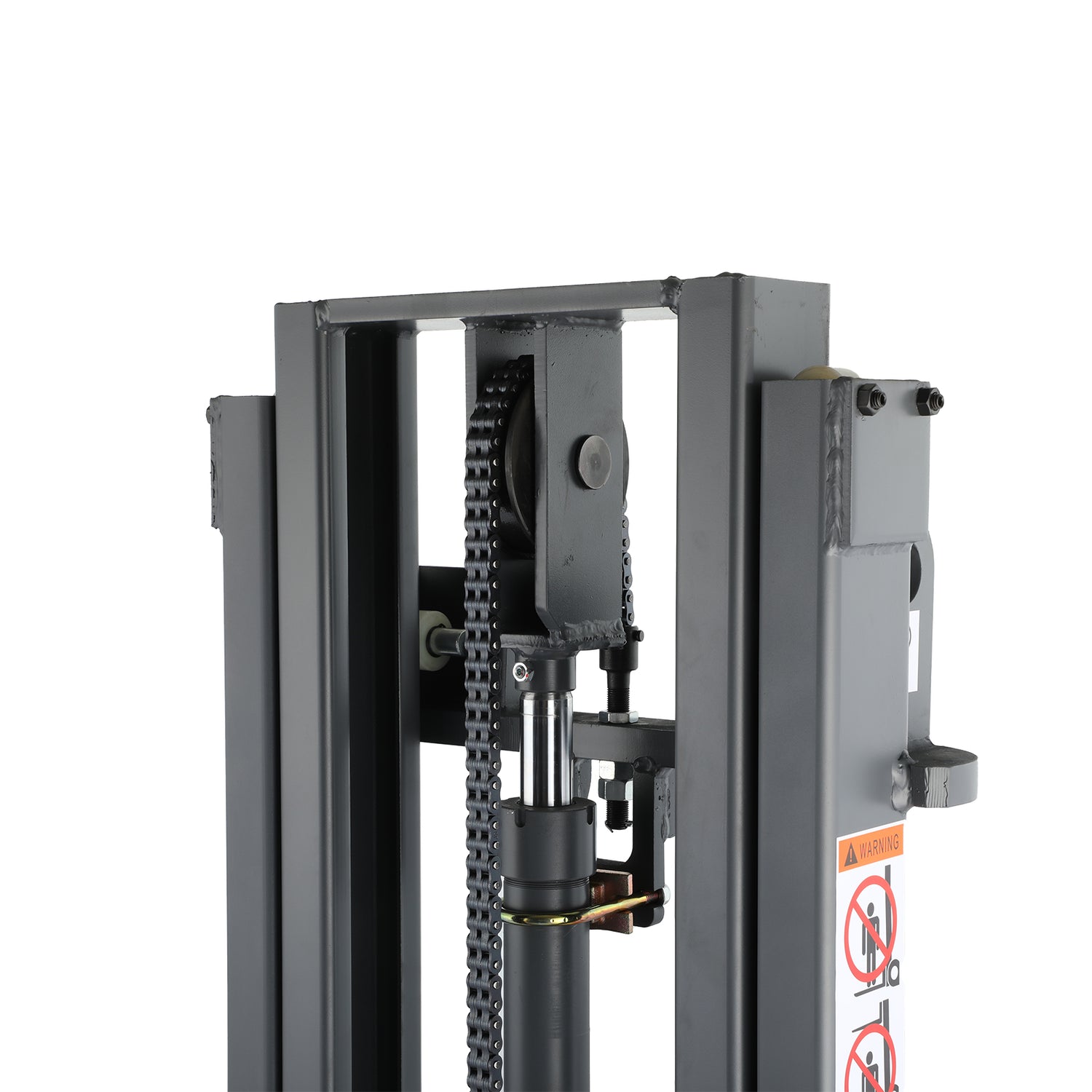

Mast center-located lift cylinder and chains for structural reliability

📏 Tight Turning in Narrow Aisles – Compact overall length and walk-behind operation allow smooth maneuverability in containers, trucks, and narrow indoor pathways.

🐢 Turtle Speed Upright Travel Mode – Standard turtle-speed button and vertical handle function enable safe and slow operation in confined spaces.

🔊 Quiet Operation – Driver-side noise level meets DIN 12053 standards with an average noise rating below 70 dB(A), supporting clean, low-noise work environments.

🧰 Highly Maintainable Layout – Modular electrical systems, 90% component integration, removable rear battery cover, and organized internal wiring allow fast servicing and easy part replacement.

🛠 Simple & Reliable Mechanical Steering – Uses traditional mechanical linkage for turning, delivering stable performance with minimal maintenance.

🎚 Smart Acceleration & Braking Logic –
The tiller operates based on three positional zones:

In Zone A or Zone C, the truck automatically enters electromagnetic brake mode and cannot move—ensuring safety during parking or standby.
In Zone B, the truck is ready to drive. Rotating the throttle knob forward or backward controls the direction, and the speed increases proportionally with the rotation angle.

When the tiller is in the upright position, pressing the turtle-speed button activates low-speed mode for precise, controlled movement—ideal for stacking or maneuvering in tight spaces.

Who Is This Stacker For?

🏭 Warehouses & Logistics – Space-saving, high-efficiency stacking solution.

🚚 Manufacturing & Production – Ideal for material handling in confined spaces.

📦 Retail & Distribution – Reliable for stock movement and inventory management.

Why Choose the CPD05W-118?

✔ Lifts up to 1,200 lbs for smooth and stable stacking.

✔ Compact 33.3" width, perfect for tight warehouse aisles.

✔ No front legs, allowing easy access to low-clearance pallets.

✔ Built-in charger for hassle-free recharging.

Upgrade Your Material Handling Today

📞 Expert Support Available | 🚛 Fast Shipping

Reviews (2)

Hi,
I received it today in perfect condition.It is operating well now and I will let you know when we use it in thedesignated area.Thanks

Xilin 3300lbs 45"x21" Lithium Battery Electric Pallet Jack CBD15W-LI × 1

The Company bought this pallet jack, excellent piece of equipment,. Had a little issue due to the freight forwarders, but Xilin solved the issue right away and we are very glad with the machine.

Specifications

Load Capacity & Dimensions

Capacity: 1,200 lbs
Load Center: 15.7"
Turning Radius: 46.1"
Aisle Width: 108.3"

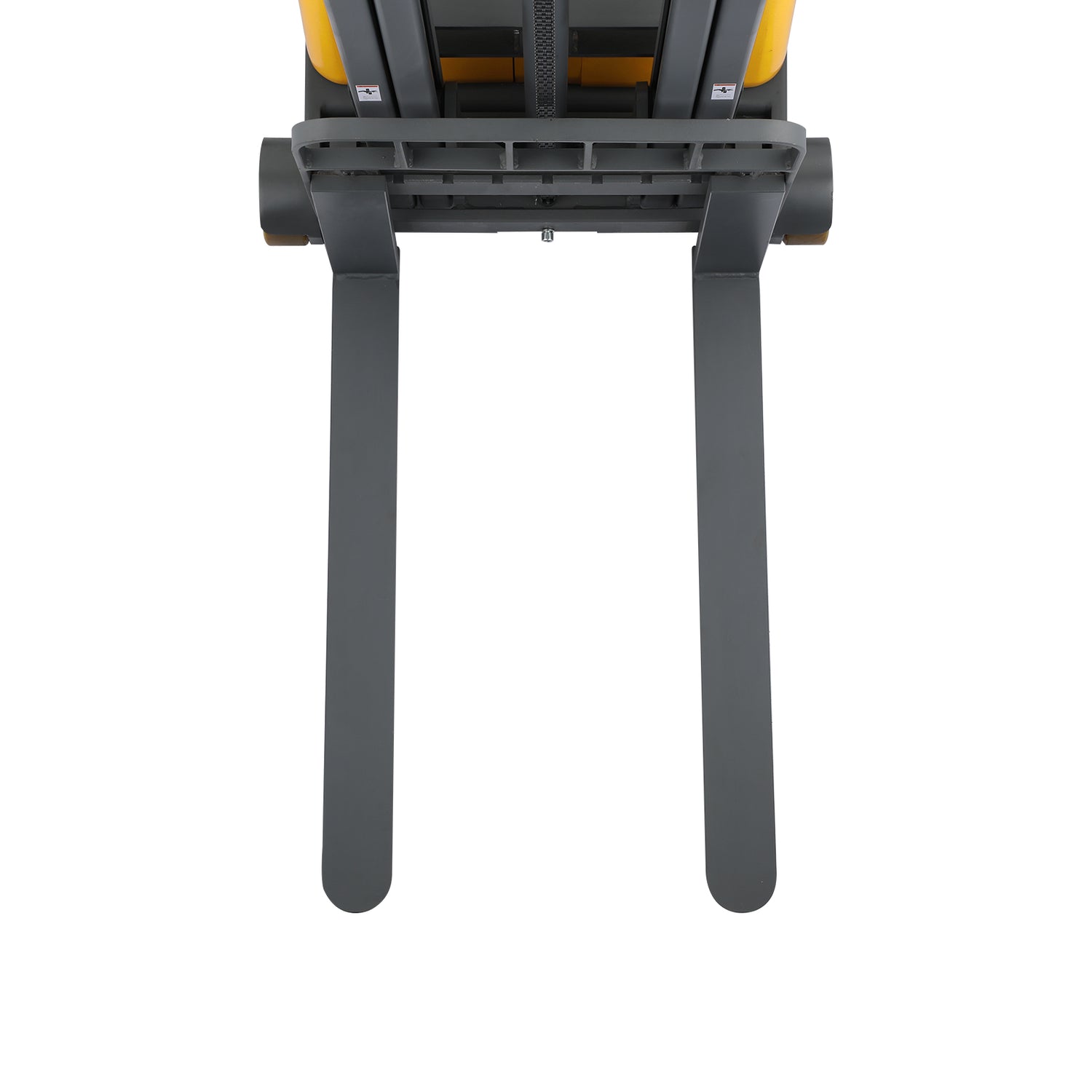

Fork Dimensions

Width Overall Forks: 8.6"-25.4"
Single Fork Width: 3.9"
Fork Length: 37.4"
Fork Thickness: 1"
Distance Between Forks (Inside): 0.1"-17.5"
Fork Lowered Height: 0.1"

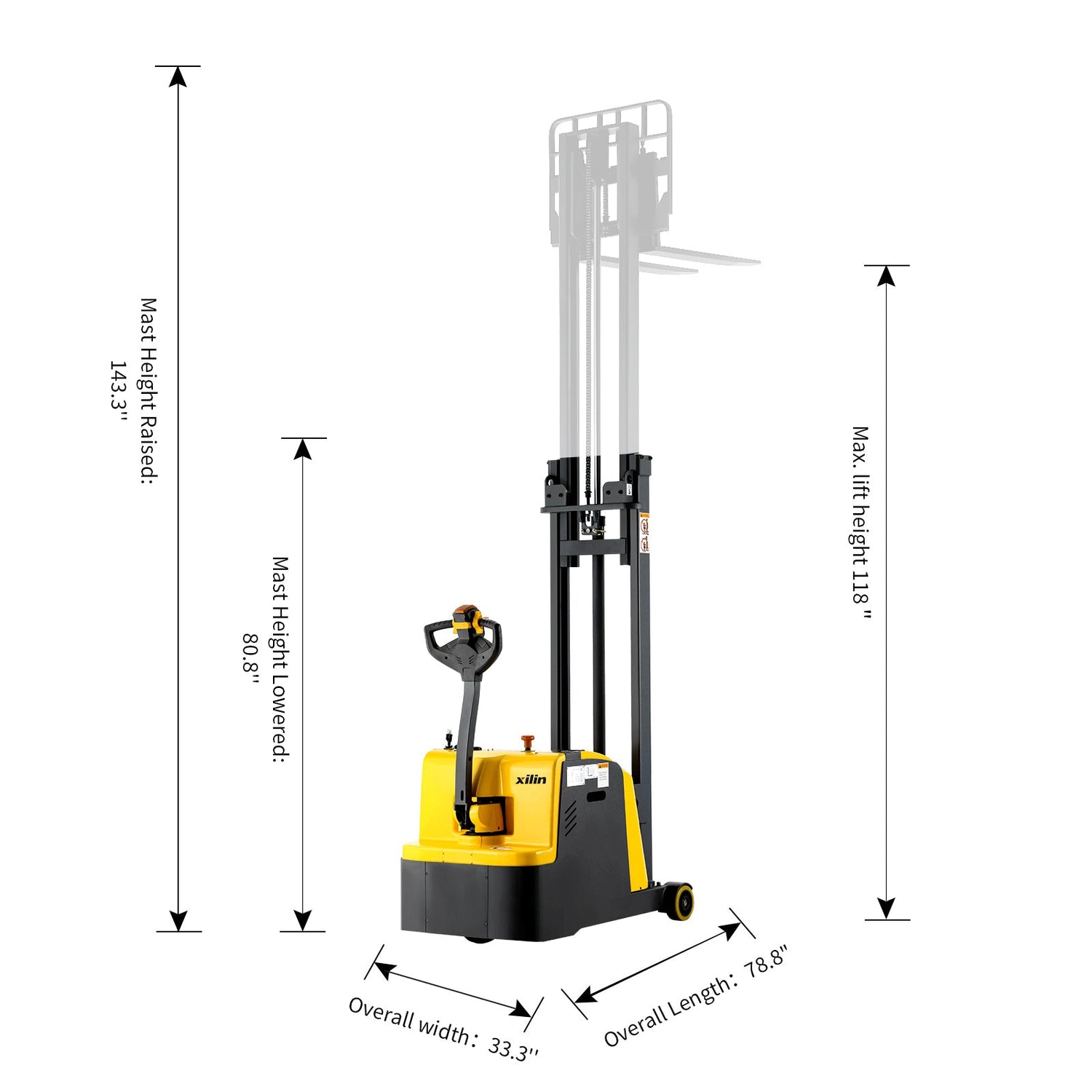

Overall Dimensions

Overall Width: 33.3"
Overall Length: 78.8"

Mast

Max. Lifting Height: 118"
Mast Extended Height: 143.3"
Mast Lowered Height: 80.8"

Battery & Charger

Battery Voltage/Capacity: 24V / 105Ah
Charger: 24V / 10A built-in

Speed & Performance

Travel Speed (Laden): 2.5 mph
Travel Speed (Unladen): 2.8 mph
Lifting Speed (Laden): 6.7 inch/s
Lifting Speed (Unladen): 9.8 inch/s
Lowering Speed (Laden): 5.5 inch/s
Lowering Speed (Unladen): 5.5 inch/s

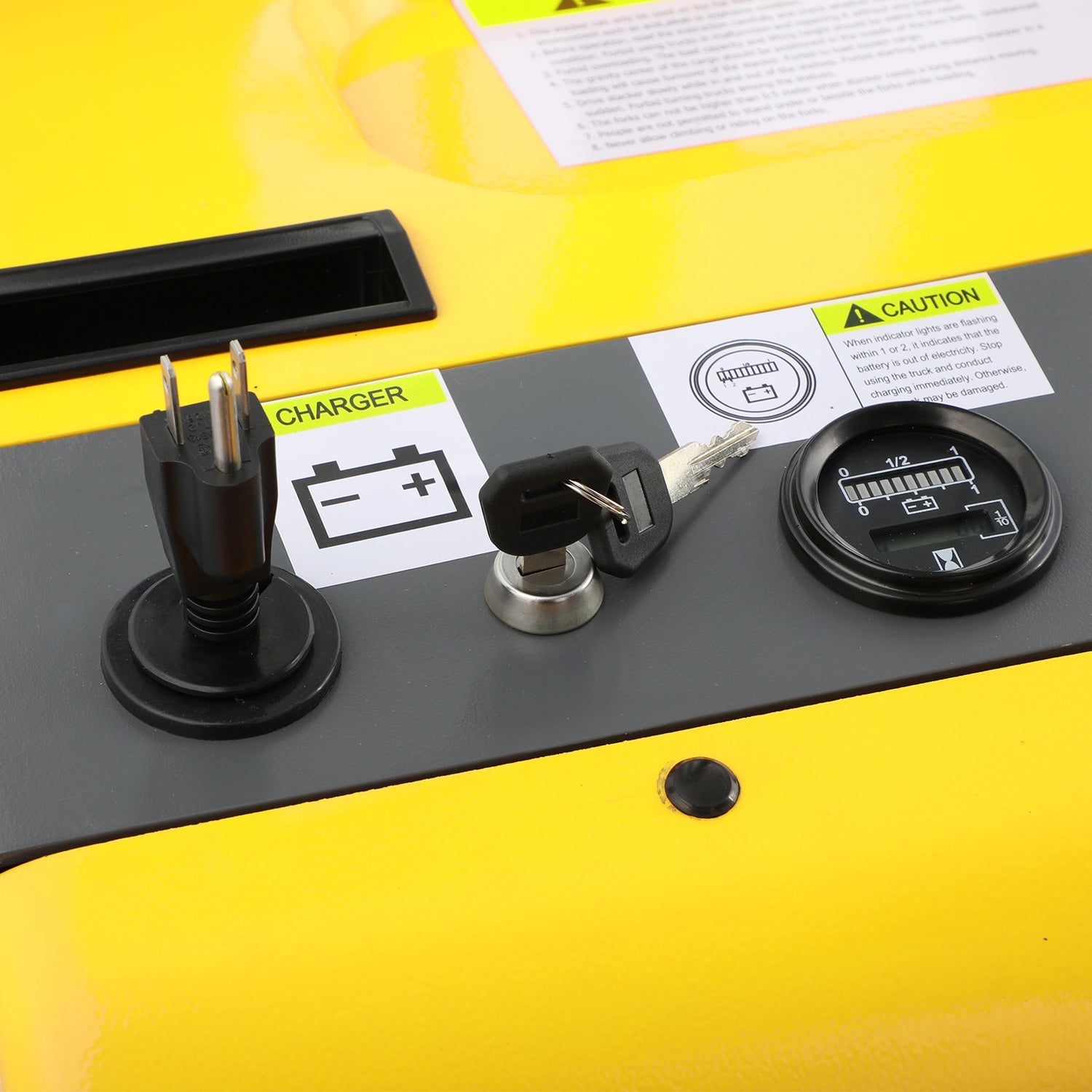

Well-Organized Control Panel

The CPD05W/10W stacker features a user-friendly layout with hydraulic buttons built into the handle. Key functions like the ignition, display, emergency stop, and charger port are clearly arranged for easy access and better visibility. Designed for comfort and smooth operation.

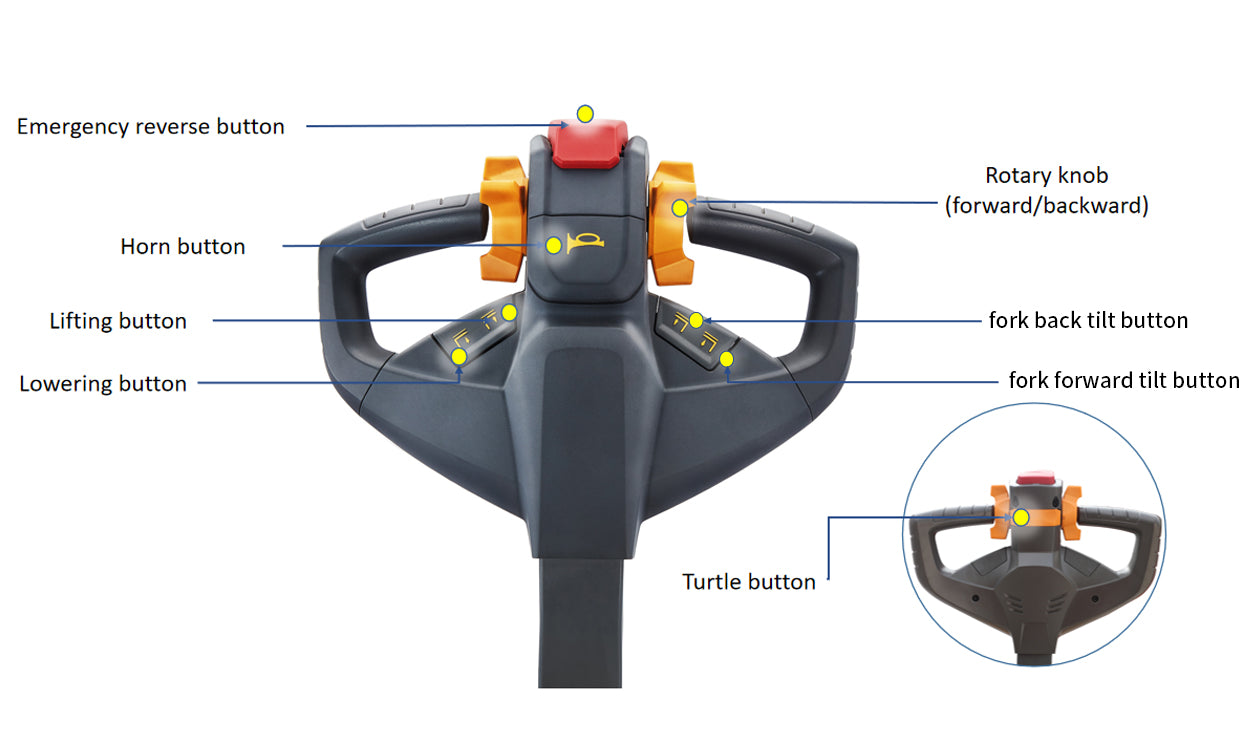

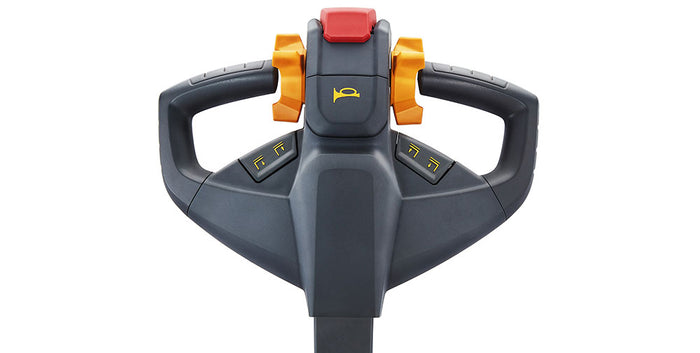

Powerful Handle Controls

The multifunction handle includes speed control, slow-mode for tight turns, reverse safety button, horn, lift/lower switch, and tilt controls. Every function is designed for smooth, precise, and safe operation.

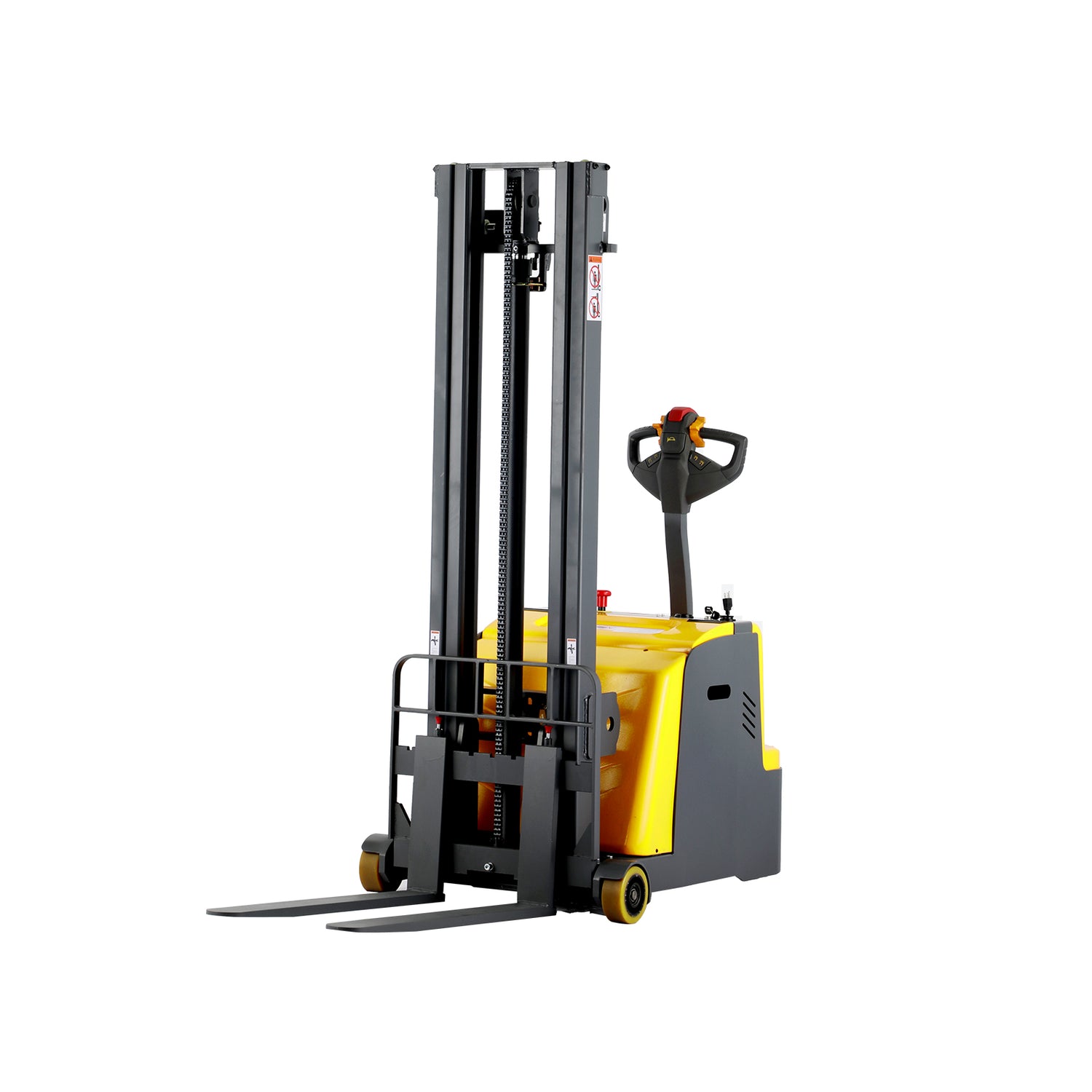

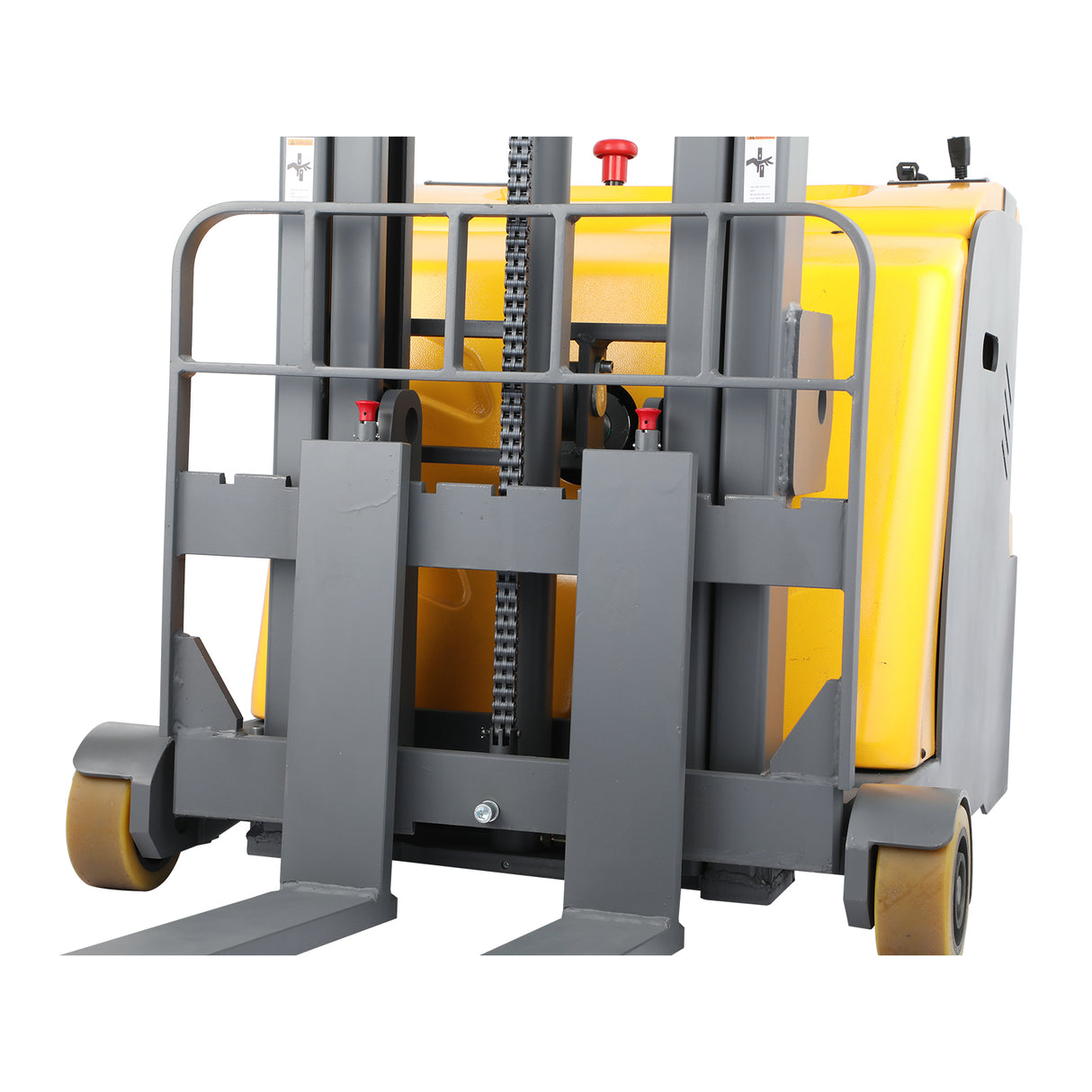

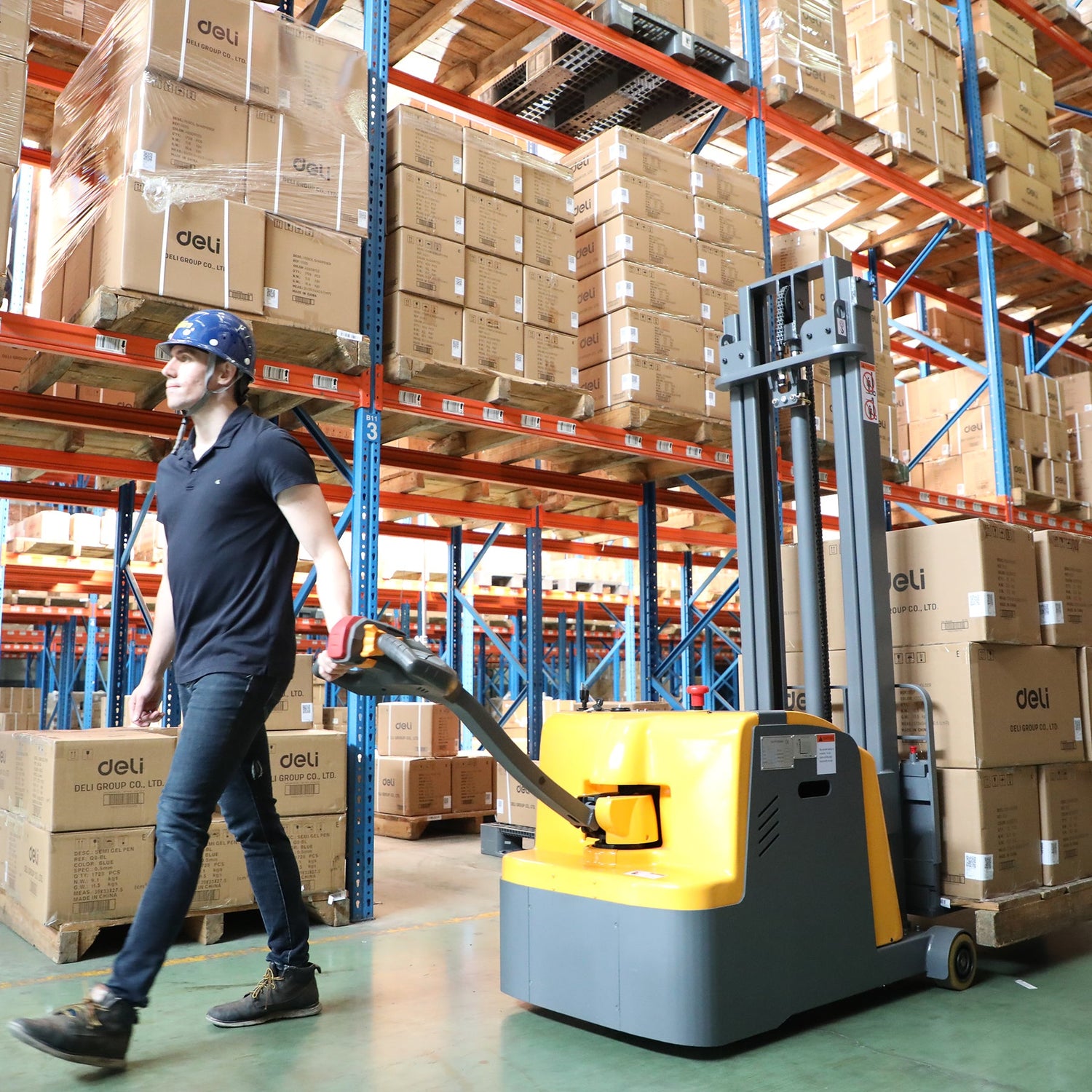

Leg-Free Design

No front support legs, so it works easily with all types of pallets and racks. Smooth steering and great maneuverability make it perfect for tight aisles in factories, warehouses, and logistics spaces.

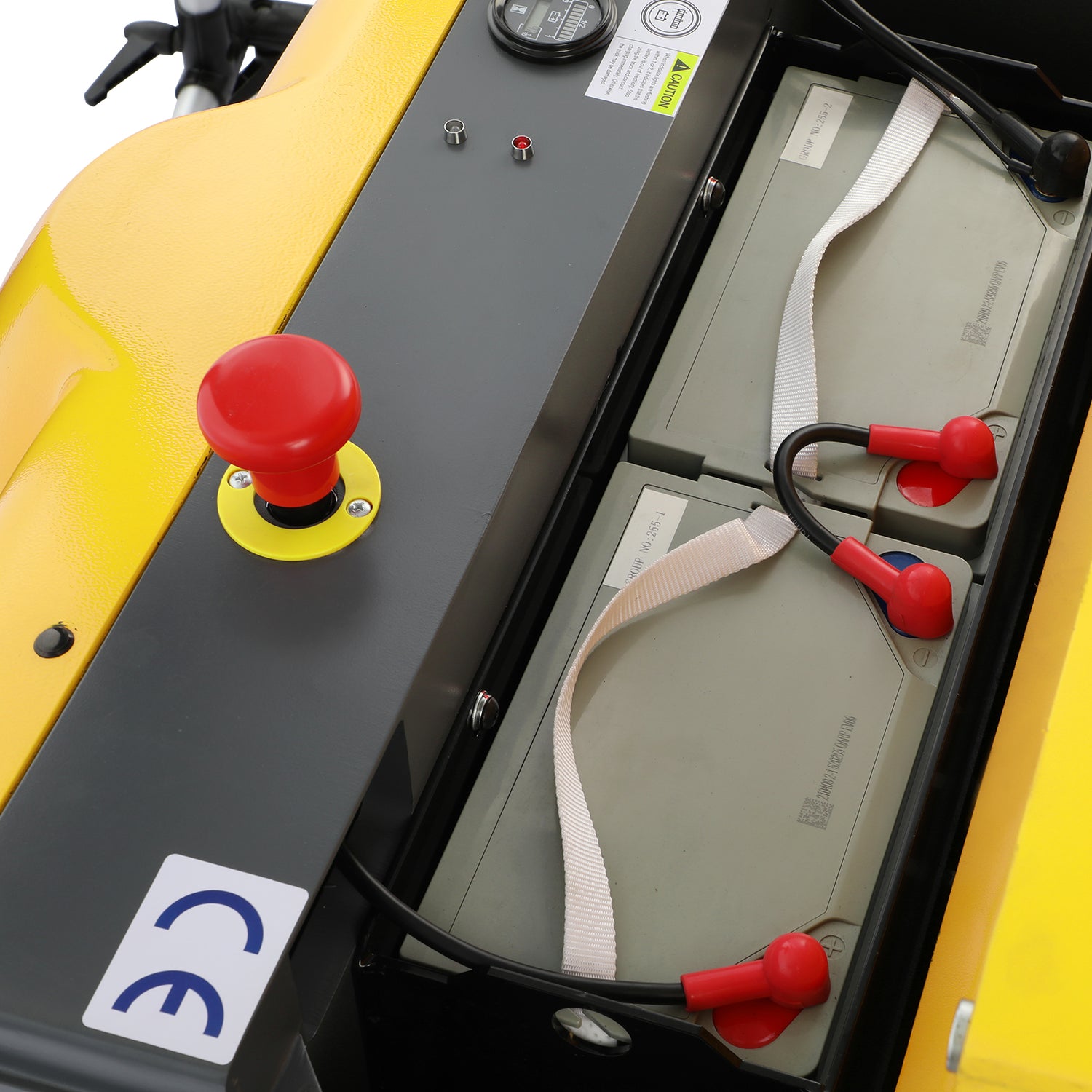

Easy Battery Access

The battery cover opens from the top, and the side screw can be quickly removed to lift out the battery. This makes daily battery replacement, charging, and maintenance much easier, saving time and effort in busy warehouse operations.
