Xilin  |  SKU: SDJAS500

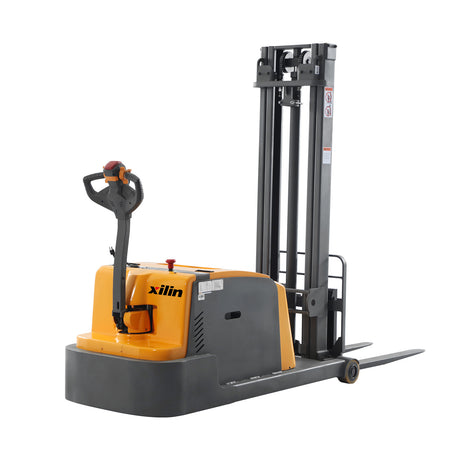

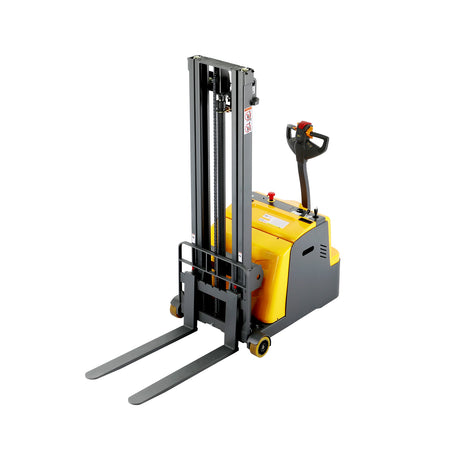

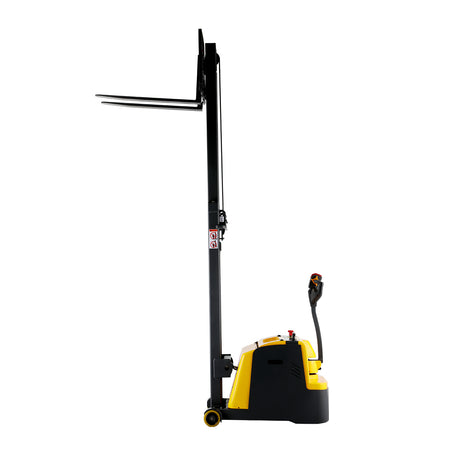

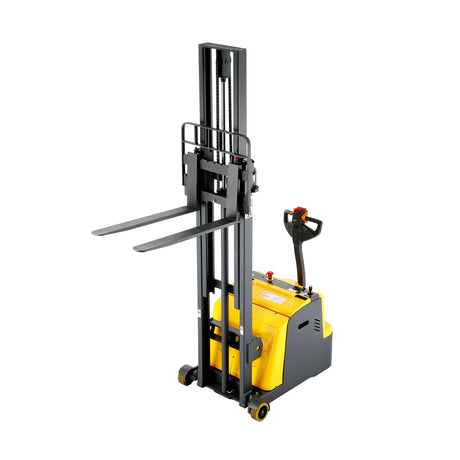

Xilin Manual Pallet Stacker with Straddle Legs & Adjustable Forks 1100lbs Capacity 63" Lift Height SDJAS500

$1,899.00 $2,199.00
Shipping calculated at checkout.


Warranty information

All trucks sold at Xilinamerica.com offers one-year limited warranty except easy-wearing parts and human damages.

Delivery and Shipping

Once your order is placed, it will typically be delivered to your location within 2-4 business days.

Description


Specifications

Drive Type
  • Type: Manual
Specifications
  • Model: SDJAS500
  • Rated Load: 1,100 lbs
  • Load Center Distance: 19.7 in
  • Front Overhang: 27.0 in
  • Wheelbase: 42.8 in
Weight
  • Service Weight: 491 lbs
Wheels & Tires
  • Tire Type: Nylon
  • Front Wheel Dimensions: Ø5.91 × 1.57 in
  • Rear Wheel Dimensions: Ø3.27 × 2.36 in
  • Additional Wheels: 2/4
  • Front Wheel Track: 24.1 in
  • Rear Wheel Track: 53.9 in
Dimensions
  • Height of Mast (Lowered): 78.7 in
  • Lift Height: 63.0 in
  • Max. Height of Mast (Extended): 82.7 in
  • Fork Lowered Height: 2.8 in
  • Overall Length: 52.7 in
  • Overall Width: 60 in
  • Fork Dimensions (Thickness × Width × Length): 1.89 × 3.94 × 31.5 in
  • Fork Width (External): 7.87–29.3 in
  • Ground Clearance (at Wheelbase Center): 1.18 in
  • Aisle Width (Pallet 1000x1200 mm, Crossways): 77.7 in
  • Aisle Width (Pallet 800x1200 mm, Lengthways): 77.7 in
  • Turning Radius: 47.2 in
Performance
  • Lift Speed (Laden/Unladen): 0.91 in/s / 0.98 in/s
  • Lowering Speed (Laden/Unladen): 5.63 in/s / 2.09 in/s
  • Brake Type: Mechanical Brake
Noise Level
  • Driver's Ear (Compliant with DIN12053): <70 dB(A)
