High-Reach Counterbalanced Electric Stacker – 3,300 lbs Load, 177" Lift, Adjustable Forks | CPD15W-177

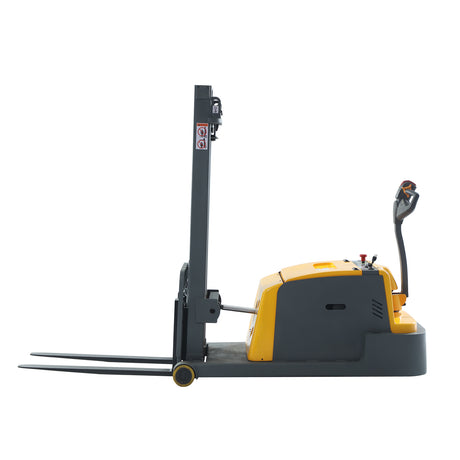

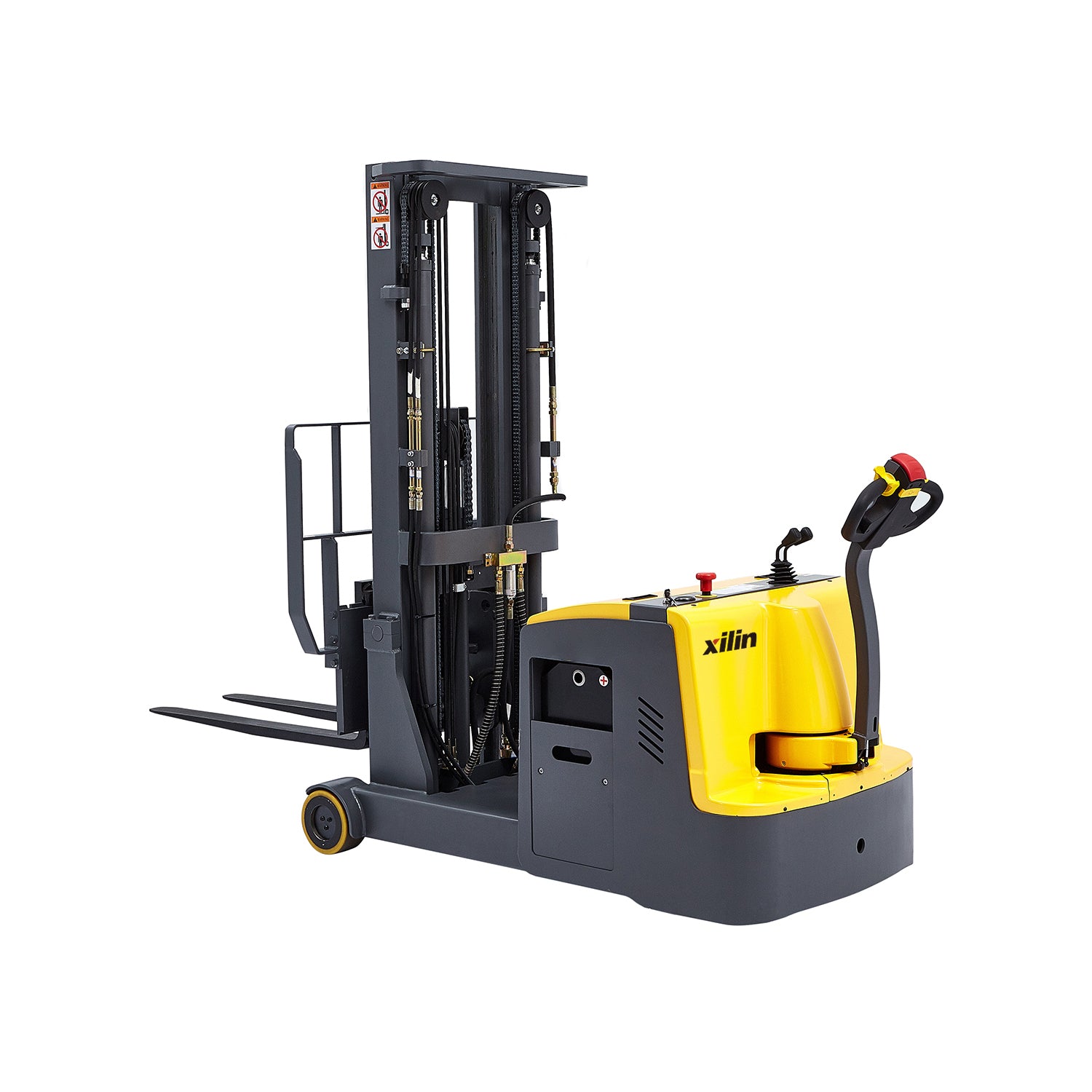

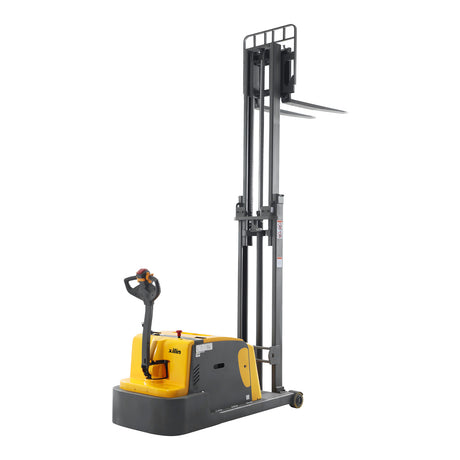

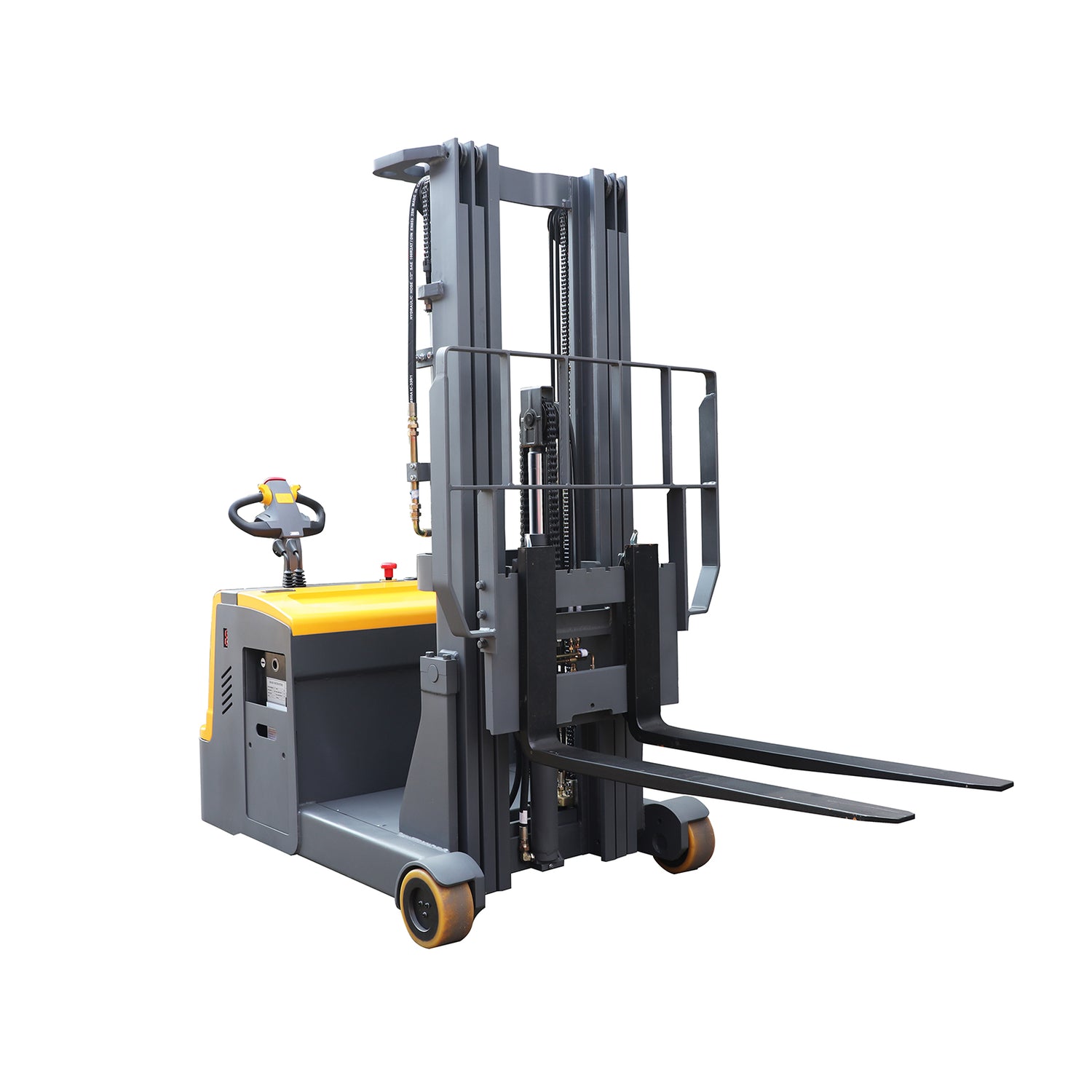

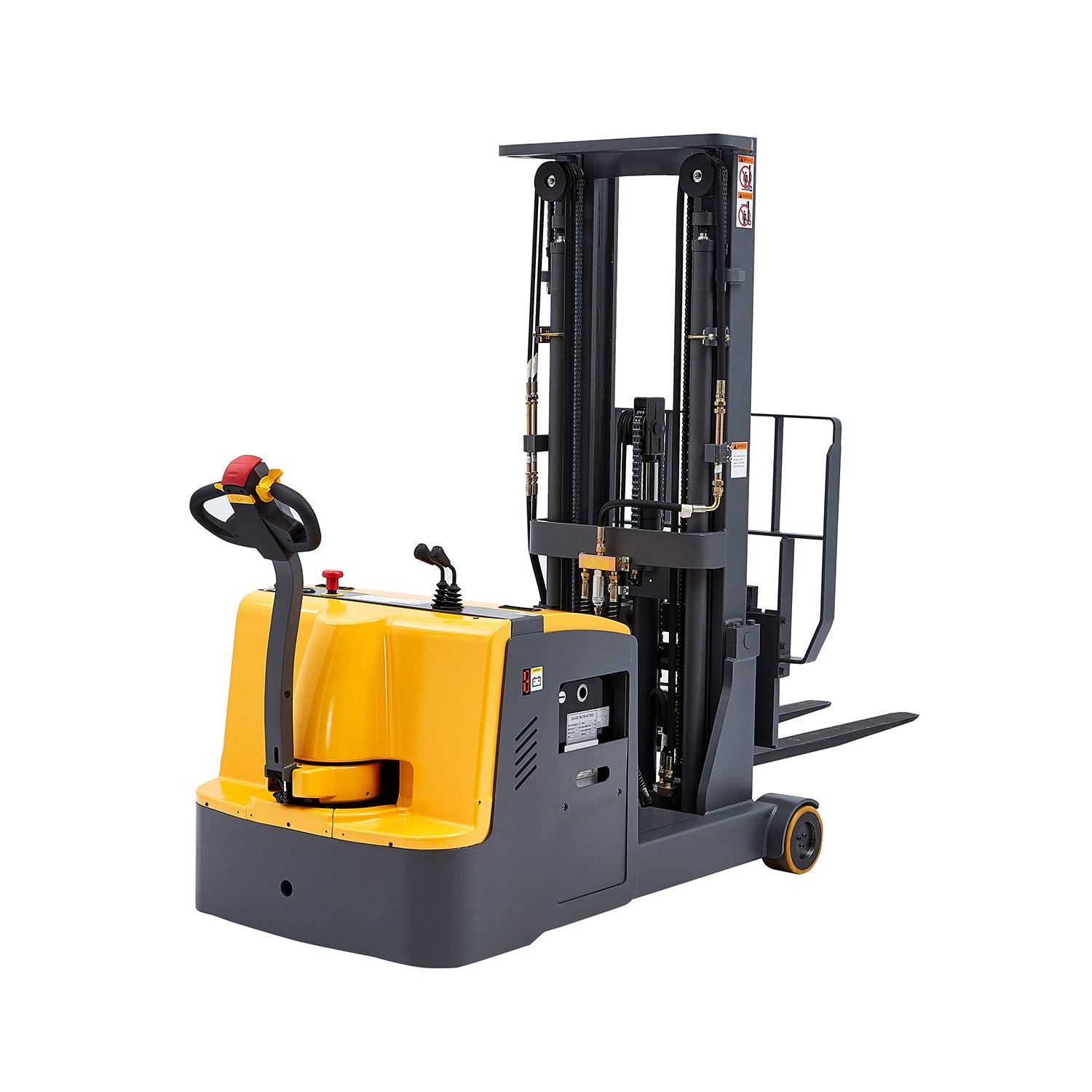

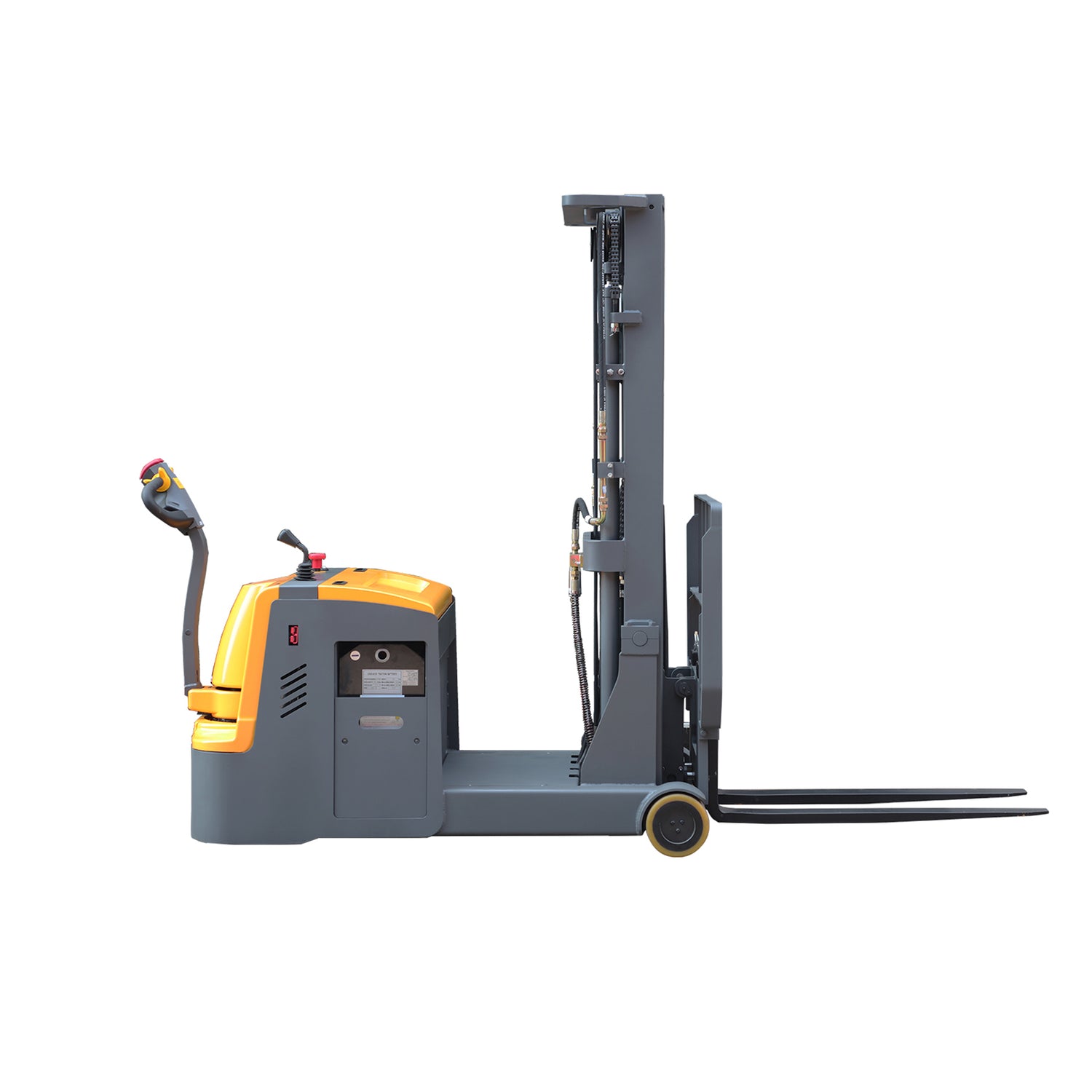

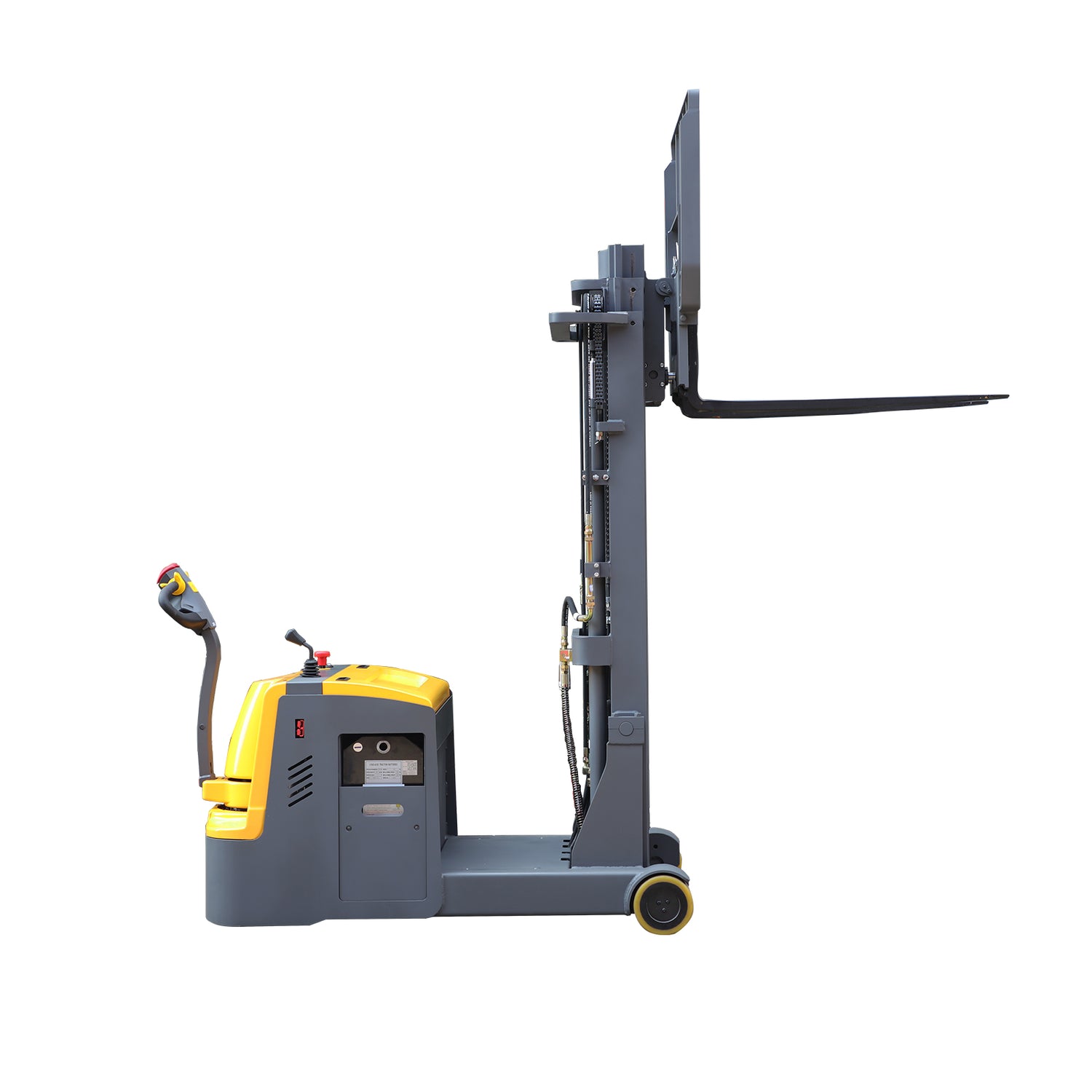

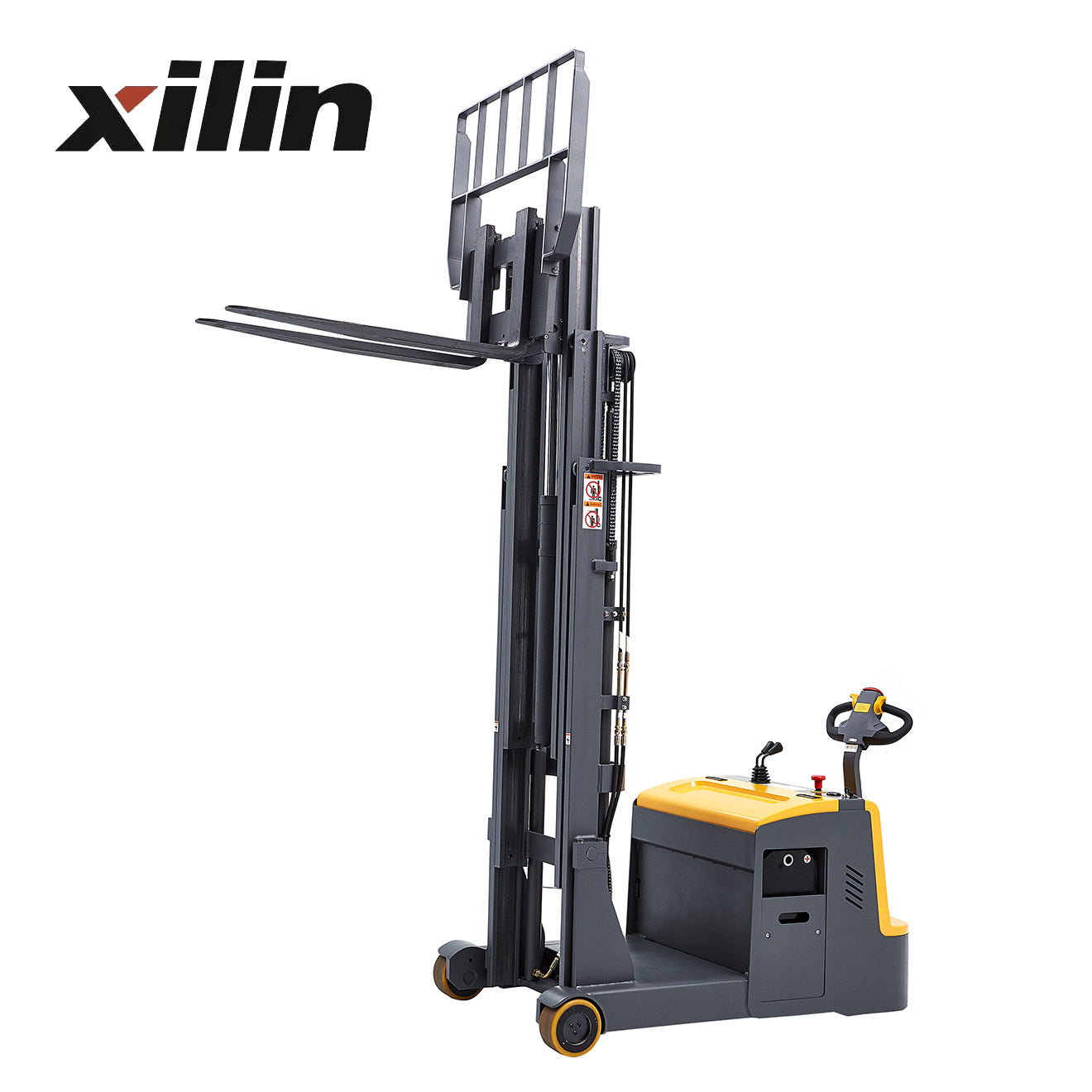

CPD15W-177 Counterbalanced Electric Stacker – High Reach, Strong & Versatile

Unrestricted Stacking in Tight Spaces

Looking for a high-reach, compact stacker that can handle tight warehouse aisles and demanding industrial operations? The CPD15W-177 Counterbalanced Electric Stacker offers a 3,300 lbs load capacity and a towering 177" lift height, making it an ideal choice for warehouses, logistics hubs, and production facilities.

Key Features & Benefits

🎨 Streamlined and Stable Design – Features a wide, rounded chassis with a clean aesthetic and low center of gravity for enhanced stability during operation.

🧭 Flexible Walk-Behind Steering – Long tiller design with three-point support (two front load wheels + one rear drive wheel) ensures light steering, great maneuverability, and superior ground adaptability.

📦 Counterbalanced Structure Without Fork Legs – No front straddle legs, allowing forks to enter low-clearance pallets and operate freely regardless of pallet or rack type.

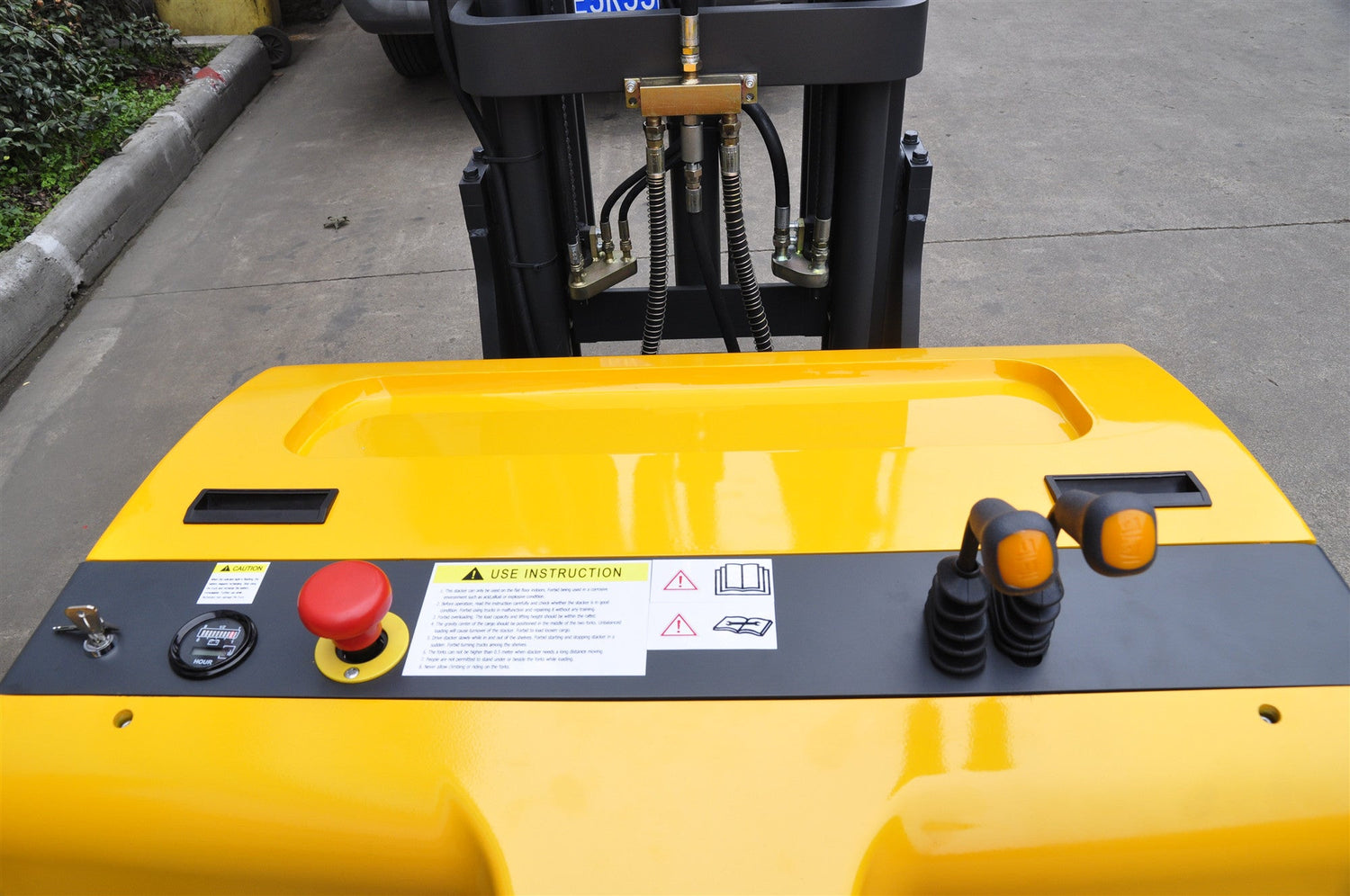

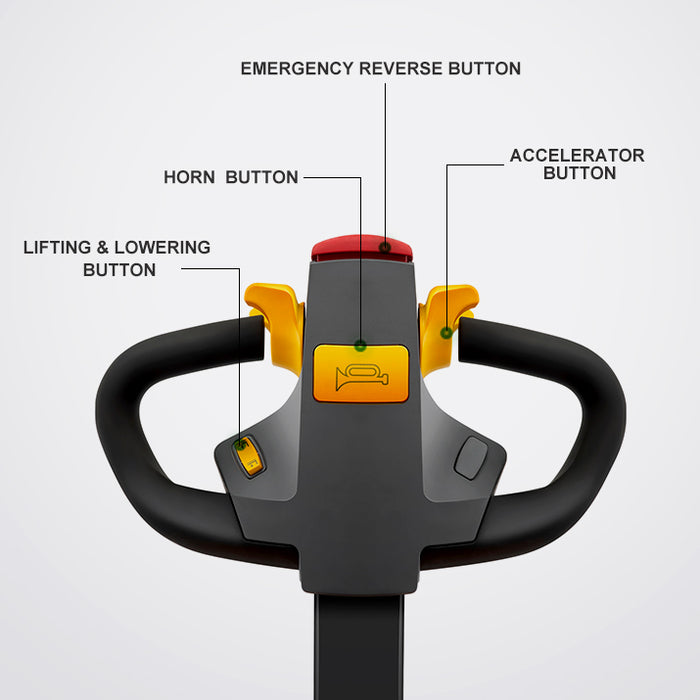

🎛 Multi-Function Handle for Full Control – The handle integrates acceleration, deceleration, horn, emergency reverse, turtle-speed mode, lifting, lowering, and tilt—all within fingertip reach.

🚀 Smooth Acceleration & Deceleration Logic – Smart tiller positioning enables movement only in the “B-zone,” with directional throttle knob offering proportional speed control in both forward and reverse. Upright handle + turtle-speed allows slow, controlled operation in tight areas.

🛞 Electromagnetic Braking System – Provides short braking distances and reliable stopping performance with minimal maintenance.

🔊 Low-Noise Operation – Designed with a quiet hydraulic pump and shock-absorbing motor mounts, keeping average noise levels below 70 dB(A) (DIN 12053 standard).

🛠 Reliable AC Drive Motor – Brushless AC motor delivers strong ramp performance, eliminates carbon brush replacements, and reduces long-term maintenance.

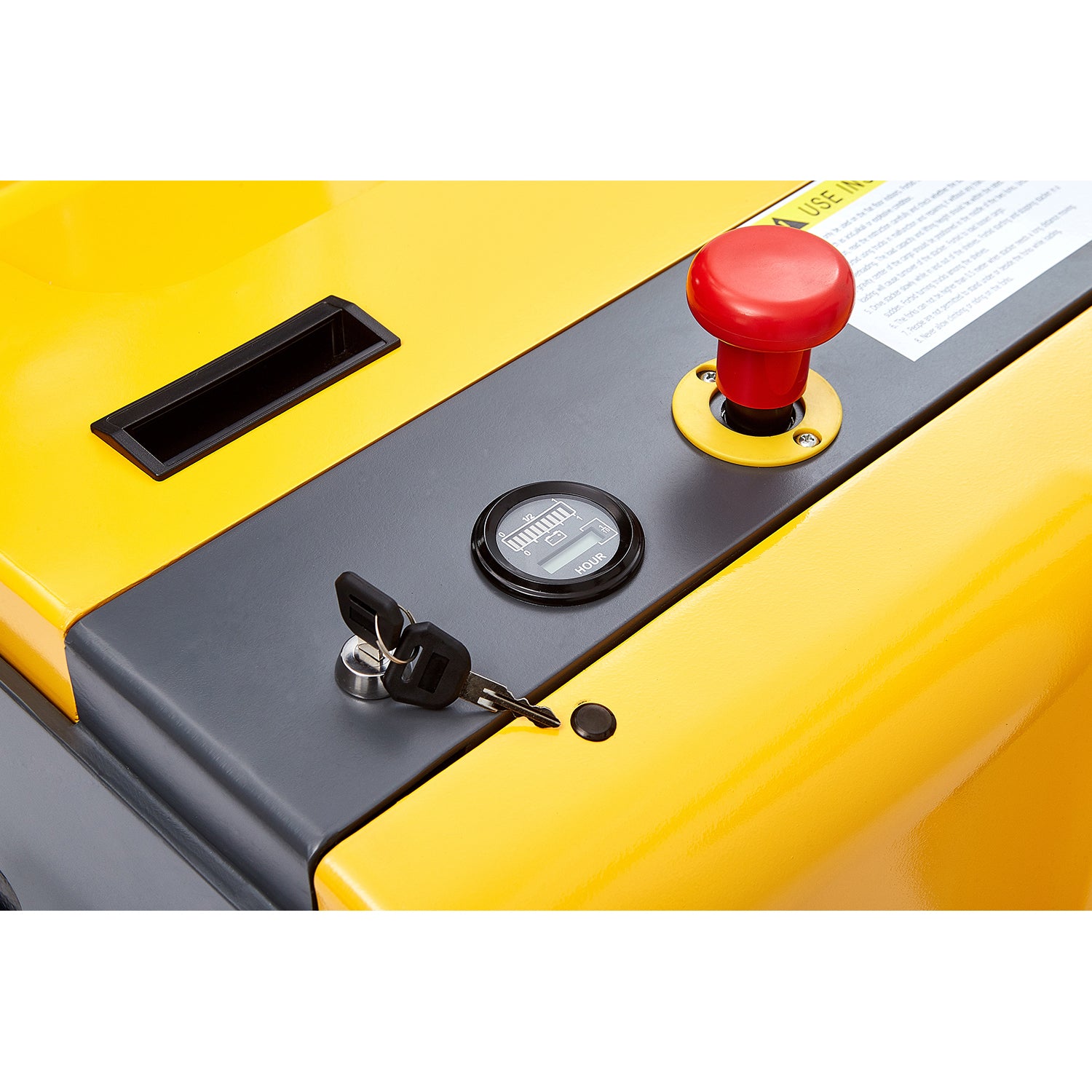

📊 Integrated Digital Dashboard – Displays battery level, fault codes, and accumulated working hours for real-time system monitoring.

🛡 Comprehensive Safety System – Includes:

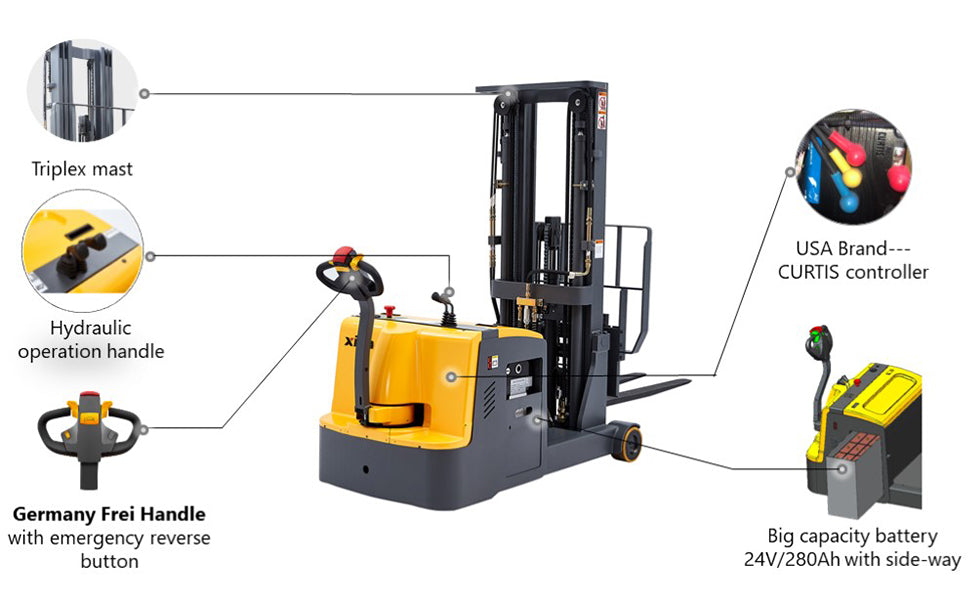

1. Wide-view mast with side-mounted cylinders for better forward visibility and lateral stability
2. Explosion-proof valve in lift cylinder to prevent free-fall in case of hose rupture
3. Emergency power-off switch and reverse belly switch
4. Low voltage protection system to prolong battery life
5. Rubber-sealed battery lock to prevent vibration and deformation
6. Battery safety interlock to prevent electrical faults during operation
7. Ground clearance of 1.4" (35mm), compliant with EU safety standards

📏 Hydraulic Mast & Tilt System –

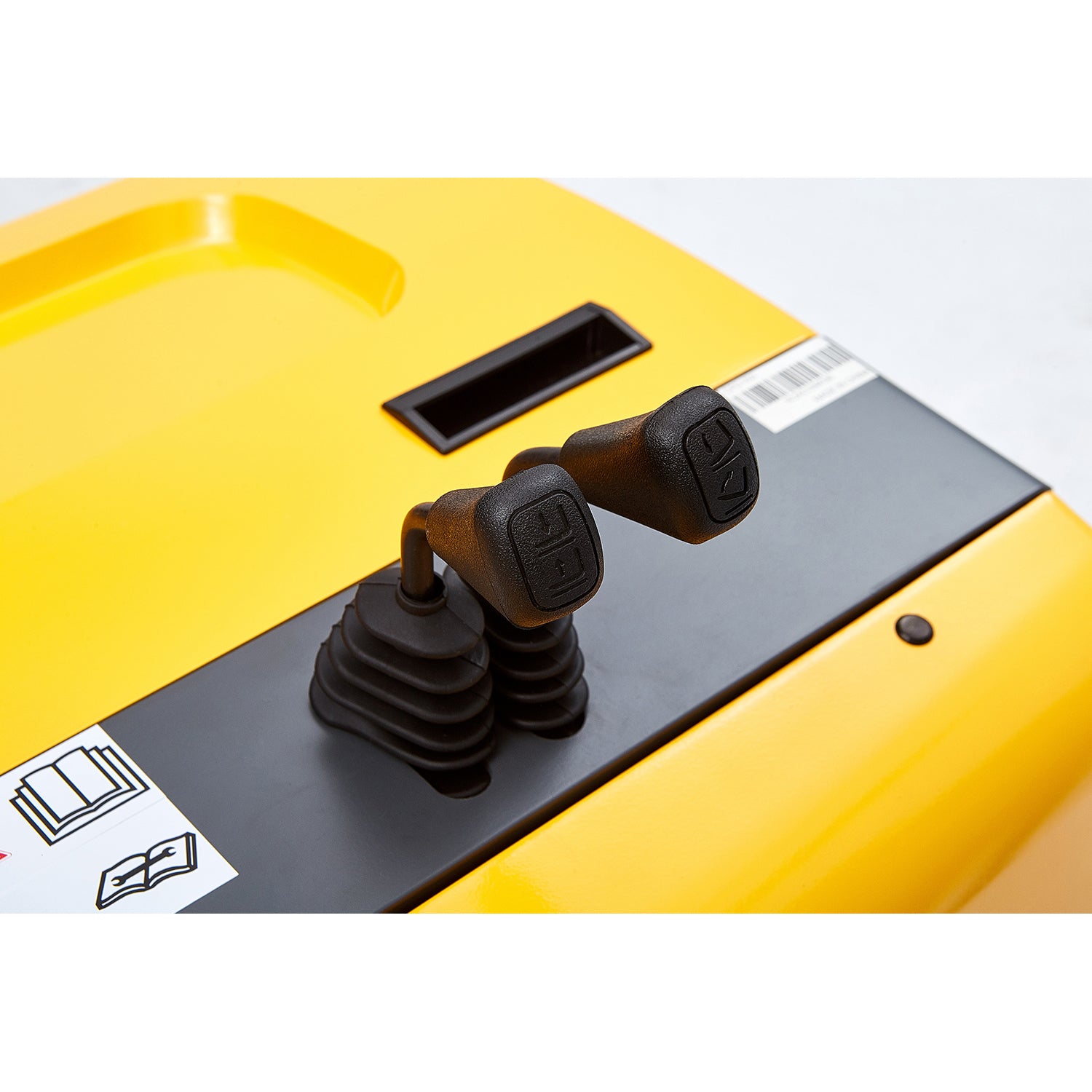

1. Pulling the lift lever activates the hydraulic gear pump for upward movement; pushing lowers the mast using gravity

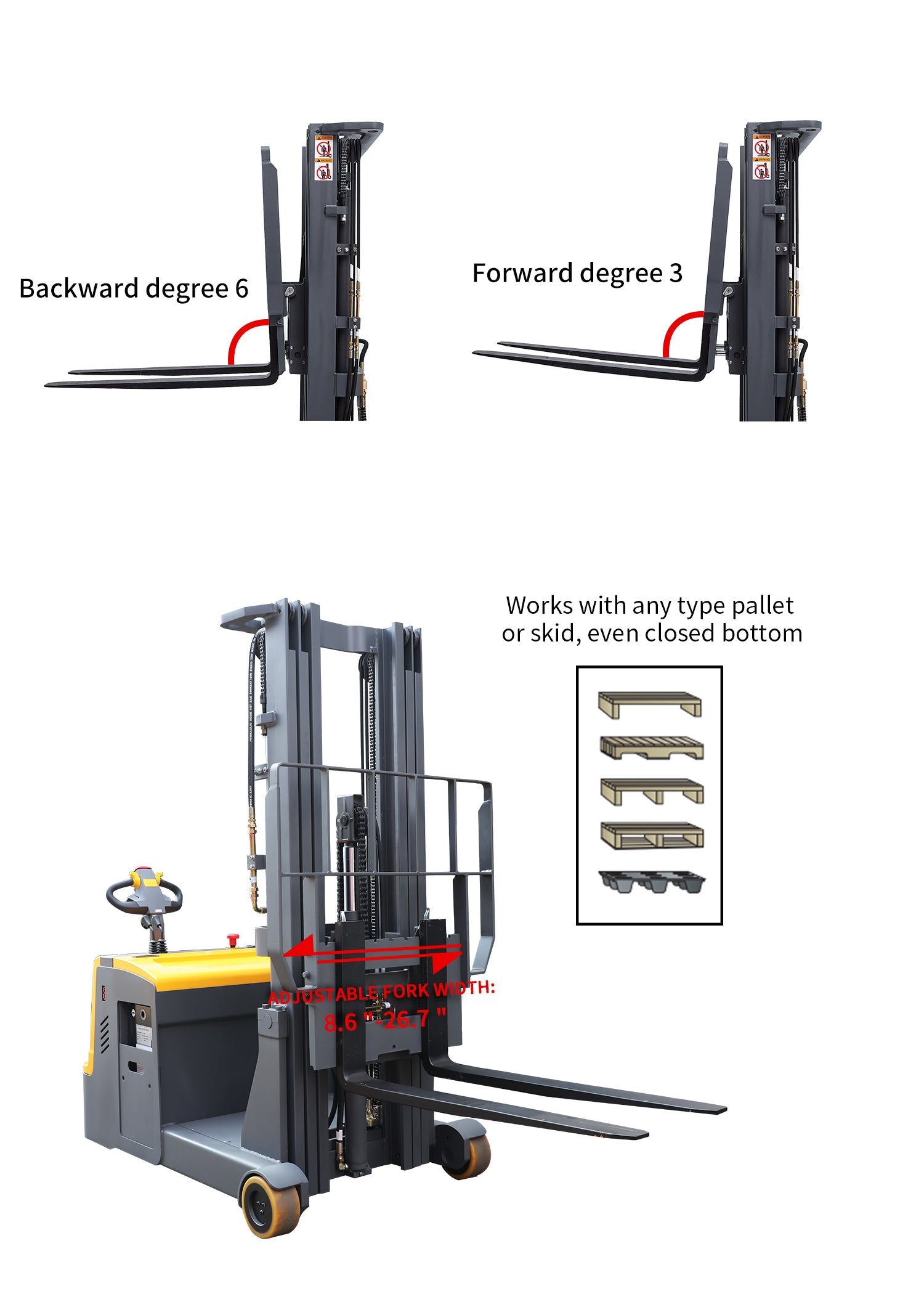

2. Tilt function controlled via front/back push of dedicated lever, ensuring smooth stacking

💧 Quiet, Reliable Hydraulic System –

1. Uses multi-way valve for dependable oil flow
2. Integrated oil tank with easy refueling port
3. Vibration-reducing rubber motor mount
4. Quiet gear pump + high-torque low-noise motor ensure silent and smooth lifting

🔧 Highly Maintainable Design –

1. 90% of components modularized and integrated
2. Accessible layout for quick inspection and repair
3. Internal wiring is clean and organized
4. Convenient maintenance for drive motor, load wheels, microswitches, and hydraulic lines

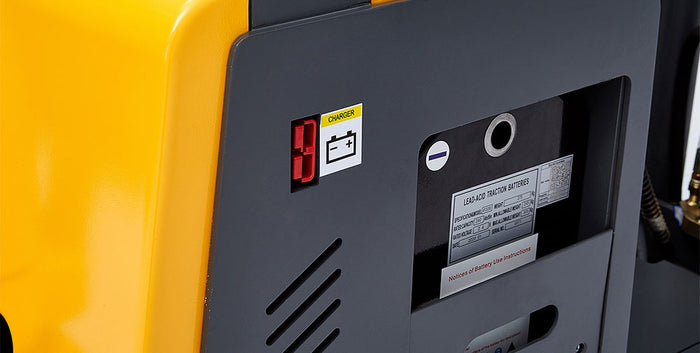

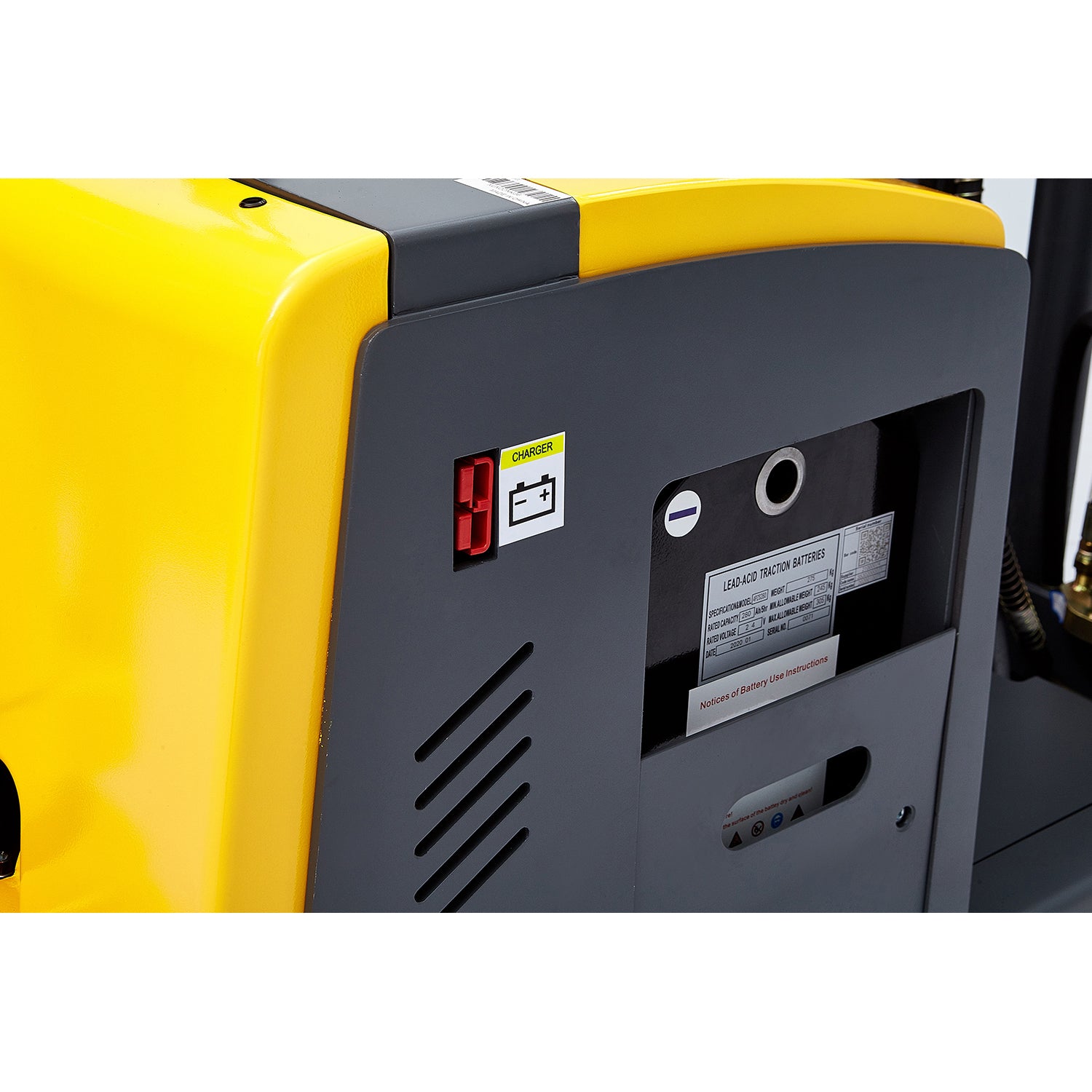

🔌 Direct Charging with Safety Interlock –
Onboard charging system includes power cut-off protection during charging, ensuring electrical safety.

🔄 Regenerative Braking System –
When the motor decelerates, it switches to generator mode, recovering energy and reducing brake wear—improving overall efficiency.

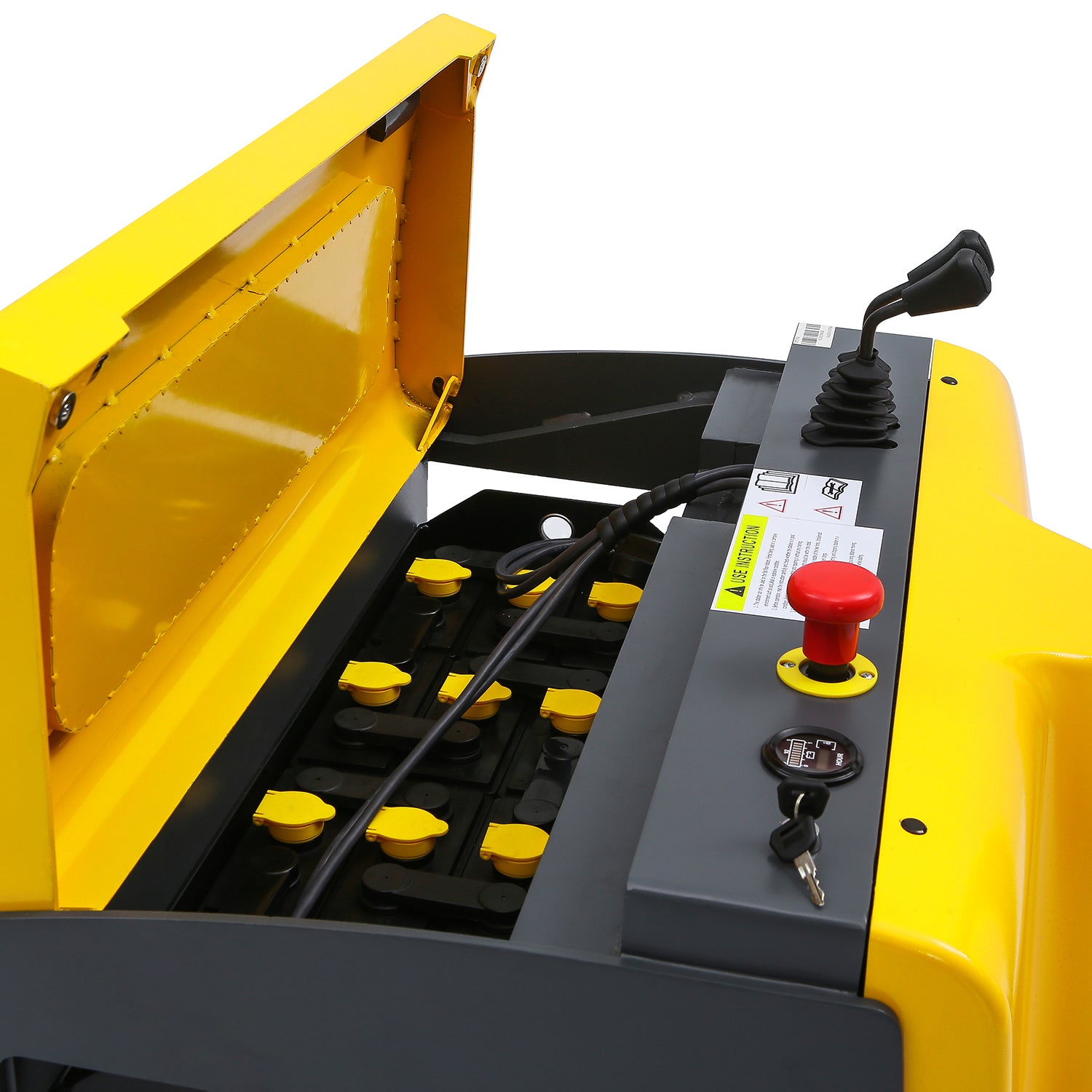

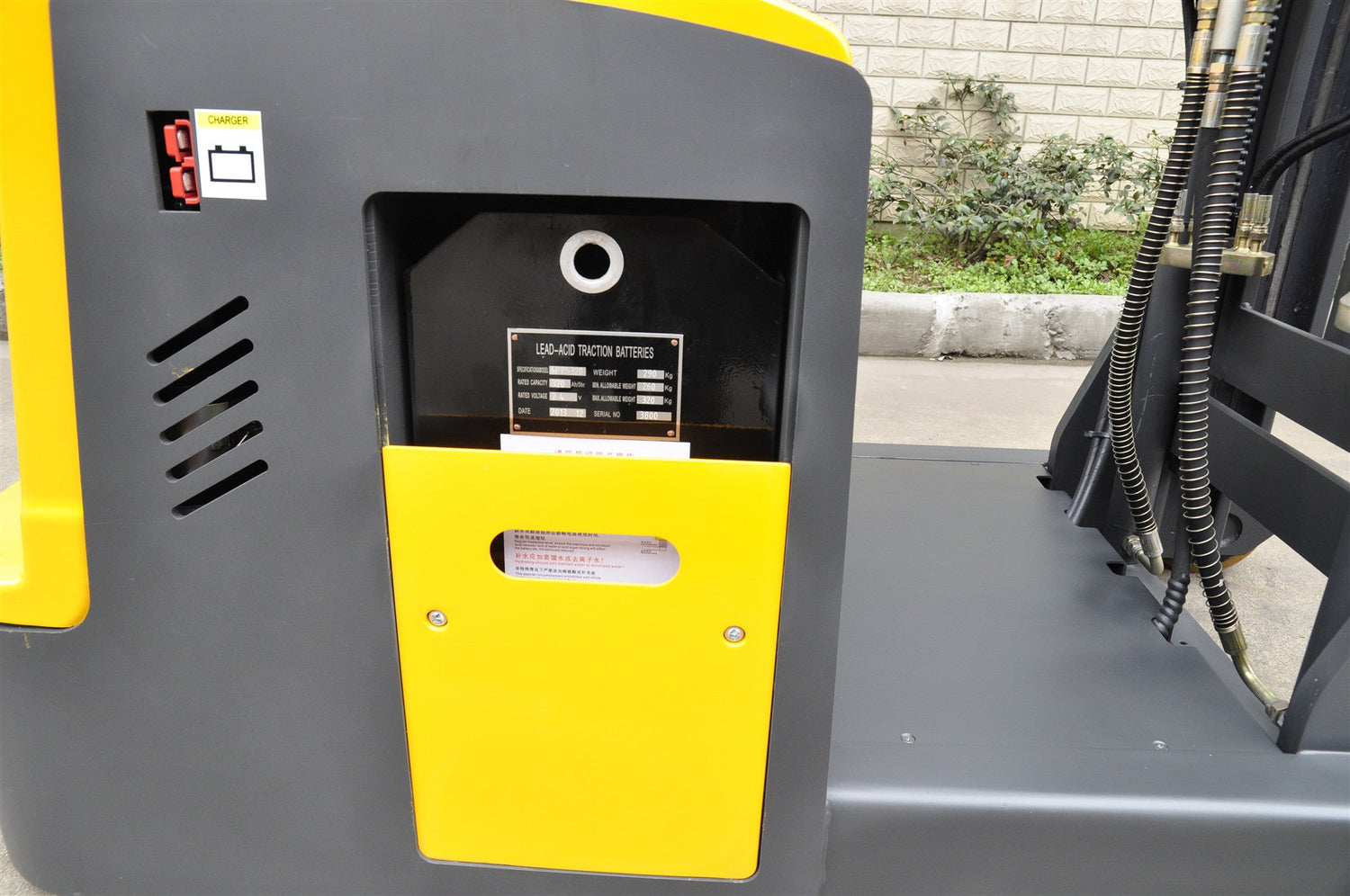

🔋 High-Capacity Battery System –
Equipped with a 24V / 280Ah battery to support demanding workloads with extended runtime and stable power output.

🎚 Smart Acceleration & Braking Logic –
The tiller operates based on three positional zones:

1. In Zone A or Zone C, the truck automatically enters electromagnetic brake mode and cannot move—ensuring safety during parking or standby.
2. In Zone B, the truck is ready to drive. Rotating the throttle knob forward or backward controls the direction, and the speed increases proportionally with the rotation angle.

When the tiller is in the upright position, pressing the turtle-speed button activates low-speed mode for precise, controlled movement—ideal for stacking or maneuvering in tight spaces.

Why Choose the CPD15W-177?

✔ Lifts up to 3,300 lbs, ensuring stable and efficient handling.

✔ Compact 39" width, allowing maneuverability in tight warehouse aisles.

✔ 120.9" aisle width, optimized for efficient navigation in narrow spaces.

✔ No front legs, making it compatible with various pallet designs and rack setups.

✔ Built-in charger, ensuring quick and convenient power management.

Enhance Your Material Handling Efficiency Today

📞 Expert Support Available | 🚛 Fast Shipping

Load Capacity & Dimensions

• Capacity: 3,300 lbs
• Load Center: 19.7"
• Turning Radius: 61.8"
• Aisle Width: 120.9"

Fork Dimensions

• Width Overall Forks: 8.7"-26.7"
• Single Fork Width: 3.9"
• Fork Length: 42"
• Fork Thickness: 1.3"
• Distance Between Forks (Inside): 0.7"-18.9"
• Fork Lowered Height: 0.1"

Overall Dimensions

• Overall Width: 39"
• Overall Length: 104.3"

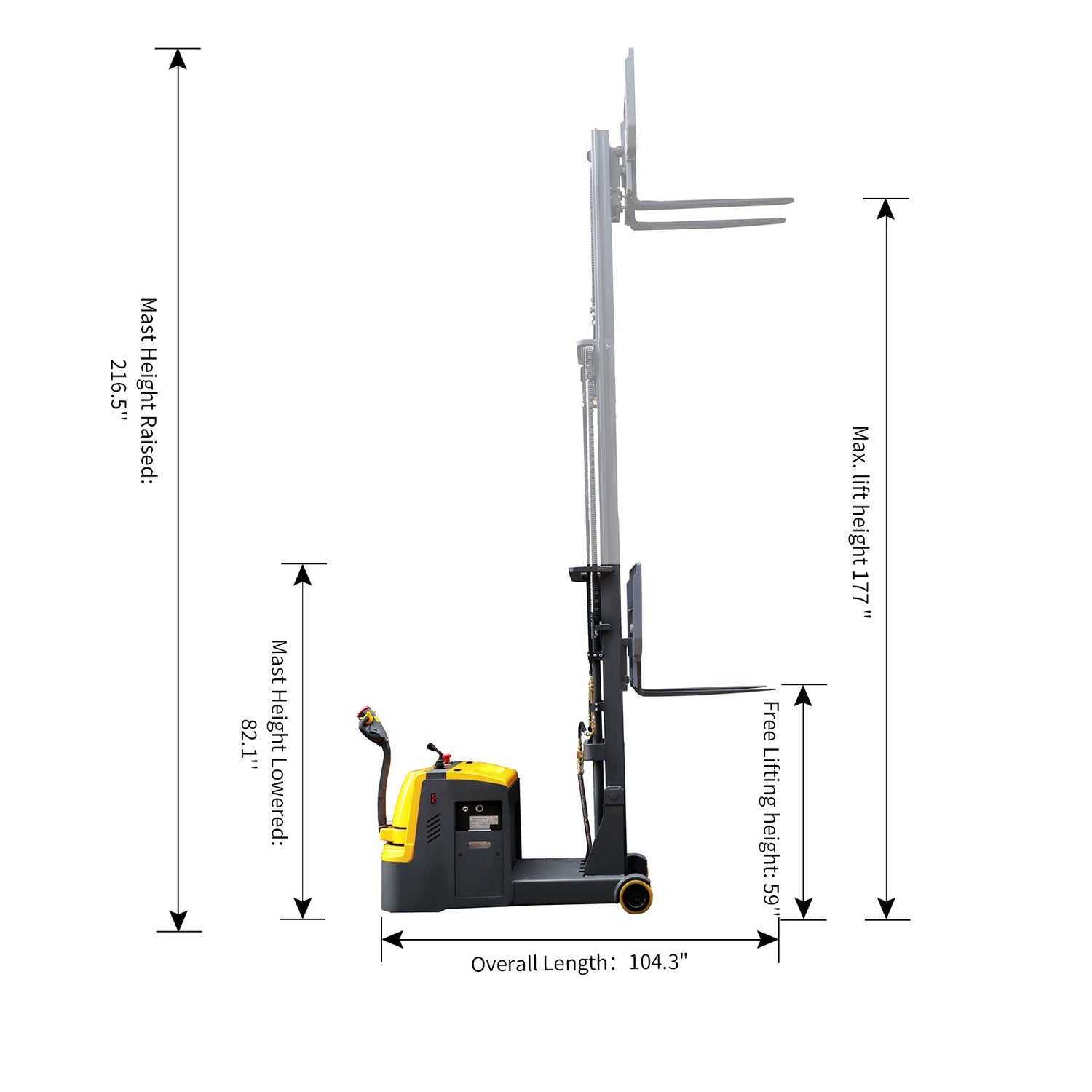

Mast

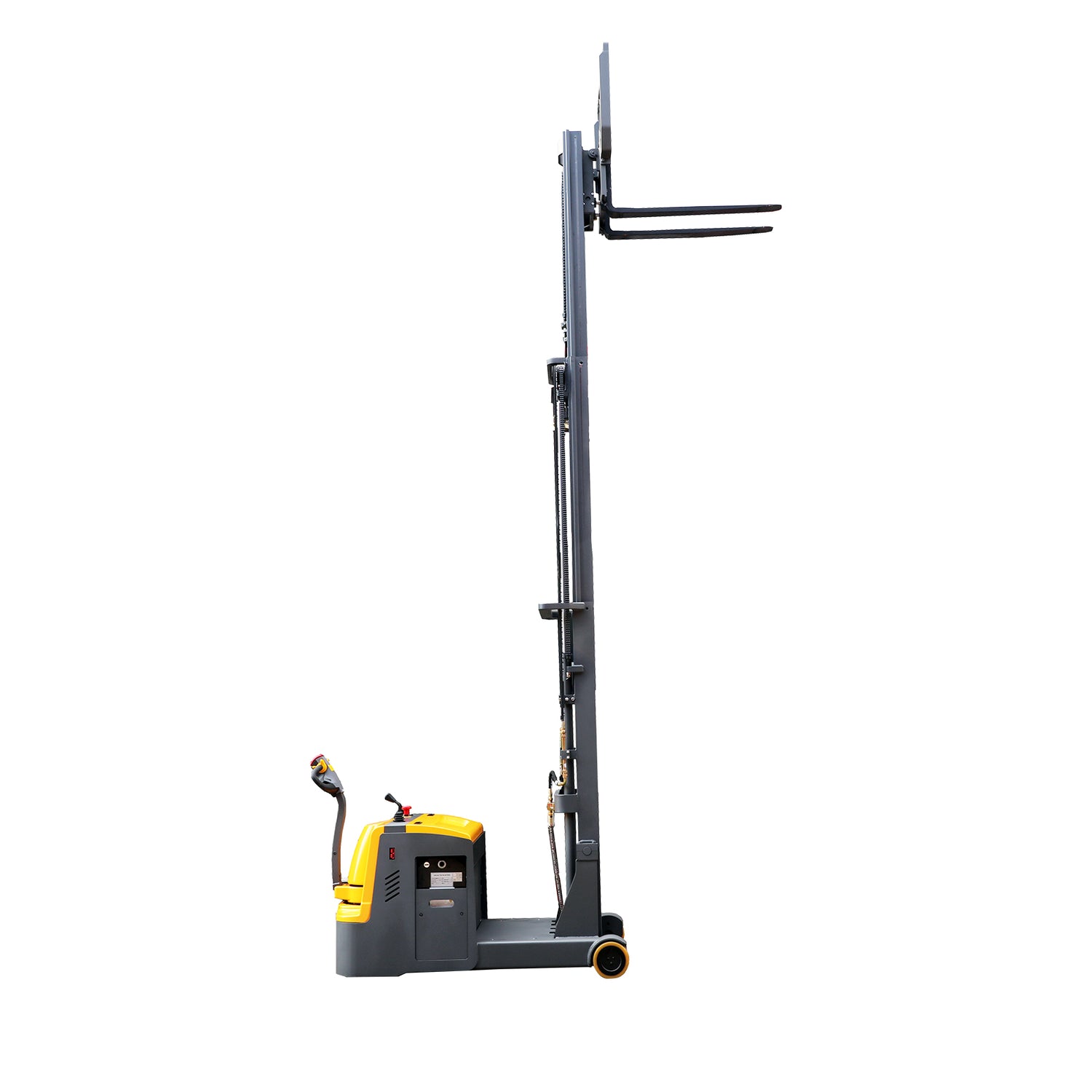

• Max. Lifting Height: 177"
• Mast Extended Height: 216.5"
• Mast Lowered Height: 82"

Battery & Charger

• Battery Voltage/Capacity: 24V / 280Ah
• Charger: 24V / 40A built-out

Speed & Performance

• Travel Speed (Laden): 3.6 mph
• Travel Speed (Unladen): 3.7 mph
• Lifting Speed (Laden): 4.7 inch/s
• Lifting Speed (Unladen): 6.3 inch/s
• Lowering Speed (Laden): ＜17.7 inch/s
• Lowering Speed (Unladen): ＜17.7 inch/s
