XILIN | SKU: SDJA500

Manual Pallet Stacker 1100lbs Capacity 63" Lift Fixed legs SDJA500

$1,450.00 ~~$1,799.00~~

📦 In stock. Ships in 24–48 hours.
🚛 Free lift gate delivery. Delivered in 5–7 business days.
💲 Final price. No extra shipping cost or hidden fees.
🛡 1-year warranty included. Full support available by video, email, or phone.

1 Year Warranty

At Xilinamerica.com, we proudly back all of our trucks with a one-year limited warranty, excluding wear-and-tear parts and damages caused by misuse. Our warranty period starts from the date of receipt of the item.

Warranty Periods:

1 Year on all trucks (excluding easy-wearing parts and damages caused by human factors)
3 Months on spare parts
6 Months on batteries

Warranty Details:

Within 30 days of receipt: If there are any quality issues, we will provide free spare parts for replacement and remote technical support. If our after-sales team determines that the truck needs to be returned for repair, we will cover all round-trip shipping costs.
Between 30 days and 1 year of receipt: If any quality issues arise, we offer free spare parts and remote technical guidance. If a return for repair is required, the customer is responsible for half of the shipping costs.
After 1 year of receipt: For any quality issues, we will provide free technical support. However, replacement parts will be charged, and if a return for repair is necessary, the customer will be responsible for both the maintenance fees and shipping costs, which will be quoted based on the situation.

If you encounter any issues during the use of the truck, feel free to contact us at support@xilin.com. Our team is ready to assist you.

Free Shipping

At XilinAmerica.com, we offer fast and free shipping on most products within the contiguous United States. Please note that shipping to Hawaii, Alaska, and Puerto Rico is not included in our free shipping offer.

🚚 Free Shipping Conditions
Our FREE SHIPPING offer applies to deliveries made to commercial addresses or locations with self-unloading capability. If additional services are required—such as Lift Gate Service, Residential Delivery, or Phone Call Service—please specify at the time of ordering, as these services will incur additional fees. For more details, contact info@xilinamerica.com.

⏳ Lead Time & Delivery
Once payment is received, orders are typically processed and shipped within 48 hours, excluding holidays. Delivery time varies depending on the shipping origin and destination. While we strive for timely delivery, delays may occur, and all estimated transit times are approximate.

📦 Shipping Damage
All products are carefully inspected and securely packed before shipping. Upon delivery, please check that all packages are in good condition before signing for receipt. If there is visible damage, do not accept the delivery and refuse the shipment. Contact our sales team immediately to arrange for a replacement.

❌ Order Cancellations
Orders can be canceled before they are shipped. If an order has already been dispatched, both the outgoing and return shipping costs will be charged. Please note that a missing tracking update does not necessarily mean the item hasn’t shipped. To request a cancellation, contact us as soon as possible via phone or email during business hours. Cancellations are only valid once confirmed in writing.

✉️ Address Corrections & Changes
For any shipping address changes or corrections, reach out to us immediately to avoid additional costs.

For further details, feel free to contact us at info@xilinamerica.com.

Why Xilin

Why Choose Xilin Material Handling LLC?

The Trusted Expert in Material Handling Equipment

Xilin Material Handling LLC is a leading manufacturer specializing in the production of material handling equipment. Since our establishment, we have dedicated ourselves to creating high-quality, professional, and reliable solutions for industries worldwide. When you choose Xilin, you’re partnering with a company that values innovation, craftsmanship, and a customer-first approach.

Unmatched Product Excellence: Electric Forklifts

Our electric forklift series is at the forefront of our product range, setting new standards in material handling. Designed for optimal performance and efficiency, our electric forklifts provide:

Exceptional Performance: Engineered for a variety of material handling tasks, ensuring smooth and stable operations.
Cost-Effective Solutions: Providing high-quality equipment at competitive prices, giving you the best value for your investment.
Durability You Can Count On: Built to last with compliance to international standards, ensuring long-term reliability in the toughest environments.

Efficient Logistics and Comprehensive After-Sales Support

Fast Delivery: With strategically located warehouses, Xilin ensures prompt delivery to meet the needs of our global customers.
Expert After-Sales Service: Our dedicated after-sales team is here to assist you with everything from installation and training to regular maintenance, ensuring seamless operations and helping you overcome any challenges in your material handling needs.

Confidence in Every Partnership

At Xilin, we prioritize your success. By choosing us, you not only get access to top-tier material handling equipment but also benefit from our full range of services, designed to give you peace of mind throughout the lifecycle of your equipment. Trust Xilin for reliability, performance, and long-term value.

Choose Xilin, Choose Excellence

With Xilin Material Handling LLC, you are assured of high-quality products, dependable support, and a commitment to your business’s success. Let us help you optimize your material handling processes for greater efficiency and productivity.

For more information or inquiries, don't hesitate to contact us!

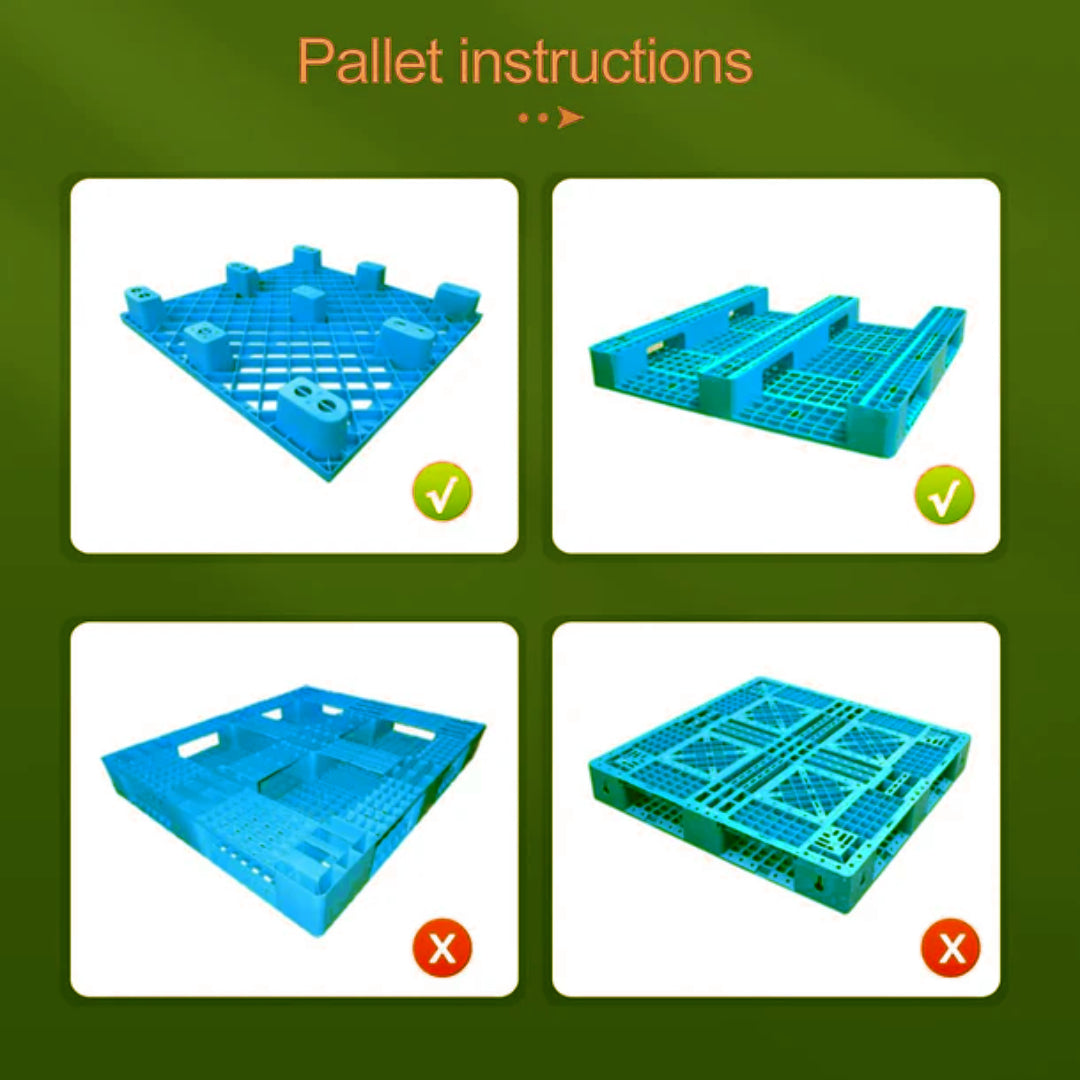

📦 For Open-Bottom Pallets Only

Fixed-leg design—simple, stable, and cost-effective.

🛠️ High-Strength Steel Frame

Strong welded mast for safe daily lifting tasks.

👟 Manual or Foot Pedal Lift

Easy-to-use pump system with less effort and more control.

📏 Compact & Easy to Maneuver

Fits tight warehouse spaces and retail stockrooms.

Description

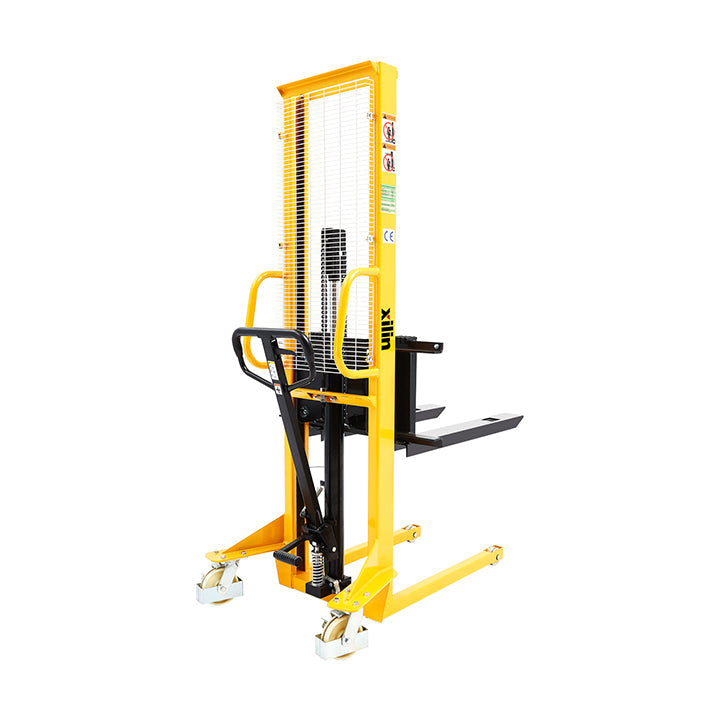

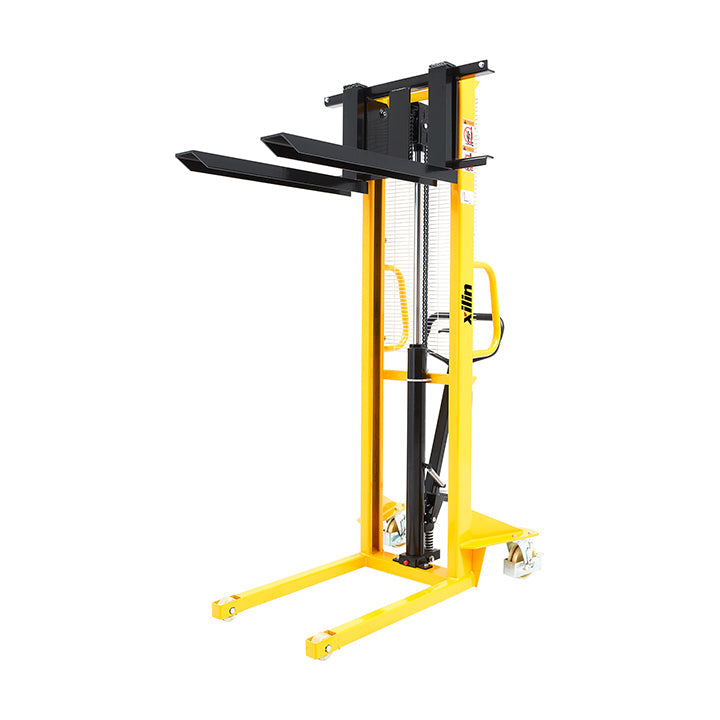

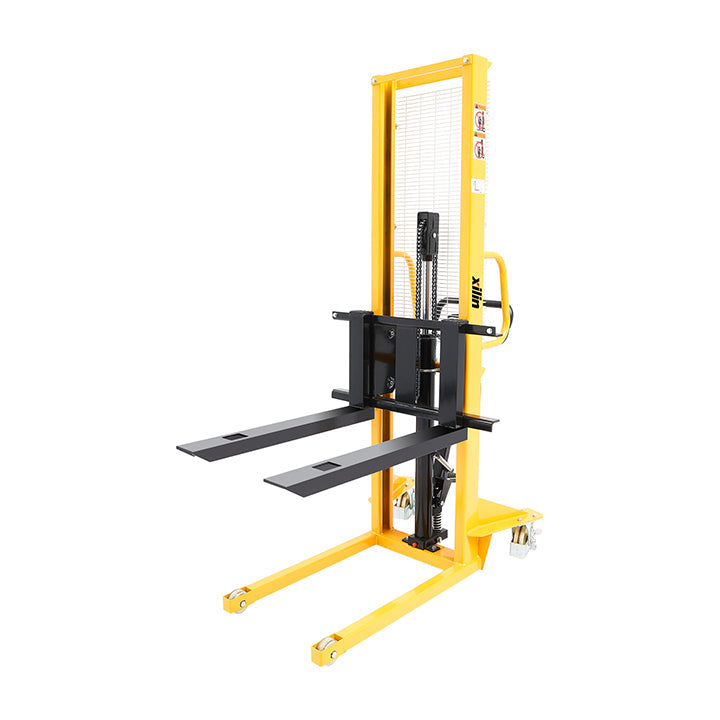

SDJA500 Manual Hydraulic Stacker

The SDJA500 is a compact and reliable manual stacker with fixed legs, offering 1,100 lb capacity and 63" lift height. Designed for daily use in warehouses, retail, and light manufacturing, it features dual-mode lifting (hand & foot), a reinforced mast, and stable, ergonomic operation.

💡 Key Features & Benefits

🔥 Non-Electric & Spark-Free – Suitable for use in flammable or fire-restricted environments.
🎯 Stack & Move – Combines vertical stacking and manual transport in one unit.

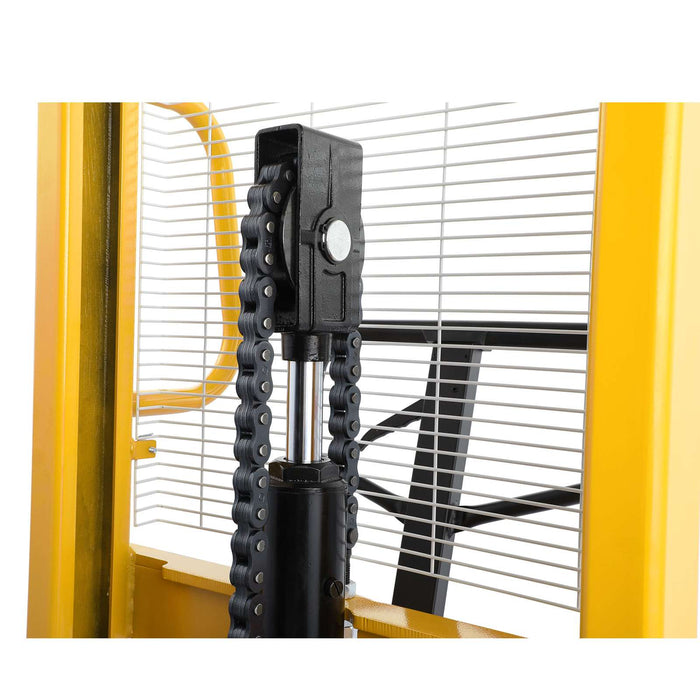

🏗 Reinforced Steel Mast – Built from welded high-strength steel for long-term performance.
🎛 Dual Lifting Modes – Raise the forks via foot pedal or control handle as needed.
📦 Forks on Top of Legs – Efficient for narrow-base goods or non-standard loads.
🛞 Compact Turning – Ideal for tight storage aisles or work zones.
🧍 Safety Guard Mesh – Protects operator from moving components during lifting.
🛑 Rear Brake Casters – Lockable wheels add stability during loading and unloading.
⚖ Safe Load Handling – Always keep the load centered between forks to avoid tipping.

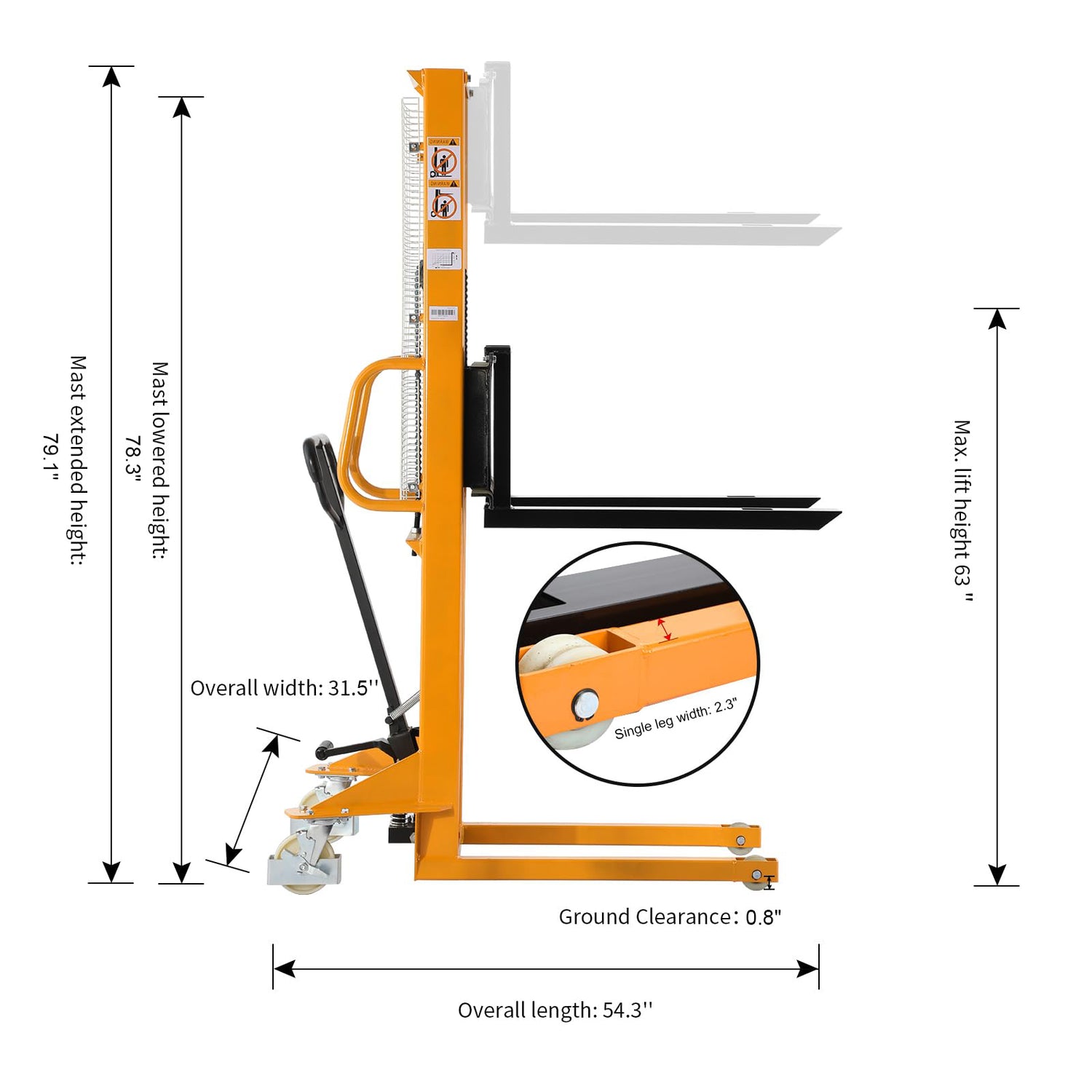

📊 Specifications

📦 Load Capacity	1,100 lbs
📐 Load Center	19.7"
↪️ Turning Radius	48.6"
📏 Aisle Width	75.4"

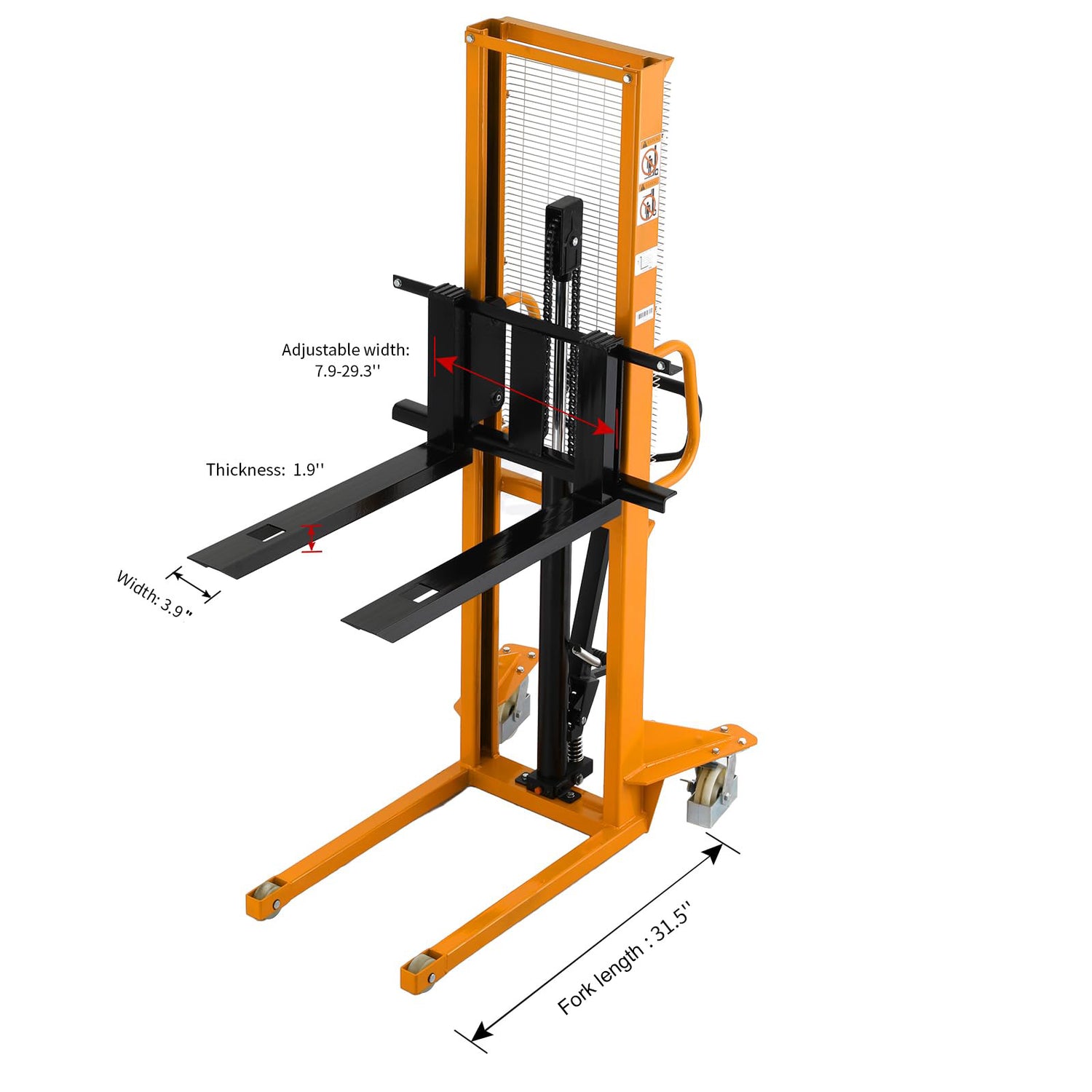

🛻 Fork Dimensions	31.5" L × 7.9–29.3" W × 1.9" Thick
📏 Inside Fork Width	0.1"–21.5"
⬇️ Fork Lowered Height	3.5"
📐 Overall Width	31.7"
📐 Overall Length	54.3"
🔺 Max Lifting Height	63"
📏 Mast Height (Lowered/Extended)	78.7" / 79"
🧷 Wheel Type	Single Wheel
🔩 Fork Material	Channel Steel Forks

📦 What You’ll Receive

Fully assembled manual stacker (protected with film & straps)
Branded stickers, quick-start guide, and QR code for usage tutorial
Delivery note with model and serial number

📬 After You Order

Once your order is confirmed, we will send a confirmation email with your order details.
When your order ships, you'll receive another email with tracking information included.
The stacker arrives fully assembled by truck—no installation or charging needed.
If you have any questions, feel free to contact us — our team is here to help.

div style="font-family: Arial, sans-serif; font-size: 16px; margin-top: 30px;">

📄 Downloads

Reviews (0)

Standard Mast and Fork Dimensions

Equipped with a standard mast and fork width, this stacker is compatible with most U.S. pallets. It ensures smooth stacking and efficient handling across a wide range of warehouse and industrial tasks.

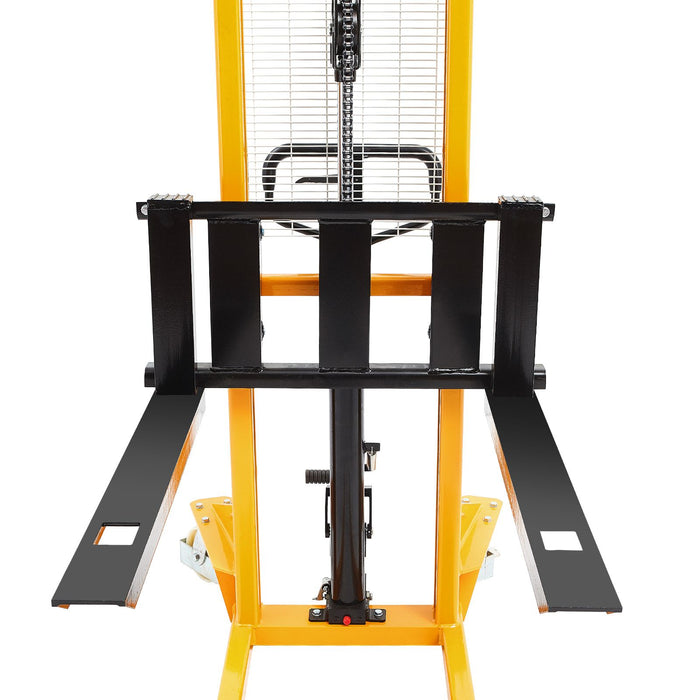

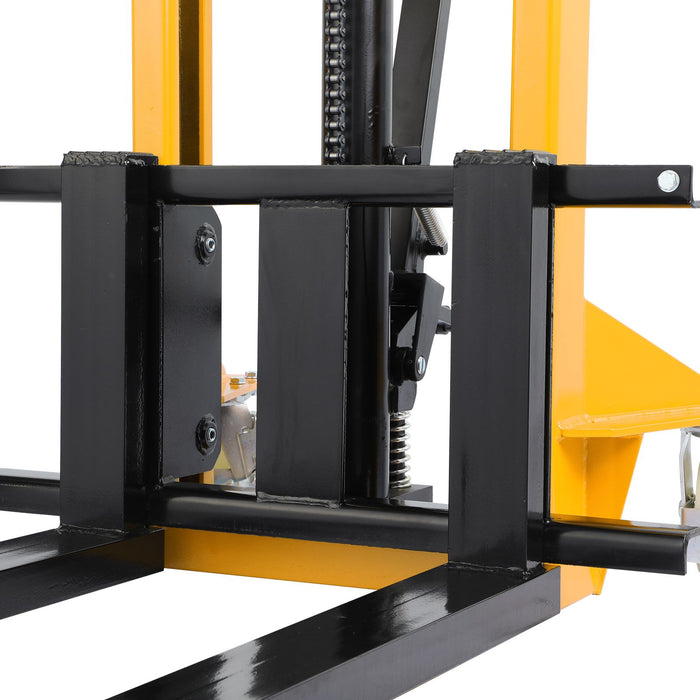

Fixed Forks for Enhanced Stability

The truck features a fixed fork design that provides greater structural stability during lifting and transport. This setup ensures safer handling of loads and reduces the risk of fork misalignment.

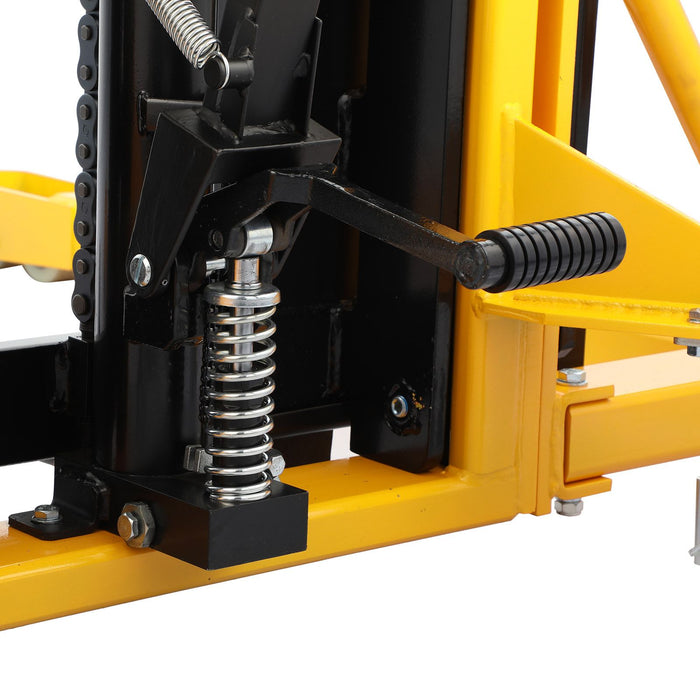

Dual Lifting Modes: Hand and Foot

The stacker features both hand and foot pedal lifting options, reducing operator fatigue during long shifts. This flexible design improves comfort and boosts overall work efficiency in daily operations.
Compact Body for Versatile Applications

The truck features a lightweight and compact structure with a small turning radius for easy handling. Its comfortable operation makes it ideal for mold workshops, logistics, warehouses, docks, and supermarkets.

🔎 Designed for Daily Use, Backed by Real Experience

🔧 Manual Stacker with Fixed Legs and Smooth Lift

The SDJA500 is a manual hydraulic stacker with a rated load of 1,100 lbs and a maximum lift height of 63". Designed with a fixed-leg frame and compact body, it’s ideal for use with open-bottom pallets or skids. The reinforced mast structure and two-stage hydraulic system offer reliable lifting performance for daily warehouse or stockroom operations.

🛠️ Dual-Mode Hydraulic Lifting System

The SDJA500 allows lifting by either hand lever or foot pedal. The integrated hydraulic system includes a return valve for smooth lowering and an overload relief valve for added safety. The forks rise through a chain-piston assembly and stop automatically at max height to prevent over-pressurization.

📦 Fully Assembled with Safe Transport Packaging

According to the official packing list, this model is delivered fully assembled. The shipment includes:

1× SDJA500 manual hydraulic stacker
1× Printed operation manual
1× Quality certificate
1× Packing list

The unit is wrapped in protective film and strapped securely for transport.

🧯 Safety Instructions for Daily Use

Use only indoors on flat, solid floors
Do not exceed rated capacity or operate while overloaded
Do not push or move the stacker while forks are raised
Use rear-wheel brake when lifting or parking on a slope
Never stand on the forks or underneath raised loads

Lowering should be done slowly by using the hand-operated return valve to prevent sudden drops.

🛡️ Warranty & Support

The SDJA500 comes with a 1-year limited warranty on the hydraulic system and structural frame. Wear parts and improper use are excluded.

Questions? Reach out to support@xilin.com — our U.S.-based service team is here to help you at any time.
