Electric Straddle Stacker 2,600lbs, 98", 24V/105Ah Compact | CTD12R-E-19-98

$5,300.00 ~~$5,700.00~~

Click here to download the Product User Manual (PDF, 2.5MB)

1 Year Warranty

At Xilinamerica.com, we proudly back all of our trucks with a one-year limited warranty, excluding wear-and-tear parts and damages caused by misuse. Our warranty period starts from the date of receipt of the item.

Warranty Periods:

1 Year on all trucks (excluding easy-wearing parts and damages caused by human factors)
3 Months on spare parts
6 Months on batteries

Warranty Details:

Within 30 days of receipt: If there are any quality issues, we will provide free spare parts for replacement and remote technical support. If our after-sales team determines that the truck needs to be returned for repair, we will cover all round-trip shipping costs.
Between 30 days and 1 year of receipt: If any quality issues arise, we offer free spare parts and remote technical guidance. If a return for repair is required, the customer is responsible for half of the shipping costs.
After 1 year of receipt: For any quality issues, we will provide free technical support. However, replacement parts will be charged, and if a return for repair is necessary, the customer will be responsible for both the maintenance fees and shipping costs, which will be quoted based on the situation.

If you encounter any issues during the use of the truck, feel free to contact us at support@xilin.com. Our team is ready to assist you.

Free Shipping

At XilinAmerica.com, we offer fast and free shipping on most products within the contiguous United States. Please note that shipping to Hawaii, Alaska, and Puerto Rico is not included in our free shipping offer.

🚚 Free Shipping Conditions
Our FREE SHIPPING offer applies to deliveries made to commercial addresses or locations with self-unloading capability. If additional services are required—such as Lift Gate Service, Residential Delivery, or Phone Call Service—please specify at the time of ordering, as these services will incur additional fees. For more details, contact info@xilinamerica.com.

⏳ Lead Time & Delivery
Once payment is received, orders are typically processed and shipped within 48 hours, excluding holidays. Delivery time varies depending on the shipping origin and destination. While we strive for timely delivery, delays may occur, and all estimated transit times are approximate.

📦 Shipping Damage
All products are carefully inspected and securely packed before shipping. Upon delivery, please check that all packages are in good condition before signing for receipt. If there is visible damage, do not accept the delivery and refuse the shipment. Contact our sales team immediately to arrange for a replacement.

❌ Order Cancellations
Orders can be canceled before they are shipped. If an order has already been dispatched, both the outgoing and return shipping costs will be charged. Please note that a missing tracking update does not necessarily mean the item hasn’t shipped. To request a cancellation, contact us as soon as possible via phone or email during business hours. Cancellations are only valid once confirmed in writing.

✉️ Address Corrections & Changes
For any shipping address changes or corrections, reach out to us immediately to avoid additional costs.

For further details, feel free to contact us at info@xilinamerica.com.

Why Xilin

Why Choose Xilin Material Handling LLC?

The Trusted Expert in Material Handling Equipment

Xilin Forklift Company, with 38 years of expertise, is a leading manufacturer specializing in the production of material handling equipment. Since our establishment, we have dedicated ourselves to creating high-quality, professional, and reliable solutions for industries worldwide. When you choose Xilin, you’re partnering with a company that values innovation, craftsmanship, and a customer-first approach.

Unmatched Product Excellence: Electric Forklifts

Our electric forklift series is at the forefront of our product range, setting new standards in material handling. Designed for optimal performance and efficiency, our electric forklifts provide:

Exceptional Performance: Engineered for a variety of material handling tasks, ensuring smooth and stable operations.
Cost-Effective Solutions: Providing high-quality equipment at competitive prices, giving you the best value for your investment.
Durability You Can Count On: Built to last with compliance to international standards, ensuring long-term reliability in the toughest environments.

Efficient Logistics and Comprehensive After-Sales Support

Fast Delivery: With strategically located warehouses, Xilin ensures prompt delivery to meet the needs of our global customers.
Expert After-Sales Service: Our dedicated after-sales team is here to assist you with everything from installation and training to regular maintenance, ensuring seamless operations and helping you overcome any challenges in your material handling needs.

Confidence in Every Partnership

At Xilin, we prioritize your success. By choosing us, you not only get access to top-tier material handling equipment but also benefit from our full range of services, designed to give you peace of mind throughout the lifecycle of your equipment. Trust Xilin for reliability, performance, and long-term value.

Choose Xilin, Choose Excellence

With Xilin Material Handling LLC, you are assured of high-quality products, dependable support, and a commitment to your business’s success. Let us help you optimize your material handling processes for greater efficiency and productivity.

For more information or inquiries, don't hesitate to contact us!

Capacity 📦

Rated Load Capacity 3300lbs

Aisle width ↔️

Minimum Aisle Width 89.7inch

Height ⬆️

Mast Lifting Height 98inch

lowered height ⬇️

Mast Lowered Height 74.6inch

Description

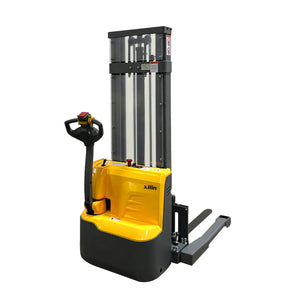

CTD12R-E-19-98 Electric Stacker – Compact, Stable & Versatile

Maximize Efficiency in Tight Workspaces

The CTD12R-E-19-98 Electric Stacker is built for warehouses, retail backrooms, and logistics centers, offering powerful lifting, precise maneuverability, and enhanced safety in tight spaces. With a low center of gravity and a four-point support system, it ensures stable and controlled operations, even in high-density storage areas.

Key Features & Benefits

🚚 Effortless Ramp Handling – Capable of operating smoothly on 5% slopes, even under full load, ensuring safe and reliable ramp performance.

📦 Compact Body, Superior Agility – The streamlined chassis and small turning radius allow efficient operation in narrow aisles, truck beds, or tight warehouse spaces.

🐢 Turtle Speed Mode + Upright Travel – The handle features both a creep speed button and vertical walking function, offering precise control in tight environments like racking zones and loading docks.

🔌 Built-In Charger for Easy Recharging – Equipped with an integrated charging system, allowing quick plug-in charging without the need for external devices.

🛞 Adjustable Balance Wheel Assembly – Enhances driving stability and eliminates lateral wobbling; fully detachable for easier maintenance and servicing.

🧱 4-Point Low Center of Gravity Structure – The four-point frame with sunken battery provides excellent side-to-side and longitudinal stability during lifting or travel.

🔩 Adjustable Straddle Legs – Customizable leg width allows compatibility with various pallet sizes, increasing usage flexibility across industries.

🔋 Maintenance-Free Battery – Long-lasting sealed battery design reduces maintenance costs and downtime, enhancing total cost efficiency.

🛞 Top-Mounted Drive System for High Reliability –

Small turning radius and simplified wheel servicing
Brush motor with water/dust resistance for extended motor and brake life
Designed for durability in intensive warehouse environments

🛠 Fast, High-Efficiency Performance – Optimized travel speed for faster load movement, increasing daily productivity during loading/unloading operations.

🎛 User-Friendly Handle Controls –
Includes:

Emergency reverse switch
Thumb-type directional control
Horn
Lift/lower buttons on both sides for operator convenience

Who Is This Stacker For?

🏭 Warehouses & Logistics – Maximizes storage efficiency with vertical stacking.

🚚 Retail & Distribution Centers – Handles material transfer seamlessly in compact environments.

📦 Manufacturing & Industrial Use – A cost-effective stacking solution for production plants.

💼 Small Businesses & Workshops – An affordable alternative to forklifts with better control in tight spaces.

Why Choose the CTD12R-E-19-98?

✔ Lifts up to 2,600 lbs, ensuring stable and efficient material handling.

✔ Adjustable width (44"-60"), accommodating various pallet sizes.

✔ Compact design, requiring only an 89.7" aisle width, making navigation effortless.

✔ Adjustable straddle legs, providing greater versatility for different loads.

✔ Built-in charger, ensuring convenient and efficient charging.

Upgrade Your Material Handling Efficiency Today

📞 Expert Support Available | 🚛 Fast Shipping

Reviews (0)

Specifications

Load Capacity & Dimensions

Capacity: 2,640 lbs
Load Center: 23.6"
Turning Radius: 58.6"
Aisle Width: 89.7"

Fork Dimensions

Width Overall Forks: 7.8"-31.5"
Single Fork Width: 3.9"
Fork Length: 42"
Fork Thickness: 1.3"
Distance Between Forks (Inside): 0.1"-23.6"
Fork Lowered Height: 3.1"

Overall Dimensions

Overall Width: 44"-60"
Overall Length: 70"

Mast

Max. Lifting Height: 98"
Mast Extended Height: 122"
Mast Lowered Height: 74.6"

Battery & Charger

Battery Voltage/Capacity: 24V / 105Ah
Charger: 24V / 10A built-in

Speed & Performance

Travel Speed (Laden): 2.8 mph
Travel Speed (Unladen): 3.1 mph
Lifting Speed (Laden): 3.5 inch/s
Lifting Speed (Unladen): 5.5 inch/s
Lowering Speed (Laden): 4.7 inch/s
Lowering Speed (Unladen): 3.9 inch/s

Multifunctional Handle

The handle features an accelerator knob, turtle speed button, upright walking mode, emergency reverse button, and horn. These functions offer safer, more precise control when turning, stacking, or working in narrow aisles.
Clear panel

The adjustable balance wheels ensure stable, sway-free movement with strong shock absorption. The entire assembly is detachable, making maintenance easier and improving long-term durability.
Vertical drive wheel

Adjustable balance wheels provide smooth, stable movement with excellent shock absorption. The detachable wheel assembly allows quick access for maintenance, helping extend the truck’s service life.
Adjustable legs

The adjustable legs feature a compact structure that enhances maneuverability in tight spaces. This design allows smooth, stable operation in narrow aisles without compromising performance or efficiency.
Maintenance-free GEL battery

The GEL battery requires no liquid refilling and offers consistent, reliable performance. Its sealed design improves safety, reduces maintenance time, and makes it ideal for long-term industrial use.
