High Lift 3300lbs 220” Fully Electric Straddle Pallet Walkie Stacker Adj Forks CTDR15-III-220 - Full Electric Stacker

High Lift 3300lbs 220” Fully Electric Straddle Pallet Walkie Stacker Adj Forks CTDR15-III-220

by Xilin
More information
battery capacity 24V/200Ah
Travel speed with/without load 24V/30A
Load capacity 3300lbs
lifting height 220inch
lifting height 1dfe Created with Sketch. 2.8inch
Save $399.00 Save $399.00
$13,399.00
$13,399.00 - $13,399.00
$13,399.00
$13,000.00
$13,000.00 - $13,000.00
$13,000.00
FREE SHIPPING

Features & Advantages

  • Pallet stacker/walkie stacker/straddle stacker/lift stacker.
  • Compact design for US type pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
  • DC brushless system intelligentized regenerative brake system
  • Suit for low level stacking and short distance transportation
  • Built-in pressure relief valve protects the trucks from overloads
  • With lifting limit switch to shut off pump motor at top max Lifting height
  • Small turning radius standing drive motor system, water-proof and dust-proof motor structurea whole set of warehouse solution.
  • Only forklift unloading is allowed.


    Compare Similar Items

    Features & Advantages

    High quality Full-electric stakcer, Safety Compact Ergonomic design, provides a cost effective solution, which is widely used in warehouse and super market.

    Multifunction Handle

    Germany Frei Handle with emergency reverse switch, easy control

    Adjustable Straddle Legs

    Compact design for use in confined spaces, narrow aisle accessible

    Side-Way Battery

    24V200Ah powerful lead-acid battery with over discharge protection. Side way battery for easy maintenance

    Product Information

    • Product Overview
    • General Information

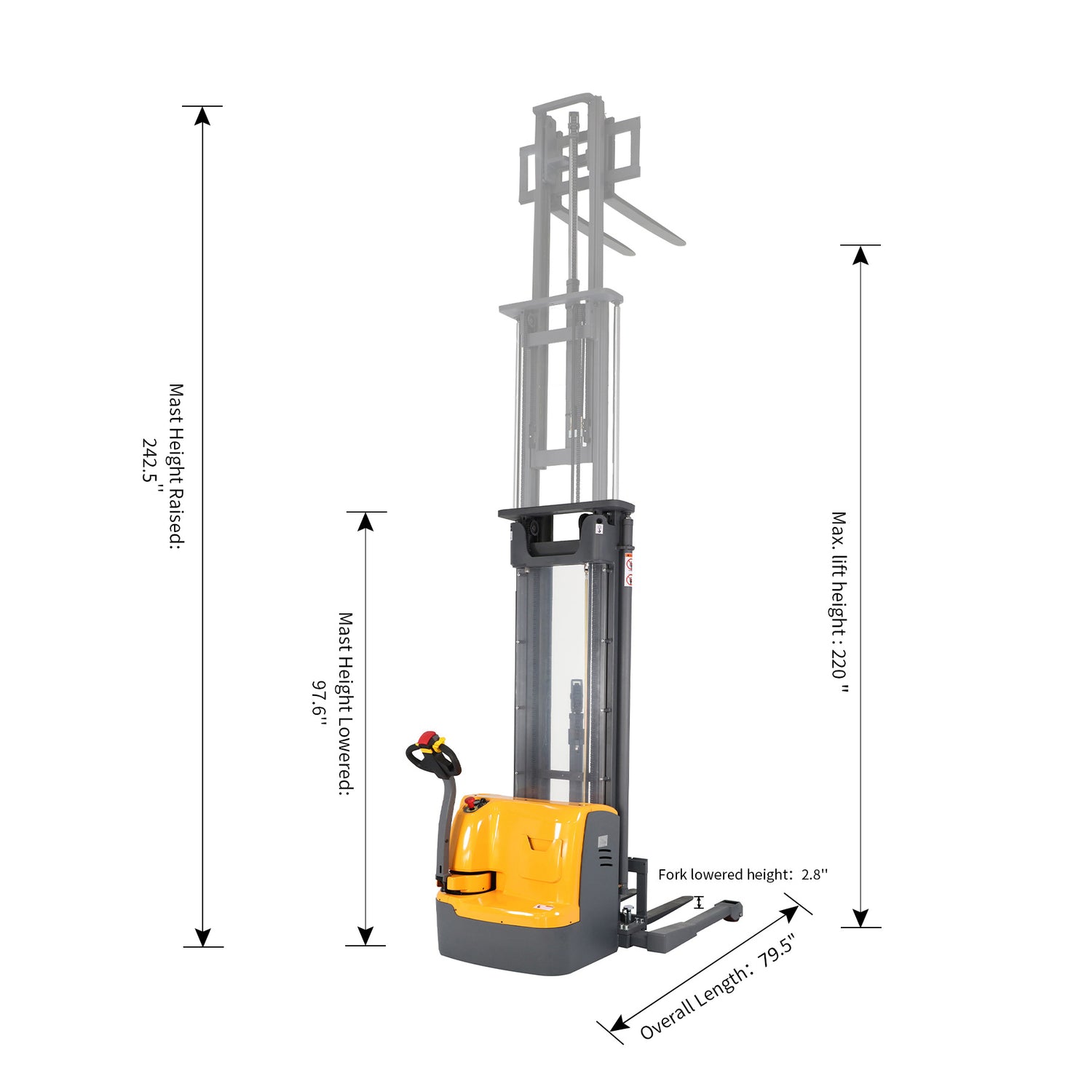

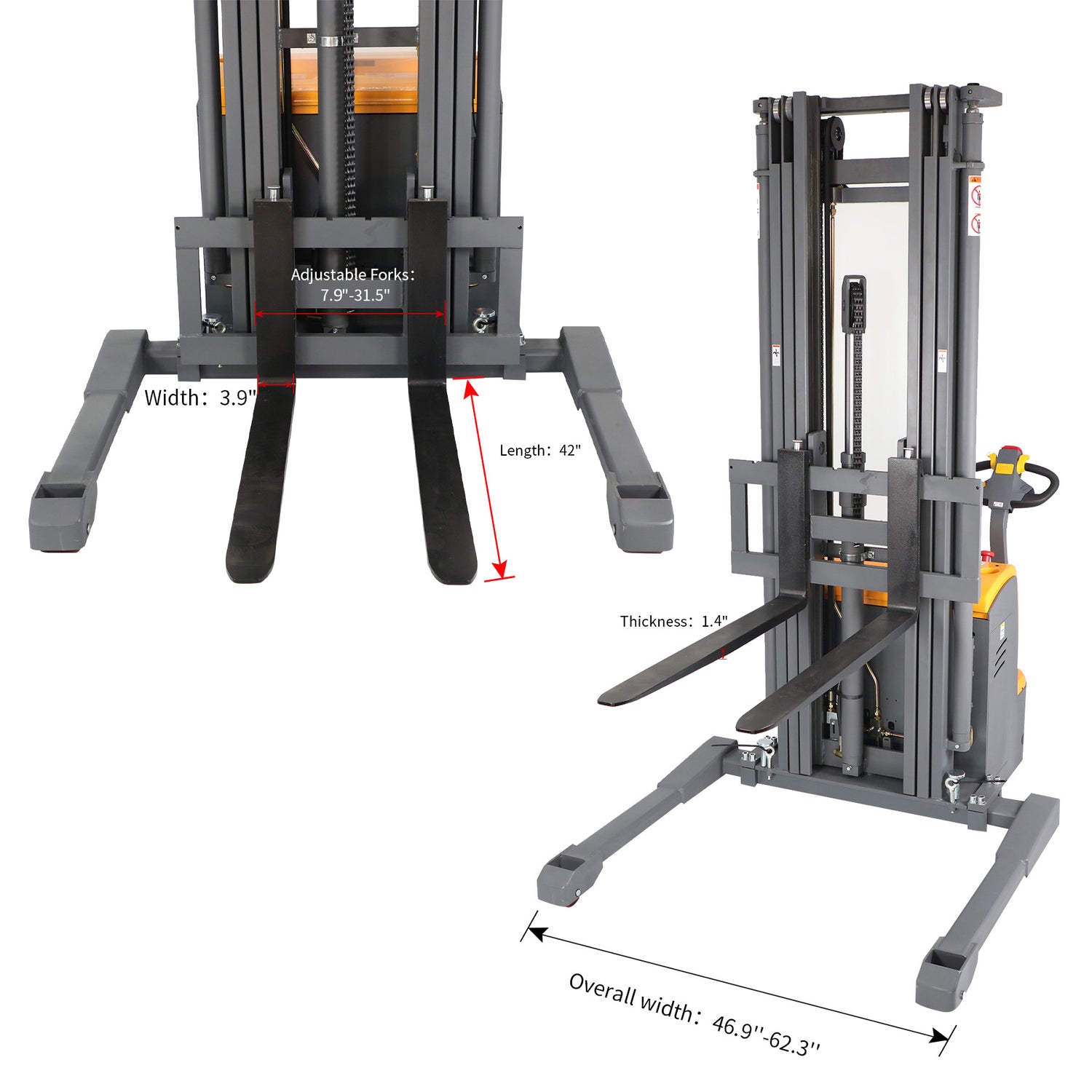

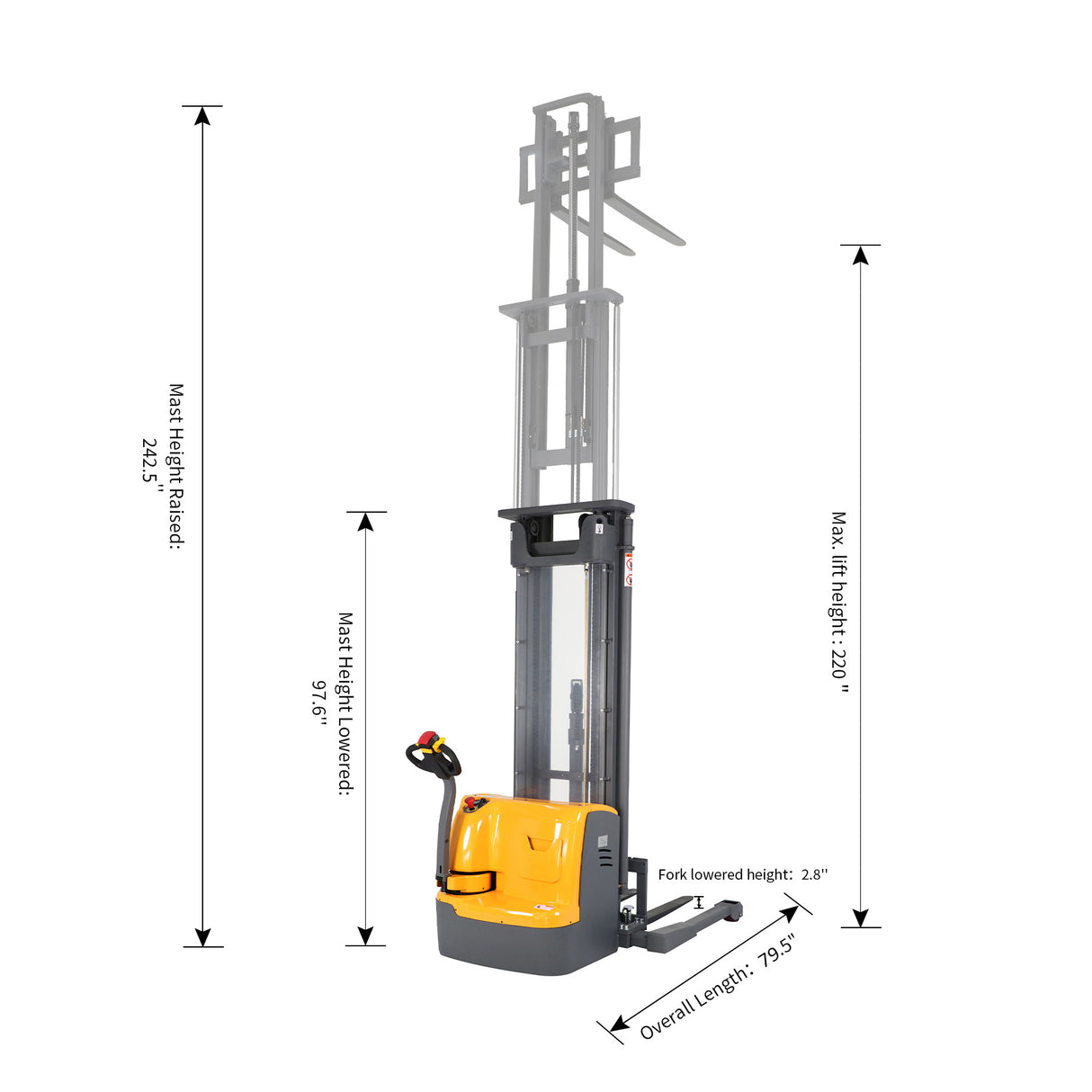

    • Dimension Drawing
    Model No
    CTDR15-III-220"
    Capacity
    3300lbs
    Turning Radius
    65.1inch
    Max. lift height
    220inch
    Battery Voltage
    24V/200AH
    Lifting speed(laden/unladen)
    3.5/6.3inch
    Travel Speed(laden/unladen)
    3.6/3.7mph
    Lowering speed(laden/unladen)
    6.3/5.9inch
    Specifications
    Recommended Aisle Width 98.4 inch
    Truck Weight 3197lbs
    Height, mast lowered[h1] 97.6inch
    Height, mast extended[h4] 242.5inch
    Overall width [b1] 46.5-62.3inch
    Overall length 82.5inch
    Width overall forks 7.8-31.5inch
    Fork dimensions[s/e/l] 1.3/3.9/42inch
    Fork height, lowered[h13] 2.8inch
    Load centre distance[c] 23.6inch
    Distance between forks(inside) 0.1-23.6inch
    Charger 24V/30A built-out

    Full Electric Walkie Stacker

    SKU Load Capacity Max. Lift Height Recommended Aisle Width Battery Voltage
    		 Price Each
    CTDR15-Ⅲ-177 3300lbs 177inch 98.4inch
    		 24V/200AH $12299
    CTDR15-Ⅲ-220 3300lbs 220inch 98.4inch 24V/200AH $12999
