XILIN | SKU: CTD15R-EN-130

3300 lb Capacity 130" Lift Compact Electric Stacker Adjustable Forks | CTD15R-EN-130

$5,700.00

📦 In stock. Ships in 24–48 hours.
🚛 Free lift gate delivery. Delivered in 5–7 business days.
💲 Final price. No extra shipping cost or hidden fees.
🛡 1-year warranty included. Full support available by video, email, or phone.

1 Year Warranty

At Xilinamerica.com, we proudly back all of our trucks with a one-year limited warranty, excluding wear-and-tear parts and damages caused by misuse. Our warranty period starts from the date of receipt of the item.

Warranty Periods:

1 Year on all trucks (excluding easy-wearing parts and damages caused by human factors)
3 Months on spare parts
6 Months on batteries

Warranty Details:

Within 30 days of receipt: If there are any quality issues, we will provide free spare parts for replacement and remote technical support. If our after-sales team determines that the truck needs to be returned for repair, we will cover all round-trip shipping costs.
Between 30 days and 1 year of receipt: If any quality issues arise, we offer free spare parts and remote technical guidance. If a return for repair is required, the customer is responsible for half of the shipping costs.
After 1 year of receipt: For any quality issues, we will provide free technical support. However, replacement parts will be charged, and if a return for repair is necessary, the customer will be responsible for both the maintenance fees and shipping costs, which will be quoted based on the situation.

If you encounter any issues during the use of the truck, feel free to contact us at support@xilin.com. Our team is ready to assist you.

Free Shipping

At XilinAmerica.com, we offer fast and free shipping on most products within the contiguous United States. Please note that shipping to Hawaii, Alaska, and Puerto Rico is not included in our free shipping offer.

🚚 Free Shipping Conditions
Our FREE SHIPPING offer applies to deliveries made to commercial addresses or locations with self-unloading capability. If additional services are required—such as Lift Gate Service, Residential Delivery, or Phone Call Service—please specify at the time of ordering, as these services will incur additional fees. For more details, contact info@xilinamerica.com.

⏳ Lead Time & Delivery
Once payment is received, orders are typically processed and shipped within 48 hours, excluding holidays. Delivery time varies depending on the shipping origin and destination. While we strive for timely delivery, delays may occur, and all estimated transit times are approximate.

📦 Shipping Damage
All products are carefully inspected and securely packed before shipping. Upon delivery, please check that all packages are in good condition before signing for receipt. If there is visible damage, do not accept the delivery and refuse the shipment. Contact our sales team immediately to arrange for a replacement.

❌ Order Cancellations
Orders can be canceled before they are shipped. If an order has already been dispatched, both the outgoing and return shipping costs will be charged. Please note that a missing tracking update does not necessarily mean the item hasn’t shipped. To request a cancellation, contact us as soon as possible via phone or email during business hours. Cancellations are only valid once confirmed in writing.

✉️ Address Corrections & Changes
For any shipping address changes or corrections, reach out to us immediately to avoid additional costs.

For further details, feel free to contact us at info@xilinamerica.com.

Why Xilin

Why Choose Xilin Material Handling LLC?

The Trusted Expert in Material Handling Equipment

Xilin Material Handling LLC is a leading manufacturer specializing in the production of material handling equipment. Since our establishment, we have dedicated ourselves to creating high-quality, professional, and reliable solutions for industries worldwide. When you choose Xilin, you’re partnering with a company that values innovation, craftsmanship, and a customer-first approach.

Unmatched Product Excellence: Electric Forklifts

Our electric forklift series is at the forefront of our product range, setting new standards in material handling. Designed for optimal performance and efficiency, our electric forklifts provide:

Exceptional Performance: Engineered for a variety of material handling tasks, ensuring smooth and stable operations.
Cost-Effective Solutions: Providing high-quality equipment at competitive prices, giving you the best value for your investment.
Durability You Can Count On: Built to last with compliance to international standards, ensuring long-term reliability in the toughest environments.

Efficient Logistics and Comprehensive After-Sales Support

Fast Delivery: With strategically located warehouses, Xilin ensures prompt delivery to meet the needs of our global customers.
Expert After-Sales Service: Our dedicated after-sales team is here to assist you with everything from installation and training to regular maintenance, ensuring seamless operations and helping you overcome any challenges in your material handling needs.

Confidence in Every Partnership

At Xilin, we prioritize your success. By choosing us, you not only get access to top-tier material handling equipment but also benefit from our full range of services, designed to give you peace of mind throughout the lifecycle of your equipment. Trust Xilin for reliability, performance, and long-term value.

Choose Xilin, Choose Excellence

With Xilin Material Handling LLC, you are assured of high-quality products, dependable support, and a commitment to your business’s success. Let us help you optimize your material handling processes for greater efficiency and productivity.

For more information or inquiries, don't hesitate to contact us!

🎮 Smart Multi-Function Handle

One-touch turtle mode, acceleration, horn & emergency brake all in one.

⚖️ Adjustable Forks & Straddle Legs

Easily fits different pallet sizes, even closed-bottom styles.

Turns smoothly in tight warehouse spaces—only 88.3" aisle needed.

🏆 Award-Winning German Design

Recognized by Red Dot & iF Design Awards—looks as good as it performs.

Description

CTD15R-EN-130 Full Electric Pallet Stacker

The CTD15R-EN-130 is a compact electric stacker with a 3,300 lb load capacity and 130" lift height. Featuring adjustable forks, straddle legs, and low center of gravity, it’s ideal for stacking in tight warehouse spaces. Powered by a 24V/100Ah battery with built-in charger, it’s the perfect upgrade from manual models.

💡 Key Features & Benefits

🎨 Unified Modular Design – Steel body and consistent industrial styling across product line.
📦 Designed for Tight Spaces – Ideal for retail, warehouse, and truck loading operations.
🛞 Top-Mounted Drive Motor – Elevated from floor for protection against dust, water, and oil.
🔧 Accessible Modular Layout – Quieter gear system with liquid oil lubrication, easy to maintain.
🧱 Stable 3-Point Chassis – Center-mounted drive + low battery position for better balance.
🛠 Plug-and-Play Charging – Built-in 24V/10A charger for convenient recharging.
🛡 Explosion-Proof Valve – Prevents uncontrolled descent in case of hydraulic failure.
🎛 Multi-Function Control Handle – Includes throttle, horn, lift/lower, turtle mode, and emergency stop.
🔋 Reliable Battery Setup – 24V/100Ah, with 10-hour charge cycle and dashboard monitoring.
🧩 Adjustable Drive Parameters – Technicians can customize speed/acceleration via controller.
🧰 Comprehensive Fuse Protection – Each core component protected by dedicated fuses.

📊 Specifications

📦 Load Capacity	3,300 lbs
📐 Load Center	23.6"
↪️ Turning Radius	52.9"
📏 Aisle Width	88.3"

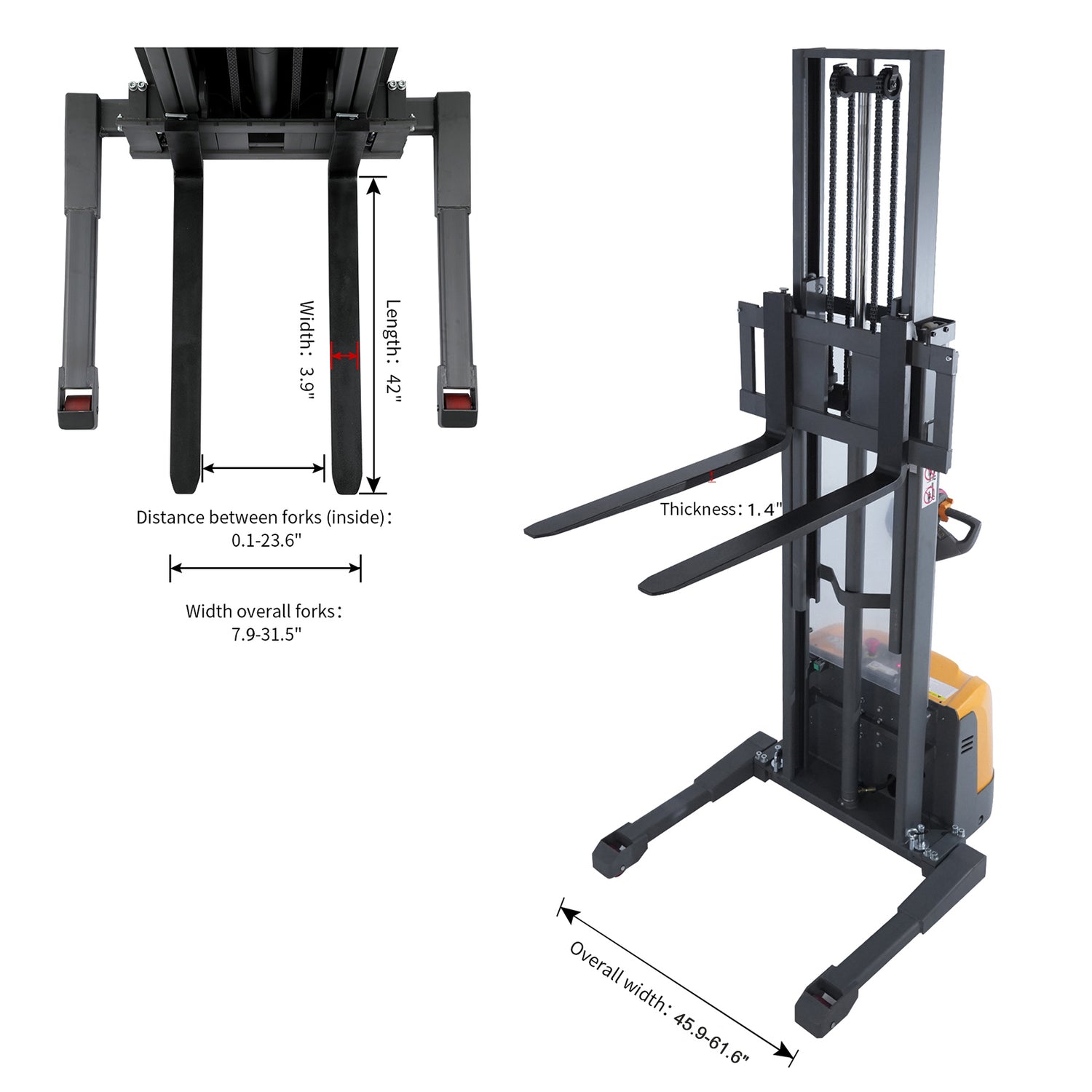

🛻 Fork Dimensions	42" L × 7.8–31.5" W × 1.3" Thick
📏 Inside Fork Width	0.1"–23.6"
📐 Overall Width	46.5"–62.3"
📐 Overall Length	70.3"
🔺 Max Lifting Height	130"
📏 Mast Height (Lowered/Extended)	90.4" / 157"
⬇️ Fork Lowered Height	2.8"
🔋 Battery	24V / 100Ah
🔌 Charger	24V / 10A Built-in
🚚 Travel Speed (L/U)	2.8 / 3.1 mph
⬆️ Lifting Speed (L/U)	3.5 / 5.9 inch/s
⬇️ Lowering Speed (L/U)	5.9 / 4.3 inch/s

📦 What You’ll Receive

Fully assembled CTD15R-EN-130 electric stacker (protected with film & straps)
Built-in 24V charger (already installed – just plug into a standard outlet, no separate charger needed)
Branded stickers, quick-start guide, and QR code for video tutorial
Delivery note with model and serial number

📬 After You Order

Once your order is confirmed, we will send a confirmation email with your order details.
When your order ships, you'll receive another email with tracking information included.
The stacker arrives fully assembled by truck—no installation needed.
If you have any questions, feel free to contact us — our team is here to help.

📄 Downloads

Reviews (0)

Control System Features

Equipped with lift/lower buttons, emergency brake and reverse, horn, crawl speed, and vertical walking. The rubber-coated grip provides comfort in all seasons, while forward/reverse controls ensure smooth, precise handling.
Modular Design and Efficient Layout

The modular design features well-organized components for easier maintenance and servicing. A built-in charger adds daily convenience, allowing efficient charging without removing the battery.
Magnetic Card Lock Activation

The magnetic card lock requires a swipe to start and logs each use by operator. Each card is user-specific for added security. Power can be shut off with another swipe or by pressing the emergency stop button.
Flashing Warning Light for Safety

The warning light flashes during operation to alert nearby workers. This safety feature clearly signals that the stacker is in use, helping prevent accidents and improving overall workplace awareness.

🔎 Designed for Daily Use, Backed by Real Experience

🔧 Straddle Stacker with 130" High Reach

The CTD15REN-130 is a full-electric straddle stacker rated for 3,300 lbs with an extended lift height of 130". Designed for efficient vertical handling in narrow spaces, this model features adjustable outriggers and forks for versatile pallet access, including closed-bottom pallets. The reinforced mast and stable wheelbase allow for confident high stacking in warehouses, shops, and logistics centers.

🔋 24V Lead-Acid System with Integrated Charging

This stacker operates on a 24V power system using two 12V lead-acid batteries. Charging is handled by an onboard AC charger with external plug access. A full charge takes about 10–12 hours. Operators should check water levels every 2–3 months and clean terminals as part of routine maintenance. The system also supports equalization charging after prolonged storage.

🛠️ Maintenance Schedule for Long-Term Use

The CTD15REN-130 is designed for reliable industrial performance with service-friendly access points. From the official maintenance guide:

Replace hydraulic oil every 1,200 hours (12L, L-HV32)
Change gearbox oil every 1,000 hours (GL-5 85W/90)
Monthly checks: battery cable, steering assembly, fuses, and connectors
Quarterly battery water top-up and gravity measurement

Access panels on the body allow fast inspection of drive motor, controller, and pump system.

🧯 Full Safety System with Smart Control

The tiller head features direction control, lift/lower switches, horn, and an emergency reverse button. Integrated safety features include:

Regenerative braking when the throttle is released
Electromagnetic brake activation when tiller is upright or released
Travel speed limiter when forks are raised over 300mm (11.8")
Emergency power cut-off via a red switch and key start lock

The control system includes internal diagnostics to block unsafe operations when errors are detected.

📦 Fully Assembled & Professionally Packaged

As per the official packing list, the CTD15REN-130 is shipped fully assembled, with the handle and mast in place. Each order includes:

1× Fully assembled CTD15REN-130 stacker
1× Accessory box with battery key, fuse, charger cable, and user manual

The unit is wrapped with protective foam and secured with straps to ensure safe delivery.

🛡️ Warranty & Support You Can Count On

This model includes a 1-year limited warranty covering major components under normal use. The 24V battery is covered for 6 months, and electrical parts such as switches and fuses for 3 months. Damage from misuse or wear-and-tear is excluded.

Here’s how our support works:

Within 30 days: Free parts, remote support, and round-trip shipping if needed
Day 31 to 1 year: Free parts and remote support; customer pays 50% return shipping
After 1 year: Lifetime remote tech support; parts and shipping quoted as needed

Need help? Contact support@xilin.com — our U.S.-based team is ready to assist.
