XILIN | SKU: JF-685

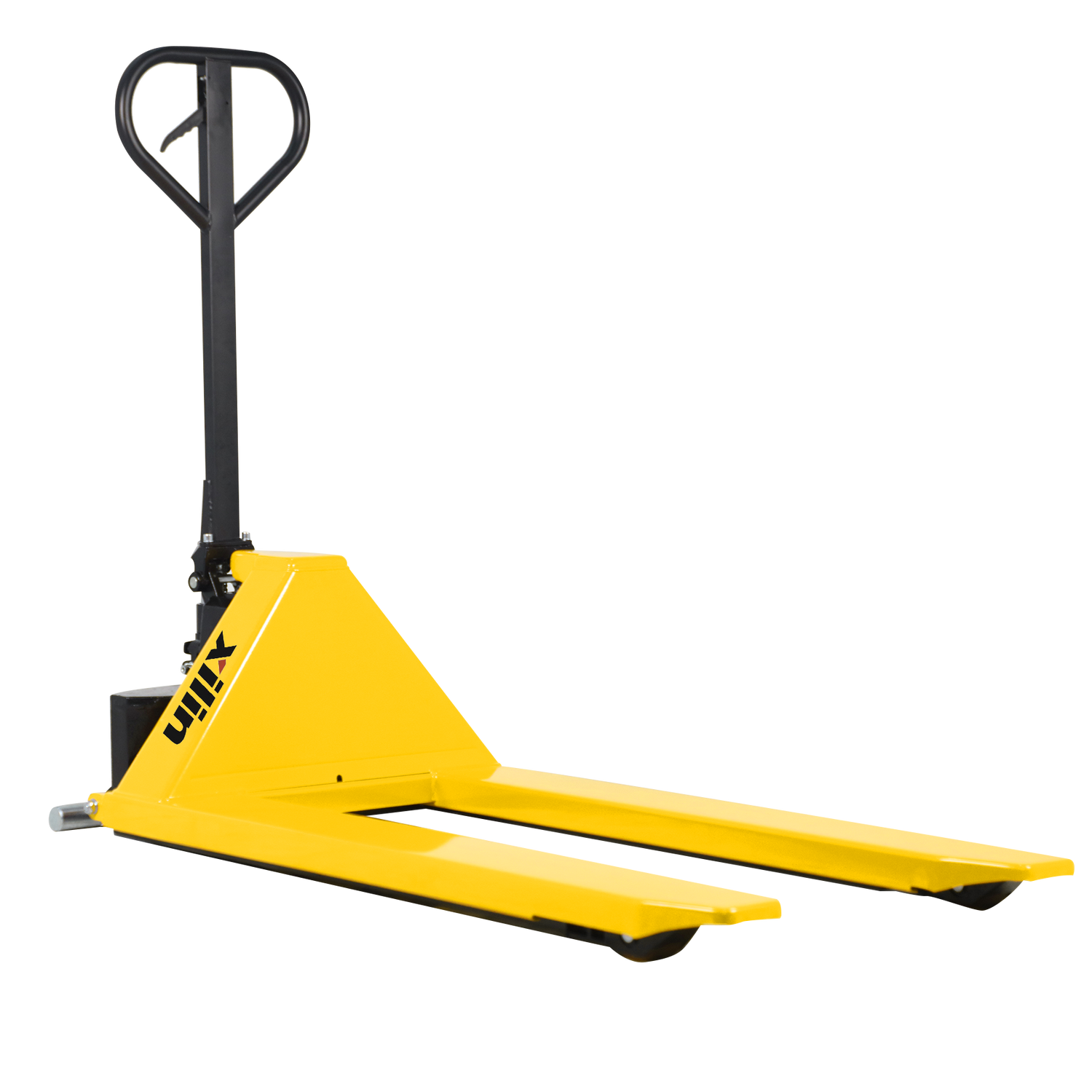

2200 lbs Manual High Lift Scissor Lift Pallet Jack – 45" x 27" Forks | JF-685

$600.00

📦 In stock. Ships in 24–48 hours.
🚛 Free liftgate delivery. No extra shipping cost.
💲 Final price. No hidden fees or surprises.
🛡 1-year warranty included. Video guide for easy setup.

1 Year Warranty

At Xilinamerica.com, we proudly back all of our trucks with a one-year limited warranty, excluding wear-and-tear parts and damages caused by misuse. Our warranty period starts from the date of receipt of the item.

Warranty Periods:

1 Year on all trucks (excluding easy-wearing parts and damages caused by human factors)
3 Months on spare parts
6 Months on batteries

Warranty Details:

Within 30 days of receipt: If there are any quality issues, we will provide free spare parts for replacement and remote technical support. If our after-sales team determines that the truck needs to be returned for repair, we will cover all round-trip shipping costs.
Between 30 days and 1 year of receipt: If any quality issues arise, we offer free spare parts and remote technical guidance. If a return for repair is required, the customer is responsible for half of the shipping costs.
After 1 year of receipt: For any quality issues, we will provide free technical support. However, replacement parts will be charged, and if a return for repair is necessary, the customer will be responsible for both the maintenance fees and shipping costs, which will be quoted based on the situation.

If you encounter any issues during the use of the truck, feel free to contact us at support@xilin.com. Our team is ready to assist you.

Free Shipping

At XilinAmerica.com, we offer fast and free shipping on most products within the contiguous United States. Please note that shipping to Hawaii, Alaska, and Puerto Rico is not included in our free shipping offer.

🚚 Free Shipping Conditions
Our FREE SHIPPING offer applies to deliveries made to commercial addresses or locations with self-unloading capability. If additional services are required—such as Lift Gate Service, Residential Delivery, or Phone Call Service—please specify at the time of ordering, as these services will incur additional fees. For more details, contact info@xilinamerica.com.

⏳ Lead Time & Delivery
Once payment is received, orders are typically processed and shipped within 48 hours, excluding holidays. Delivery time varies depending on the shipping origin and destination. While we strive for timely delivery, delays may occur, and all estimated transit times are approximate.

📦 Shipping Damage
All products are carefully inspected and securely packed before shipping. Upon delivery, please check that all packages are in good condition before signing for receipt. If there is visible damage, do not accept the delivery and refuse the shipment. Contact our sales team immediately to arrange for a replacement.

❌ Order Cancellations
Orders can be canceled before they are shipped. If an order has already been dispatched, both the outgoing and return shipping costs will be charged. Please note that a missing tracking update does not necessarily mean the item hasn’t shipped. To request a cancellation, contact us as soon as possible via phone or email during business hours. Cancellations are only valid once confirmed in writing.

✉️ Address Corrections & Changes
For any shipping address changes or corrections, reach out to us immediately to avoid additional costs.

For further details, feel free to contact us at info@xilinamerica.com.

Why Xilin

Why Choose Xilin Material Handling LLC?

The Trusted Expert in Material Handling Equipment

Xilin Material Handling LLC is a leading manufacturer specializing in the production of material handling equipment. Since our establishment, we have dedicated ourselves to creating high-quality, professional, and reliable solutions for industries worldwide. When you choose Xilin, you’re partnering with a company that values innovation, craftsmanship, and a customer-first approach.

Unmatched Product Excellence: Electric Forklifts

Our electric forklift series is at the forefront of our product range, setting new standards in material handling. Designed for optimal performance and efficiency, our electric forklifts provide:

Exceptional Performance: Engineered for a variety of material handling tasks, ensuring smooth and stable operations.
Cost-Effective Solutions: Providing high-quality equipment at competitive prices, giving you the best value for your investment.
Durability You Can Count On: Built to last with compliance to international standards, ensuring long-term reliability in the toughest environments.

Efficient Logistics and Comprehensive After-Sales Support

Fast Delivery: With strategically located warehouses, Xilin ensures prompt delivery to meet the needs of our global customers.
Expert After-Sales Service: Our dedicated after-sales team is here to assist you with everything from installation and training to regular maintenance, ensuring seamless operations and helping you overcome any challenges in your material handling needs.

Confidence in Every Partnership

At Xilin, we prioritize your success. By choosing us, you not only get access to top-tier material handling equipment but also benefit from our full range of services, designed to give you peace of mind throughout the lifecycle of your equipment. Trust Xilin for reliability, performance, and long-term value.

Choose Xilin, Choose Excellence

With Xilin Material Handling LLC, you are assured of high-quality products, dependable support, and a commitment to your business’s success. Let us help you optimize your material handling processes for greater efficiency and productivity.

For more information or inquiries, don't hesitate to contact us!

🔄 2-in-1 Lift & Pallet Jack

Doubles as a pallet mover and a scissor-lift work table.

🧰 Light Pumping, Strong Support

Triple-piston jack for smooth lifting with extra rigidity.

🛑 Auto-Stabilizing Safety Legs

Device auto-locks when raised for safer loading and packing.

📦 Smooth Lowering with Load Protection

Automatically slows descent when carrying heavy loads.

Description

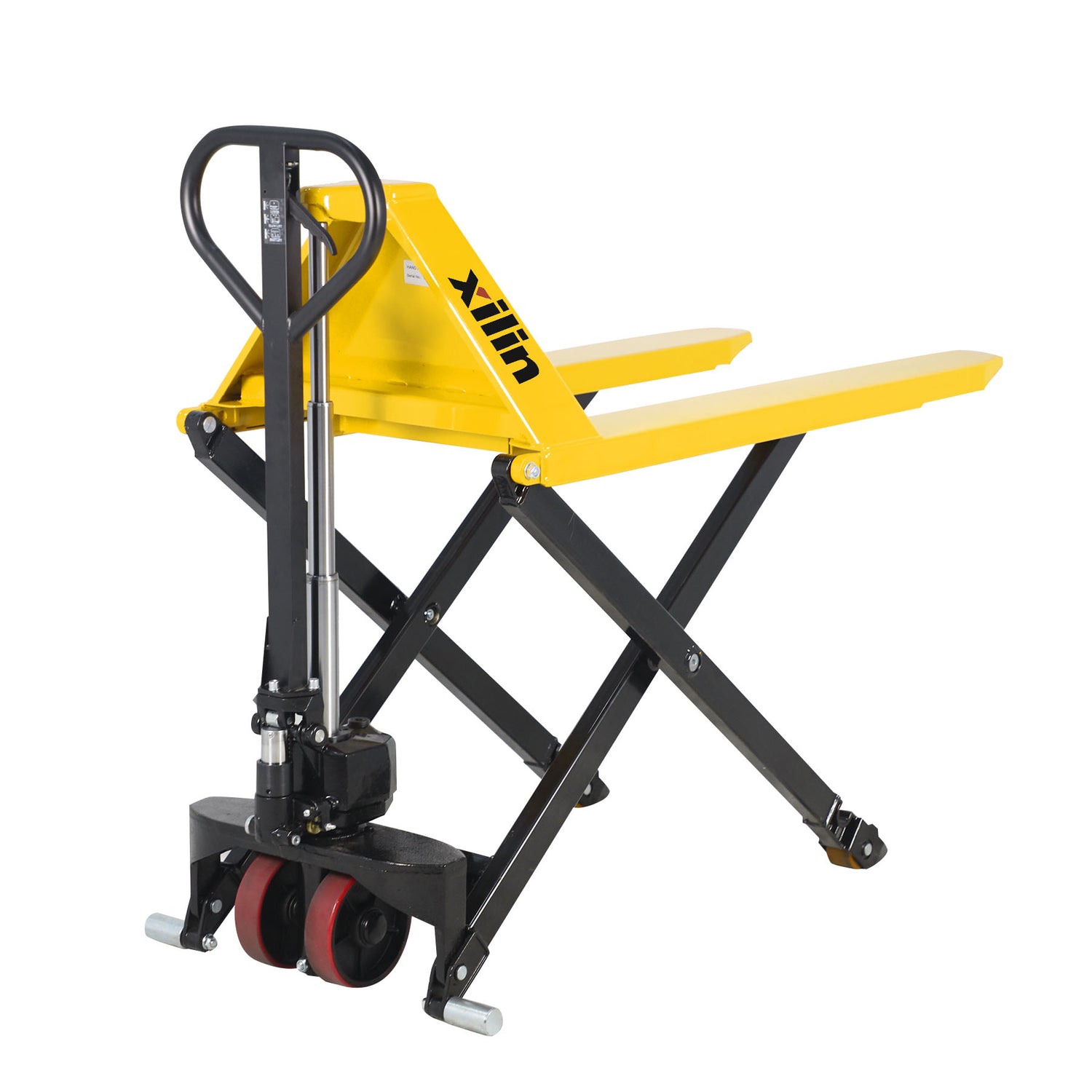

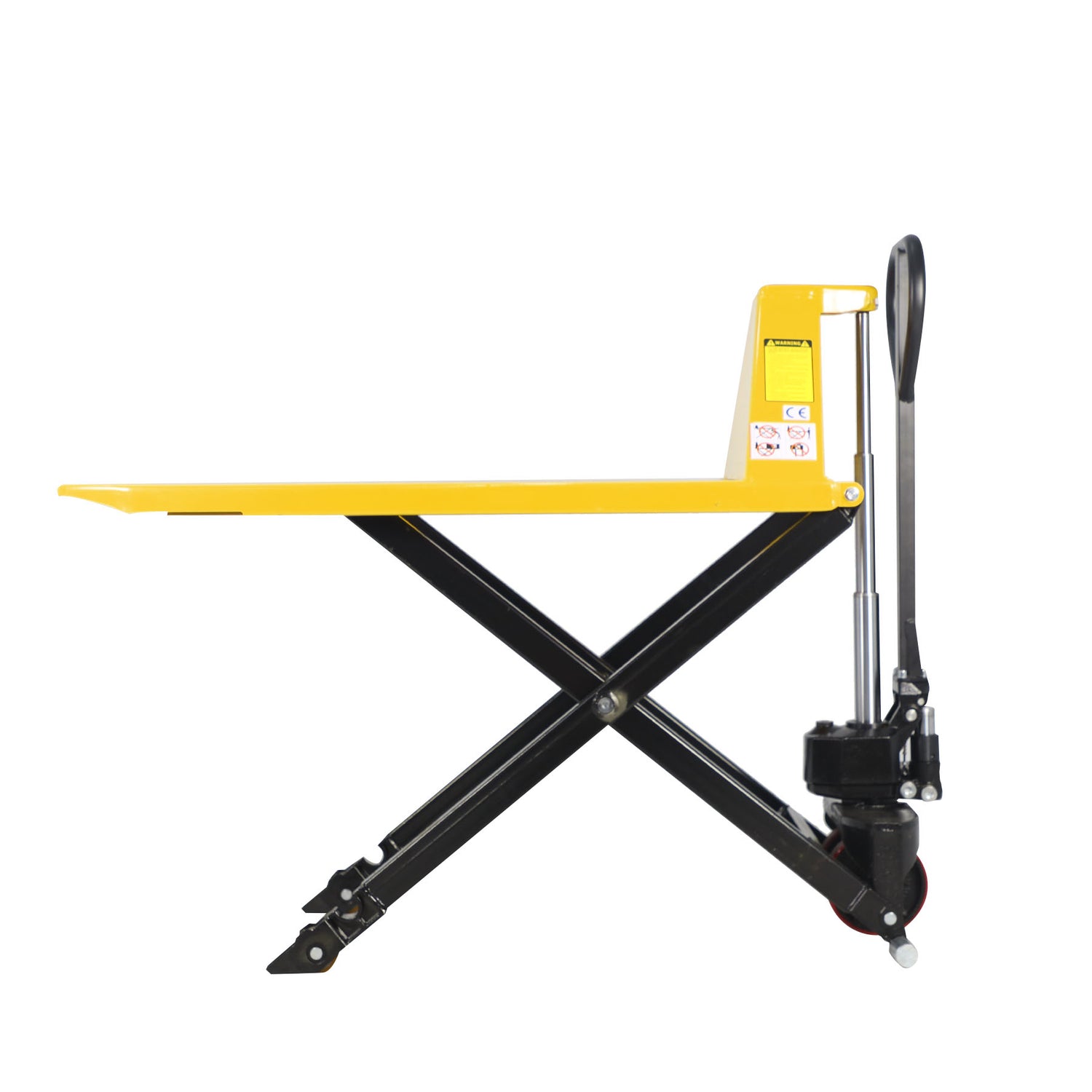

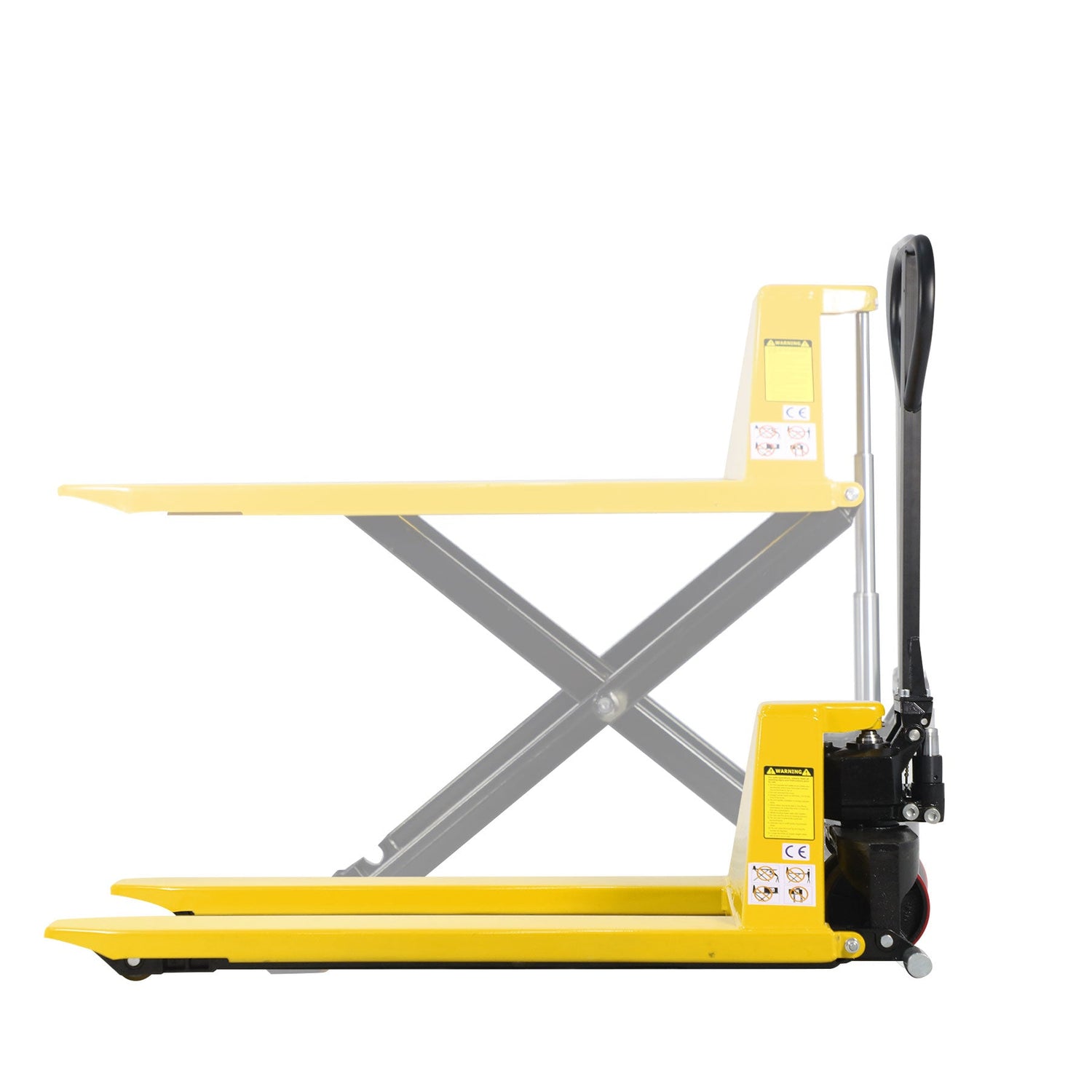

JF-685 Scissor Pallet Jack – Wide Fork, High Lift & Ergonomic Design

The JF-685 scissor-type pallet jack is a high-lift tool designed to raise goods to an optimal working height, reducing the need to bend and lift manually. It combines the functionality of a pallet truck and a lift table, now with a 27" wide fork for broader applications. Ideal for packing stations, assembly lines, and warehouse handling.

🔑 Key Features & Benefits

🎯 Dual-Function Design – Works as both a pallet jack and a scissor lift, ideal for transport and elevated work tasks.
🔼 3-Piston Hydraulic Jack – Telescopic system delivers high rigidity with smooth, efficient lifting.
🦶 Automatic Support Legs – Deploy during lifting to stabilize the jack and prevent movement when raised.
🛑 Auto-Safety Lock – Locks the unit in place when lifted, enhancing safety during elevated operations.
📉 Controlled Lowering – Reduces descent speed automatically under heavy loads to avoid damage.
🔁 210° Steering Angle – Wide steering range improves maneuverability in narrow aisles and tight areas.
🧱 Side Stabilizers – Lateral supports activate during lifting to reduce sway and enhance balance.

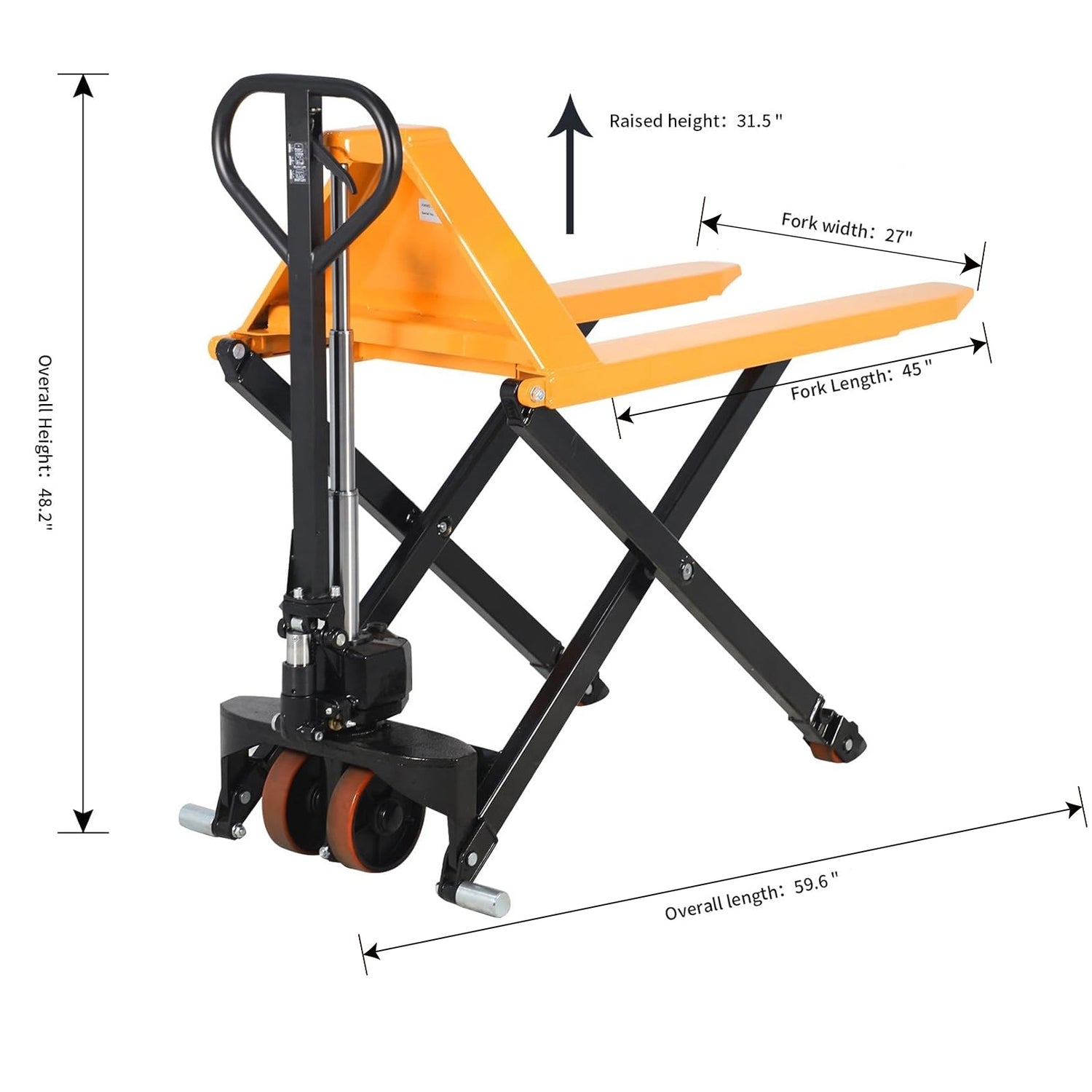

📊 Specifications

📦 Load Capacity	2,200 lbs
↪️ Turning Radius	53.5"
📏 Aisle Width	69.4"

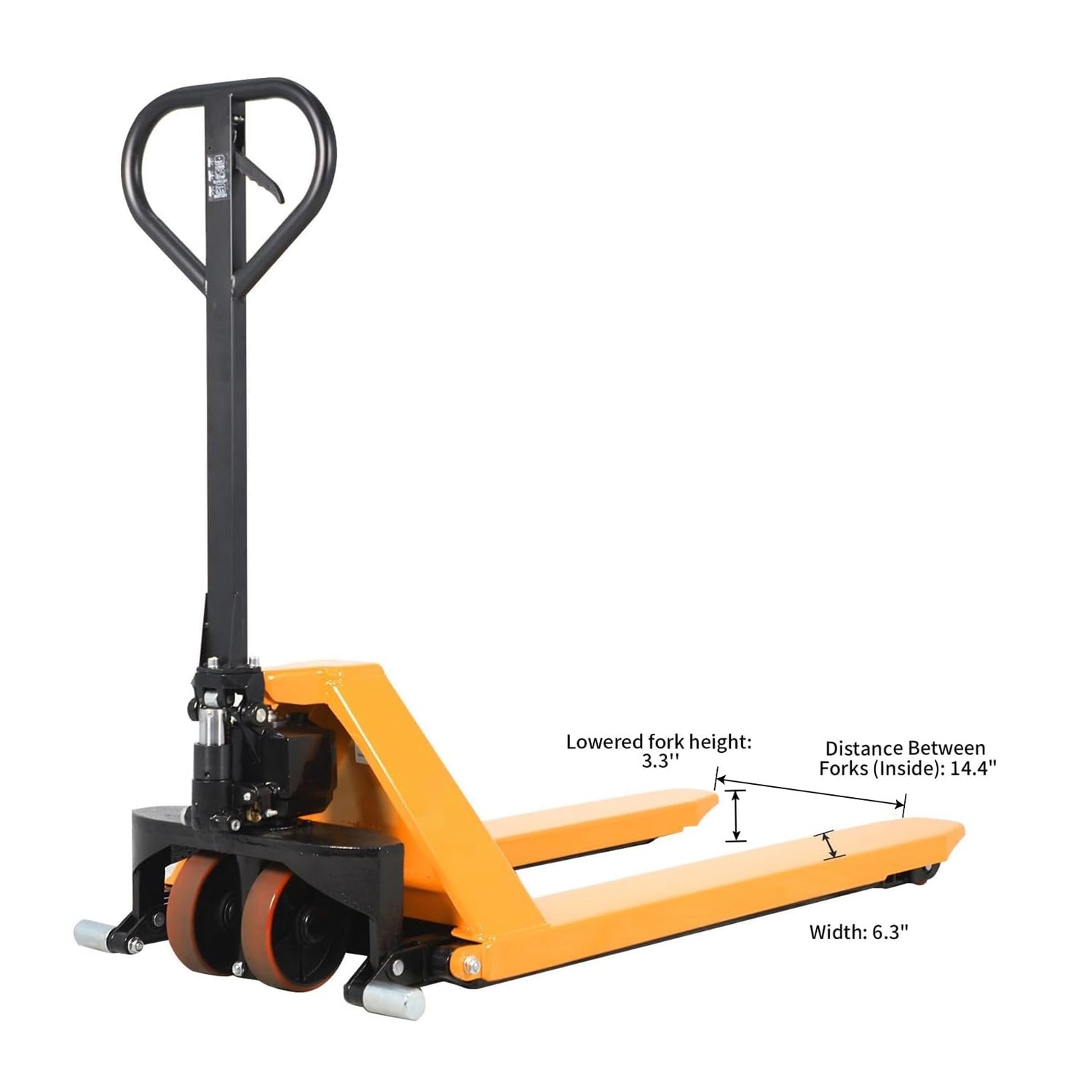

📏 Fork Dimensions	45" L × 27" W × 2.1" Thick
📐 Inside Fork Width	14.4"
⬇️ Fork Lowered Height	3.3"
🔺 Lifting Height	28.2"
⬇️ Lowering Height	31.5"
📐 Overall Dimensions	59.6" L × 27" W × 48.2" H

Specifications

12345

-

Reviews (0)

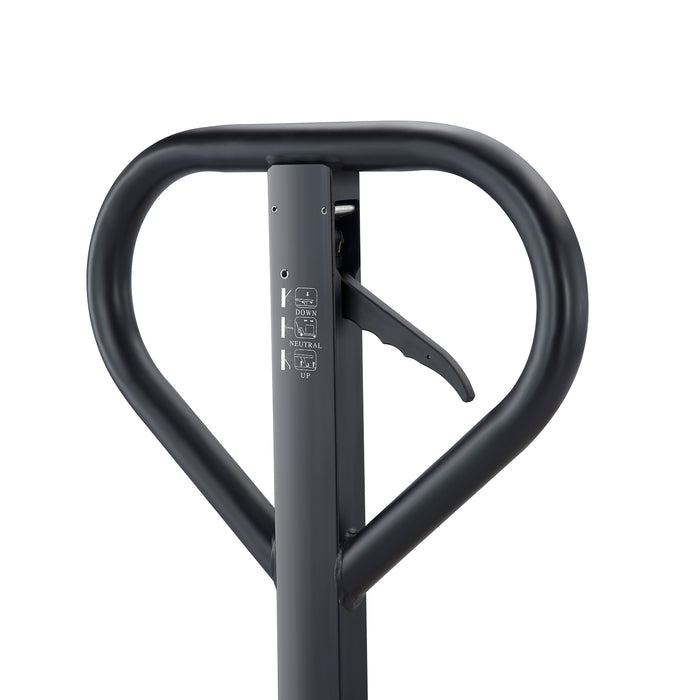

Ergonomic Handle for Better Control

The ergonomically shaped handle fits comfortably in the hand, offering better grip and less strain during operation. It helps reduce fatigue and improves overall handling efficiency throughout the workday.

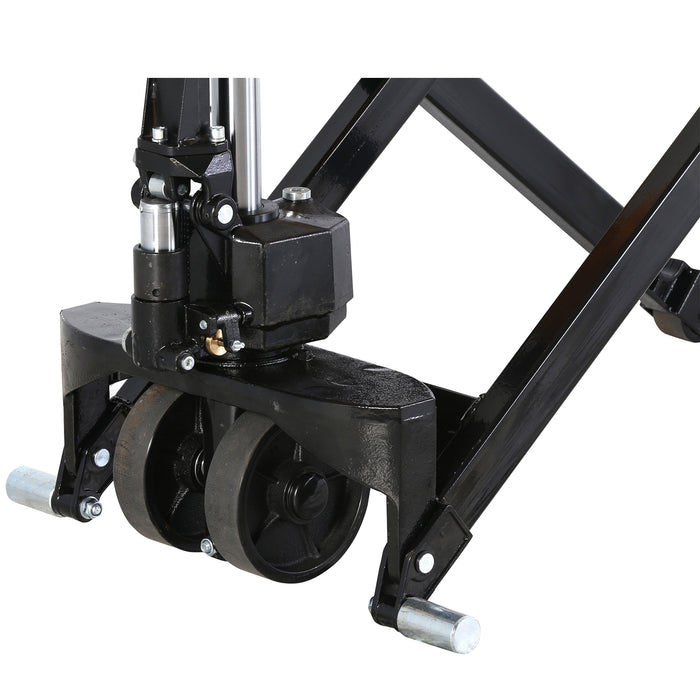

Auto-Deploying Support Legs

The support legs extend and retract automatically during operation, enhancing stability without extra effort. This feature ensures safer handling and improves efficiency in everyday tasks.

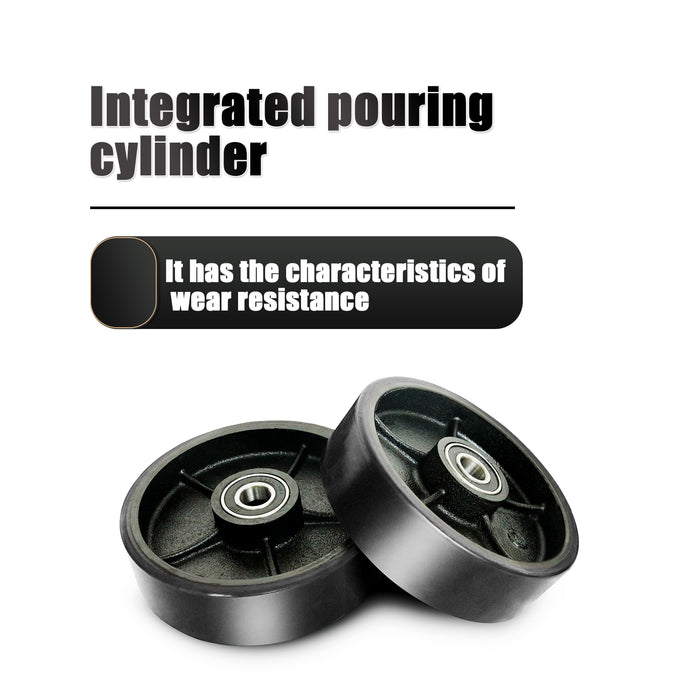

Wear-Resistant Integrated Cylinder

The cylinder is made with integrated casting technology for improved strength and durability. Its wear-resistant construction ensures long-lasting performance and reduces maintenance under heavy-duty use.

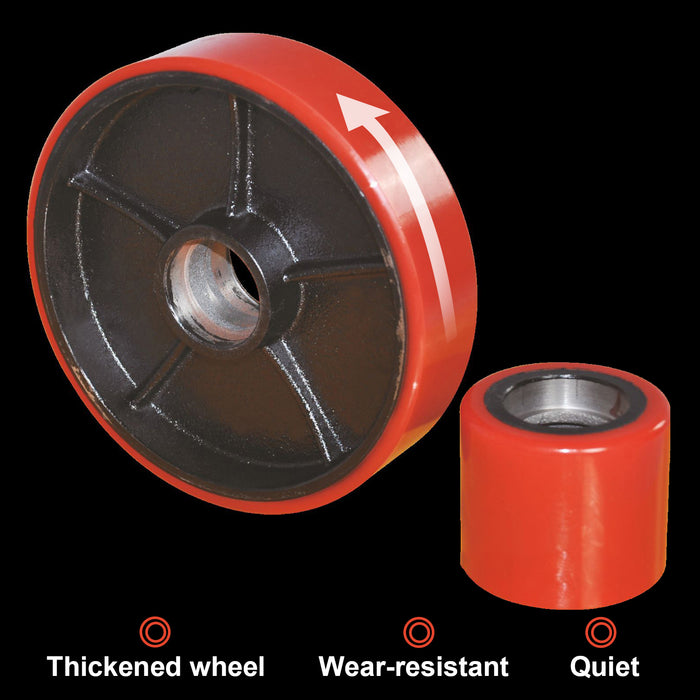

Thickened Wheels for Quiet Durability

The thickened wheels are designed for high wear resistance and low noise. They provide smooth, quiet operation on various surfaces, ensuring long-lasting performance with minimal maintenance.

🔎 Designed for Daily Use, Backed by Real Experience

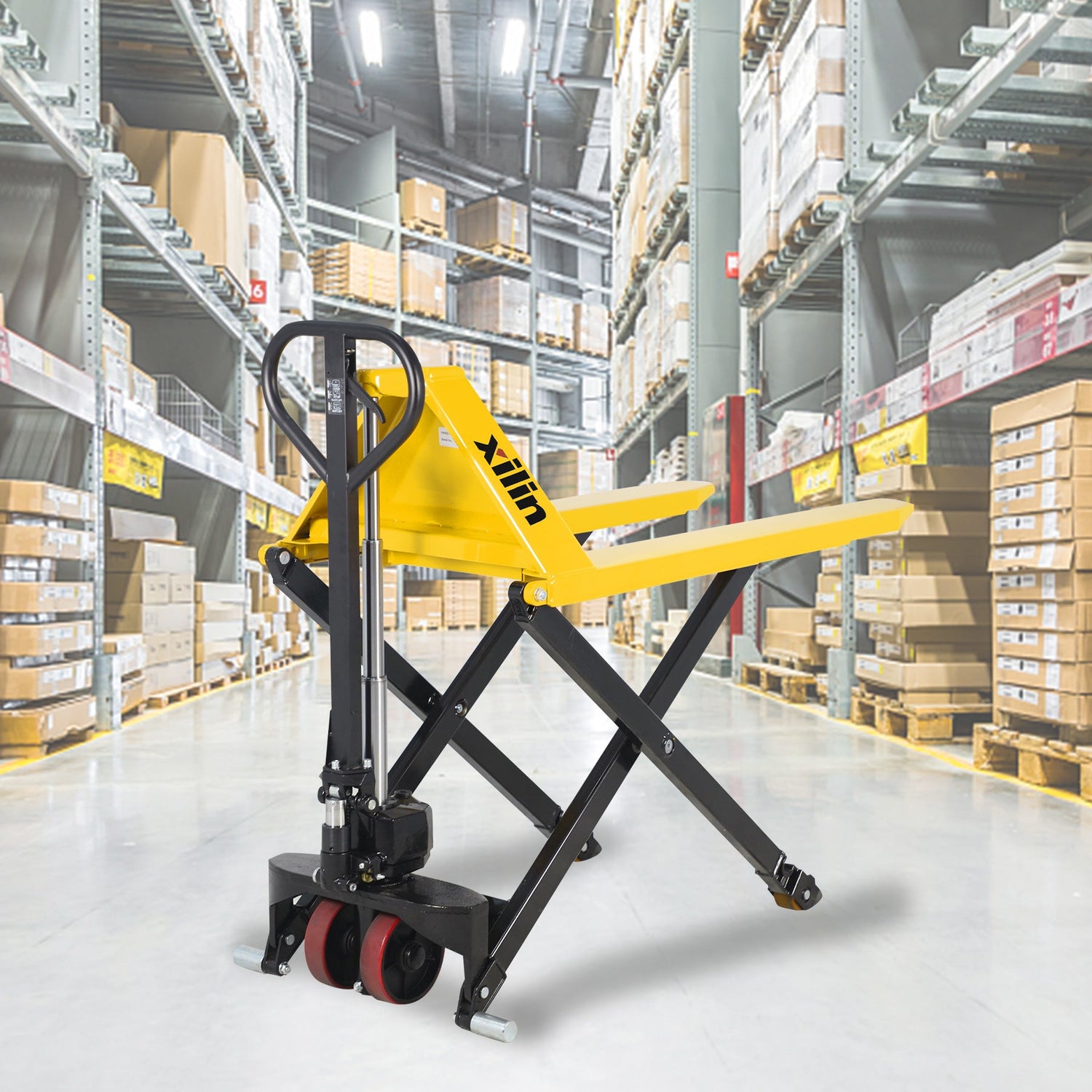

🔧 Manual High-Lift Pallet Jack – 2,200 lb / 31.5" Lift

The JF-685 is a wide-fork manual high-lift pallet jack designed for ergonomic material handling. With a lifting height of 31.5 inches and a 2,200 lb capacity, it's ideal for packing lines, low stacking operations, or use as a height-adjustable workstation.

🛠️ 3-Stage Hydraulic Lift System

The control trigger offers three positions:

Fast Lift: Rapid elevation with empty or light load
Slow Lift: Smooth raising under heavy load, prevents damage
Lowering: Controlled descent with auto-return

The lift cylinder uses a three-stage piston design. For stability and safety, heavy loads should always be lifted using slow mode.

🧯 Operator Safety & Handling Precautions

Do not overload beyond rated capacity (2,200 lbs)
Center the cargo between the forks; avoid unbalanced loads
Never operate on slopes or rough ground
Lower forks before unloading or parking
Do not move the truck while forks are raised
Never place body parts under a lifted load
Not for lifting people or standing on the forks

🛠️ Maintenance & Valve Adjustment

Lubricate pivot points and axles every 3 months
Hydraulic oil: 250 ml (ISO VG32)
To remove trapped air: loosen screw #12 and pump the handle until oil overflows
Use screw #10 to fine-tune lifting/lowering speed as needed
Inspect for leaks, frame deformation, or rebound regularly

🛡️ Warranty & Support You Can Count On

All new Xilin high-lift pallet trucks include a 1-year limited warranty covering frame and hydraulic components. Wear parts like seals and wheels are covered for 3 months.

Here’s how our support works:

Within 30 days: Free parts, remote tech support, and round-trip shipping if required
Day 31 to 1 year: Free parts and remote help; customer covers 50% return freight
After 1 year: Lifetime tech support; parts and shipping billed as needed

Need help? Contact support@xilin.com — our U.S.-based team is ready to assist you.

This wide-fork manual high-lift pallet jack is built for stability, safety, and ergonomic performance. With 2,200 lb capacity and scissor-lift elevation up to 31.5", the JF-685 offers reliable manual lifting in packing stations, warehouses, and light-duty stacking applications.
