🐢 One-Touch Turtle Mode
Upright slow walk with one press—no double steps.

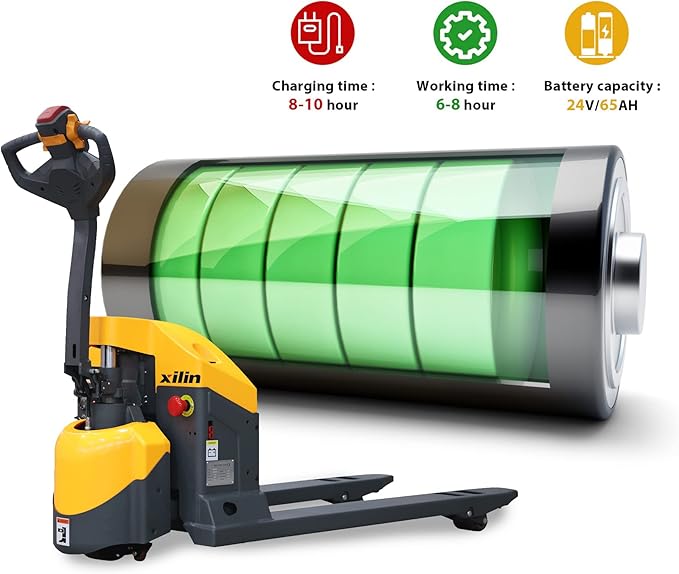

🔋 GEL Battery, 6–8 Hours Runtime
High-capacity GEL battery supports full-day operation
⚙️ Integrated Electrical System
Simplified wiring and layout for easier maintenance and durability.
🧭 Stable & Smooth Handling
Optimized drive system ensures steady, safe movement on every shift.
Description
Description

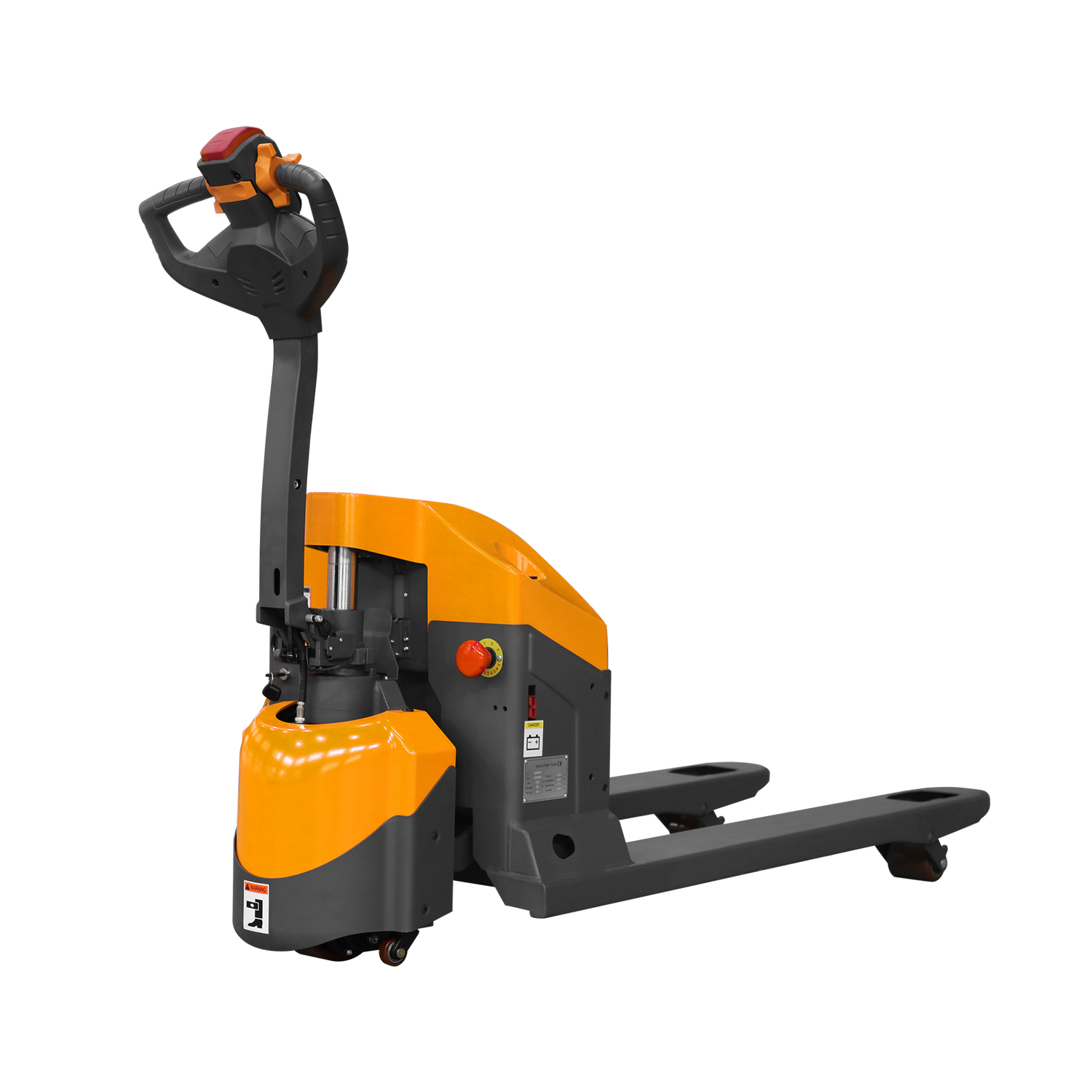

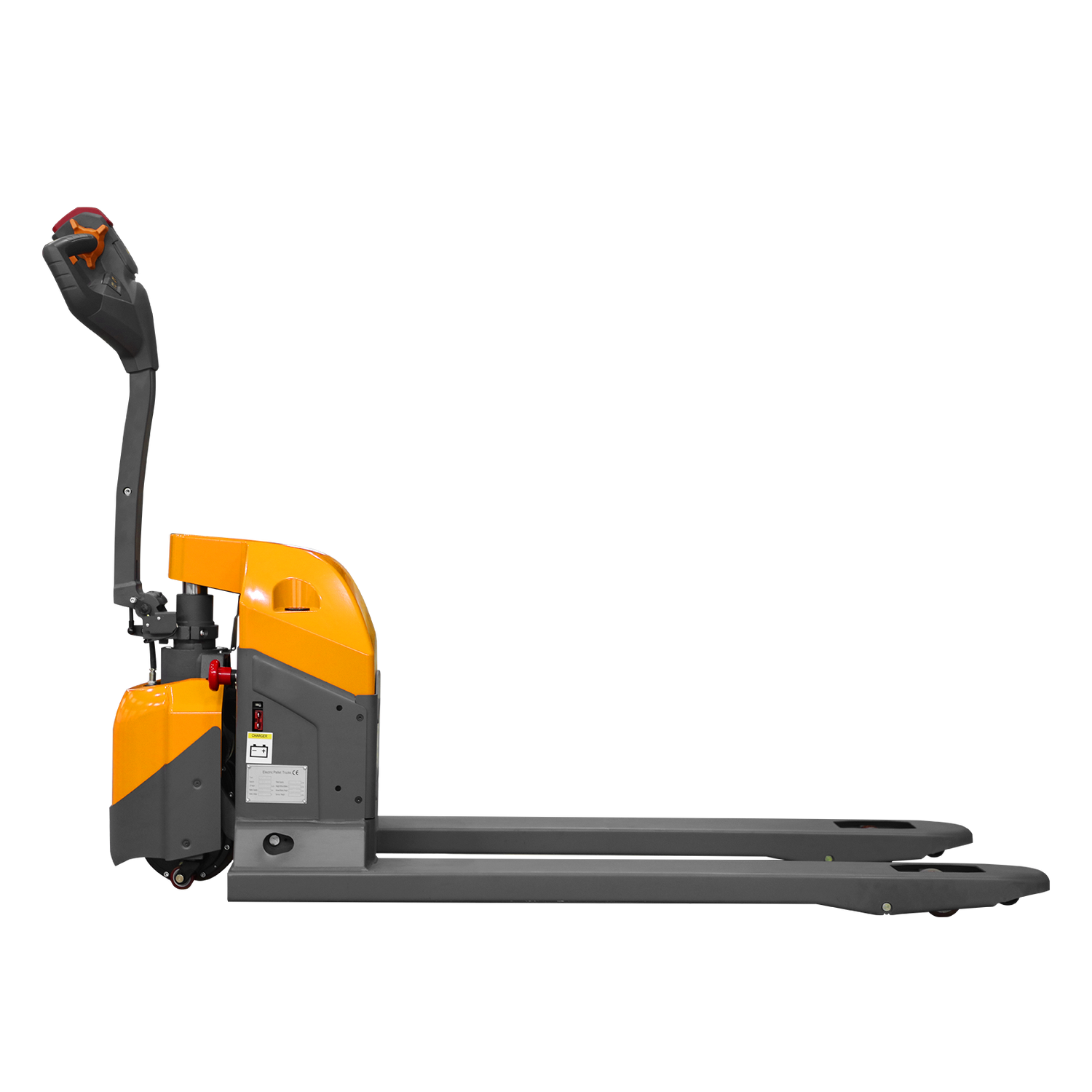

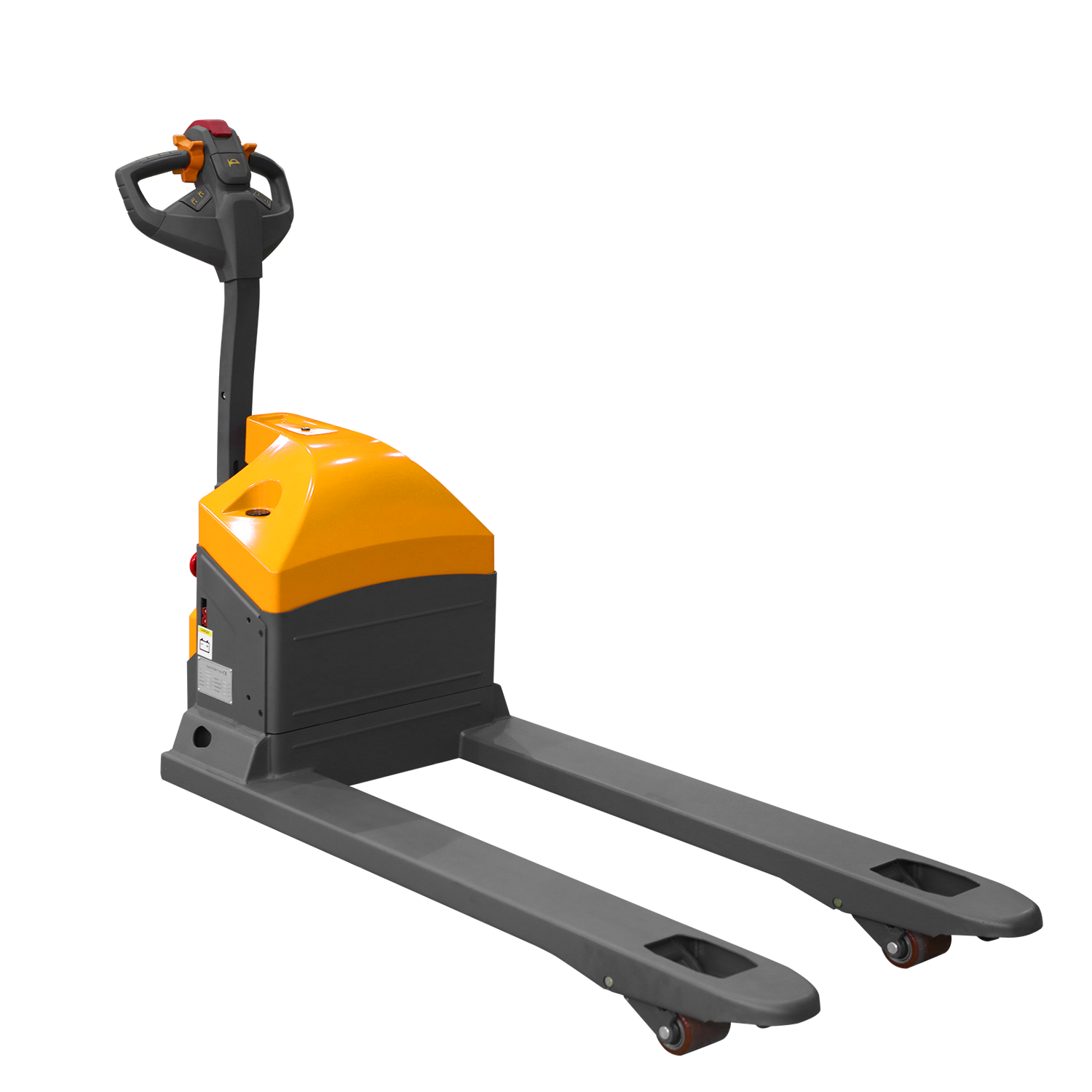

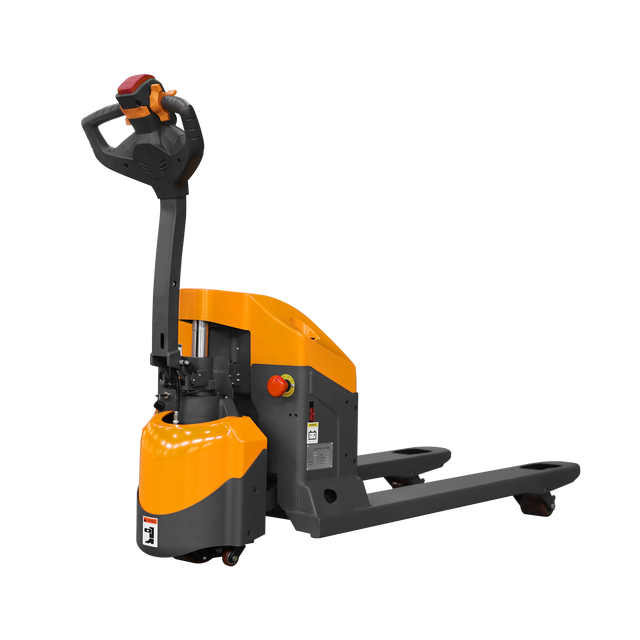

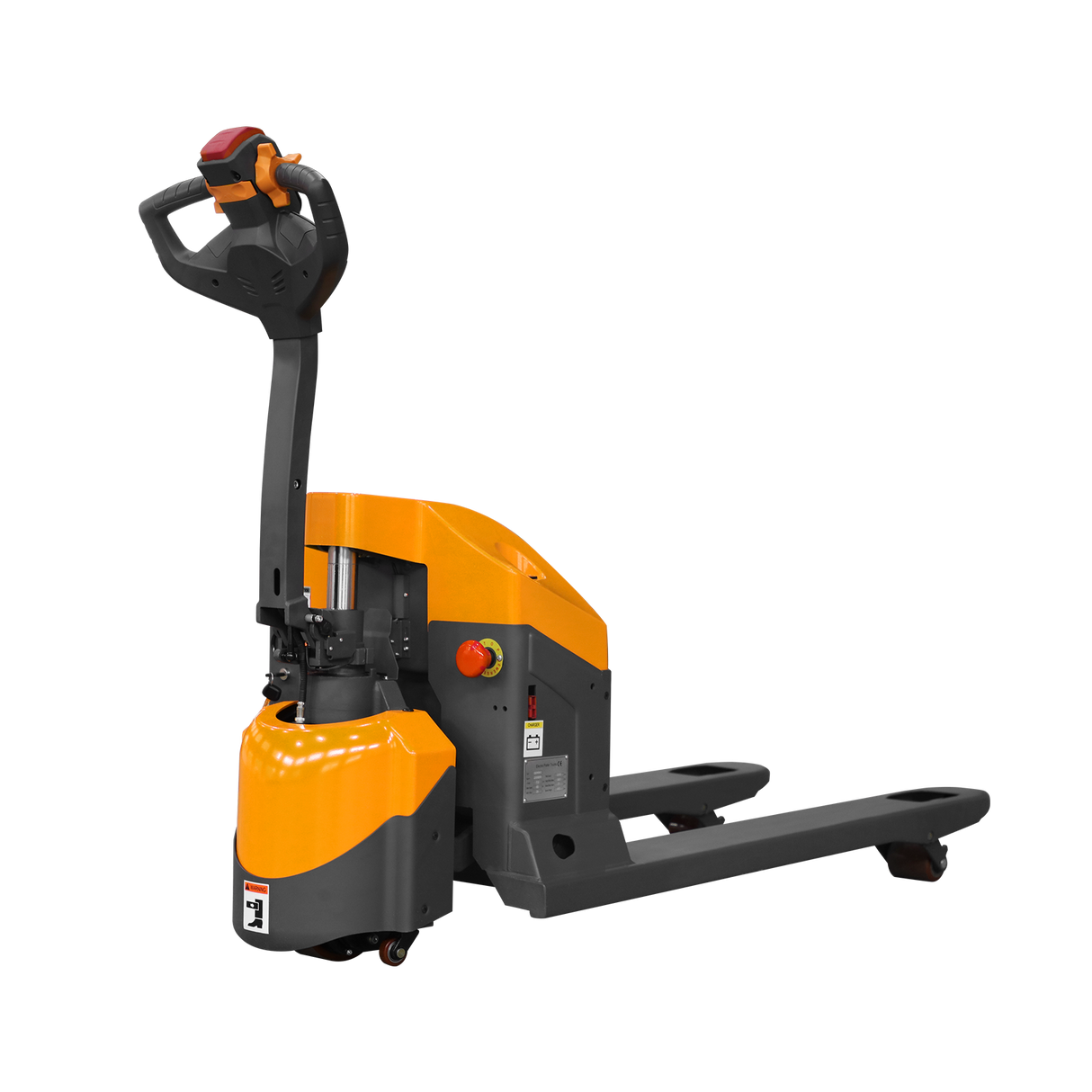

CBD15WE-19 Heavy-Duty Electric Pallet Jack
Designed for long shifts and high-volume tasks, the CBD15WE-19 handles 3,300 lbs with ease. It features a 24V/65Ah battery, floating balance wheels, and a compact frame for stable, quiet operation in tight spaces. Perfect for businesses seeking long-lasting performance and an upgrade from manual jacks.
💡 Key Features & Benefits
- 🎛 Integrated Control Handle – One-hand operation for lift, drive, horn, turtle mode, and reverse.
- ⚙ Compact, Easy-to-Operate Design – Works smoothly in narrow aisles and confined areas.
- 🔩 All-in-One Electrical System – Streamlined wiring for easier maintenance and fewer failures.
- 🧱 Durable Rocker Arm Frame – Distributes load force evenly for structural reliability.
- 🧊 Low-Pressure Plunger Cylinder – Extends lifting system life and reduces failure rate.
- 🐢 Upright Travel with Turtle Speed – Precise control in tight spots with vertical handle mode.
- 🛞 Floating Balance Wheels – Improves stability, reduces side sway while driving.
- 🔧 Top-Mounted Drive Motor – Elevated position resists water/oil damage, easier to service.
- 🛠 Quiet & Durable Gearbox – Lubricated with gear oil for smooth, low-noise operation.
- 📏 Compact Turning Radius – Navigates easily through trucks and containers.
- 🔋 Removable Rear Battery Cover – Allows fast, hassle-free battery swaps.
- 🔌 Lead-Acid Battery System – 24V / 65Ah battery with external charger for long daily use.
- 🛡 Full Safety Package – Includes belly switch, overload protection, lift limit, and more.
- 🔇 Quiet & Eco-Friendly – Zero emissions, low noise—great for indoor environments.
- 🚚 Reliable Braking System – High-torque brakes for safe stopping, even on slopes.
- 📦 Pallet Entry Rollers – Helps forks slide smoothly in and out of pallets.
🎥 Watch the CBD15WE-19 in Action

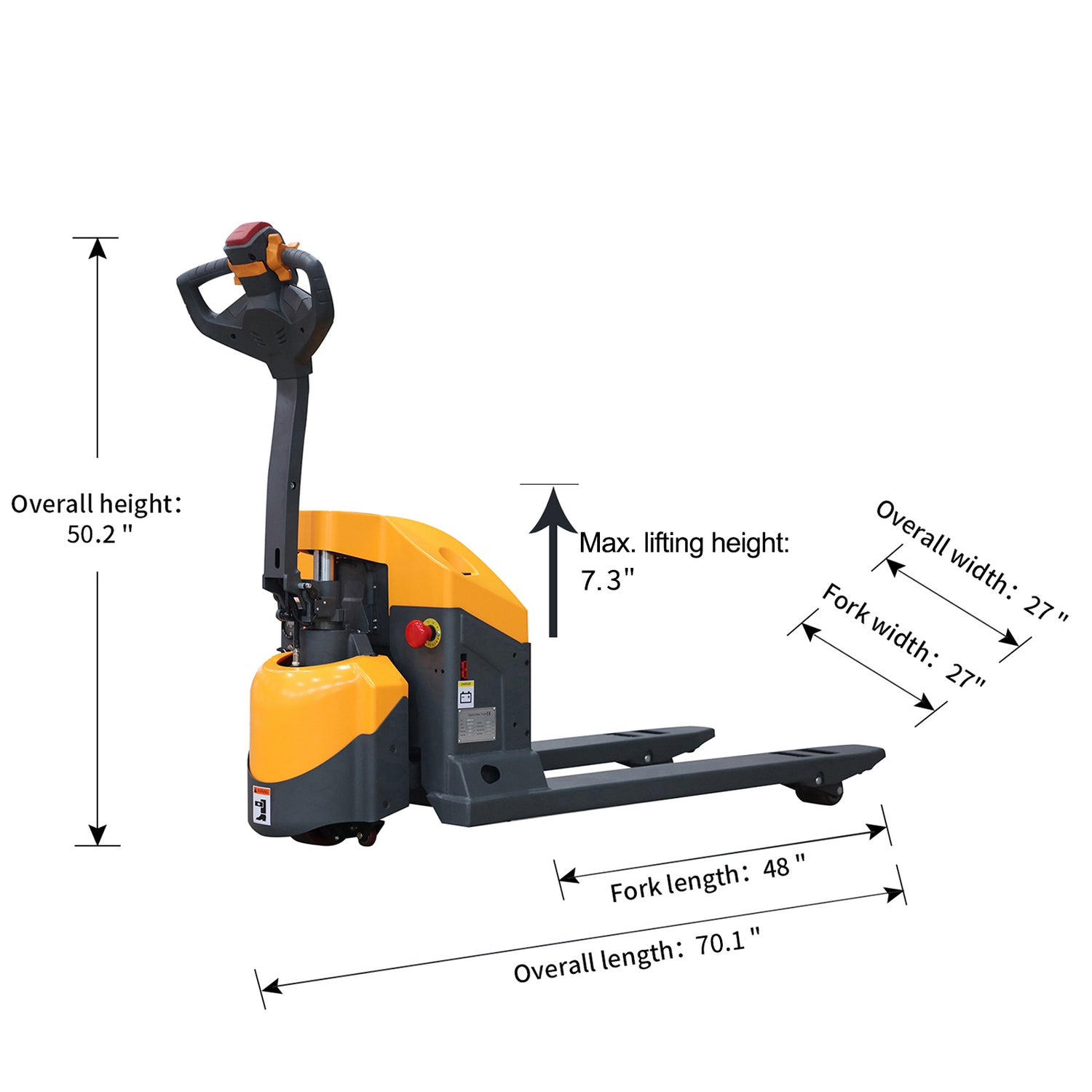

📊 Specifications
| 📦 Load Capacity | 3,300 lbs |
| ↪️ Turning Radius | 56" |
| 📐 Aisle Width | 91.7" |

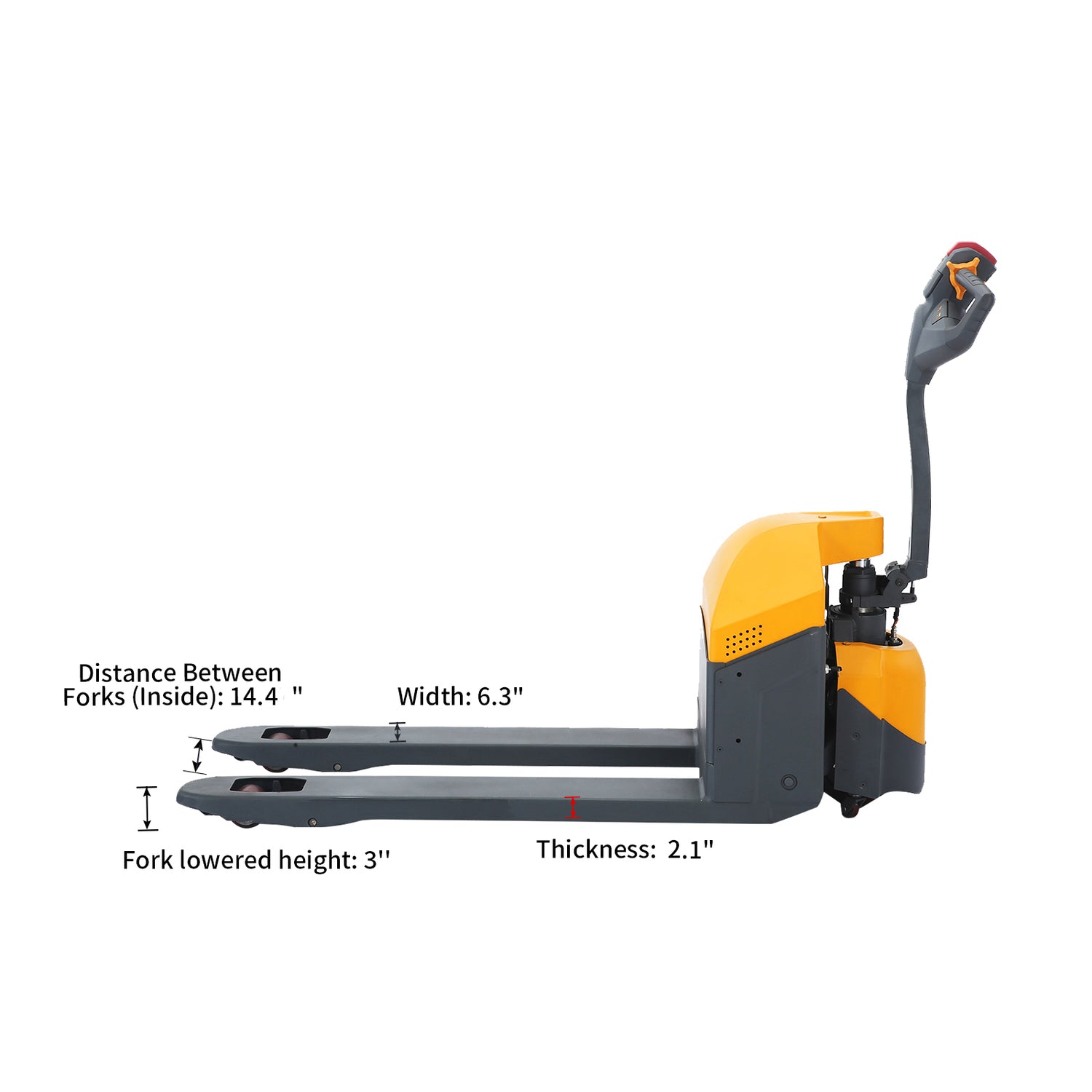

| 🛻 Fork Dimensions | 48" L × 27" W × 2.1" Thick |
| 📏 Inside Fork Width | 14.37" |
| 📐 Overall Size (L×W×H) | 67.8" × 27" × 49.2" |
| ⬇️ Fork Lowered Height | 3" |
| ⬆️ Lifting Distance | 4.5" |
| 📏 Max Fork Height | 7.5" |
| 🔋 Battery | 24V / 65Ah Lead-Acid |

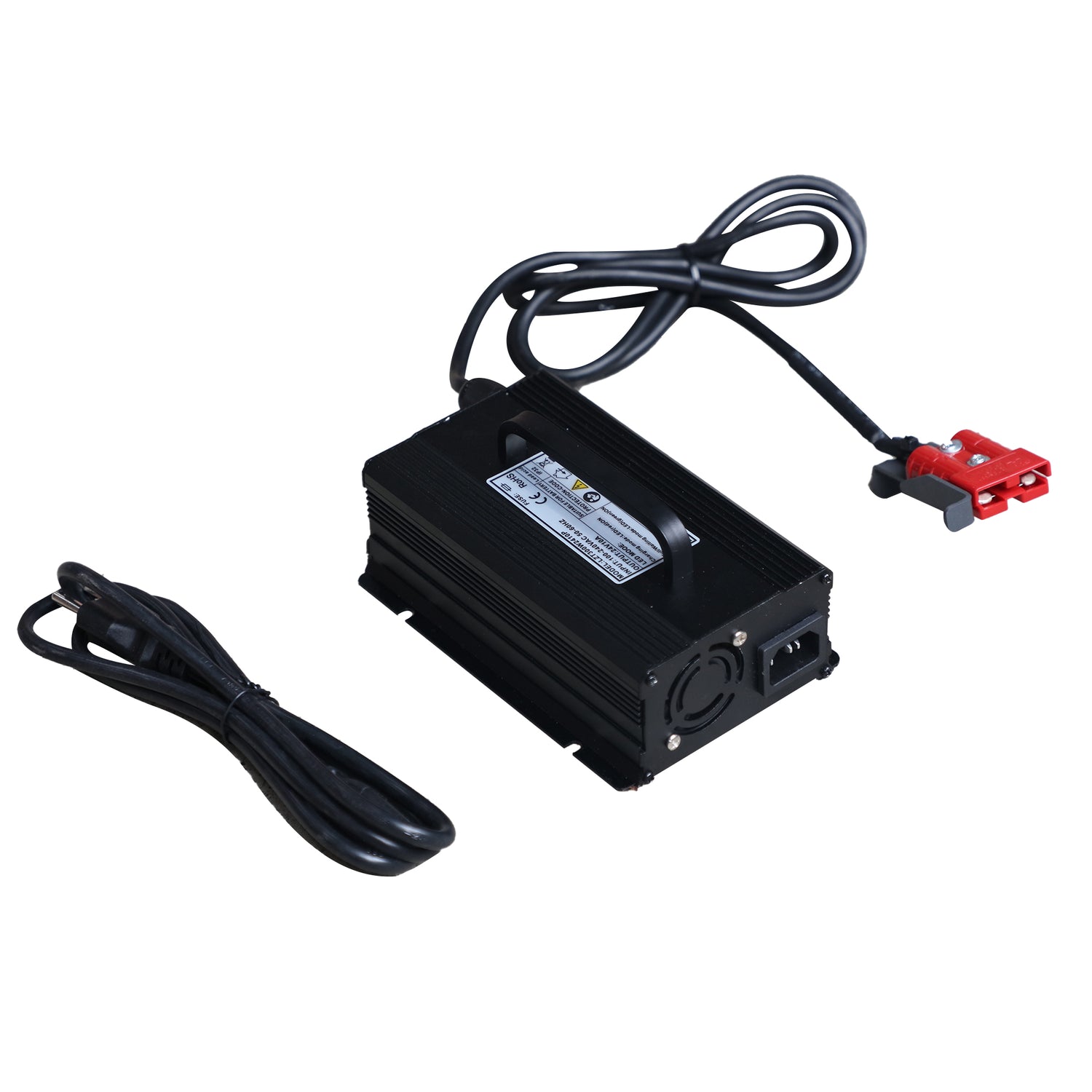

| 🔌 Charger | 24V / 8A External |
| 🚚 Travel Speed (Laden) | 2.67 mph |
| 🚀 Travel Speed (Unladen) | 2.98 mph |
| ⚖️ Service Weight | 487 lbs |
Reviews (3)
Reviews (3)
PRODUCT HIGHLIGHTS
-

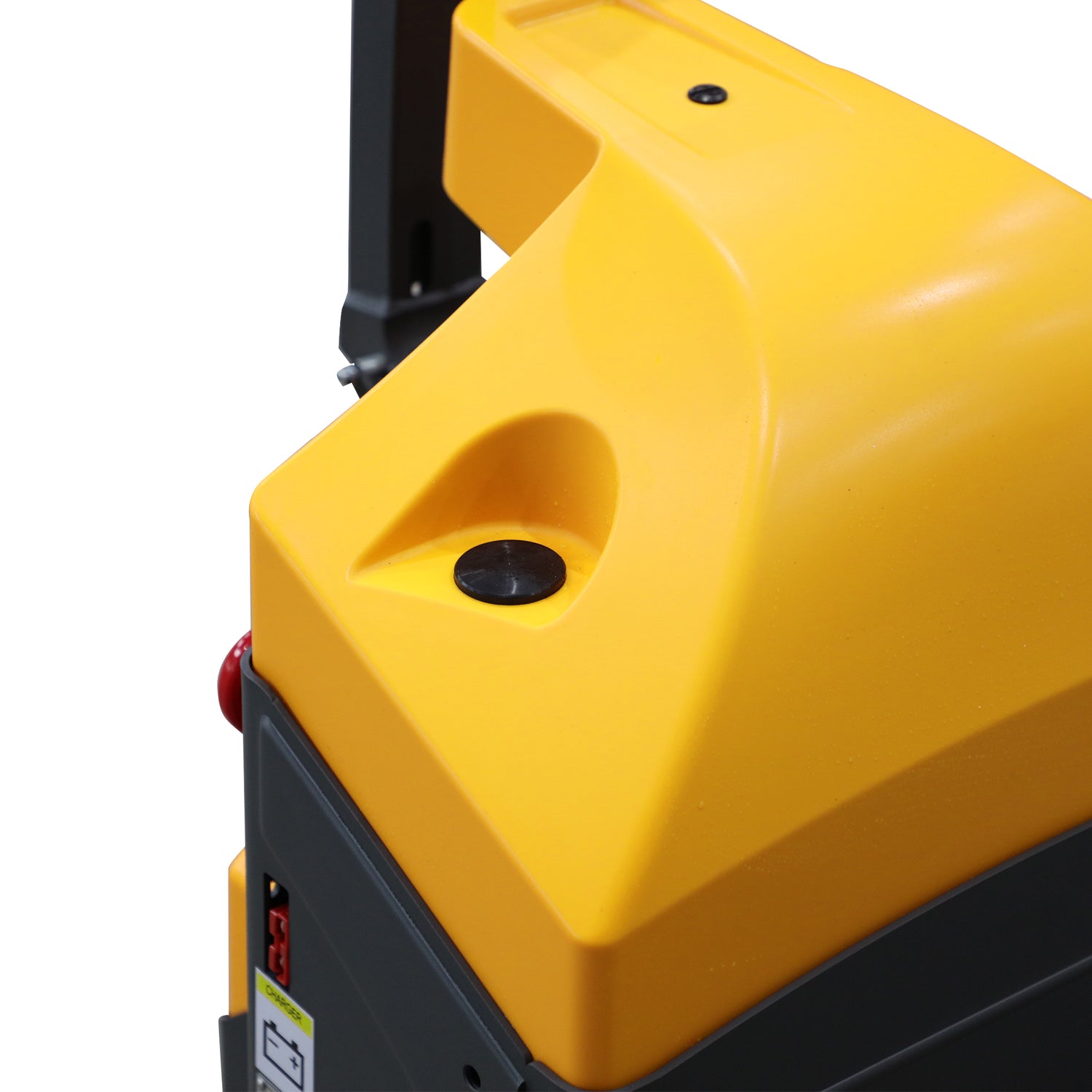

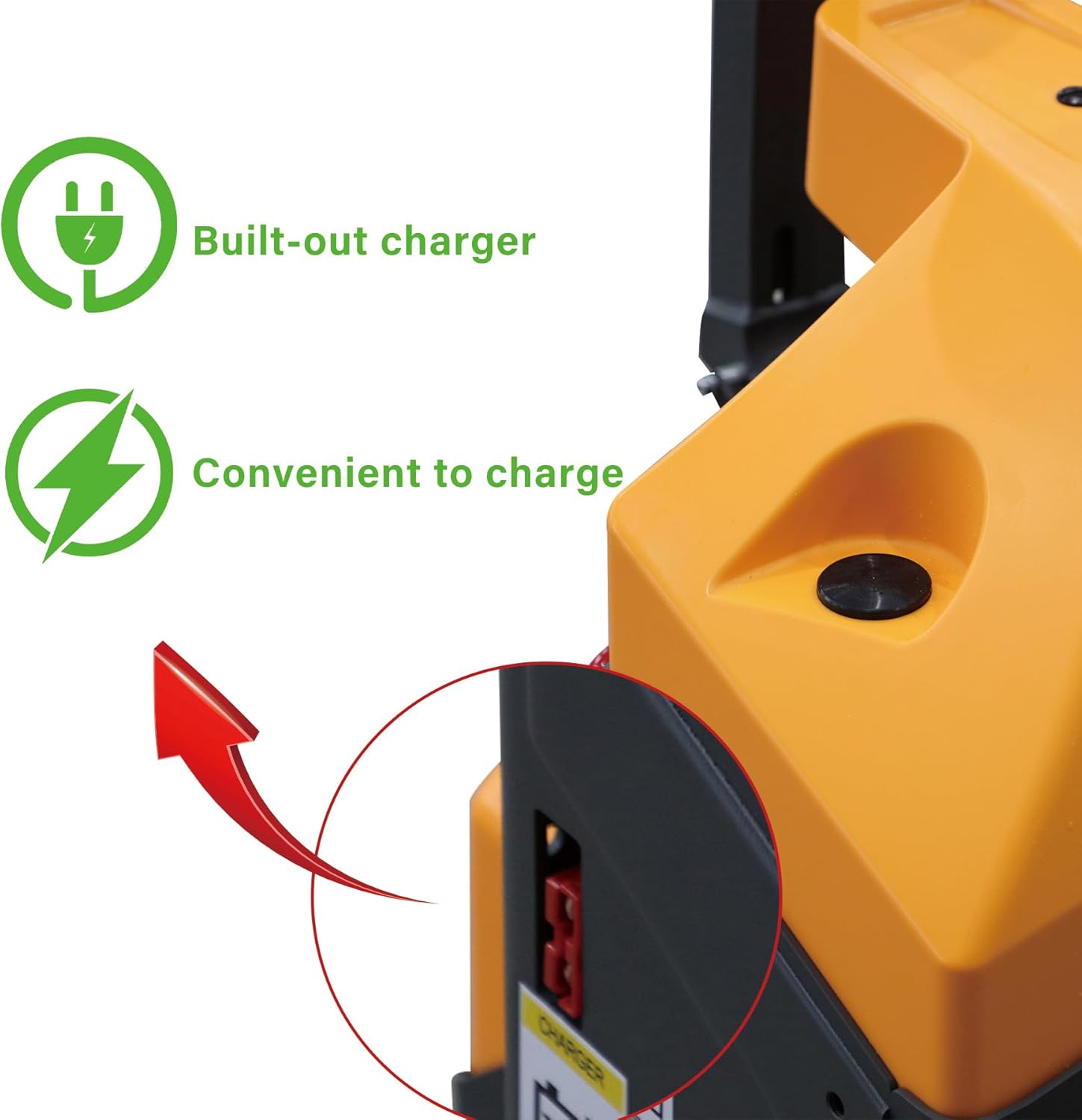

External Charging Port Design
The external charging port allows easy charging without removing the battery. Spare batteries can also be charged directly through the connector, making daily charging more convenient and efficient.
-

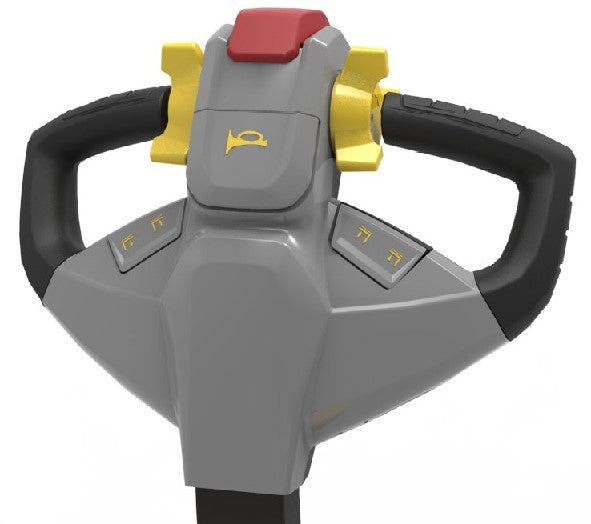

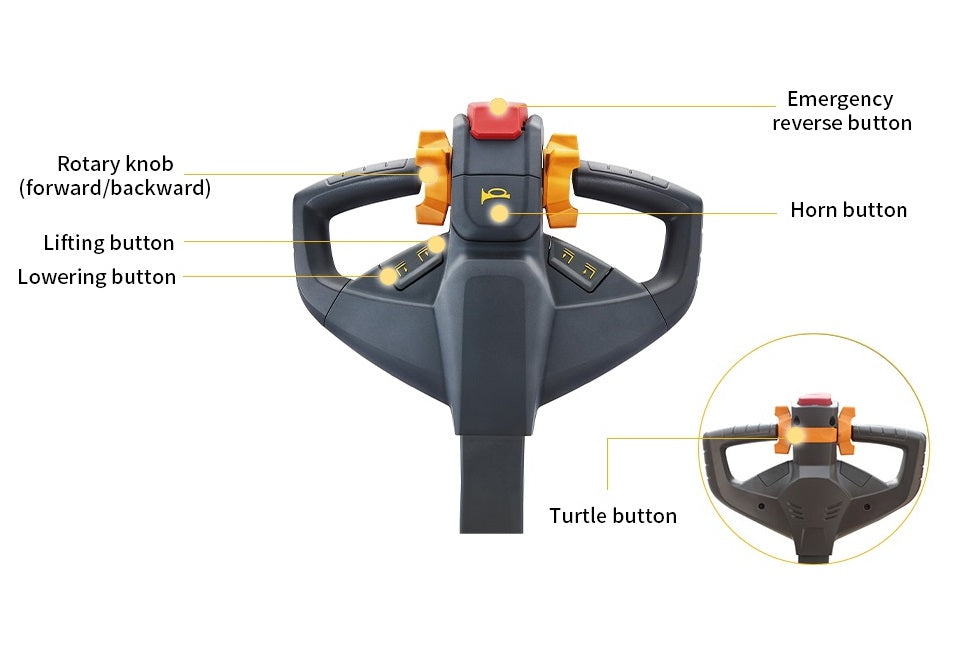

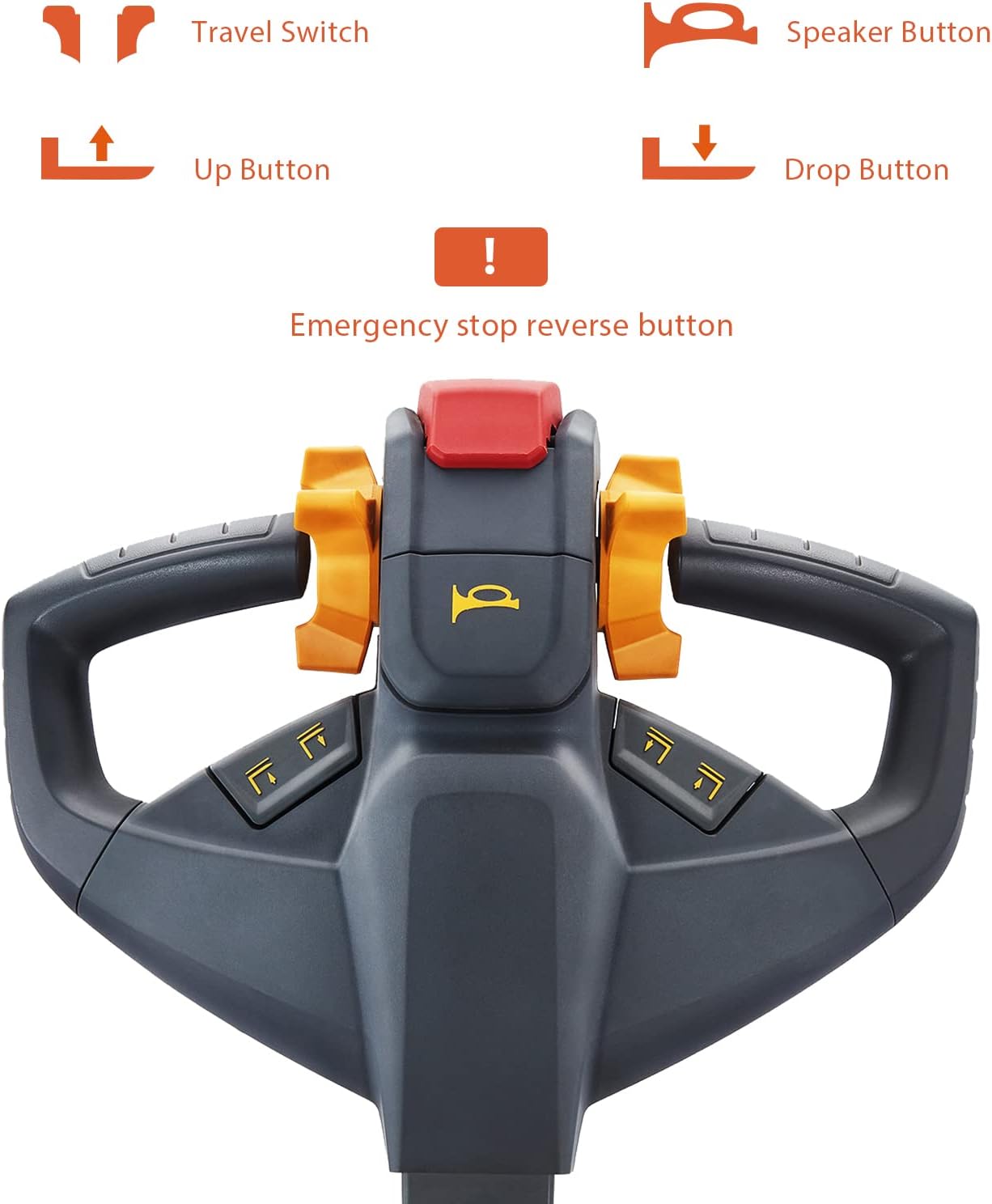

Multifunctional Handle
Equipped with a horn, emergency reverse button, accelerator, lift button, and turtle speed button, the handle offers intuitive and secure operation. Its ergonomic design ensures ease of use, enhancing both safety and efficiency during operation.
-
Emergency Stop with Dual Function
The emergency stop switch cuts power instantly in critical situations and also functions as a power lock. This dual-purpose design adds an extra layer of safety and makes operation more secure and reliable.
-
Easy Maintenance Access
With the cover removed, all electrical and mechanical components are fully accessible for quick maintenance, inspection, and part replacement—making service work faster and more efficient.
🔎 Designed for Daily Use, Backed by Real Experience
🔧 Practical Design, Built for Daily Use
The CBD15WE-19 electric pallet jack offers a 3,300 lb load capacity with compact 48" × 27" forks and a 55" turning radius—perfect for narrow aisles, delivery trucks, and retail backrooms. The steel-reinforced chassis and dual-support wheels provide smooth, stable movement across flat warehouse floors.🔋 Lead-Acid Battery with External Charging
This unit runs on a 24V / 80Ah lead-acid battery paired with an external 24V charger. The battery must be fully charged before use (approx. 10–12 hours). A green indicator on the charger shows full charge; red indicates charging in progress. Users should check voltage regularly and recharge before dropping below safe levels. Water levels in battery cells should be checked every 3 months.🛠️ Simple, Tool-Friendly Maintenance
Maintenance is easy to perform with quick access via removable covers:- Inspect front and drive wheels weekly for debris or damage
- Check and tighten all bolts and electrical connectors
- Refill hydraulic oil every 6 months (L-HV32 recommended)
- Clean battery terminals and monitor water levels
🧯 Safe & Intuitive Operation
The tiller includes controls for lift, lower, forward/reverse, horn, emergency stop, and a red belly switch. Releasing the throttle engages regenerative braking. The electromagnetic brake activates when the tiller is upright or released, securing the truck in place—even on slopes.📦 What You’ll Receive
- ✅ Fully assembled pallet jack body (protected with foam and film)
- ✅ Handle kit (requires installation)
- ✅ External 24V charger
- ✅ Keys, fuses, manuals, and small accessories
🛠 Handle Installation
To reduce shipping volume, the handle is packed separately. Installation is quick and requires no special tools—just align, bolt, and tighten. All wiring is pre-connected. A video guide is available via QR code in the manual.🚚 Shipping, Delivery & Warranty
- 📦 Ships within 48 hours from U.S. warehouses in California, Georgia, and Illinois
- 🚛 Delivered by insured freight with liftgate service — curbside only
- 🔌 External battery charger and all accessories included
- 📍 Local pickup available by appointment
- 🛡 Includes a 1-year limited warranty on key components
- ⚙️ U.S.-based parts support — most spares in local stock
- ✉️ Tracking sent by email once shipped
- 📞 Carrier will call before delivery to schedule drop-off
- 🔍 Please inspect the unit before signing the delivery receipt
We offer lifetime technical support and fast access to replacement parts. For assistance, contact support@xilin.com — our U.S.-based service team is here to help.
