XILIN  |  SKU: CBD30T

High-Capacity Electric Pallet Jack – 6,600 lbs, 24V/300Ah Battery, Ride-On with EPS Steering | CBD30T

$13,160.00
Shipping calculated at checkout.

Shipping Fee: $190 flat rate across the continental U.S.

✅ In stock. Ships fast from U.S. warehouse. 1-year warranty + lifetime support.

1 Year Warranty

At Xilinamerica.com, we proudly back all of our trucks with a one-year limited warranty, excluding wear-and-tear parts and damages caused by misuse. Our warranty period starts from the date of receipt of the item.

Warranty Periods:

  • 1 Year on all trucks (excluding easy-wearing parts and damages caused by human factors)
  • 3 Months on spare parts
  • 6 Months on batteries

Warranty Details:

  1. Within 30 days of receipt: If there are any quality issues, we will provide free spare parts for replacement and remote technical support. If our after-sales team determines that the truck needs to be returned for repair, we will cover all round-trip shipping costs.
  2. Between 30 days and 1 year of receipt: If any quality issues arise, we offer free spare parts and remote technical guidance. If a return for repair is required, the customer is responsible for half of the shipping costs.
  3. After 1 year of receipt: For any quality issues, we will provide free technical support. However, replacement parts will be charged, and if a return for repair is necessary, the customer will be responsible for both the maintenance fees and shipping costs, which will be quoted based on the situation.

If you encounter any issues during the use of the truck, feel free to contact us at support@xilin.com. Our team is ready to assist you.

Shipping Policy

At XilinAmerica.com, shipping fees are calculated separately and displayed at checkout. Most items are shipped from our U.S. warehouse within 48 hours of order confirmation.

📦 Shipping Coverage
We currently ship to all 48 contiguous U.S. states. For deliveries to Hawaii, Alaska, and Puerto Rico, please contact us for a custom quote before placing your order.

⏳ Lead Time & Delivery
Orders are typically processed and shipped within 1–2 business days (excluding weekends and holidays). Estimated delivery times vary by destination and shipping method.

📋 Shipping Rates
Shipping costs are based on product type, weight, and delivery location. These rates are visible either on the product page or during checkout. For bulk orders or custom shipping needs, contact info@xilinamerica.com for assistance.

⚠️ Shipping Damage
All items are carefully inspected and packed before shipment. Upon delivery, please inspect your order before signing. If damage is visible, **refuse the shipment** and contact us immediately for support.

❌ Order Cancellations
Orders may be canceled before shipment. If the order has already been dispatched, shipping fees (both ways) will apply. A tracking delay does not always mean the product hasn’t shipped.

✉️ Address Changes
If you need to change the delivery address after placing an order, please contact us immediately. Additional charges may apply if the item has already shipped.

For further questions, reach out to: **info@xilinamerica.com**


Why Xilin

Why Choose Xilin Material Handling LLC?

The Trusted Expert in Material Handling Equipment

Xilin Material Handling LLC is a leading manufacturer specializing in the production of material handling equipment. Since our establishment, we have dedicated ourselves to creating high-quality, professional, and reliable solutions for industries worldwide. When you choose Xilin, you’re partnering with a company that values innovation, craftsmanship, and a customer-first approach.

Unmatched Product Excellence: Electric Forklifts

Our electric forklift series is at the forefront of our product range, setting new standards in material handling. Designed for optimal performance and efficiency, our electric forklifts provide:

  • Exceptional Performance: Engineered for a variety of material handling tasks, ensuring smooth and stable operations.
  • Cost-Effective Solutions: Providing high-quality equipment at competitive prices, giving you the best value for your investment.
  • Durability You Can Count On: Built to last with compliance to international standards, ensuring long-term reliability in the toughest environments.

Efficient Logistics and Comprehensive After-Sales Support

  • Fast Delivery: With strategically located warehouses, Xilin ensures prompt delivery to meet the needs of our global customers.
  • Expert After-Sales Service: Our dedicated after-sales team is here to assist you with everything from installation and training to regular maintenance, ensuring seamless operations and helping you overcome any challenges in your material handling needs.

Confidence in Every Partnership

At Xilin, we prioritize your success. By choosing us, you not only get access to top-tier material handling equipment but also benefit from our full range of services, designed to give you peace of mind throughout the lifecycle of your equipment. Trust Xilin for reliability, performance, and long-term value.

Choose Xilin, Choose Excellence

With Xilin Material Handling LLC, you are assured of high-quality products, dependable support, and a commitment to your business’s success. Let us help you optimize your material handling processes for greater efficiency and productivity.

For more information or inquiries, don't hesitate to contact us!

🚗 Side-Standing with EPS Steering

Comfortable and precise turning with electric power steering and side-riding position.

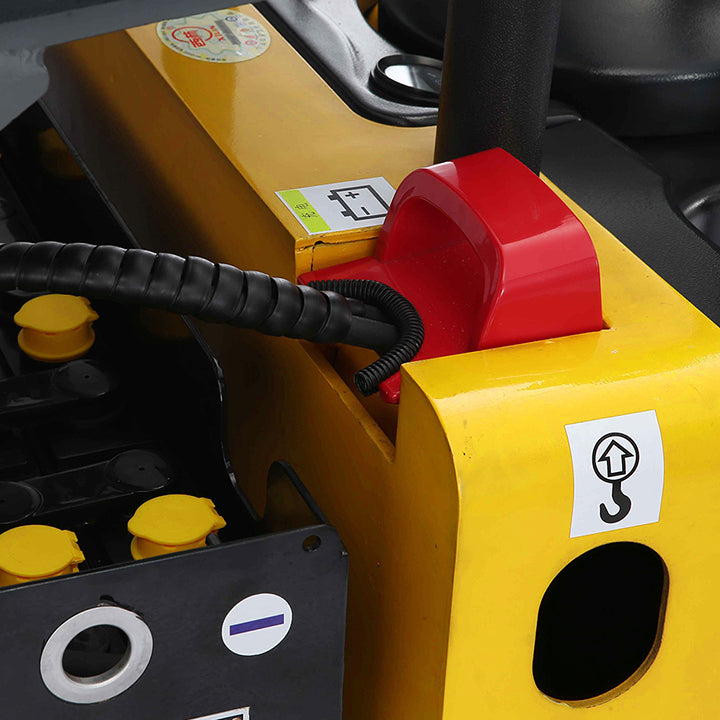

🎛 Multi-Function Display & Safety Features

View battery, hours, fault codes; includes emergency stop, reverse switch & auto corner slow-down.

🔋 24V/300Ah Side-Pull Battery

High-capacity battery supports long shifts and fast swaps—no tools required.

⚙️ Heavy-Duty Forks & AC Drive

48" × 27" forks handle big pallets; AC motor delivers powerful torque with variable speeds.

Description

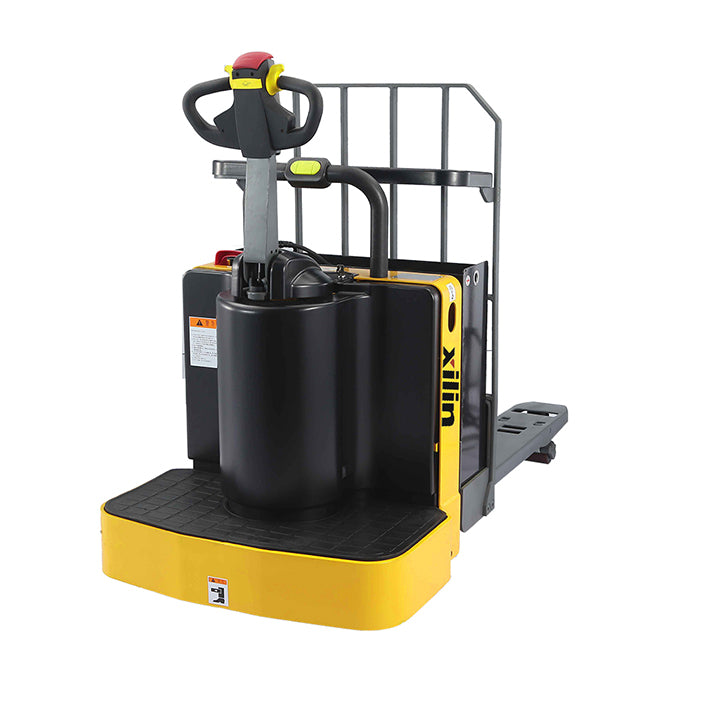

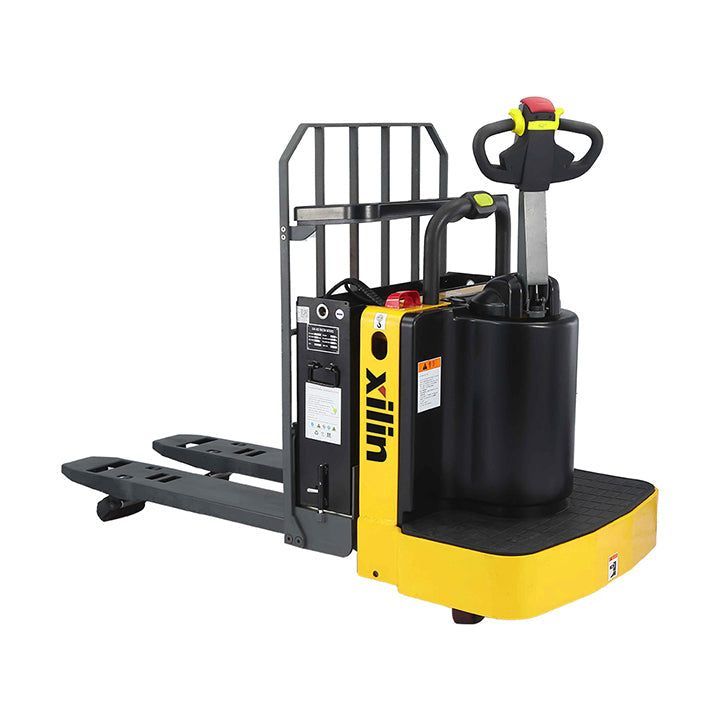

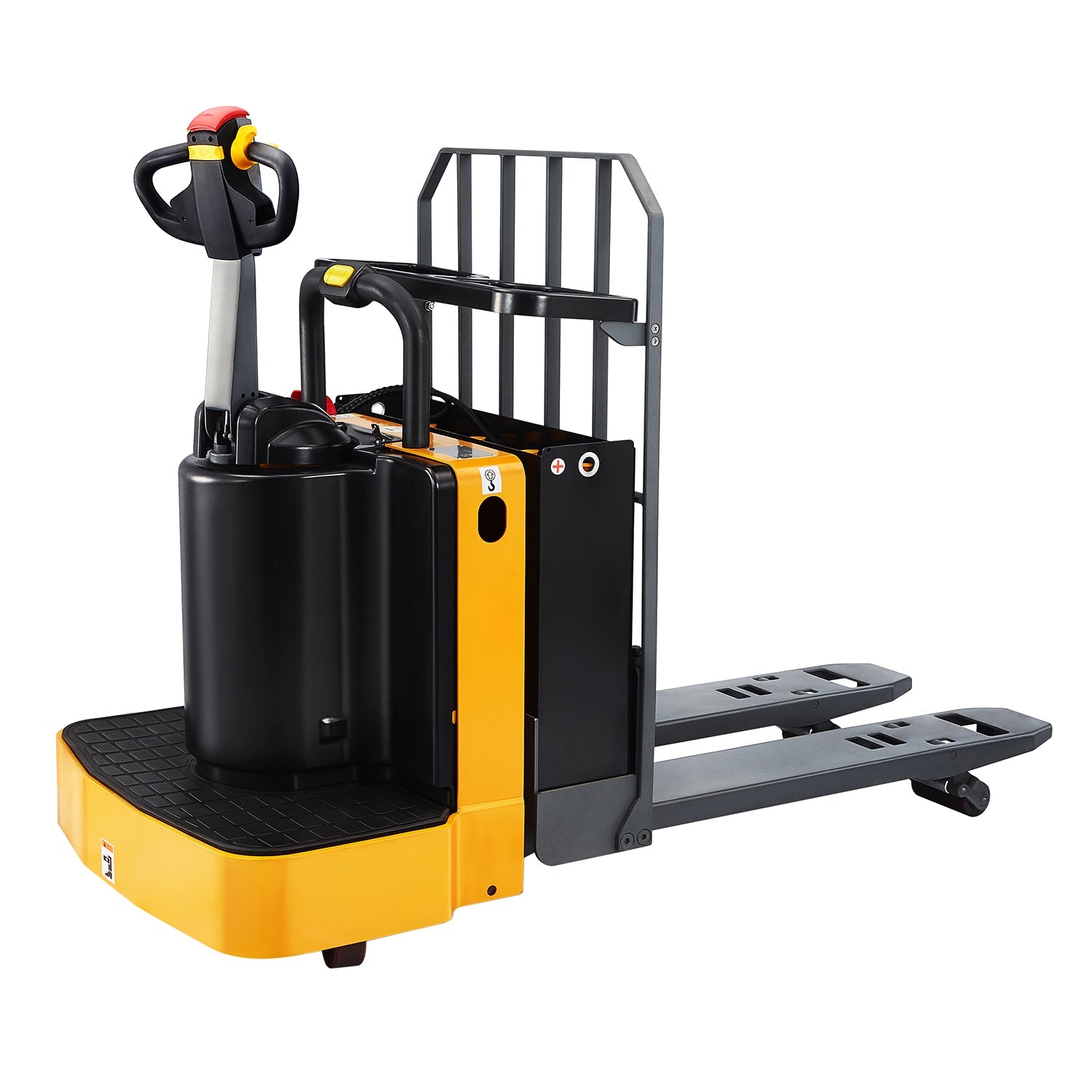

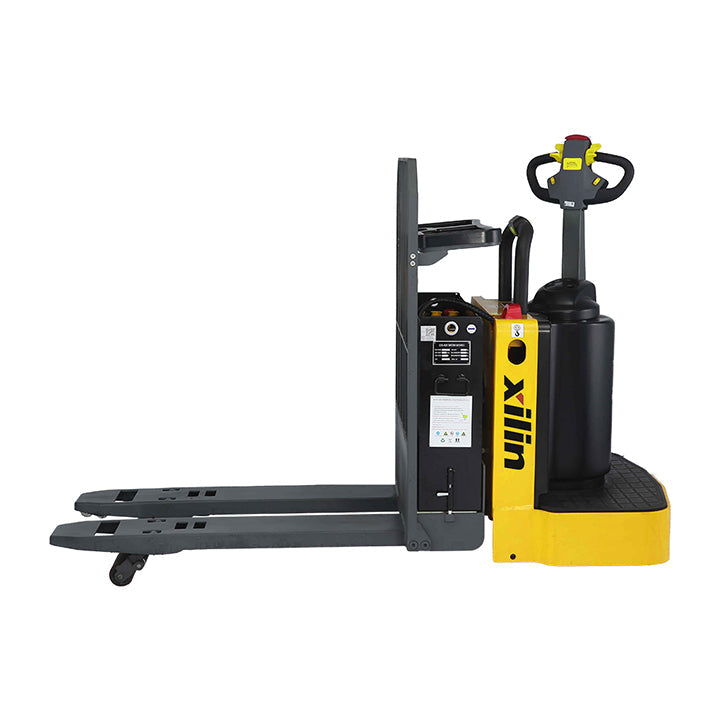

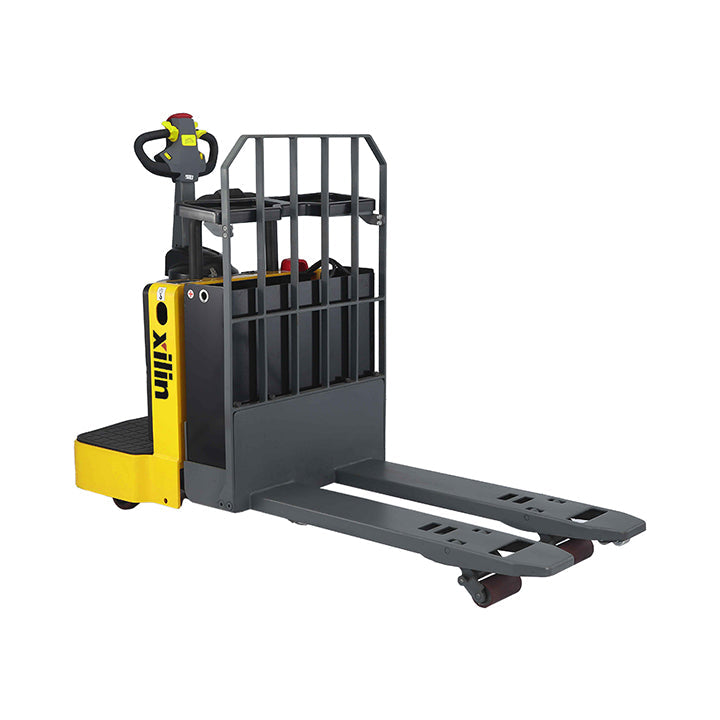

CBD30T Electric Pallet Truck – Powerful, Safe & Heavy-Duty

The CBD30T is a ride-on electric pallet truck built for heavy-duty warehouse operations. With a 6,600 lbs capacity, side-standing operation, and a 24V / 300Ah high-capacity battery, it provides a perfect balance of strength, safety, and maneuverability. Designed to handle large-scale material transport with ease, this truck helps operators stay efficient and comfortable during long shifts.

🔑 Key Features & Benefits

  • 🎛 EPS (Electric Power Steering) – Reduces operator fatigue and improves turning precision.
  • 🚀 AC Drive Technology – High-torque performance with energy efficiency and maintenance-free operation.
  • 📊 Multi-Function Display – Displays battery status, fault codes, and real-time truck data.
  • Heavy-Duty Fork Setup – 27" overall fork width, 48" length, and 2.2" thickness handle large pallets with ease.
  • 🛠 Variable Speed Modes – Easily switch between high and low speeds depending on task requirements.
  • 🚨 Operator Safety Features – Includes dual handrails, anti-slip standing platform, and automatic speed reduction when turning.
  • 🔋 Side-Pull Battery Design – Enables fast battery replacement without tools or delays.
  • 📏 Fork Orientation System – Guide plates and support rollers assist pallet entry and exit.
  • 🔧 Robust Hydraulic System – Stable lifting supported by large-capacity oil cylinders.
  • 💺 Ergonomic Standing Platform – Padded and spacious for all-day comfort and stability.

📊 Specifications

📦 Capacity 6,600 lbs
🔄 Turning Radius 73.2"
📏 Aisle Width 105"
🔩 Fork Dimensions 48" L × 27" W × 2.2" Thick
📏 Inside Fork Width 8.85"
⬇️ Fork Lowered Height 3.2"
📐 Overall Dimensions 36.9" W × 84.4" L
🔺 Lifting Height 8.5"
📏 Lifting Distance 5.3"
📏 Height (Top of Handle) 54.1"
🔋 Battery 24V / 300Ah
🔌 Charger 24V / 40A External
🚀 Travel Speed 3.72 mph (Laden) / 4.03 mph (Unladen)
⚖️ Service Weight 1896 lbs

📄 Downloads

Reviews (0)

PRODUCT HIGHLIGHTS

  • Safety Handle for Confident Operation

    The handle is designed with built-in safety features to prevent accidental activation. Its ergonomic grip and secure control layout ensure safe, stable operation during lifting, driving, and maneuvering.

  • Sideway Battery for Easy Replacement

    The side-exit battery design allows quick and effortless replacement without lifting equipment. This setup improves daily efficiency and simplifies maintenance, especially in high-frequency usage environments.

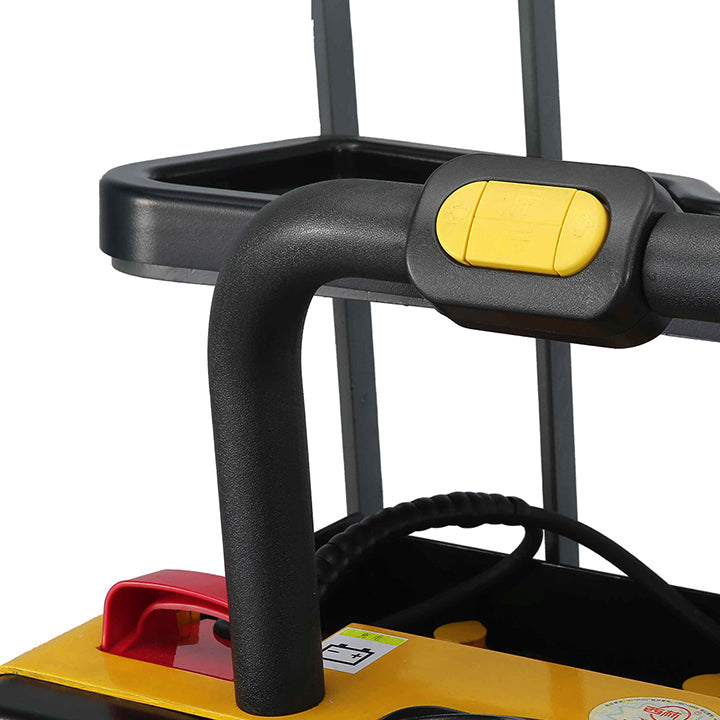

  • Shortcut Buttons for Quick Control

    The handle features shortcut buttons for essential functions like lifting and lowering. This convenient layout improves efficiency, allowing operators to work faster with smooth, intuitive control.

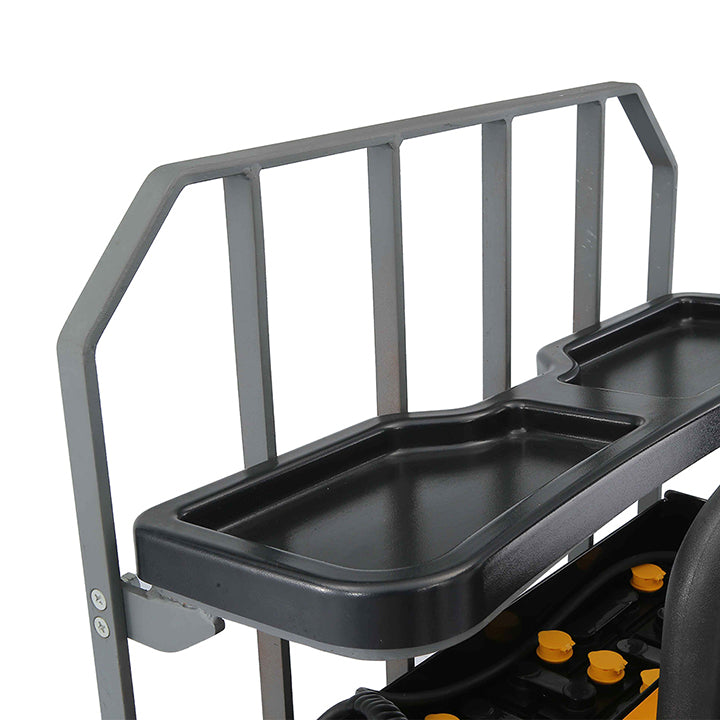

  • Built-In Toolbox for Convenient Storage

    A built-in toolbox provides a handy space to store tools and accessories. This design keeps essential items within reach, improving workflow efficiency and reducing downtime during daily tasks.

  • Premium Germany FREI Handle Design

    Equipped with a high-quality Germany FREI handle known for durability and comfort. Its ergonomic shape and responsive controls ensure smoother operation and better handling in demanding work environments.

  • Protective Iron Frame for Operator Safety

    The sturdy iron frame shields the operator from falling items and impact. This added protection enhances workplace safety and provides greater confidence during lifting and transport tasks.

🔎 Designed for Daily Use, Backed by Real Experience


🔧 6,600 lb Stand-On Electric Pallet Jack
The CBD30T is a high-capacity stand-on electric pallet jack designed for heavy-duty warehouse and industrial use. With a robust steel chassis, 48" x 27" forks, and a powerful 24V/300Ah battery, it handles long-distance pallet transport with maximum efficiency and stability.

🔋 Electric Drive with LCD Battery Display
This unit is powered by a 24V/300Ah lead-acid battery system and charged externally through a side-access port. A multifunction LCD screen provides real-time battery status, fault codes, and operating time to ensure safe and continuous performance throughout the workday.

🛠️ Low Maintenance Design
  • Hydraulic oil: ISO VG46, 1.5L — replace once per year
  • Check brake clearance monthly (recommended: 0.2–0.8 mm)
  • Clean battery terminals weekly; avoid deep discharge
  • Replace wheels when worn over 5% of diameter
  • Lubricate drive and tiller joints every 3 months
Charge fully if unused for over 3 days. Routine checks help prevent downtime.

🧯 Safe & Simple to Operate
This jack includes a fully electric drive with regenerative braking that slows the unit automatically when the throttle is released. Safety features include a belly reverse switch, speed limiter in tight zones, and emergency power cut-off. Top speed reaches 5 mph (unloaded).


📦 What You’ll Receive

  • ✅ Fully assembled pallet jack body (strapped and protected)
  • ✅ Handle and control system pre-mounted
  • ✅ External 24V charger
  • ✅ Branded labels and quick-start guide
  • ✅ QR code with operator video and model tracking info

🛠 Handle Installation
The CBD30T is shipped fully assembled including the platform and control handle. No installation is needed — just unwrap, charge, and go.


🚚 Shipping, Delivery & Warranty

  • 📦 Ships from U.S. warehouses in California, Georgia, and Illinois
  • 🚛 Curbside delivery via freight with liftgate included
  • 🔌 External battery charger included with all orders
  • 📍 Local pickup available by appointment
  • 🛡 Includes a 1-year limited warranty on core components
  • ⚙️ U.S.-based support with most parts in local stock
  • ✉️ Tracking details sent upon shipment
  • 📞 Carrier will call ahead to schedule delivery
  • 🔍 Please inspect equipment before signing the delivery receipt

Need support? We provide lifetime technical assistance and stock most wear parts for fast service. Reach us anytime at support@xilin.com.

Still exploring your options?

We carry a full range of material handling equipment — including manual stackers, electric pallet jacks, forklifts, order pickers, tow tractors, and lift tables. Every model on our site is available for sale.

Not sure which model fits your needs?

Our team can help you choose the right equipment based on your pallet type, warehouse layout, and lifting goals.

✅ Visit our U.S. warehouse to view machines in person, or contact us to request a factory-direct customization.

📞 Email: info@xilinamerica.com

Frequently Asked Questions

Product

What comes in the Truck box?

When you receive your equipment, everything is packed for easy setup, with attention to detail. Here’s what you can expect to find:

  • Your Machine: Secured with green packing straps.
  • Branding & Labels: Stickers with brand logo, installation video QR code, and a "Delivery Attention" sticker.
  • Accessories:
  • Documentation: Photos of your machine, model, serial number barcode, and brand logo for reference.
  • Packaging: The machine is wrapped with stretch film and accompanied by the BOL (Bill of Lading) for easy identification.

Important Notes:

  • In cases where pallets are not used, the machine is securely packed with alternative methods.
  • Some machines may not include a charger or power cable, depending on the model.

We ensure you receive everything you need to get started, with a level of care you won’t find elsewhere!

How long is your warranty?

All Xilinamerica Trucks Come with a 1-Year Limited Warranty!
Enjoy peace of mind knowing that your truck is backed by our 1-Year warranty (excluding wear-and-tear parts and damages from misuse).

For full warranty details, check out our warranty page.

Shipping

How does my Truck come delivered?

All our trucks are delivered with free shipping straight to your doorstep!
Most trucks arrive fully assembled, while a few may require simple setup. You can easily follow our assembly tutorials and videos for guidance. If you need further assistance, our customer support team is always available to help!
