XILIN | SKU: CBD20KD

4,400 lb Electric Pallet Jack – Maintenance-Free Drive, Dual Lift, 48" x 27" | Xilin CBD20KD

$4,100.00

Shipping Fee: $300 flat rate across the continental U.S.

🚚 We ship all orders from our U.S. warehouse within 24–48 hours.
📦 Most orders arrive within 3–7 business days, depending on your location.
📦 Most products ship via insured freight with lift gate service included.
📦 Delivery is curbside only — the driver will not bring the unit indoors.
📞 The carrier will contact you in advance to schedule a delivery time.
✉️ Tracking information will be emailed once your order ships.
🔍 Please inspect the equipment carefully before signing the delivery receipt.
🛠 Some models may require light setup; all include a 1-year warranty and lifetime support.
📍 We ship from warehouses in California, Georgia, and Illinois.
🚗 Local pickup is available by appointment — contact us for details.

1 Year Warranty

At Xilinamerica.com, we proudly back all of our trucks with a one-year limited warranty, excluding wear-and-tear parts and damages caused by misuse. Our warranty period starts from the date of receipt of the item.

Warranty Periods:

1 Year on all trucks (excluding easy-wearing parts and damages caused by human factors)
3 Months on spare parts
6 Months on batteries

Warranty Details:

Within 30 days of receipt: If there are any quality issues, we will provide free spare parts for replacement and remote technical support. If our after-sales team determines that the truck needs to be returned for repair, we will cover all round-trip shipping costs.
Between 30 days and 1 year of receipt: If any quality issues arise, we offer free spare parts and remote technical guidance. If a return for repair is required, the customer is responsible for half of the shipping costs.
After 1 year of receipt: For any quality issues, we will provide free technical support. However, replacement parts will be charged, and if a return for repair is necessary, the customer will be responsible for both the maintenance fees and shipping costs, which will be quoted based on the situation.

If you encounter any issues during the use of the truck, feel free to contact us at support@xilin.com. Our team is ready to assist you.

Shipping

At XilinAmerica.com, shipping fees are calculated separately and displayed at checkout. Most items are shipped from our U.S. warehouse within 48 hours of order confirmation.

📦 Shipping Coverage
We currently ship to all 48 contiguous U.S. states. For deliveries to Hawaii, Alaska, and Puerto Rico, please contact us for a custom quote before placing your order.

⏳ Lead Time & Delivery
Orders are typically processed and shipped within 1–2 business days (excluding weekends and holidays). Estimated delivery times vary by destination and shipping method.

📋 Shipping Rates
Shipping costs are based on product type, weight, and delivery location. These rates are visible either on the product page or during checkout. For bulk orders or custom shipping needs, contact info@xilinamerica.com for assistance.

⚠️ Shipping Damage
All items are carefully inspected and packed before shipment. Upon delivery, please inspect your order before signing. If damage is visible, **refuse the shipment** and contact us immediately for support.

❌ Order Cancellations
Orders may be canceled before shipment. If the order has already been dispatched, shipping fees (both ways) will apply. A tracking delay does not always mean the product hasn’t shipped.

✉️ Address Changes
If you need to change the delivery address after placing an order, please contact us immediately. Additional charges may apply if the item has already shipped.

For further questions, reach out to: **info@xilinamerica.com**

Why Xilin

Why Choose Xilin Material Handling LLC?

The Trusted Expert in Material Handling Equipment

Xilin Material Handling LLC is a leading manufacturer specializing in the production of material handling equipment. Since our establishment, we have dedicated ourselves to creating high-quality, professional, and reliable solutions for industries worldwide. When you choose Xilin, you’re partnering with a company that values innovation, craftsmanship, and a customer-first approach.

Unmatched Product Excellence: Electric Forklifts

Our electric forklift series is at the forefront of our product range, setting new standards in material handling. Designed for optimal performance and efficiency, our electric forklifts provide:

Exceptional Performance: Engineered for a variety of material handling tasks, ensuring smooth and stable operations.
Cost-Effective Solutions: Providing high-quality equipment at competitive prices, giving you the best value for your investment.
Durability You Can Count On: Built to last with compliance to international standards, ensuring long-term reliability in the toughest environments.

Efficient Logistics and Comprehensive After-Sales Support

Fast Delivery: With strategically located warehouses, Xilin ensures prompt delivery to meet the needs of our global customers.
Expert After-Sales Service: Our dedicated after-sales team is here to assist you with everything from installation and training to regular maintenance, ensuring seamless operations and helping you overcome any challenges in your material handling needs.

Confidence in Every Partnership

At Xilin, we prioritize your success. By choosing us, you not only get access to top-tier material handling equipment but also benefit from our full range of services, designed to give you peace of mind throughout the lifecycle of your equipment. Trust Xilin for reliability, performance, and long-term value.

Choose Xilin, Choose Excellence

With Xilin Material Handling LLC, you are assured of high-quality products, dependable support, and a commitment to your business’s success. Let us help you optimize your material handling processes for greater efficiency and productivity.

For more information or inquiries, don't hesitate to contact us!

💧 Built for Harsh Environments

IP-rated vertical drive motor resists water and dust—runs reliably in cold, damp, or dusty conditions.

🚨 Full Safety System

Equipped with regenerative braking, overload valve, emergency reverse, and power cut-off.

🔋 Rollout Side Battery for Quick Swaps

24V side-pull battery tray enables fast replacement without tools—ideal for multi-shift use.

⚙️ Brushless AC Drive System

Maintenance-free motor with no contactors—delivers strong torque with less wear and tear.

Description

CBD20-KD Electric Pallet Jack – Built for Power, Durability & Efficiency

The CBD20-KD Electric Pallet Jack is built for high-intensity warehouse operations, logistics hubs, and industrial facilities, delivering exceptional durability, precise control, and effortless operation. With a 4,400 lbs load capacity, reinforced steel structure, and advanced AC drive system, it ensures seamless material transport with minimal maintenance.

Featuring a high-capacity battery for extended runtime and a water-resistant design, it excels in demanding environments, both indoors and outdoors. Quick-change lead-acid or lithium battery options provide uninterrupted workflow, making it a reliable, long-lasting solution for heavy-duty material handling.

💡 Key Features & Benefits

⚙️ AC Drive with Regenerative Braking – Brushless motor with no directional contactors. Reduces maintenance and recharges battery while braking.

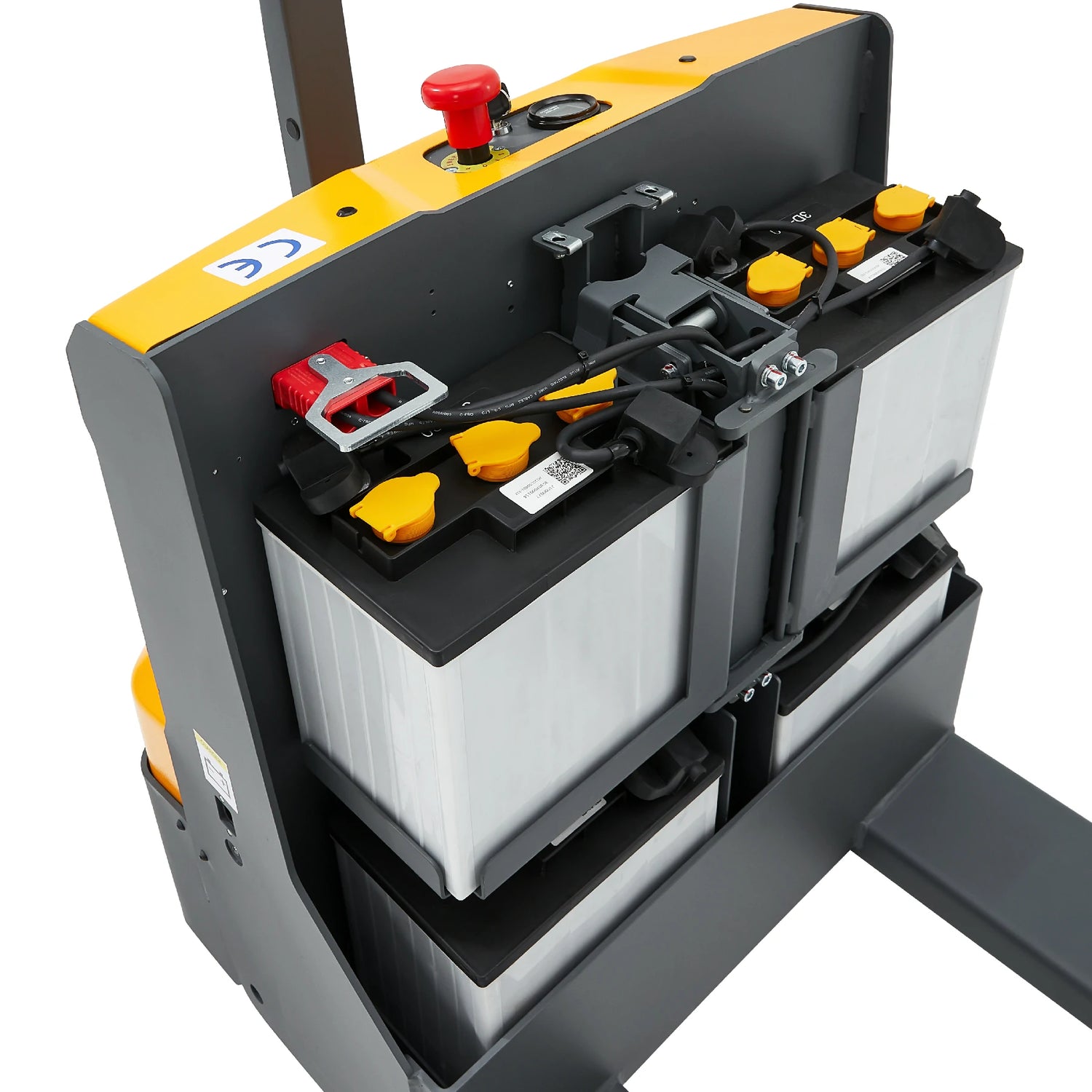

🔄 Side-Pull Battery Design – Quick battery swap with roll-out compartment allows fast replacement without lifting equipment.
🛡 Built-In Pressure Relief Valve – Protects hydraulic system from overloading during heavy-duty use.

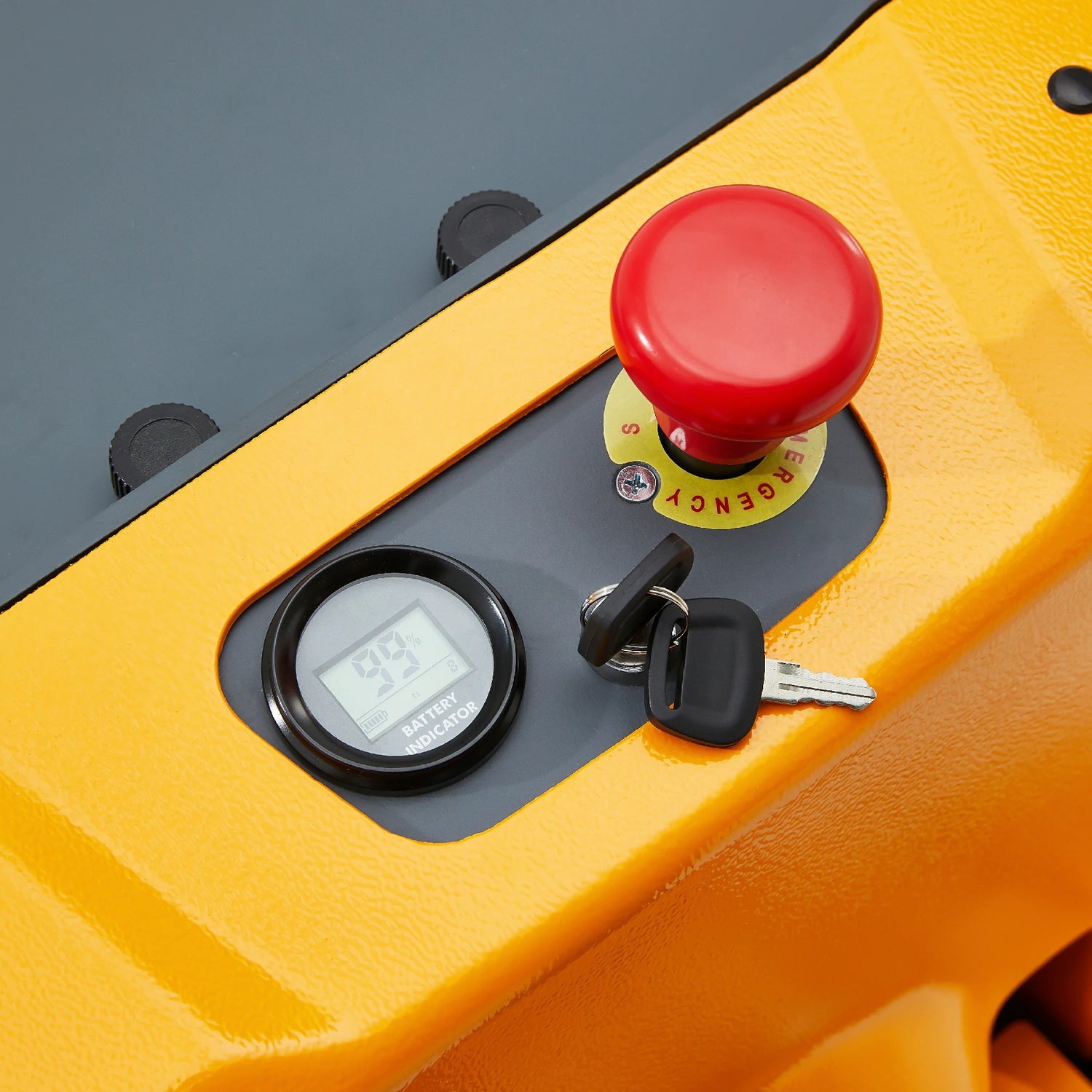

🚨 Emergency Reverse & Power Cutoff – Equipped with reversing switch and emergency disconnect for safer operation.
🎚 Stepless Speed Control – Handle-integrated throttle enables smooth speed changes with high precision.
🐢 Low-Speed Turtle Mode – Improves control during precise handling in tight areas.
🔩 Waterproof Vertical Drive Wheel – Dustproof sealed drive motor offers tighter turning radius and all-terrain protection.
🧱 Fork Axle Protection – Riser axle sits higher to avoid scraping on uneven floors; reinforced pull rod resists bending.

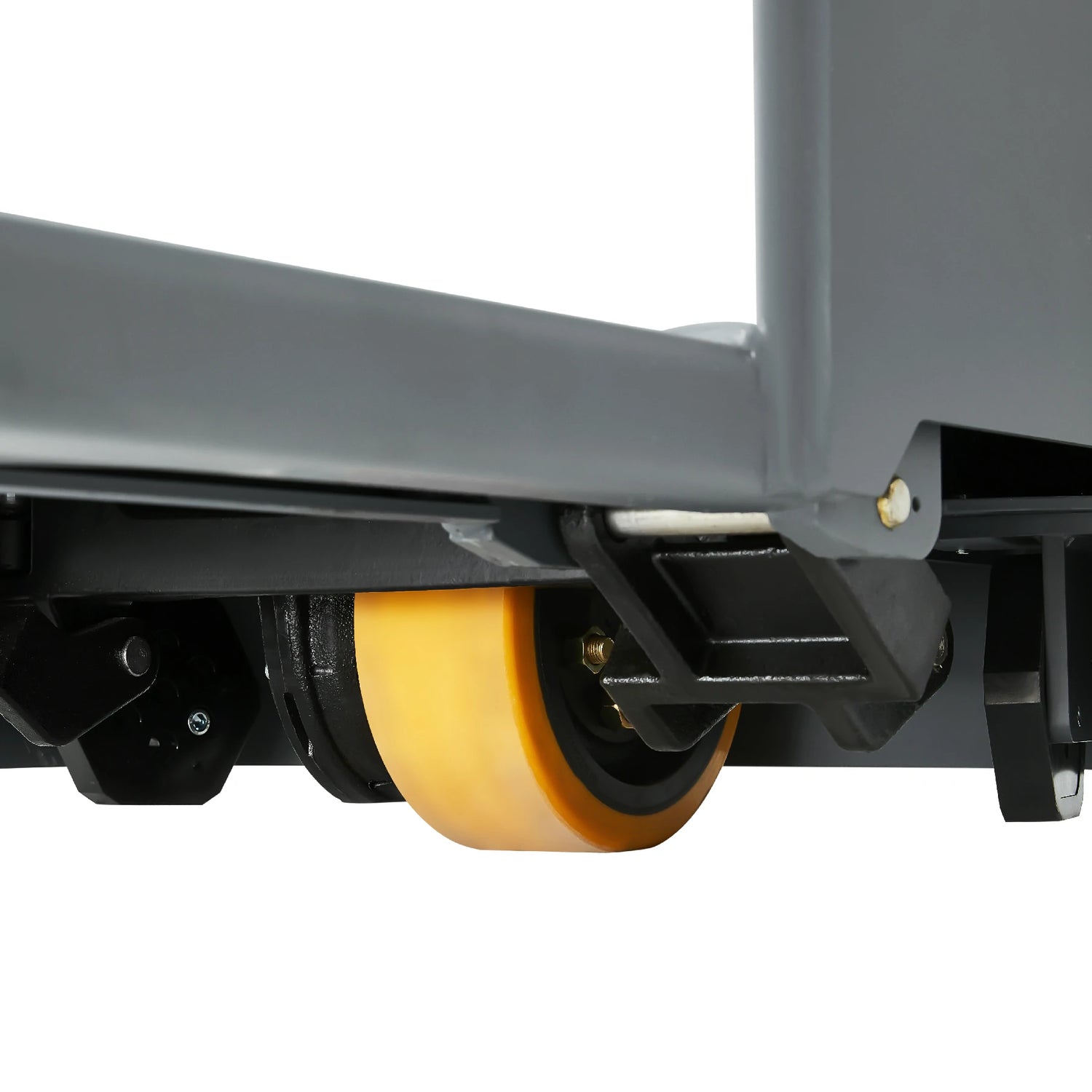

🛞 Spring-Loaded Caster Wheels – Self-adjusting side wheels enhance lateral stability on ramps or rough ground.
📏 Ergonomic Long Tiller Arm – Provides greater leverage and reduced fatigue during continuous operation.

🎥 Watch the CBD20-KD in Action

📊 Specifications

📦 Load Capacity	4,400 lbs
↪️ Turning Radius	63.7"
📐 Aisle Width	89.3"
🛻 Fork Dimensions	48" L × 27" W × 2.9" Thick
📏 Inside Fork Width	14.2"
📐 Overall Size (L×W×H)	65.3" × 27" × 47.4"
⬇️ Fork Lowered Height	3"
⬆️ Lifting Distance	4.5"
📏 Max Fork Height	7.5"
🔋 Battery	48V / 30Ah or 48V / 60Ah Lithium (or Lead-Acid Optional)
🔌 Charger	48V / 10A–20A External
🚚 Travel Speed (Laden)	2.9 mph
🚀 Travel Speed (Unladen)	3.1 mph

📦 What You’ll Receive

✅ Fully assembled pallet jack body (secured with straps and protective film)
✅ Handle kit (requires installation)
✅ 48V external charger
✅ Branded stickers, delivery guide, and QR code for handle installation video
✅ Quick-start guide with model and serial number

🛠 Handle Installation:
To reduce shipping costs and prevent transit damage, the handle is packaged separately. Installation is fast and tool-free — just connect and tighten. A video tutorial is included to assist.

📬 After You Order:
Once your order ships, you will receive a confirmation email with tracking details.
If you have any questions, feel free to contact us — our support team is here to help you.

Reviews (0)

Specifications

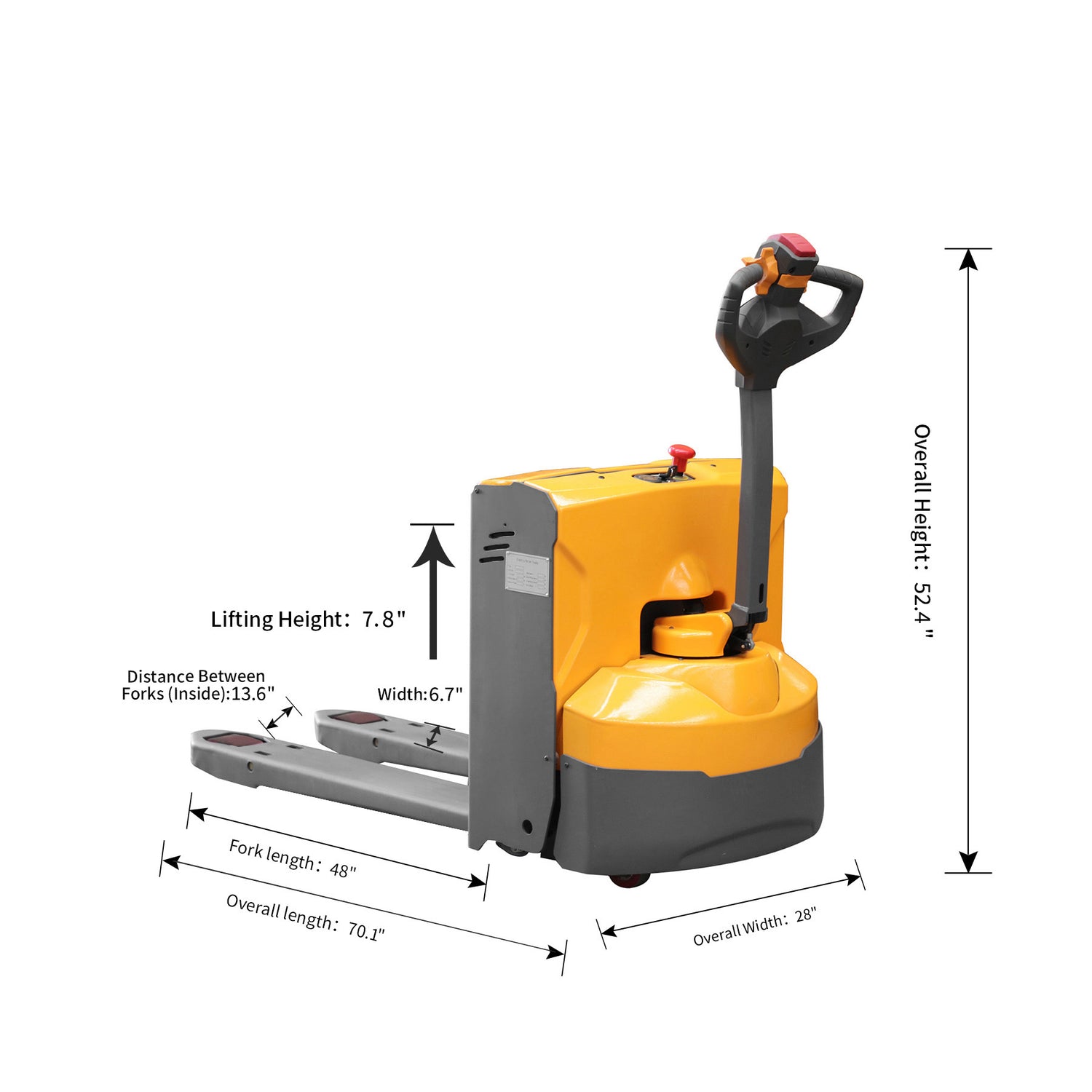

Load Capacity & Dimensions

Capacity: 4,400 lbs
Turning Radius: 63.7"
Aisle Width: 95.2"

Fork Dimensions

Overall Fork Width: 27"
Single Fork Width: 6.7"
Fork Length: 48"
Fork Thickness: 2.9"
Distance Between Forks (Inside): 13.5"

Overall Dimensions

Overall Width: 28"
Overall Length: 70"
Overall Height: 49.5"
Fork Lowered Height: 3.2"
Lifting Distance: 4.7"
Lifting Height: 7.9"

🔎 Engineered for Warehouse Duty – Powered Control with AC Drive Reliability

The CBD20KD electric pallet jack is built for heavy-duty warehouse operations, combining a 24V battery system with a high-efficiency AC drive motor. With a rated capacity of 4,400 lbs and fully electric travel and lift functions, it’s the ideal choice for long-shift material transport, freight handling, and loading dock applications.

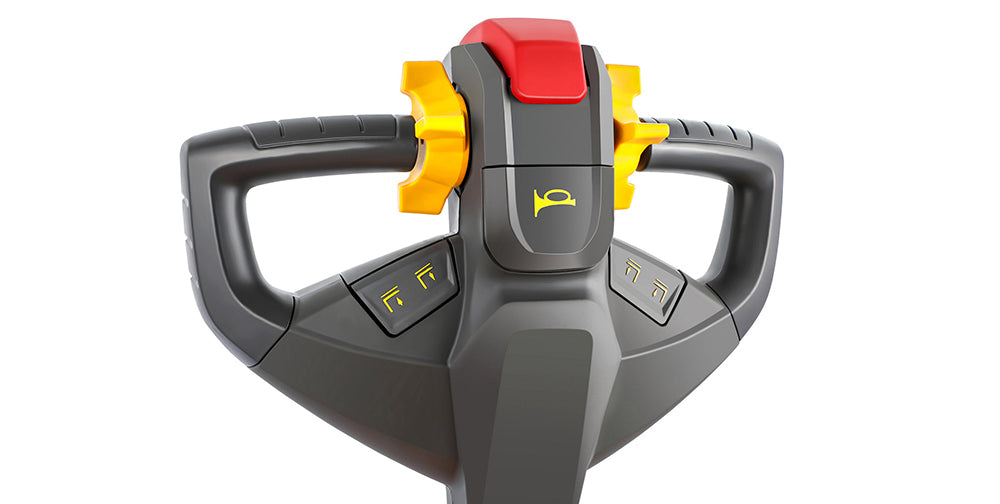

This powered walkie pallet jack features an ergonomic tiller handle with integrated safety functions, including an emergency reverse switch and electromagnetic braking. The lifting system uses a DC motor and hydraulic transmission to provide smooth, stable vertical movement. Fork size is 48" × 27", making it fully compatible with standard U.S. pallets.

The control handle activates power only when positioned within a 30° ± 20° operating angle, ensuring safe operation. Lifting is only allowed when stationary, and travel is locked during elevated loads to enhance stability. With a top speed of 5.5 km/h and gradeability up to 8%, the truck performs confidently on ramps and in confined warehouse spaces.

Routine maintenance includes weekly lubrication and battery inspection. Hydraulic oil is recommended to be replaced every 12 months. The modular design allows quick access to major components like the motor, controller, and brake system, making long-term service straightforward. Fault diagnosis is supported by an onboard indicator and standardized fuse layout.

✅ Lifetime after-sales support is included with every unit. During the warranty period, we provide free parts and repairs. After that, you'll continue to receive expert diagnostics, affordable replacement components, and U.S.-based technical support to minimize downtime and keep your operations moving.

Looking for a 4400 lb electric pallet mover that delivers durability, power, and long-term serviceability? The CBD20KD electric pallet truck is trusted by warehouses, factories, and logistics teams across the U.S.
