XILIN  |  SKU: CDD15B-E-118

3300lbs Manual Push Electric Lift Stacker, 118" Height, Fixed Legs, Adjustable Forks / Xilin CDD15BE-118

$3,350.00 $3,500.00
Shipping calculated at checkout.

Shipping Fee: $350 flat rate across the continental U.S.


✅ Xilin® | Professional manufacturer since 1985
📦 In stock in U.S. warehouse | Ships in 1–2 business days
🚚 Delivery in 3–7 business days with liftgate service
🛠️ Lifetime technical support + spare parts available
✔️ Built for daily warehouse, retail, and logistics use

1 Year Warranty

At Xilinamerica.com, we proudly back all of our trucks with a one-year limited warranty, excluding wear-and-tear parts and damages caused by misuse. Our warranty period starts from the date of receipt of the item.

Warranty Periods:

  • 1 Year on all trucks (excluding easy-wearing parts and damages caused by human factors)
  • 3 Months on spare parts
  • 6 Months on batteries

Warranty Details:

  1. Within 30 days of receipt: If there are any quality issues, we will provide free spare parts for replacement and remote technical support. If our after-sales team determines that the truck needs to be returned for repair, we will cover all round-trip shipping costs.
  2. Between 30 days and 1 year of receipt: If any quality issues arise, we offer free spare parts and remote technical guidance. If a return for repair is required, the customer is responsible for half of the shipping costs.
  3. After 1 year of receipt: For any quality issues, we will provide free technical support. However, replacement parts will be charged, and if a return for repair is necessary, the customer will be responsible for both the maintenance fees and shipping costs, which will be quoted based on the situation.

If you encounter any issues during the use of the truck, feel free to contact us at support@xilin.com. Our team is ready to assist you.

Shipping Policy

At XilinAmerica.com, shipping fees are calculated separately and displayed at checkout. Most items are shipped from our U.S. warehouse within 48 hours of order confirmation.

📦 Shipping Coverage
We currently ship to all 48 contiguous U.S. states. For deliveries to Hawaii, Alaska, and Puerto Rico, please contact us for a custom quote before placing your order.

⏳ Lead Time & Delivery
Orders are typically processed and shipped within 1–2 business days (excluding weekends and holidays). Estimated delivery times vary by destination and shipping method.

📋 Shipping Rates
Shipping costs are based on product type, weight, and delivery location. These rates are visible either on the product page or during checkout. For bulk orders or custom shipping needs, contact info@xilinamerica.com for assistance.

⚠️ Shipping Damage
All items are carefully inspected and packed before shipment. Upon delivery, please inspect your order before signing. If damage is visible, **refuse the shipment** and contact us immediately for support.

❌ Order Cancellations
Orders may be canceled before shipment. If the order has already been dispatched, shipping fees (both ways) will apply. A tracking delay does not always mean the product hasn’t shipped.

✉️ Address Changes
If you need to change the delivery address after placing an order, please contact us immediately. Additional charges may apply if the item has already shipped.

For further questions, reach out to: **info@xilinamerica.com**

Why Xilin

Why Choose Xilin Material Handling LLC?

The Trusted Expert in Material Handling Equipment

Xilin Material Handling LLC is a leading manufacturer specializing in the production of material handling equipment. Since our establishment, we have dedicated ourselves to creating high-quality, professional, and reliable solutions for industries worldwide. When you choose Xilin, you’re partnering with a company that values innovation, craftsmanship, and a customer-first approach.

Unmatched Product Excellence: Electric Forklifts

Our electric forklift series is at the forefront of our product range, setting new standards in material handling. Designed for optimal performance and efficiency, our electric forklifts provide:

  • Exceptional Performance: Engineered for a variety of material handling tasks, ensuring smooth and stable operations.
  • Cost-Effective Solutions: Providing high-quality equipment at competitive prices, giving you the best value for your investment.
  • Durability You Can Count On: Built to last with compliance to international standards, ensuring long-term reliability in the toughest environments.

Efficient Logistics and Comprehensive After-Sales Support

  • Fast Delivery: With strategically located warehouses, Xilin ensures prompt delivery to meet the needs of our global customers.
  • Expert After-Sales Service: Our dedicated after-sales team is here to assist you with everything from installation and training to regular maintenance, ensuring seamless operations and helping you overcome any challenges in your material handling needs.

Confidence in Every Partnership

At Xilin, we prioritize your success. By choosing us, you not only get access to top-tier material handling equipment but also benefit from our full range of services, designed to give you peace of mind throughout the lifecycle of your equipment. Trust Xilin for reliability, performance, and long-term value.

Choose Xilin, Choose Excellence

With Xilin Material Handling LLC, you are assured of high-quality products, dependable support, and a commitment to your business’s success. Let us help you optimize your material handling processes for greater efficiency and productivity.

For more information or inquiries, don't hesitate to contact us!

📦 Open-Pallet Ready Forks

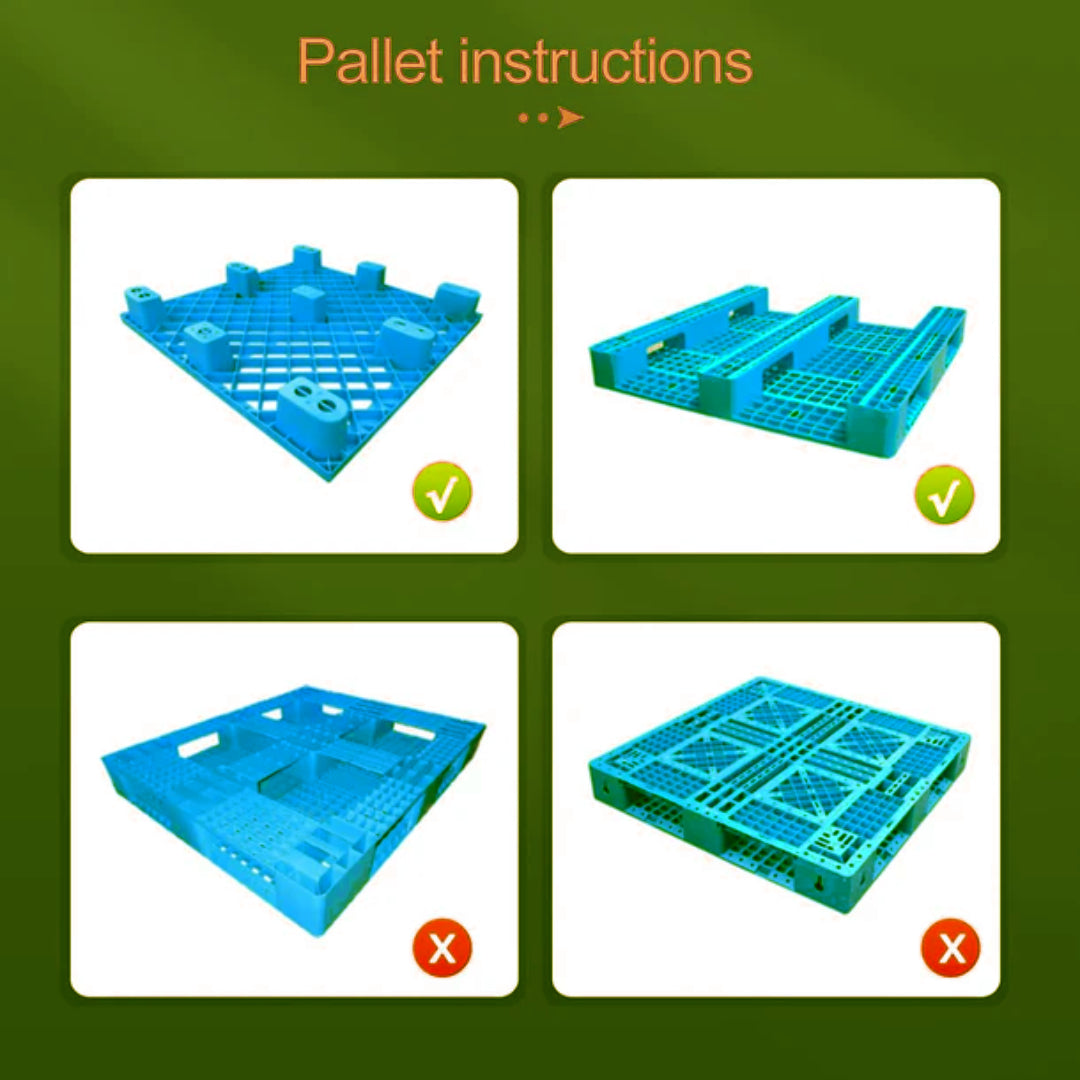

Fixed-leg design for use with open-bottom pallets and skids.

🔋 Electric Lift, Manual Push

Lifts up to 3,300 lbs with powered hydraulics—simple to operate.

📏 Compact for Tight Spaces

Slim design fits small warehouses, trucks, and shop aisles.

🏗️ Reinforced Mast & Low Center

Sturdy build with stable lifting, even at full height.

Description

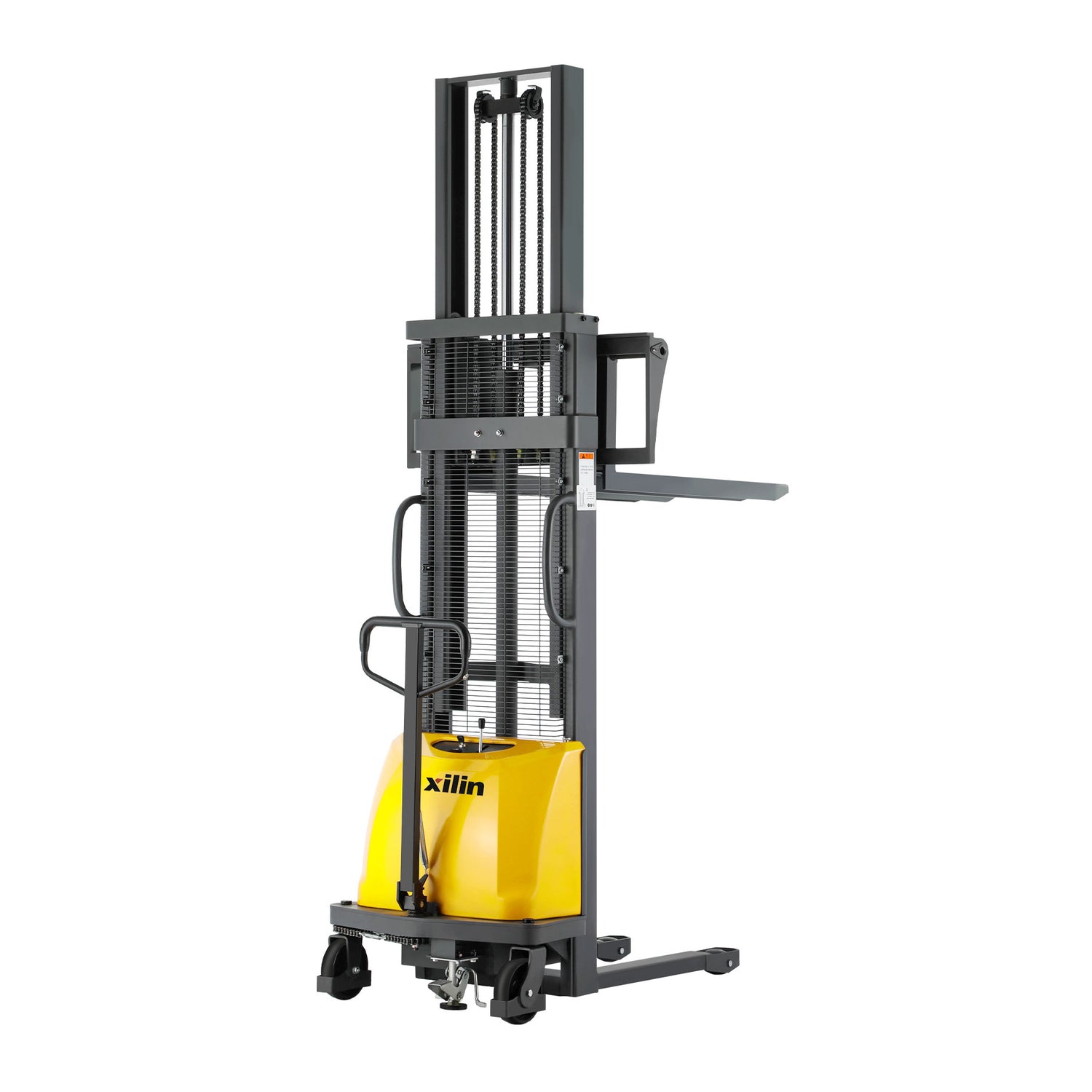

CDD15BE-118 Semi-Electric Pallet Stacker

The CDD15BE-118 is a reliable semi-electric stacker with a 3,300 lb capacity and 118" lift height. Featuring a fixed-leg chassis and ergonomic design, it delivers safe and stable lifting performance for industrial, warehouse, and retail operations. Powered lifting combines with manual travel for improved efficiency and control.

💡 Key Features & Benefits

  • Ergonomic, Compact Design – Easy to maneuver with comfortable grip and user-friendly structure.
  • Low Center of Gravity – Optimized balance for reliable control during full-load operation.
  • Over-Discharge Protection – Prevents battery damage and extends system lifespan.
  • Reinforced Mast Structure – High-strength steel with precision welds ensures long-term durability.
  • Chain-Driven Steering – Responsive, low-effort steering improves navigation in tight spaces.
  • Heavy-Duty Chain System – Reduces risk of chain failure under heavy load.
  • Explosion-Proof Hydraulic Valve – Prevents sudden descent if hydraulic failure occurs.
  • Manual Hydraulic Control – Smooth and accurate lift/lower via adjustable hydraulic leveler.

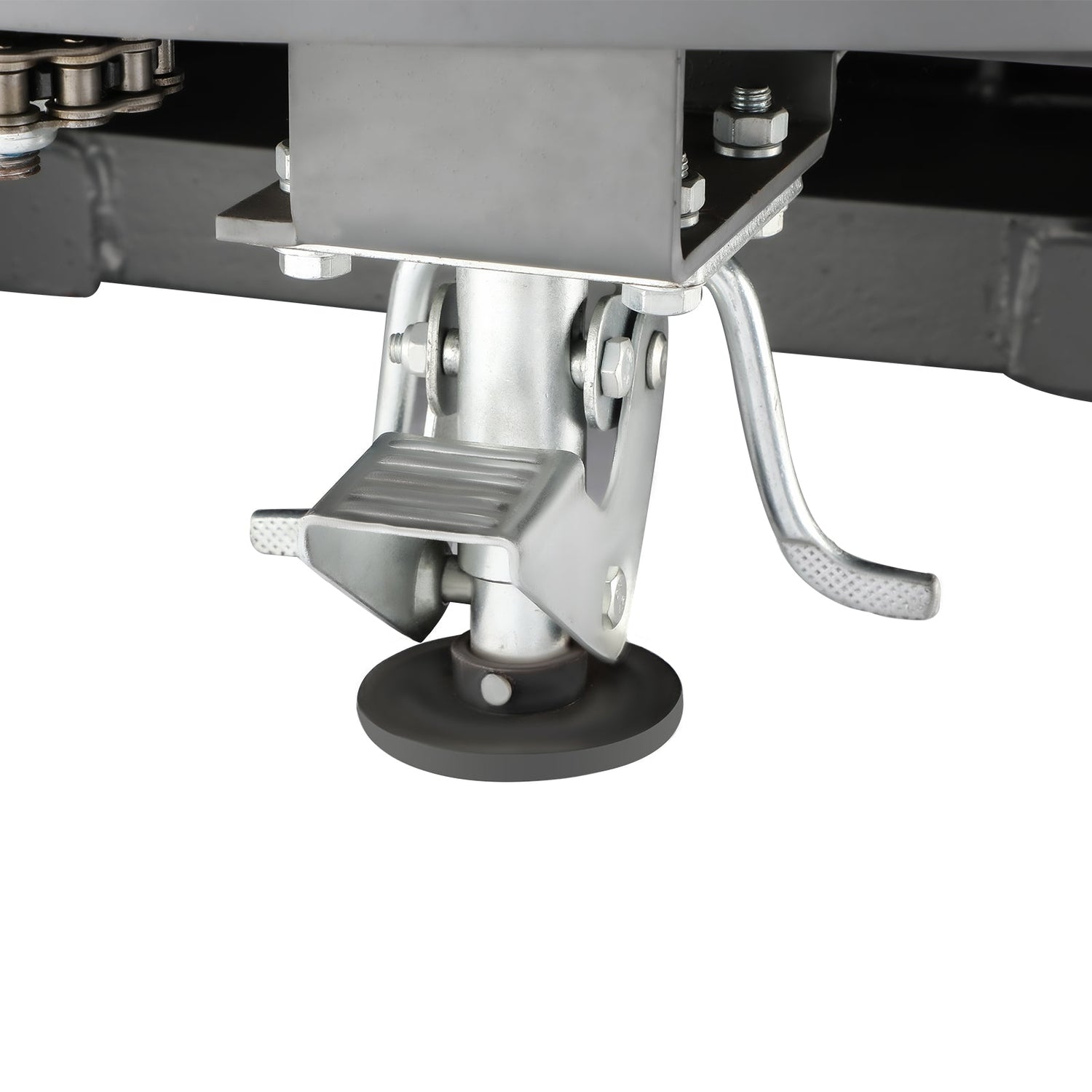

  • Responsive Foot Brake – Enhances control and safety during daily operations.
  • Upgraded Hydraulic Pump – 1.5kW configuration for consistent performance and manual lowering.
  • Dual Electric Protection – Ensures electrical system safety under heavy use.

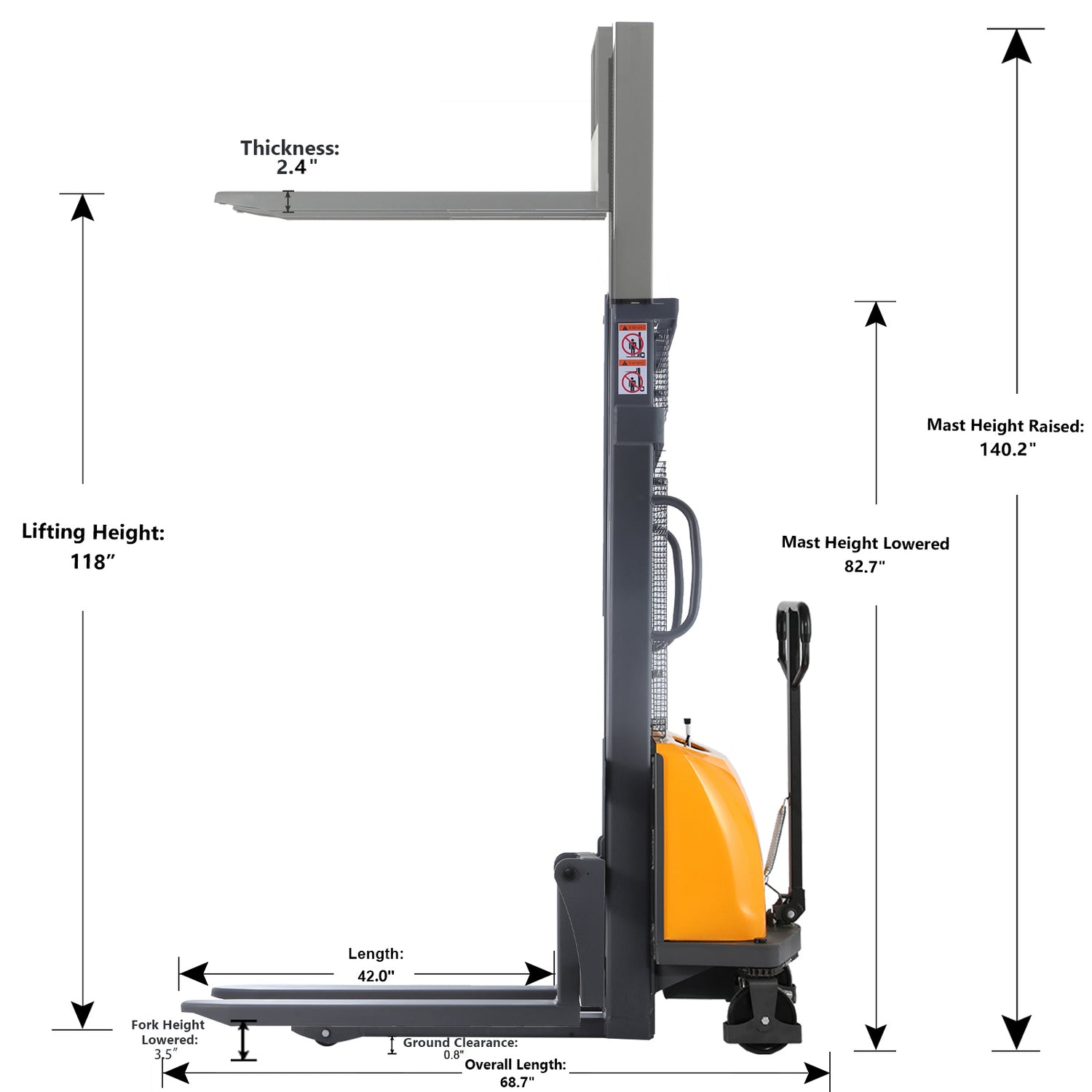

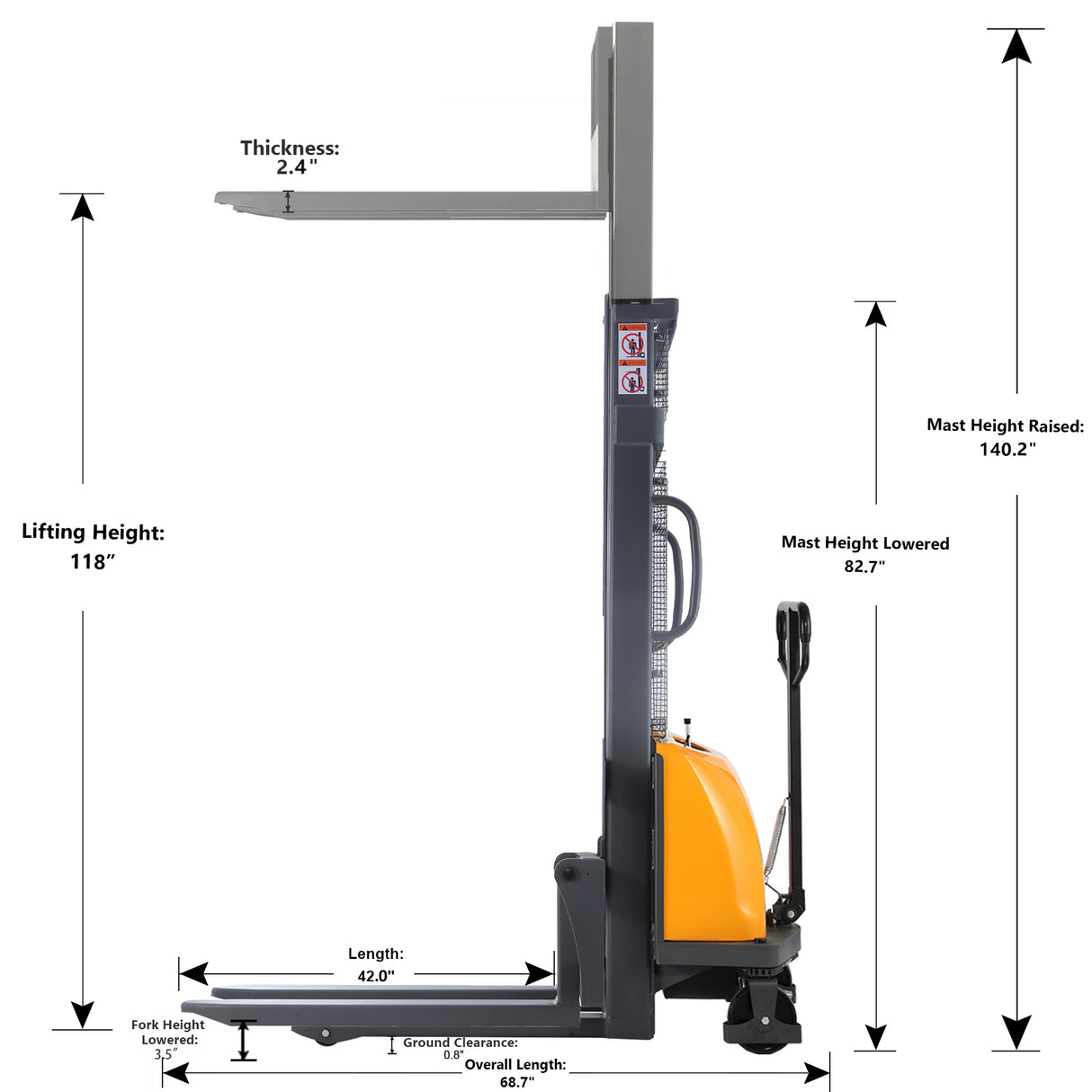

📊 Specifications

 Load Capacity 3,300 lbs
 Load Center 15.7"
 Turning Radius 56.1"
 Aisle Width 90"

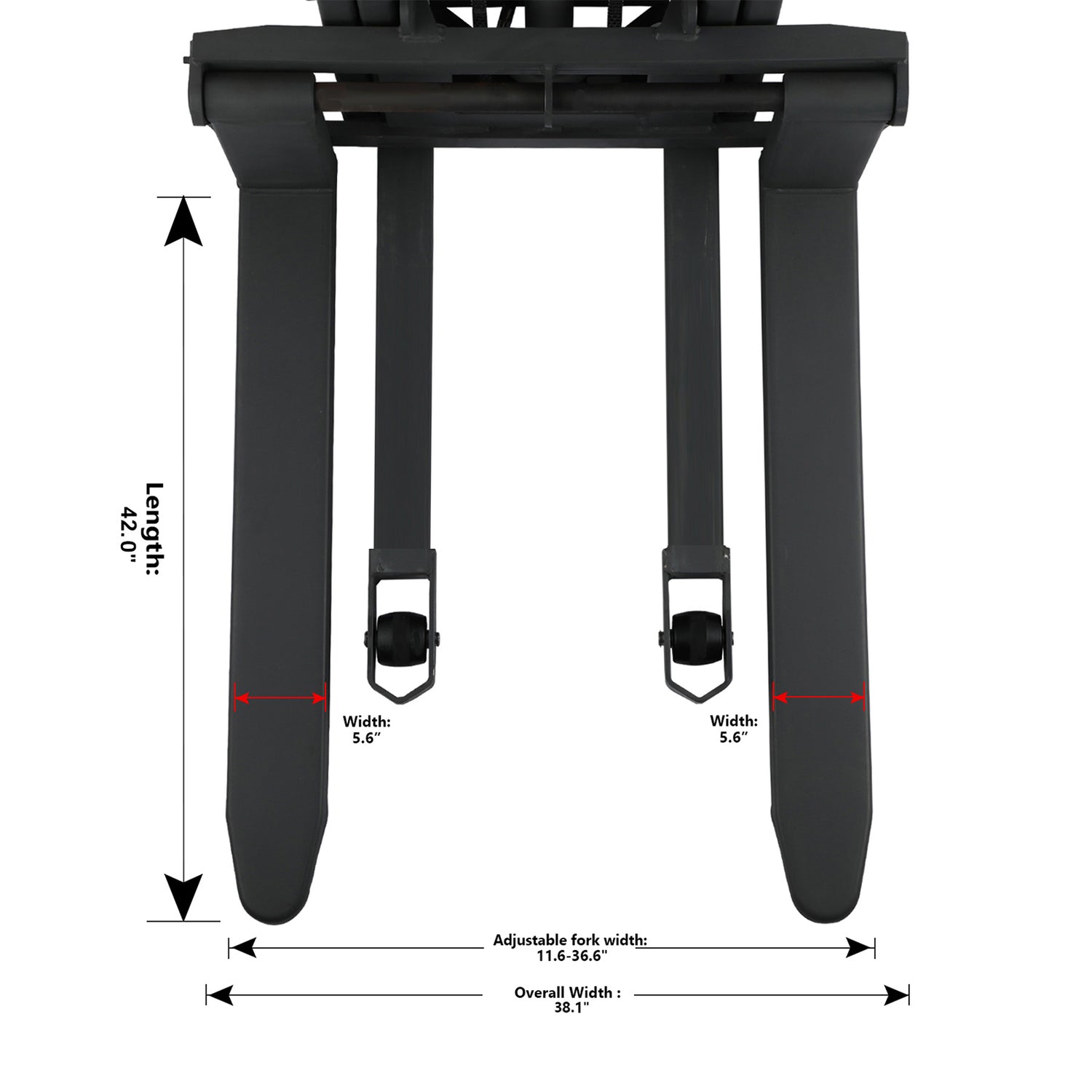

 Fork Dimensions 42.1" L × 11.6–36.6" W × 2.3" Thick
 Inside Fork Width 0.4"–25.4"
 Fork Lowered Height 3.5"
 Overall Width 37.8"
 Overall Length 68.7"
 Max Lifting Height 118"
 Mast Height (Lowered/Extended) 82.7" / 140.3"
 Battery 12V / 105Ah
 Charger 12V / 10A Built-in
 Lifting Speed (L/U) 2.0 / 3.2 inch/s
 Lowering Speed (L/U) 3.9 / 3.5 inch/s
 Service Weight 960 lbs

Reviews (0)

PRODUCT HIGHLIGHTS

  • Simple operation level

    The easy-to-use control lever streamlines daily operation with responsive handling. Its intuitive design reduces operator fatigue, improves precision, and ensures smooth performance during lifting and maneuvering tasks.

  • Rubber wrapped handle

    The handle is wrapped in high-quality rubber for a soft, non-slip grip. It ensures comfortable operation in all seasons, especially during cold weather, and helps reduce hand fatigue during extended use.

  • Special Chain Design

    The mast uses a specially designed high-strength chain for smoother, more stable lifting. This durable chain improves safety, reduces wear, and ensures reliable performance under heavy-duty working conditions.

  • Spring structure design

    The spring structure design enhances shock absorption and stability during operation. It helps reduce vibration, protects internal components, and ensures smoother performance in demanding work environments.

🔎 Designed for Daily Use, Backed by Real Experience


🔧 Fixed-Leg Semi-Electric Stacker for Indoor Lifting
The CDD15BE-118 is a semi-electric stacker with a load capacity of 3,300 lbs and a lift height of 118". It features a fixed-leg frame for open-bottom pallets and containers, making it ideal for vertical stacking tasks in warehouses, workshops, and backroom storage areas. This model combines manual travel with battery-powered lifting to offer a cost-effective solution for light to moderate indoor operations.

🔋 12V Battery-Powered Hydraulic Lift
The unit is equipped with a 12V/120Ah lead-acid battery and a 1.5kW hydraulic motor. Charging is handled via the built-in charger with a standard AC plug, requiring approximately 10–12 hours per cycle. Operators should regularly check battery water levels and avoid deep discharging below 10.2V for optimal lifespan.

🧯 Safety Features You Can Trust
This stacker is equipped with an electromagnetic brake and a pressure relief valve to prevent overload. For safety, lifting while in motion is prohibited. Operation is restricted to level indoor floors, and key switch access prevents unauthorized use.

🛠️ Maintenance Made Simple
Routine maintenance includes:
  • Replace hydraulic oil annually (12L, HL-N46 or HL-N68)
  • Lubricate mast rollers and bearings every 6 months
  • Check battery terminals and voltage every 2–3 months
  • Inspect wiring, fuses, and switch function monthly
The stacker's simple structure ensures all components are easily accessible using basic tools.

📦 What’s in the Box
Each unit is delivered fully assembled and securely packaged with protective foam and stretch wrap. Package includes:
  • 1× CDD15BE-118 semi-electric stacker (fully assembled)
  • 1× Accessory kit (includes charger cable, battery key, and user manual)


🚚 Shipping & Handling
We ship from U.S. warehouses in California, Georgia, or Illinois. All units are shipped via insured freight with liftgate service included. Curbside delivery only — driver will not bring the unit indoors. Tracking is provided via email once dispatched.

🛡️ Warranty & Lifetime Support
This model comes with:
  • 1-year limited warranty for structure and hydraulic components
  • 6-month warranty for battery
  • 3-month warranty for electrical parts

Our support policy:

  • Within 30 days: Free parts, remote support, and round-trip shipping if needed
  • Day 31 to 1 year: Free parts + support, with 50% return shipping paid by customer
  • After 1 year: Lifetime technical support, parts and labor quoted separately

Email our U.S. support team anytime at support@xilin.com — we’re here to help.
