Xilin Scissor Lift Table 1760lbs Cap, 40.4" lifting height SPS800

SP Series Platform Truck Description

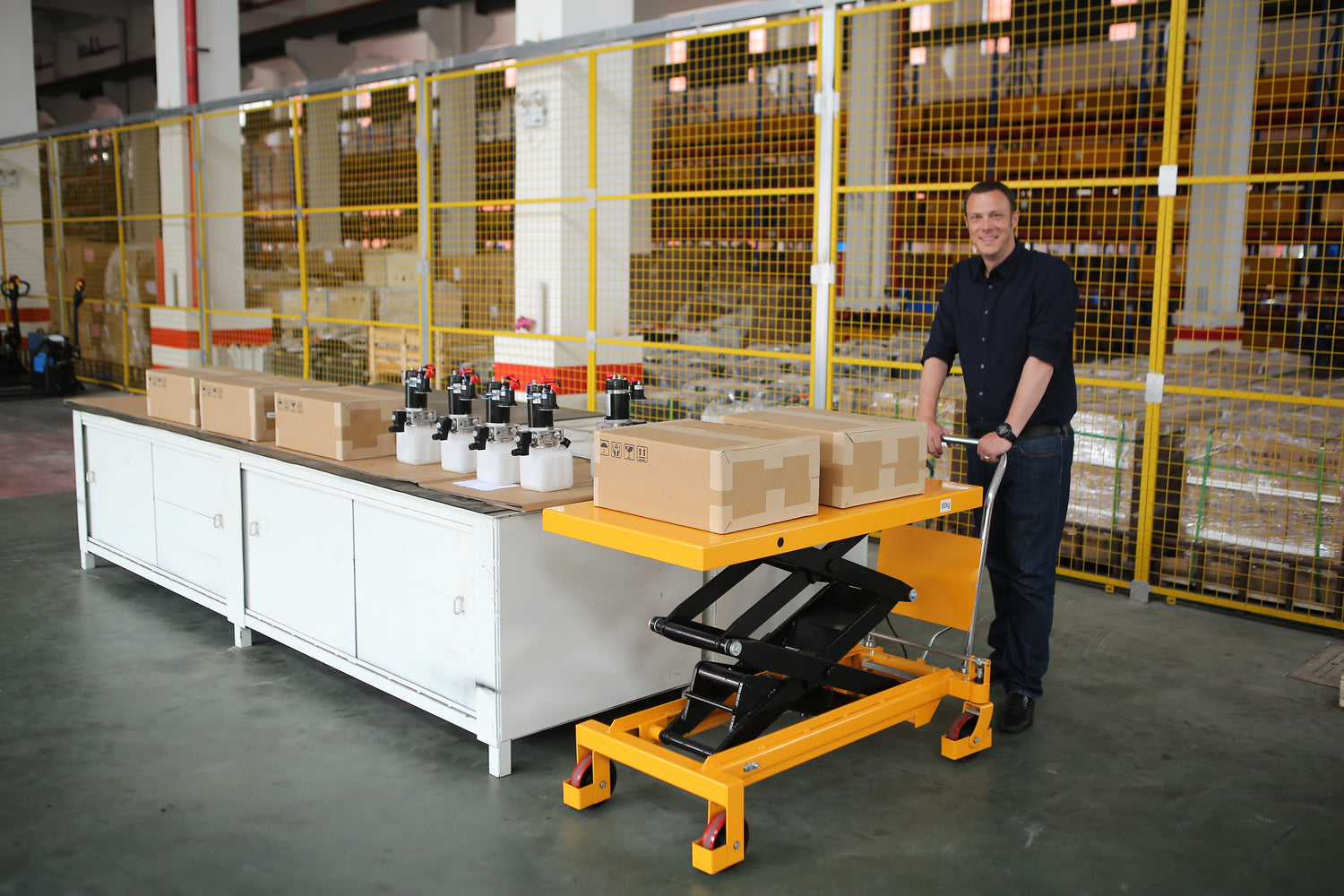

The SP series platform truck is a high-lift transport tool suitable for short-distance handling and lifting of goods. It can also function as a workstation accessory in workshops.

Usage Instructions

Lifting: Repeatedly press the foot pedal to raise the platform.

Lowering: Slowly pull the handle to open the one-way valve, allowing the platform to descend gently.

Before Moving: Release the brakes before moving the truck.

Braking Safety:

• Avoid engaging the brakes during lifting or lowering.
• Keep feet and body parts away from the brake area.

Precautions

Read the Manual: Understand the truck's functions and requirements before use. Only authorized personnel may operate it.

Safety Gear: Wear work clothes, safety shoes, and gloves during operation.

Parts and Maintenance:

• Use original parts from authorized suppliers.
•  After major repairs or part replacements, test the truck for safety before use.

Authorized Operators Only: Only trained personnel are allowed to operate the truck.

Weight Limit: Never exceed the rated load to prevent injury or damage.

Prohibited Actions:

• Do not stand or sit on the platform during operation.
• Keep hands and feet away from the descending platform.

During Loading:

• Always engage the brakes to prevent movement.
• Load goods evenly; avoid unbalanced or unsecured loads.
• Do not leave goods on the platform for extended periods.

Movement Restrictions:

• Do not move the truck while goods are elevated.
• Operate only on level, hard surfaces. Avoid slopes or uneven terrain.

Elevated Loads:

• Place goods gently on the elevated platform without exceeding the rated load.
• Avoid dragging goods horizontally to prevent tipping.

Maintenance Safety:

• Support the forks with a safety rod during maintenance to prevent accidental lowering.
• Ensure the platform is empty during maintenance.

General Information

• SKU: SPS800
• Capacity: 1,760 lbs

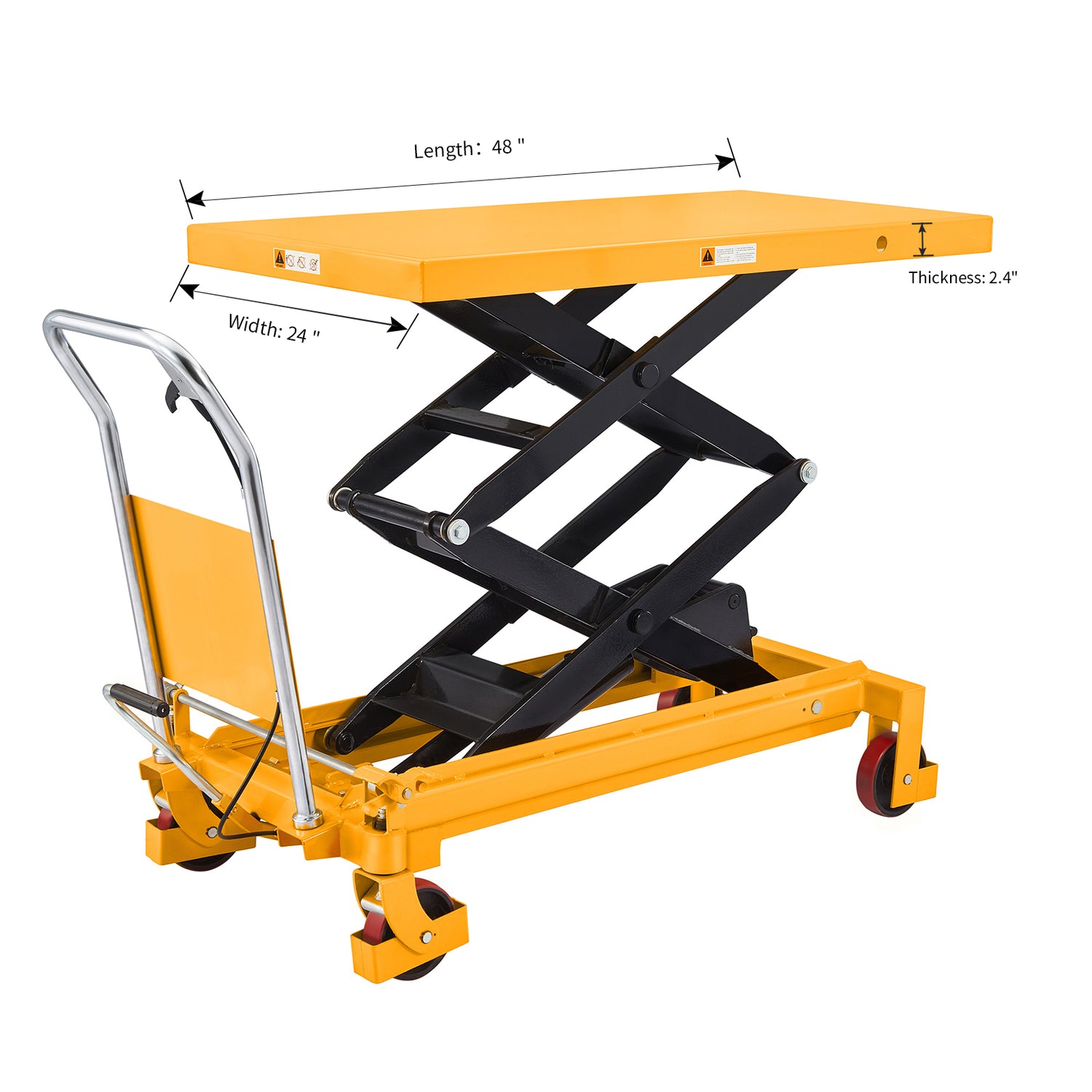

Table Size

• Width: 24 in
• Length: 48 in
• Thickness: 2.4 in

Package Size

• Dimensions: 55 × 28.7 × 19.7 in

Table Lifting

• Max. Lifting Height: 59 in
• Table Extended Height: 40.3 in
• Table Lowered Height: 18.7 in
• Foot Pedal Cycles to Max Height: ≤70

Wheels & Hydraulic

• Wheel Diameter: 6 in
• Cylinder Working Volume: 310
• Oil Tank Capacity: 400

Dimensions

• Handle Height (A): 37.9 in
• Overall Length (B): 54.1 in

Weight

• Net Weight: 379 lbs

Additional Information

• Foot Protection: With Foot Guard
• Foldable : No
