Xilin Work Assist Vchicle 197” Fully Electric Mini Order Picker 330lbs OPSM

The OPSM mini order picker is a compact, high-performance solution designed for frequent high-lift tasks such as stock picking, inspections, maintenance, and installations. It is ideal for operations in low-rack warehouses, narrow aisles, and confined spaces, offering increased safety, efficiency, and ease of use.

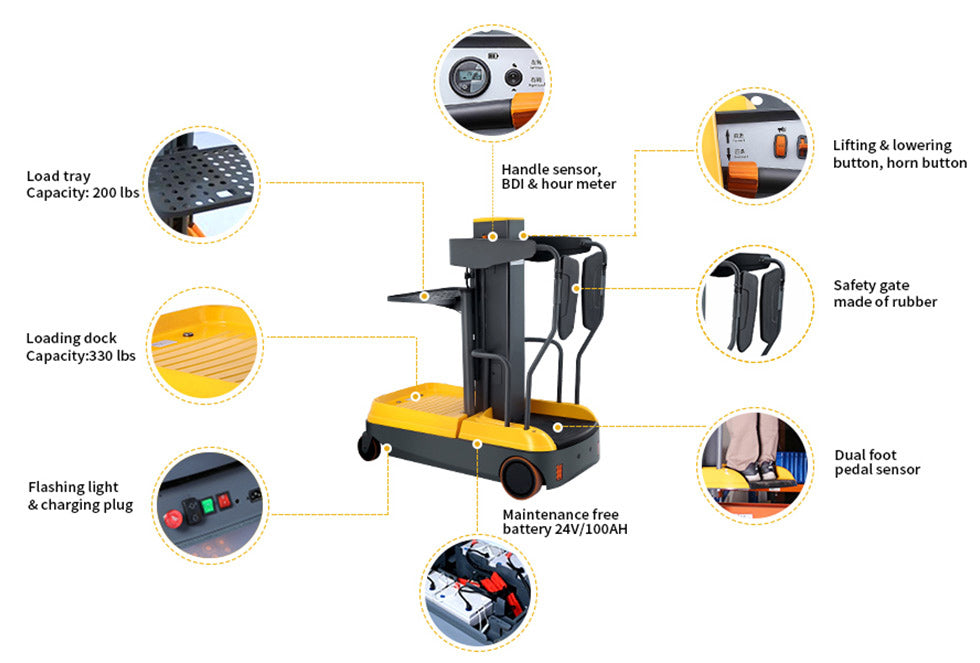

Key Features

1. Multi-Functionality:

   • Capable of lifting, driving, steering, and braking. Its compact dimensions ensure easy maneuverability in tight spaces.

2. Eco-Friendly Design:

   • Powered by a rechargeable battery with low vibration, minimal noise, and zero emissions, making it environmentally friendly.

3. Stable Mast:

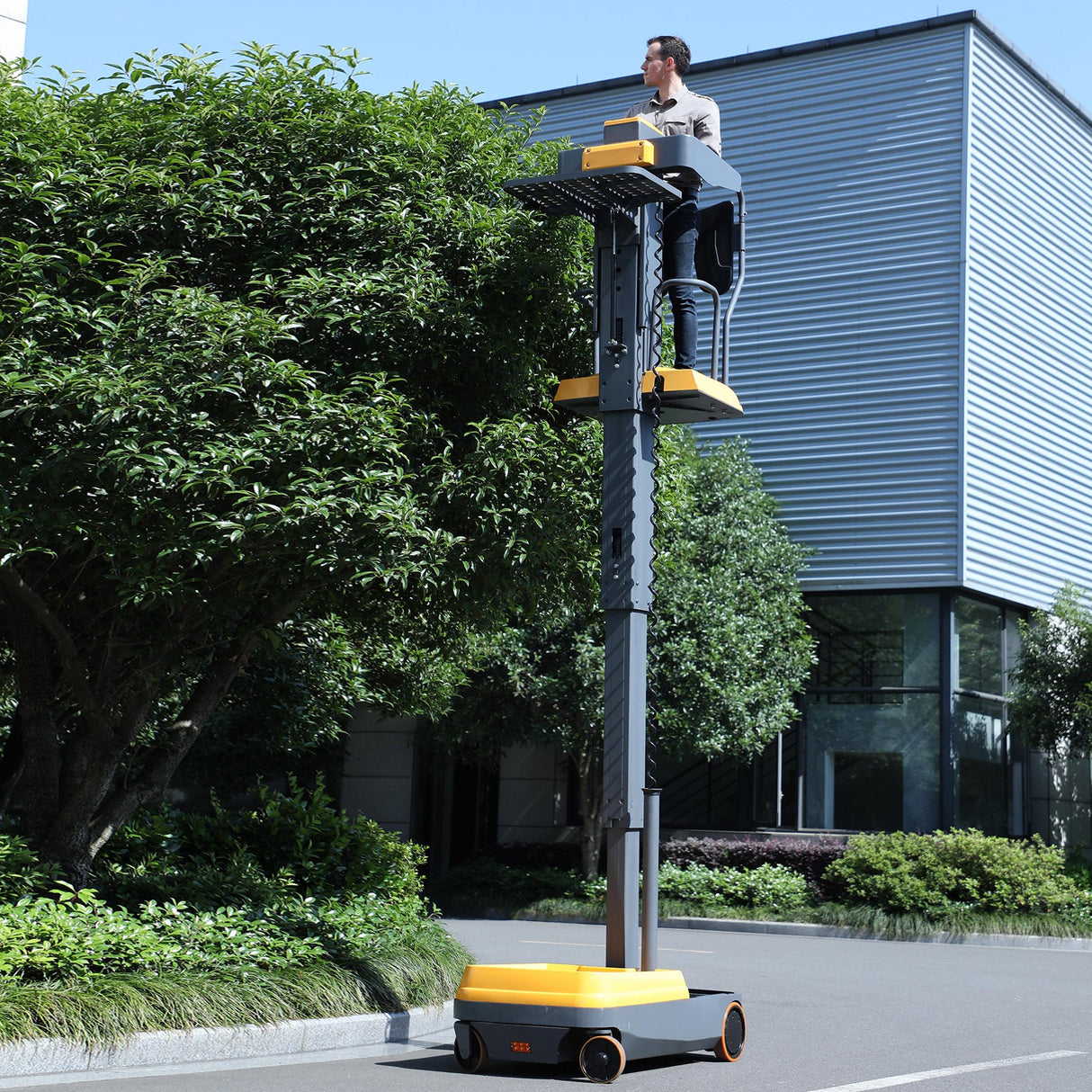

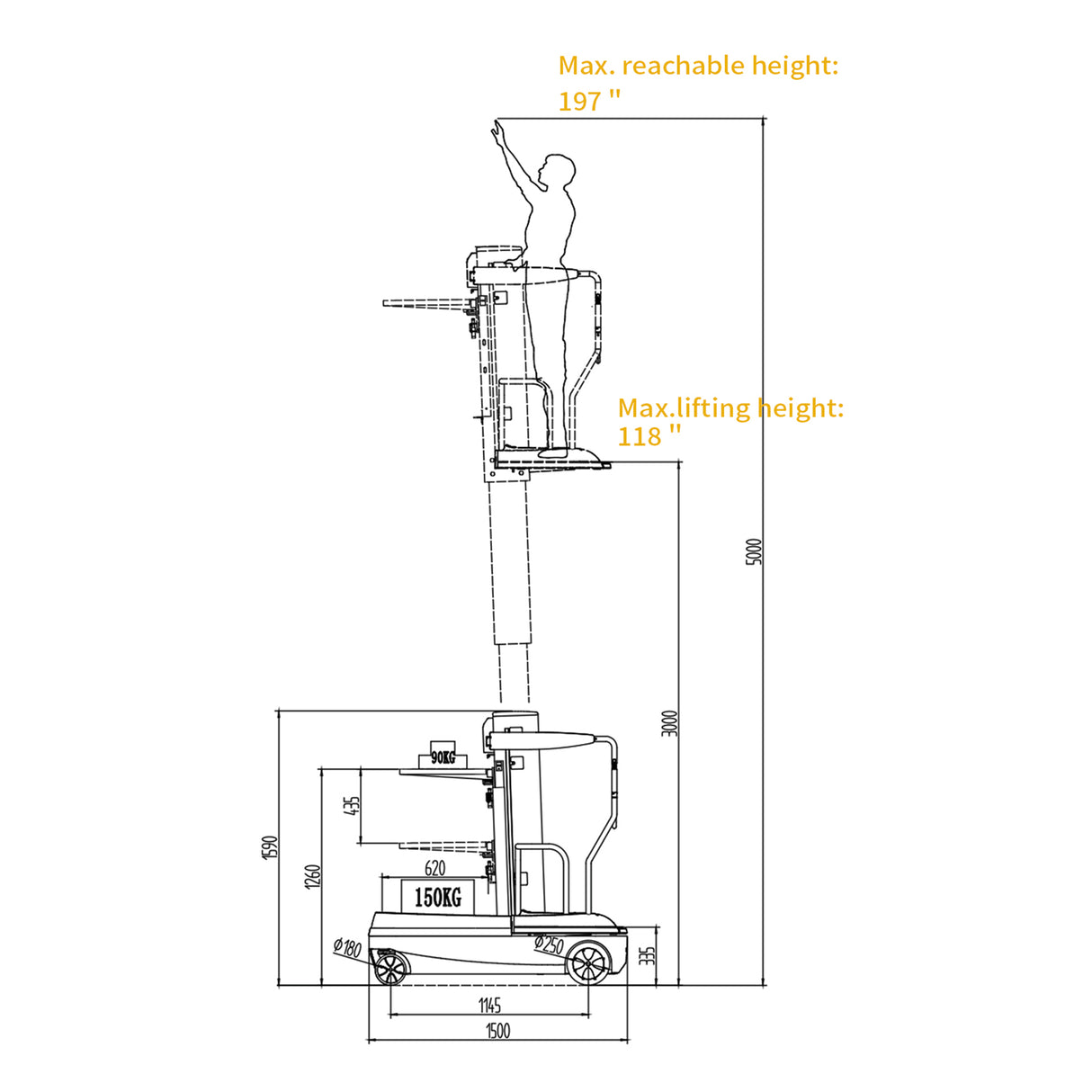

   • Equipped with a robust mast that offers excellent strength, stability, and smooth elevation. It supports a reachable height of up to 197 inches, ideal for accessing the 3rd rack level or performing tasks like changing price tags, ceiling repairs, and light installations.

4. Ergonomic Loading Platform:

   • Features a large platform with a low entry height for easy access. The mesh-designed tray provides clear downward visibility for enhanced safety.

5. Advanced Control System:

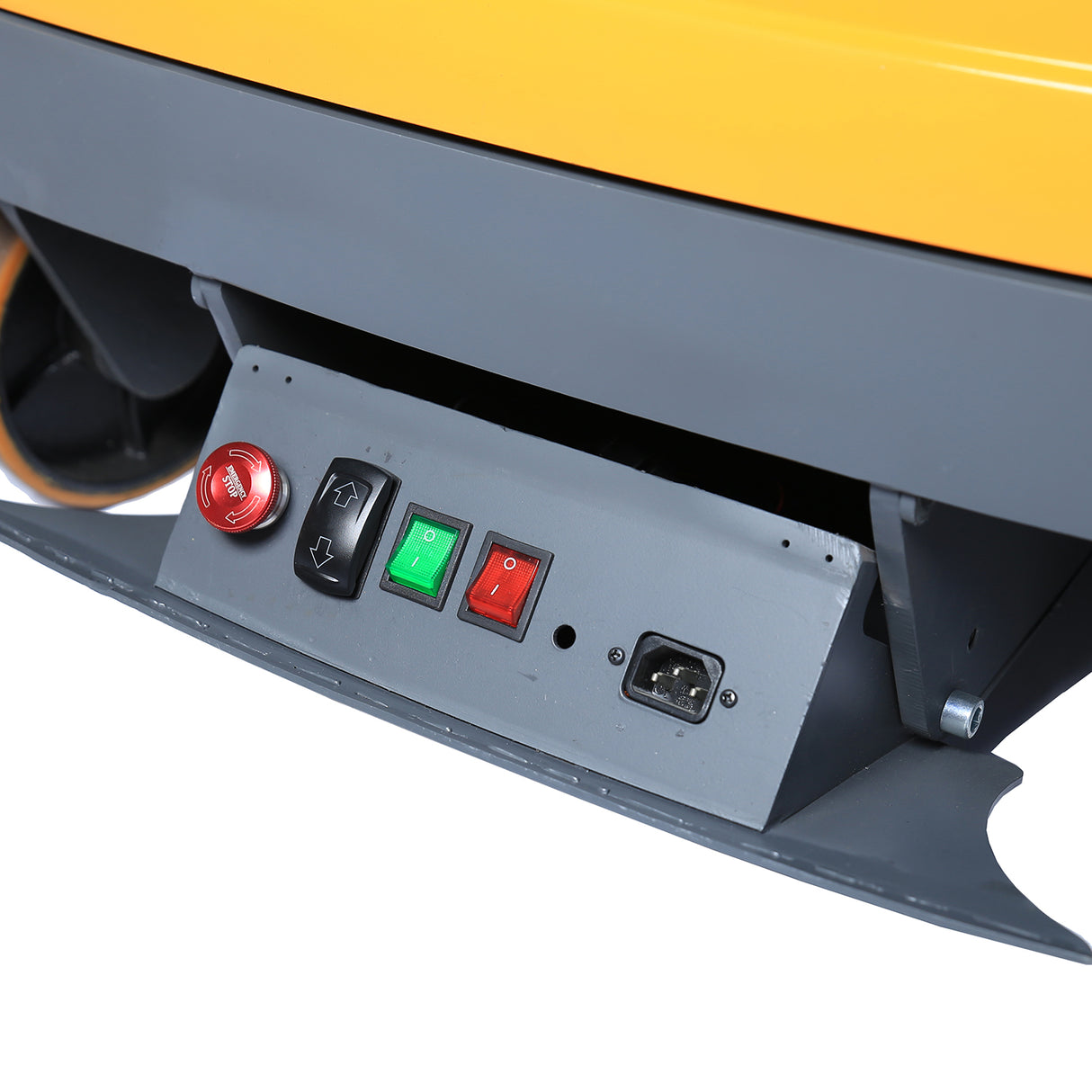

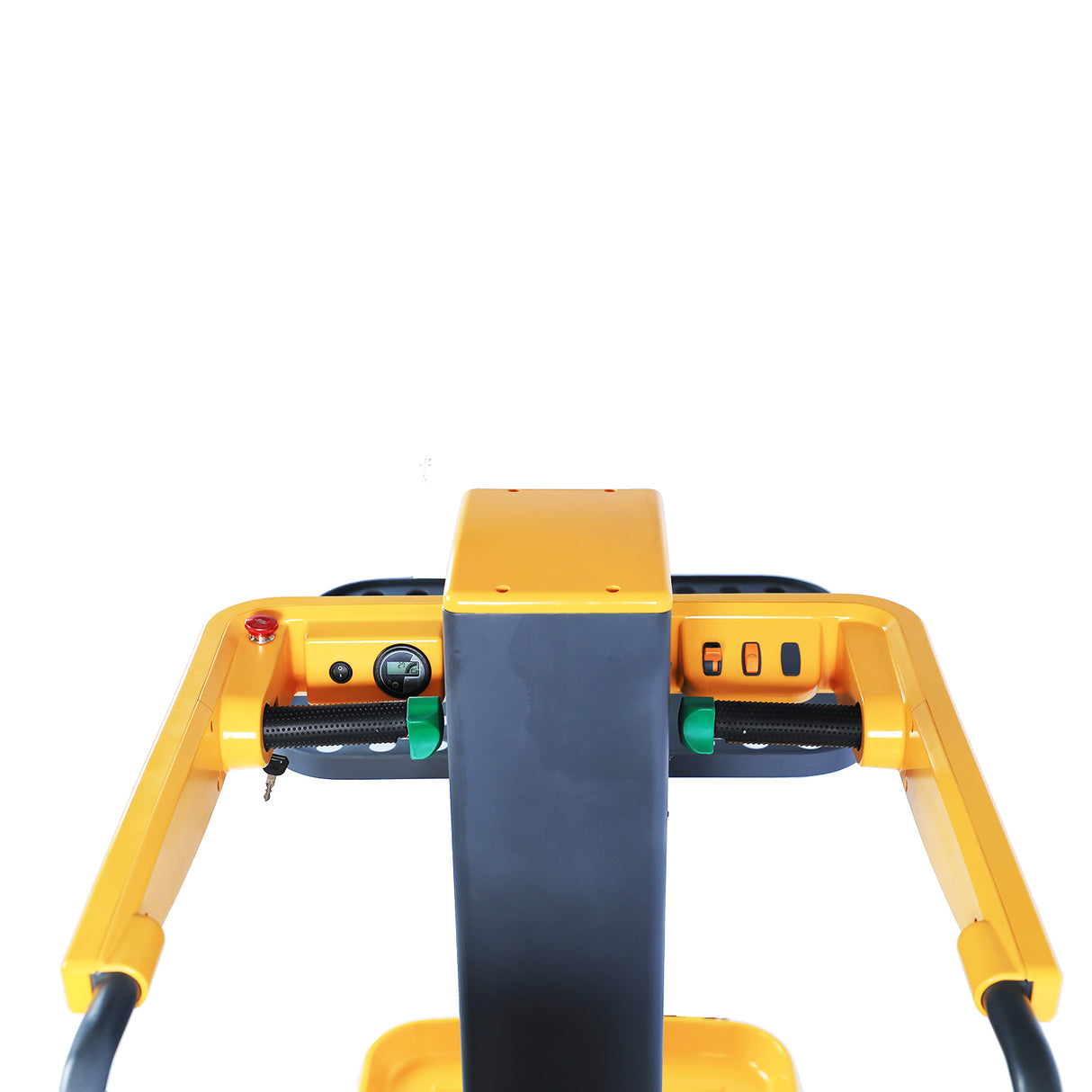

   • Fingertip controls for acceleration, lifting, lowering, and turtle speed mode, along with an emergency stop button, ensure precise operation.

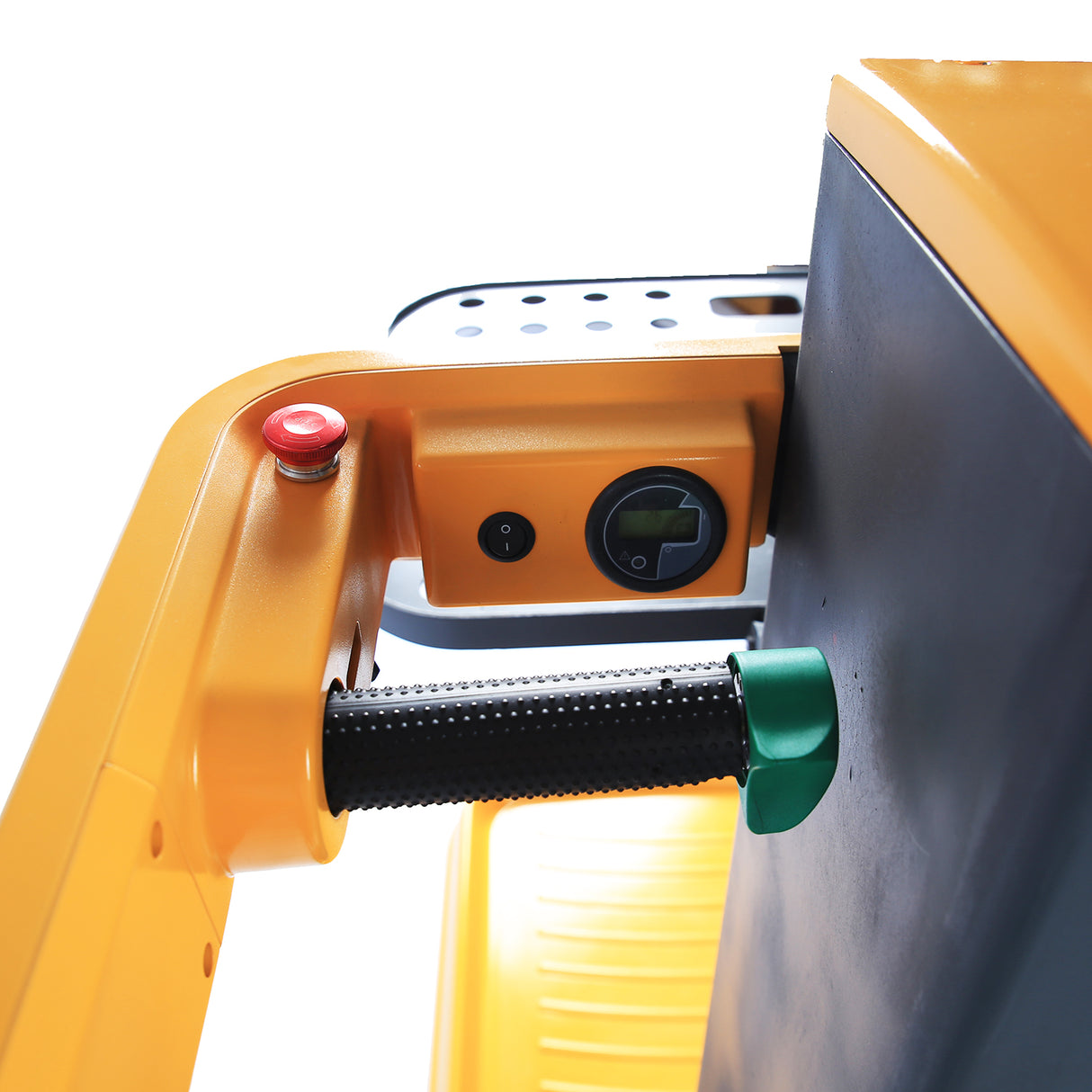

   • The travel, lift, and lower functions are activated via a hand sensor on the control handle.
   • Dual foot sensors ensure the operator's feet are securely positioned on the platform.

6. Safety Mechanisms:

   • Interconnected driving and braking systems prevent dangerous scenarios caused by misuse.
   • Compact body (29½ inches wide) allows the picker to navigate narrow aisles and pass through low doorways easily.

Applications

The OPSM mini order picker is perfect for:

• Picking goods on low to medium-height racks.
• Maintenance, inspections, and light installations in narrow shop aisles or warehouses.
• Tasks requiring high-reach capabilities with compact maneuverability.

By adhering to proper usage and maintenance practices, the OPSM order picker ensures safe, efficient, and reliable operation, protecting both personnel and goods from potential risks.

General Information

• SKU: OPSM
• Drive Type: Electric (Lead-Acid Battery)
• Operator Type: Order Picking
• Wheelbase (y): 45.2 in

Weight

• Service Weight (with Battery): 1,664/1,709 lbs
• Axle Load (Unladen, Front/Rear): 683/981 lbs

Wheels

• Tire Type: Polyurethane
• Front Wheel Dimensions: Ø7.1 × 2 in
• Rear Wheel Dimensions: Ø9.8 × 2.4 in
• Number of Wheels (Front/Rear): 2/2×
• Front Wheel Track (b10): 23.6 in
• Rear Wheel Track (b11): 27.2 in

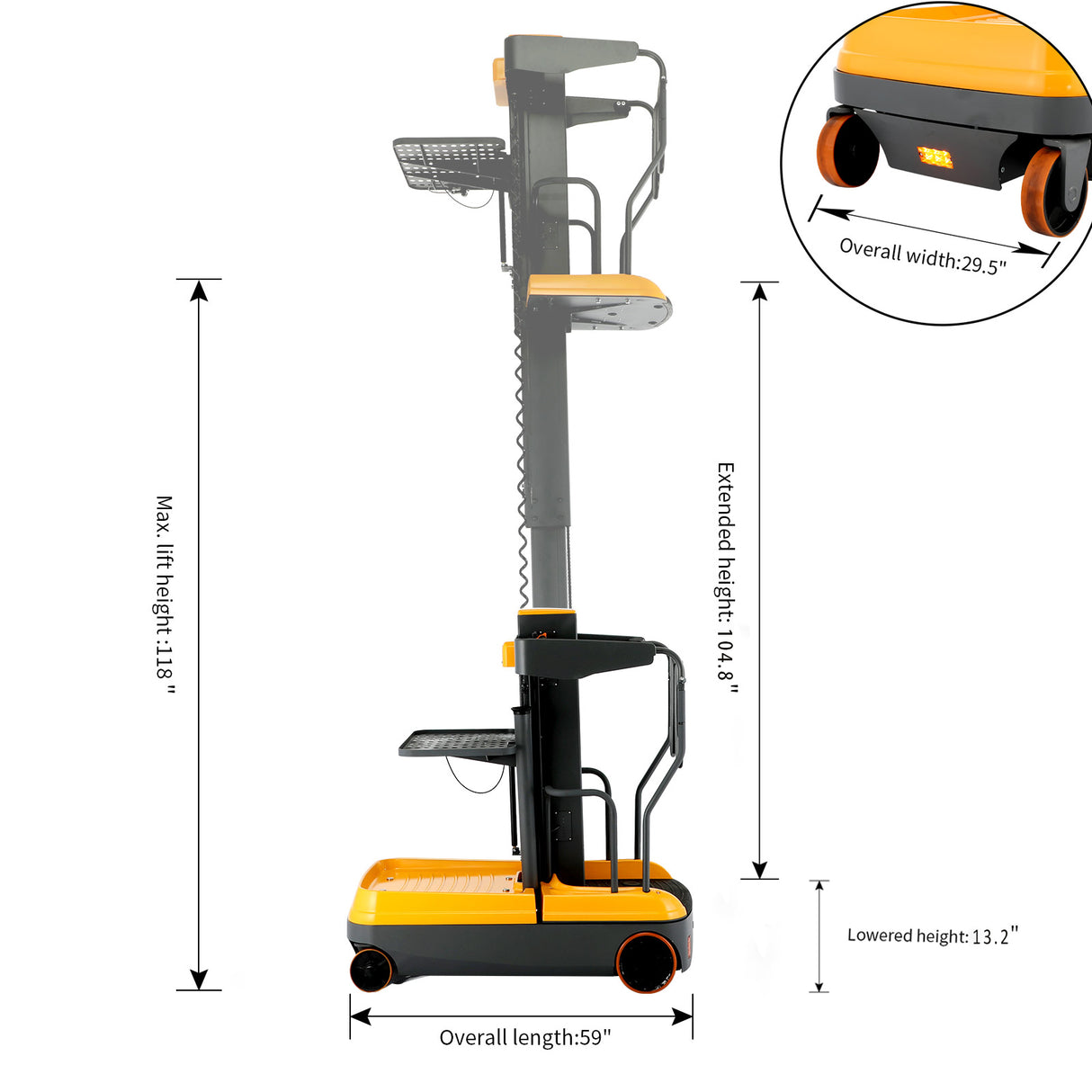

Dimensions

• Height of Mast (Lowered): 62.6 in
• Free Lift Height: 10.6 in
• Lift Height: 144.3 in
• Max Mast Height (Extended): 167.5 in
• Platform Ground Clearance (h7): 13.2 in
• Handle Height (h14): 44.1 in
• Additional Lift Height (h9): 50 in
• Max Platform Height (h12): 118.1 in
• Lowered Pallet Height (h13): 39.4 in
• Overall Length (l1): 59.1 in
• Overall Width (b1/b2): 29.5 in
• Pallet Dimensions: 27.6 × 19.7 in
• Ground Clearance at Center of Wheelbase (m2): 2.6 in
• Aisle Width (Ast): 68.9 in
• Turning Radius (Wa): 51.2 in

Performance

• Travel Speed (Laden/Unladen): 2.8 mph
• Lift Speed (Laden/Unladen): 6.3 / 7.1 in/s
• Lowering Speed (Laden/Unladen): 5.9 / 5.9 in/s
• Max Gradeability (Laden/Unladen): 5% / 8%
• Brake Type: Electromagnetic

Electric Motor

• Drive Motor Power (S2 60 min): 0.5 kW (DC)
• Lift Motor Power (S3 15%): 2.2 kW
• Battery Voltage/Capacity: 24V / 105Ah
• Battery Weight: 114 lbs
• Battery Dimensions (L × W × H): 10.2 × 6.6 × 8.5 in

Additional Data

• Drive Control Type: DC Control System
• Steering Type: Electric Steering
• Noise Level at Driver’s Position: 70 dB(A)
