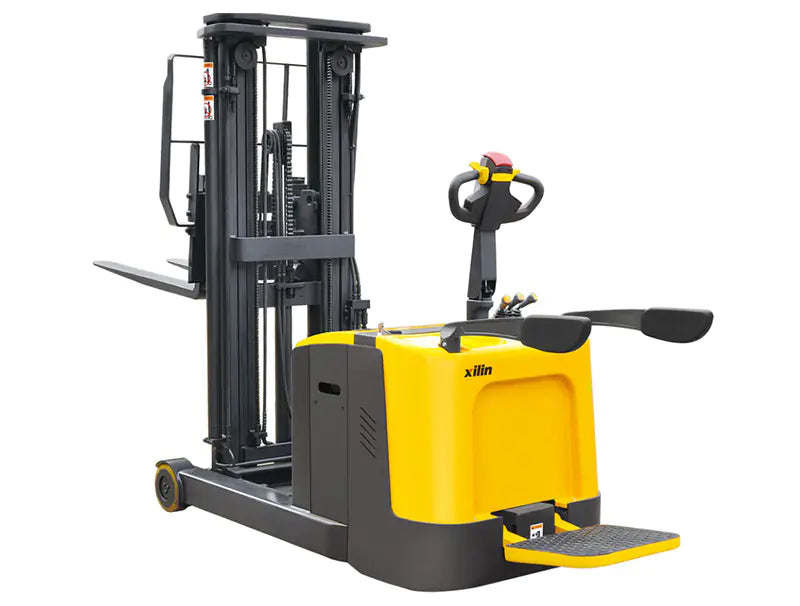

Counterbalanced Electric Reach Stacker – 2,756 lbs Capacity, 8.2–18.4 ft Lift Height
Counterbalanced Electric Reach Stacker – 2,756 lbs Capacity, 8.2–18.4 ft Lift Height is backordered and will ship as soon as it is back in stock.
Why Xilin
Why Xilin
Why Choose Xilin Material Handling LLC?
The Trusted Expert in Material Handling Equipment
Xilin Material Handling LLC is a leading manufacturer specializing in the production of material handling equipment. Since our establishment, we have dedicated ourselves to creating high-quality, professional, and reliable solutions for industries worldwide. When you choose Xilin, you’re partnering with a company that values innovation, craftsmanship, and a customer-first approach.
Unmatched Product Excellence: Electric Forklifts
Our electric forklift series is at the forefront of our product range, setting new standards in material handling. Designed for optimal performance and efficiency, our electric forklifts provide:
- Exceptional Performance: Engineered for a variety of material handling tasks, ensuring smooth and stable operations.
- Cost-Effective Solutions: Providing high-quality equipment at competitive prices, giving you the best value for your investment.
- Durability You Can Count On: Built to last with compliance to international standards, ensuring long-term reliability in the toughest environments.
Efficient Logistics and Comprehensive After-Sales Support
- Fast Delivery: With strategically located warehouses, Xilin ensures prompt delivery to meet the needs of our global customers.
- Expert After-Sales Service: Our dedicated after-sales team is here to assist you with everything from installation and training to regular maintenance, ensuring seamless operations and helping you overcome any challenges in your material handling needs.
Confidence in Every Partnership
At Xilin, we prioritize your success. By choosing us, you not only get access to top-tier material handling equipment but also benefit from our full range of services, designed to give you peace of mind throughout the lifecycle of your equipment. Trust Xilin for reliability, performance, and long-term value.
Choose Xilin, Choose Excellence
With Xilin Material Handling LLC, you are assured of high-quality products, dependable support, and a commitment to your business’s success. Let us help you optimize your material handling processes for greater efficiency and productivity.
For more information or inquiries, don't hesitate to contact us!
Counterbalanced Electric Reach Stacker – 2,756 lbs Capacity, 8.2–18...
Description
Description
Structural Features
- Dual lifting cylinders placed on the outer sides of the mast for enhanced stability.
- Mast made of imported German special steel, ensuring long-lasting durability.
- Vertical driving wheel design for high driving efficiency and easy maintenance.
- Compact structure with a low center of gravity for safer operation in narrow aisles.
Safety and Efficiency
- AC frequency conversion traction motor: compact, high-performance, regenerative braking, and low-maintenance.
- Fork tilting system for smooth loading and stacking.
- High-capacity storage battery provides strong and long-lasting power.
- Battery meter with BDI prolongs battery life.
- Combined magnetic and regenerative braking system extends the life of friction components.
- Equipped with emergency stop switch, electric lock button, and ergonomic multi-valve control levers.
- Adjustable regulator valve allows precise control of mast lowering speed.
Easy Maintenance
- Magnetic suction battery cover allows quick battery installation and replacement.
- AC control system ensures low noise and minimal maintenance requirements.

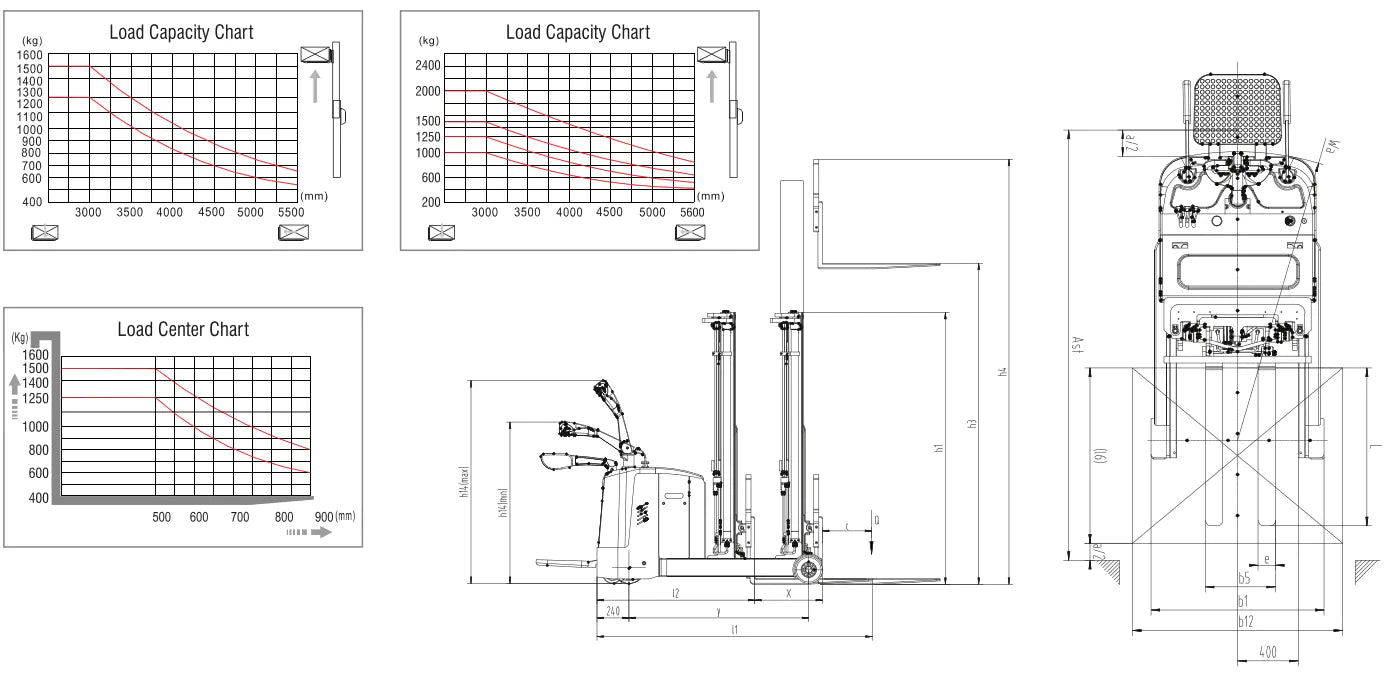

Technical Specifications (US Units)
| Model | CQD12R | CQD15R | CQD20R (EPS Option) |
|---|---|---|---|
| Rated Load | 2,756 lbs | 3,307 lbs | 4,409 lbs |
| Load Center | 19.7 in | 19.7 in | 19.7 in |
| Load Distance (Axle to Fork) | 17 in | 20.5 in | 21.7 in |
| Wheelbase | 54.3 in | 58.3 in | 63 in |
| Service Weight | 3,968 lbs | 4,724 lbs | 5,071 lbs |
| Axle Load (Unladen F/R) | 2,646 / 1,323 lbs | 2,998 / 1,678 lbs | 3,660 / 5,817 lbs |
| Axle Load (Laden F/R) | 2,380 / 4,450 lbs | 2,844 / 5,180 lbs | 3,571 / 1,499 lbs |
| Tyres | Polyurethane | Polyurethane | Polyurethane (EPS Drive Wheel: 9.8×3.1 in) |
| Front Tyre Size | 9.8×2.8 in | 9.8×2.8 in | 9.8×3.1 in |
| Rear Tyre Size | 8.3×3.3 in | 8.3×3.3 in | 8.3×4.5 in |
| Fork Dimensions (S/E/L) | 1.4 / 3.9 / 37.4 in | 1.4 / 3.9 / 37.4 in | 1.6 / 3.9 / 37.4 in |
| Fork Spread | 7.9–26.8 in | 7.9–26.8 in | 7.9–26.8 in |
| Lift Height | 8.2–18.4 ft | 8.2–18.4 ft | 8.2–18.4 ft |
| Mast Height (Lowered / Extended) | 6.2–8.7 ft / 11.5–21.7 ft | 6.4–8.7 ft / 13.1–21.7 ft | 6.2–8.7 ft / 11.5–21.7 ft |
| Aisle Width (1000×1200 mm pallet) | 8.5 ft | 8.9 ft | 9.2 ft |
| Turning Radius | 5.4 ft | 5.7 ft | 6.1 ft |
| Travel Speed (Laden/Unladen) | 4.2 / 4.3 mph | 4.2 / 4.3 mph | 4.3 / 4.5 mph |
| Lift Speed (Laden/Unladen) | 0–0.43 / 0–0.66 ft/s | 0–0.43 / 0–0.66 ft/s | 0.36 / 0.66 ft/s |
| Lowering Speed (Laden/Unladen) | 0–0.82 / 0–0.66 ft/s | 0.82 / 0.66 ft/s | 0–0.75 / 0–0.66 ft/s |
| Max Gradeability (Laden/Unladen) | 6% / 10% | 6% / 10% | 10% / 15% |
| Drive Motor | 1.2 kW (AC) | 1.2 kW (AC) | 1.2 kW (AC) |
| Lift Motor | 4.5 kW | 4.5 kW | 4.5 kW |
| Battery | 24V / 270Ah | 24V / 270Ah | 24V / 280–360Ah (Lithium Option 230Ah, Charger 24V/100A) |
| Battery Weight | 573–705 lbs | 573–705 lbs | 617–727 lbs |
| Sound Level at Operator Seat | 65 dB(A) | 65 dB(A) | 65 dB(A) |
Optional Features
- EPS (Electronic Power Steering) for easier maneuverability.
- Lithium battery with fast charging (230Ah, 24V/100A).
