High Lift 3300lbs 177” Fully Electric Straddle Walkie Pallet Lift Stacker CTDR15-III-177

• High-storage battery ensures strong and long-lasting power.
• Long handle structure makes steering light and flexible.
• Mast made of special steel imported from Germany.
• Vertical driving wheel design improves driving efficiency and simplifies installation and maintenance.
• Compact structure with low center of gravity for better stability.
• AC frequency conversion traction motor offers a compact structure, excellent performance, regenerative braking, and easy maintenance.
• Tilting fork system facilitates easy loading and stacking.
• Equipped with a meter featuring a Battery Discharge Indicator (BDI), extending battery lifespan.
• The braking system combines magnetic braking and regenerative braking, significantly prolonging the friction plate's service life.
• Includes an emergency stop switch and electricity lock button, along with multi-valve controlling levers for ergonomic operation.
• The adjustable regulator valve allows precise control of the mast's lowering speed.
• Magnetic suction battery cover ensures easy installation and maintenance


Drive

• Type: Electric (Battery)

Operator Type

• Type: Walk-behind

Specifications

• Model: CTDR15-III-177"
• Rated Load: 3,307 lbs
• Load Center Distance: 23.62 in
• Wheelbase: 65.1 in

Weight

• Service Weight (with Battery): 3,086 lbs
• Axle Load (Loaded, Front/Rear): 2,821 lbs / 2,359 lbs
• Axle Load (Unloaded, Front/Rear): 1,433 lbs / 441 lbs

Wheels & Tyres

• Tyre Type: Polyurethane
• Front Tyre Dimensions: Ø9.84 x 2.76 in
• Rear Tyre Dimensions: Ø3.15 x 2.76 in
• Additional Wheels: Ø5.91 x 2.36 in
• Number of Wheels (Front/Rear): 1x+1/4
• Front Wheel Track: 20.47 in
• Rear Wheel Track: 15.75 in / 20.67 in

Dimensions

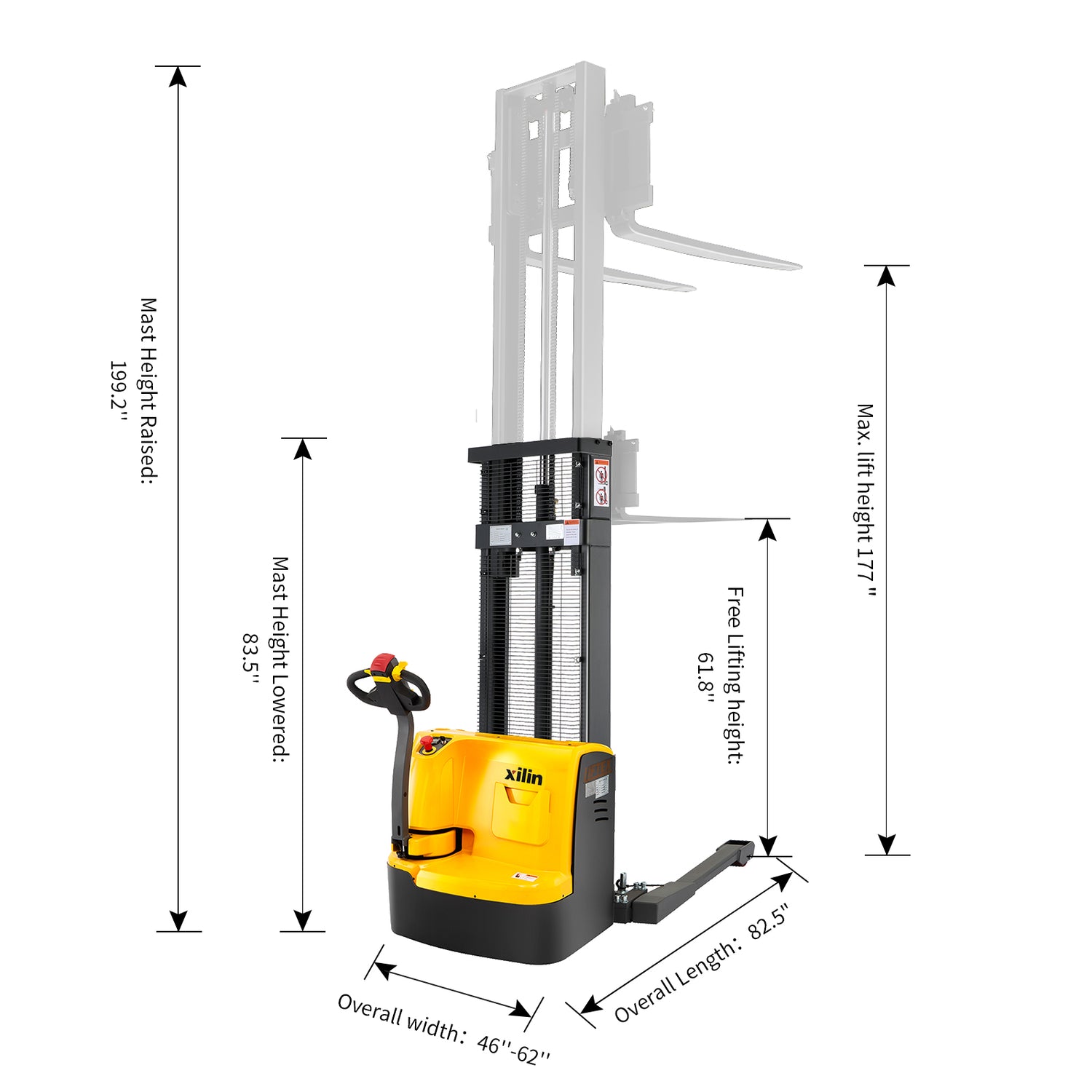

• Height, Mast Lowered: 83.3 in
• Max. Lifting Height: 177 in
• Height, Mast Extended: 199.2 in
• Handle Height (Min./Max.): 26.38 in / 51.18 in
• Fork Lowered Height: 2.8 in
• Overall Length: 82.4 in
• Length to Face of Forks: 34.57 in

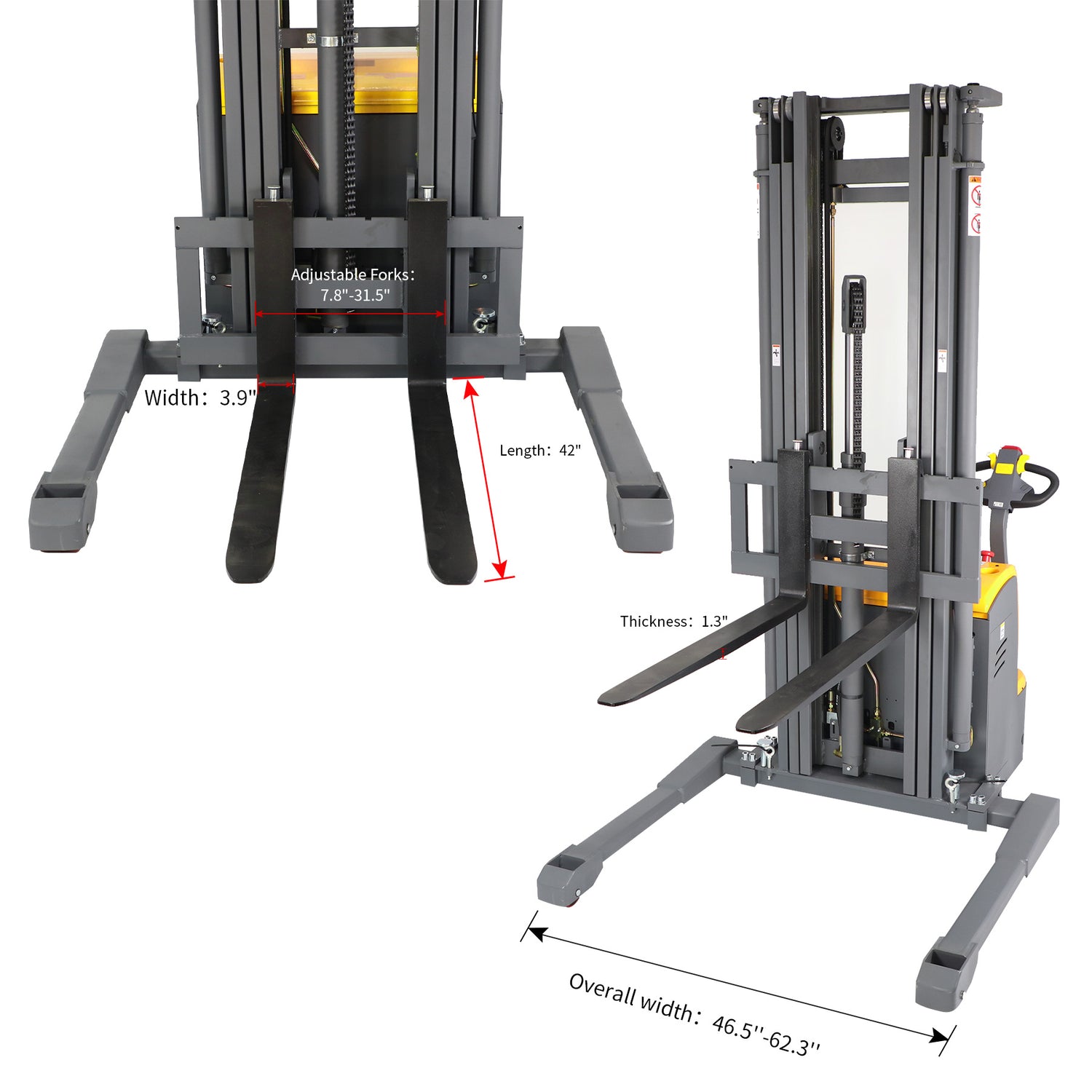

• Overall Width: 46.6-62.3 in
• Fork Dimensions (Thickness x Width x Length): 2.36 x 6.69 x 45.28 in
• Fork Width (External): 7.8-31.5 in
• Ground Clearance: 1.02 in
• Aisle Width (Pallet 1000 x 1200 mm, crossways): 92.1 in
• Aisle Width (Pallet 800 x 1200 mm, lengthways): 92.91 in
• Turning Radius: 65.1 in

Performance

• Travel Speed (Laden/Unladen): 3.6 mph / 3.7 mph
• Lift Speed (Laden/Unladen): 3.5 in/s / 6.3 in/s
• Lowering Speed (Laden/Unladen): 5.9 in/s / 6.3 in/s
• Max. Gradeability (Laden/Unladen): 6% / 15%
• Brake Type: Electromagnetic

Motor

• Drive Motor Power: 1.2 KW (AC)
• Lift Motor Power: 2.2 KW

Battery

• Voltage/Capacity: 24V / 200Ah
• Weight: 352.74 lbs
• Dimensions (L x W x H): 31.50 x 10.00 x 12.60 in

Noise Level

• Driver's Ear (compliant with DIN12053): 70 dB(A)
