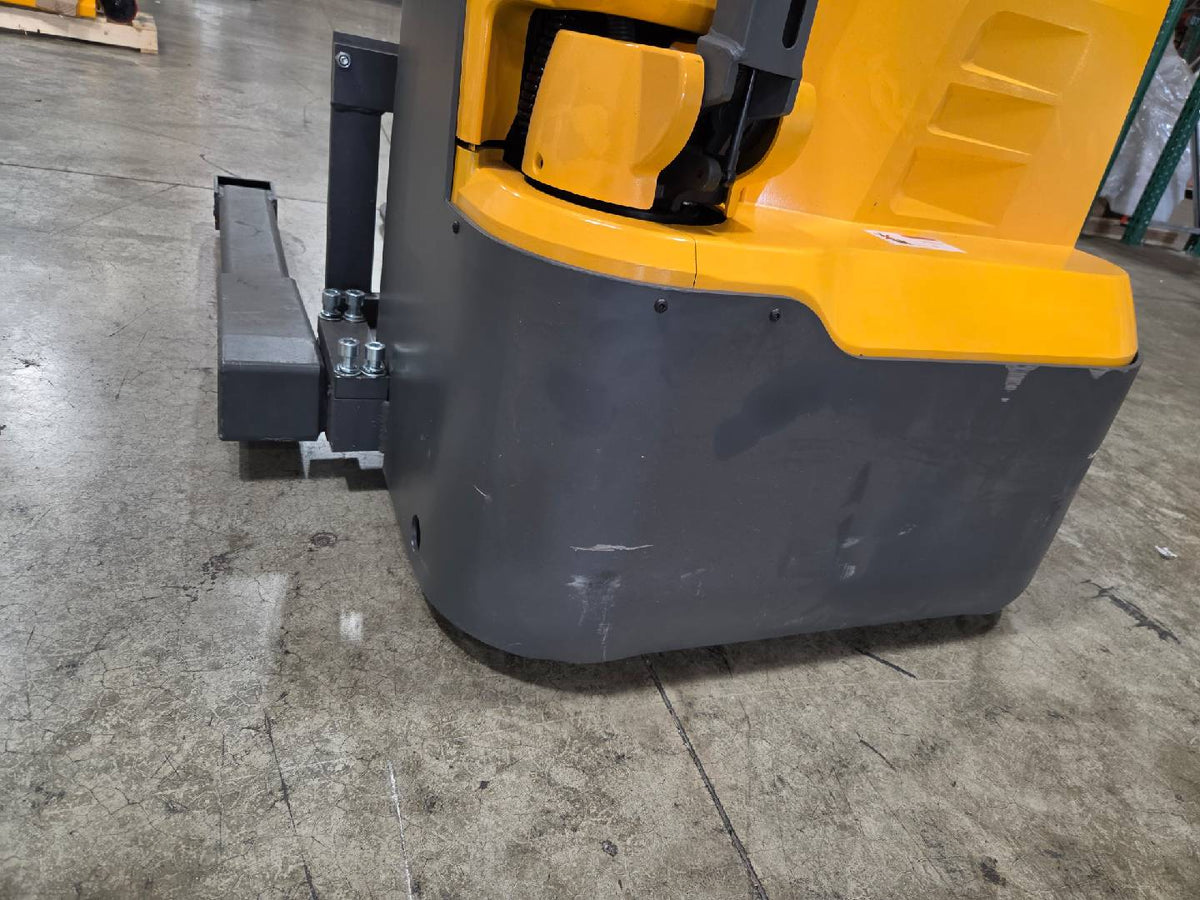

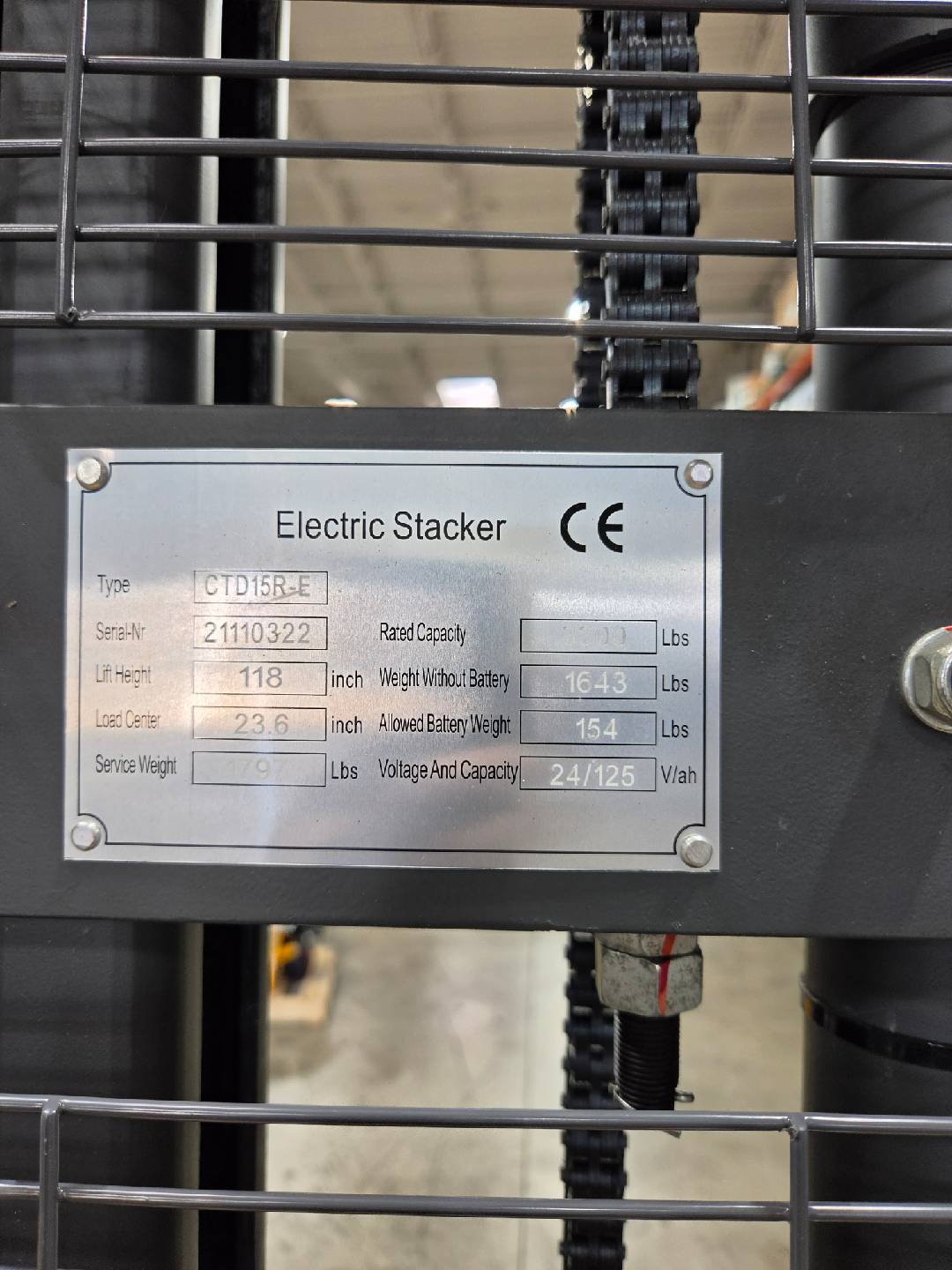

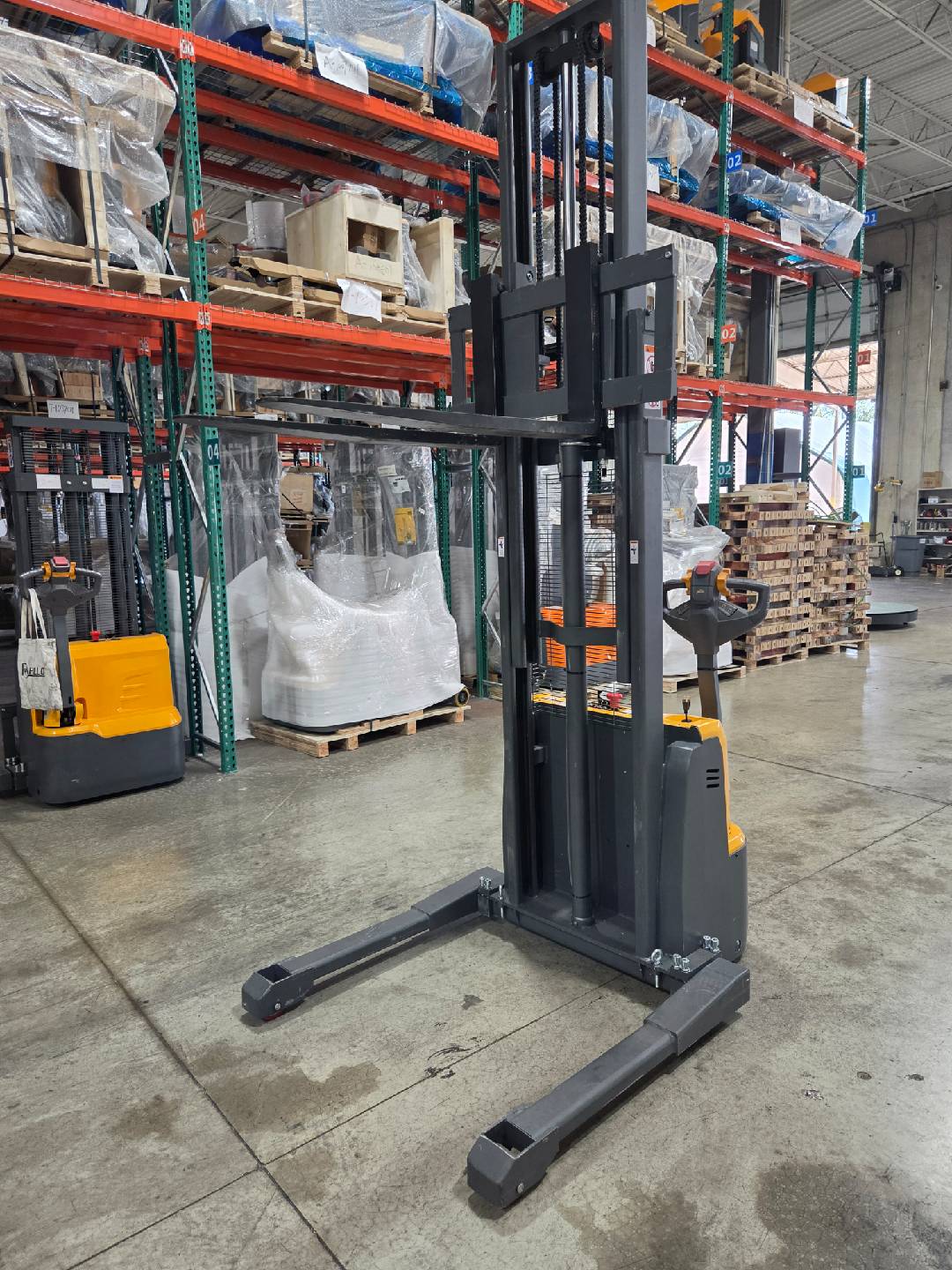

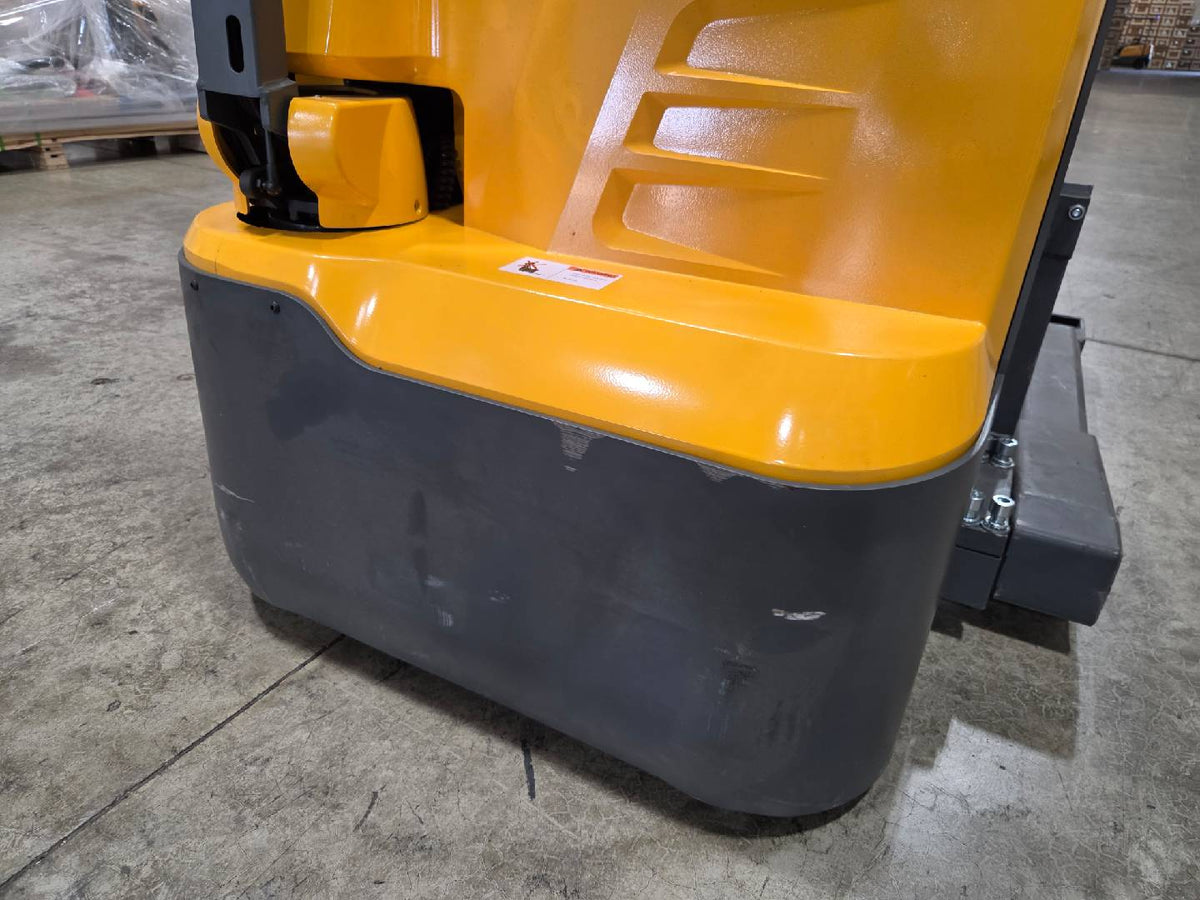

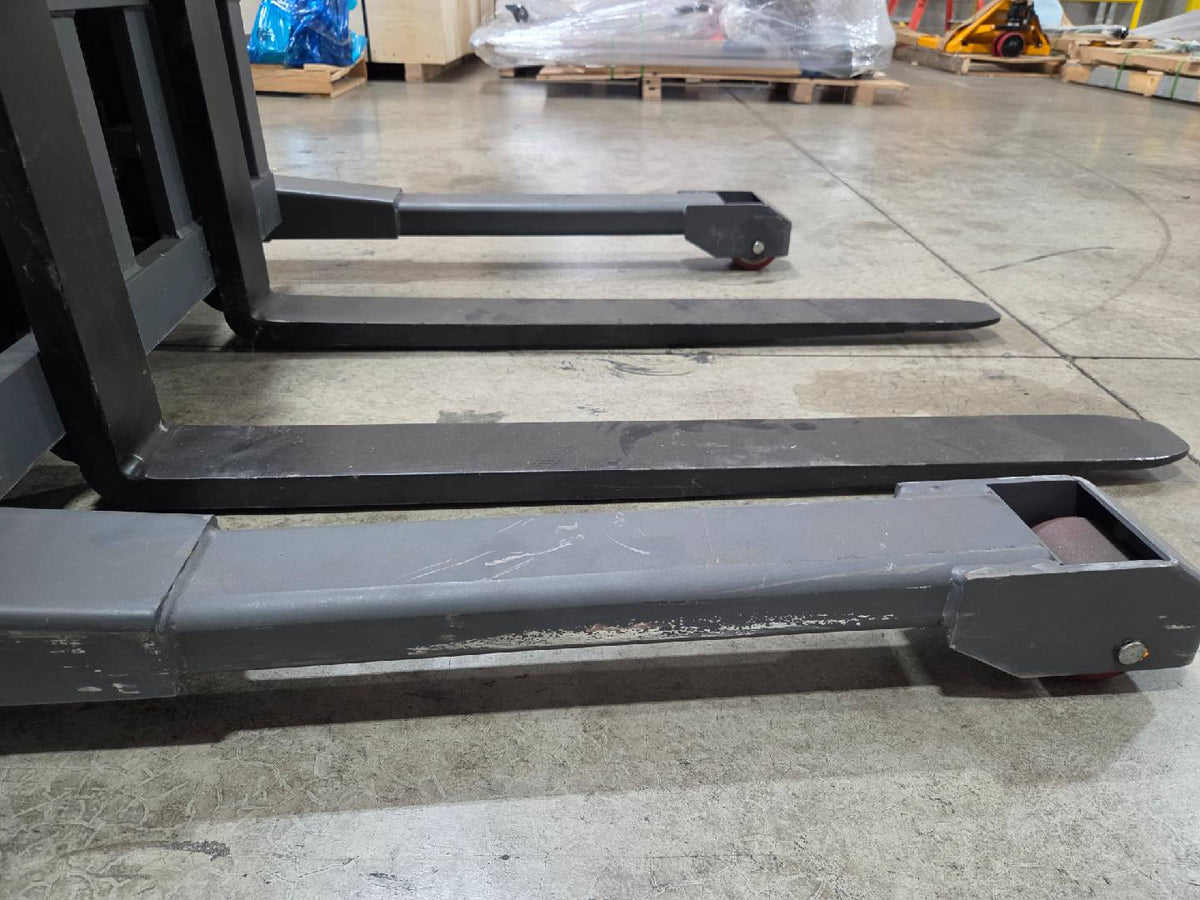

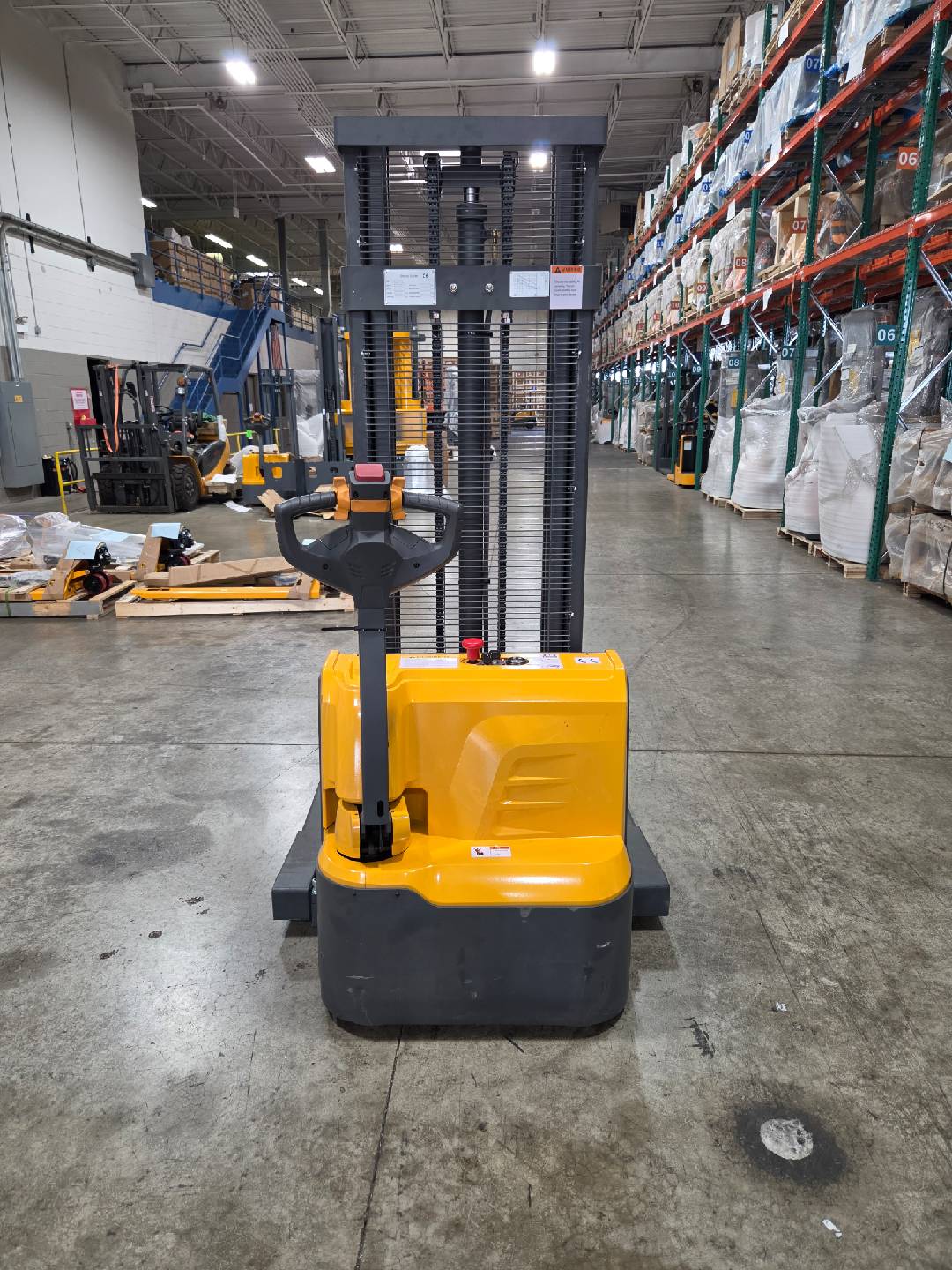

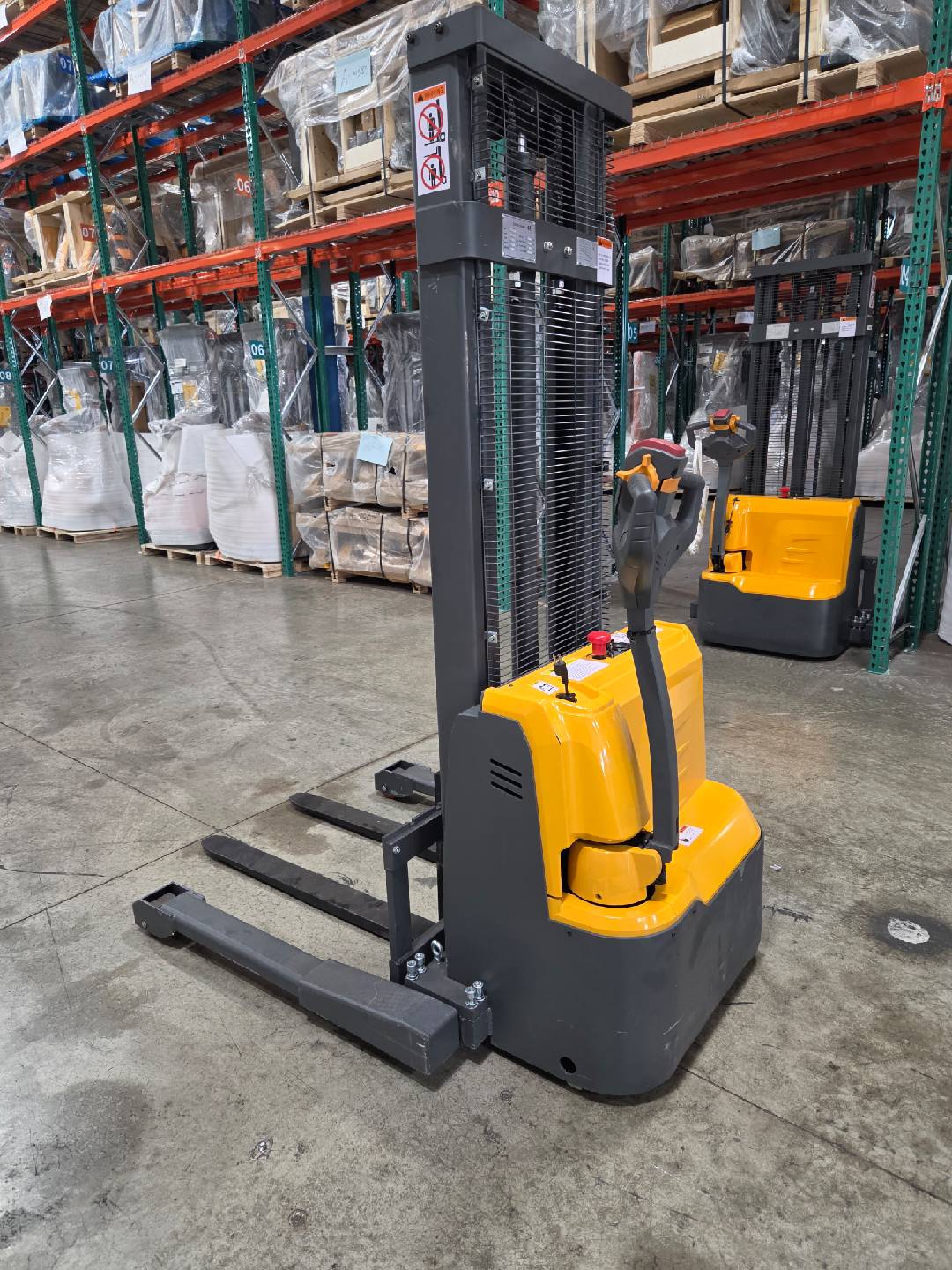

Xilin USED Electric Stacker – 3,300 lb Capacity, 118" Lift, CTD15R-E-118 – 21110322

Reference:
CTD15R-E-118-USED-21110322
Category:
Electric Stacker

Load capacity 3300 lbs.
Battery 24V/125Ah
Fork dimensions 42X7.8-31.5in
Turning radius 60.2in
Compatible Pallet Types All Pallets
Speed (Laden/UL) 2.8 / 3.1 mph
View all specifications

Used Equipment Policy

  • 3-Month Limited Warranty

    Coverage starts on the date you receive the equipment.

  • Replacement Parts Only

    Covered replacement parts are provided at no charge. Labor is not included.

  • Final Sale

    No returns or refunds on used machine orders.

No extended warranty is available.

Specifications

Capacity
3300 lbs.
Aisle Width
93.1"
Max. Lifting Height
118"
Inside Distance Between Forks
0.1-23.6"
Fork Length
42"
Fork Overall Width
7.8-31.5"
Single Fork Width
3.9"
Compatible Pallet Types
All Pallets
Overall Height
84.4-143.5"
Overall Length
70.3"
Overall Width
46.5-62.3"
Turning Radius
60.2"
Lifting Distance
114.9"
Fork Thickness
1.4"
Fork Lowered Height
3.1"
Service Weight
1840 lbs.
Gross Weight
1850 lbs.
Package Size
47"x34"x88"
Driving Speed - Unladen
3.1 mph
Driving Speed - Laden
2.8 mph
Lifting Speed - Empty
5.9 inch/s
Lifting Speed - Loaded
3.5 inch/s
Gradeability - Empty
15%
Gradeability - Loaded
6%
Load Wheel Type
Single Wheel
Total Wheel Count
4
Battery Capacity
125Ah
Battery Spec
24V/125Ah
Battery Voltage
24V
Battery Type
GEL battery
Charger
24V/10A built-in
