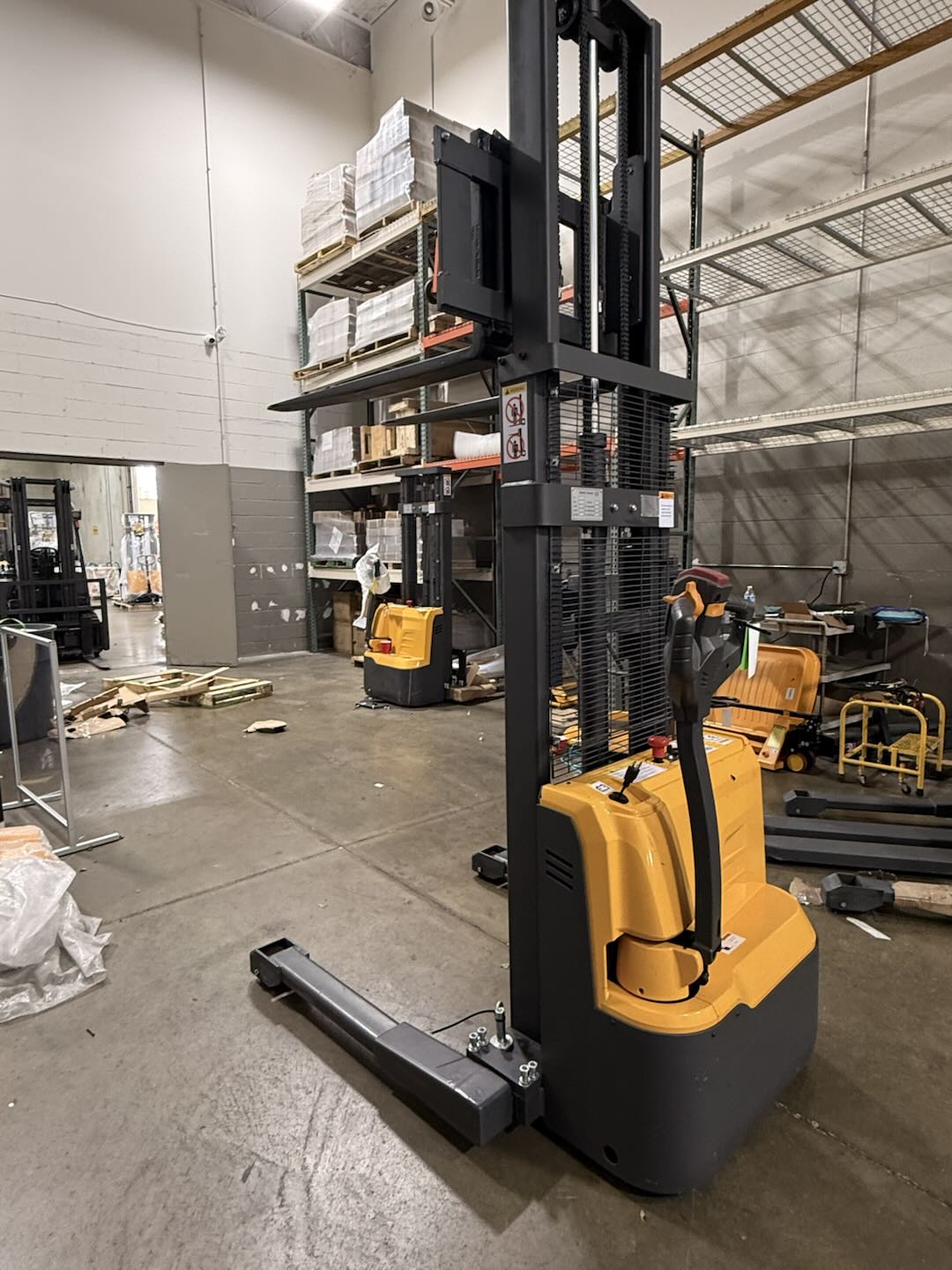

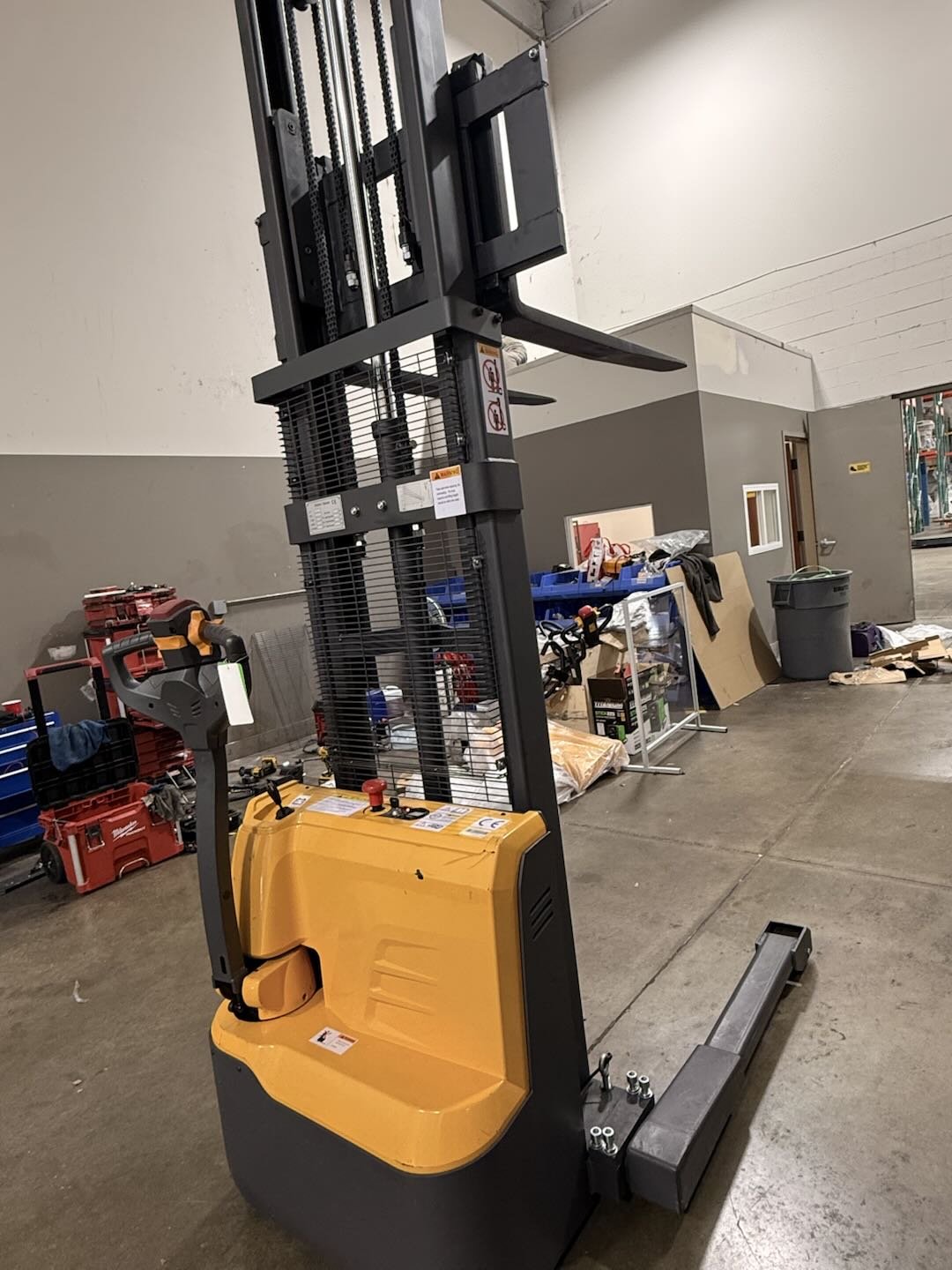

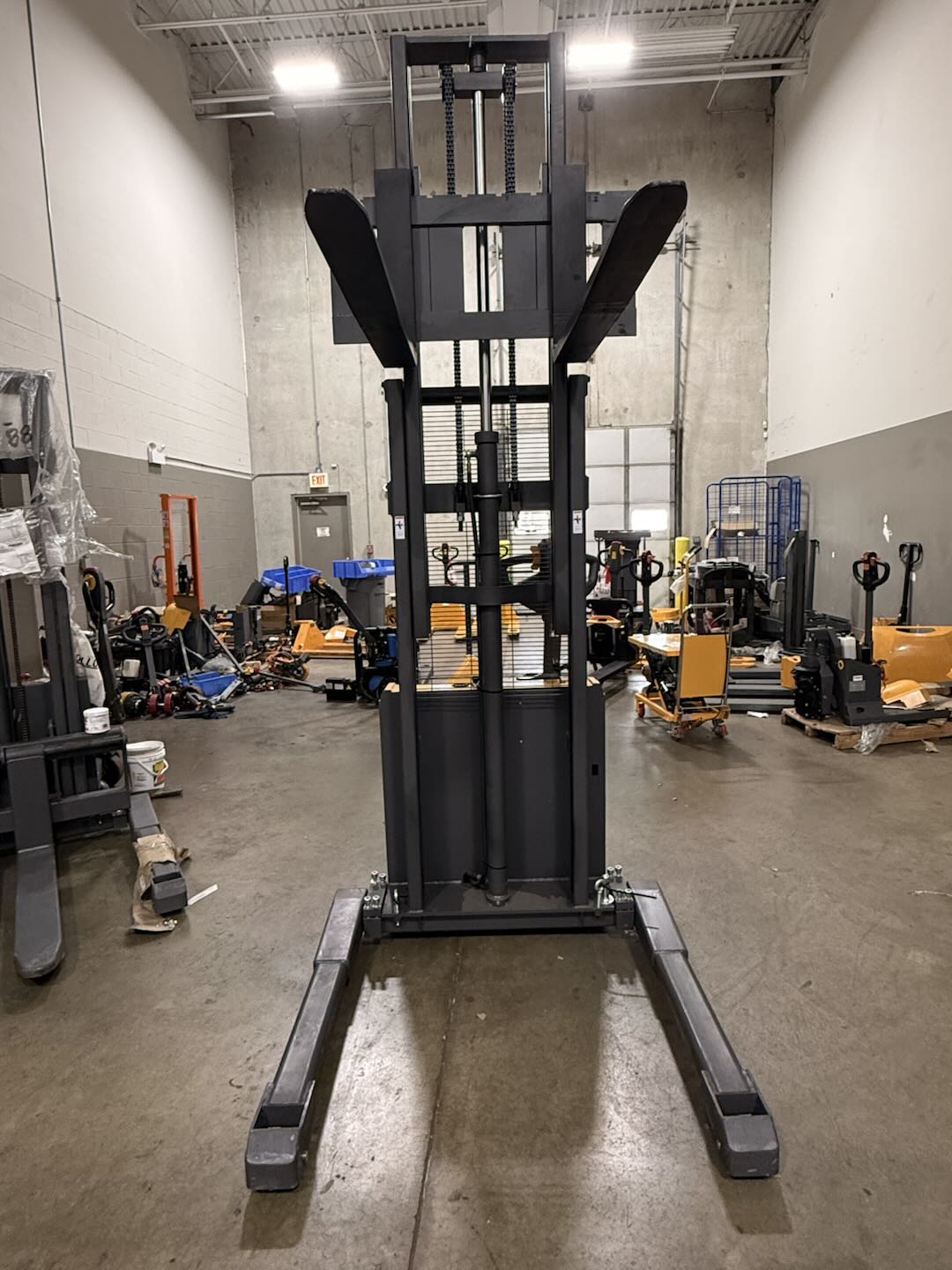

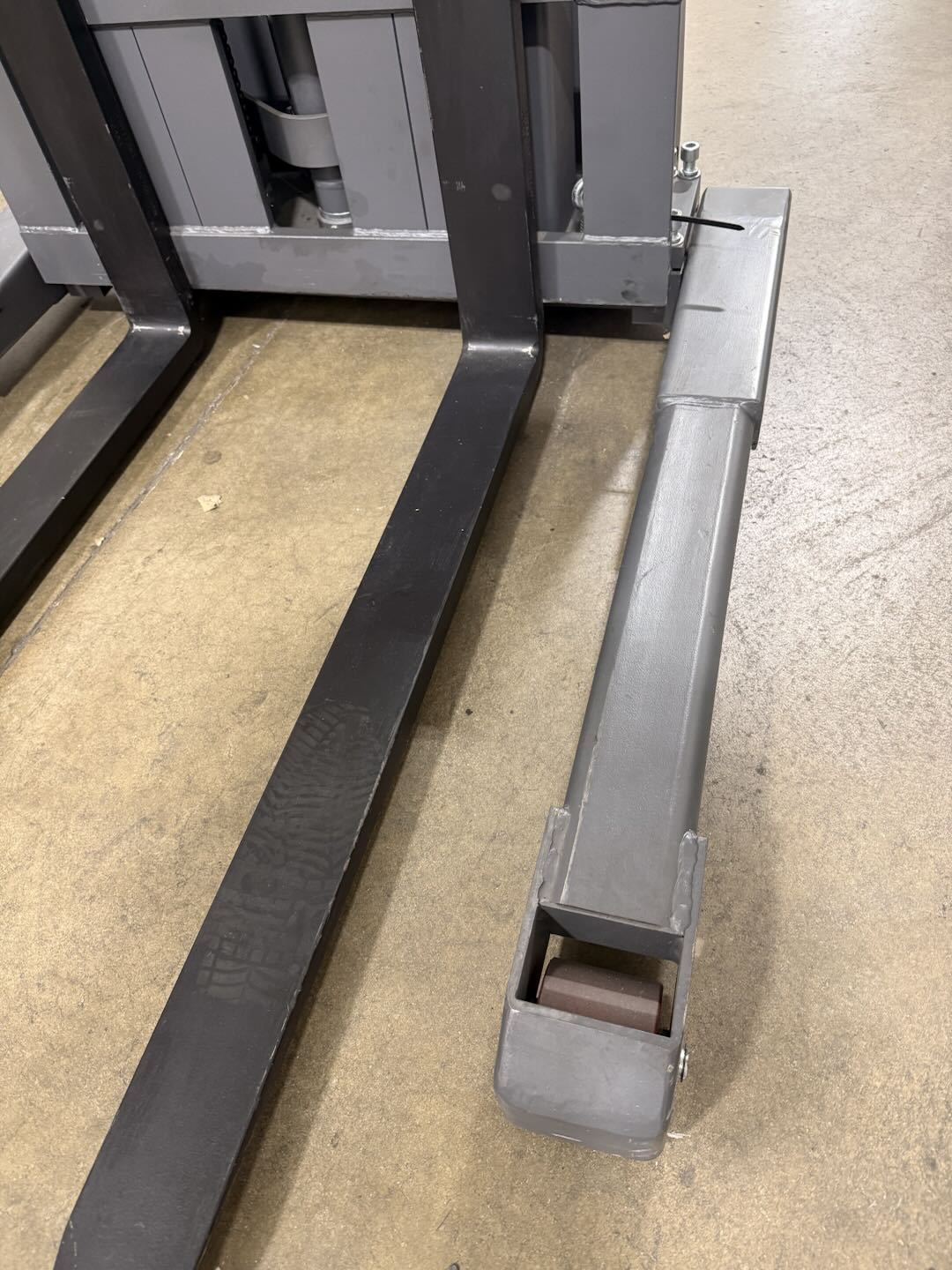

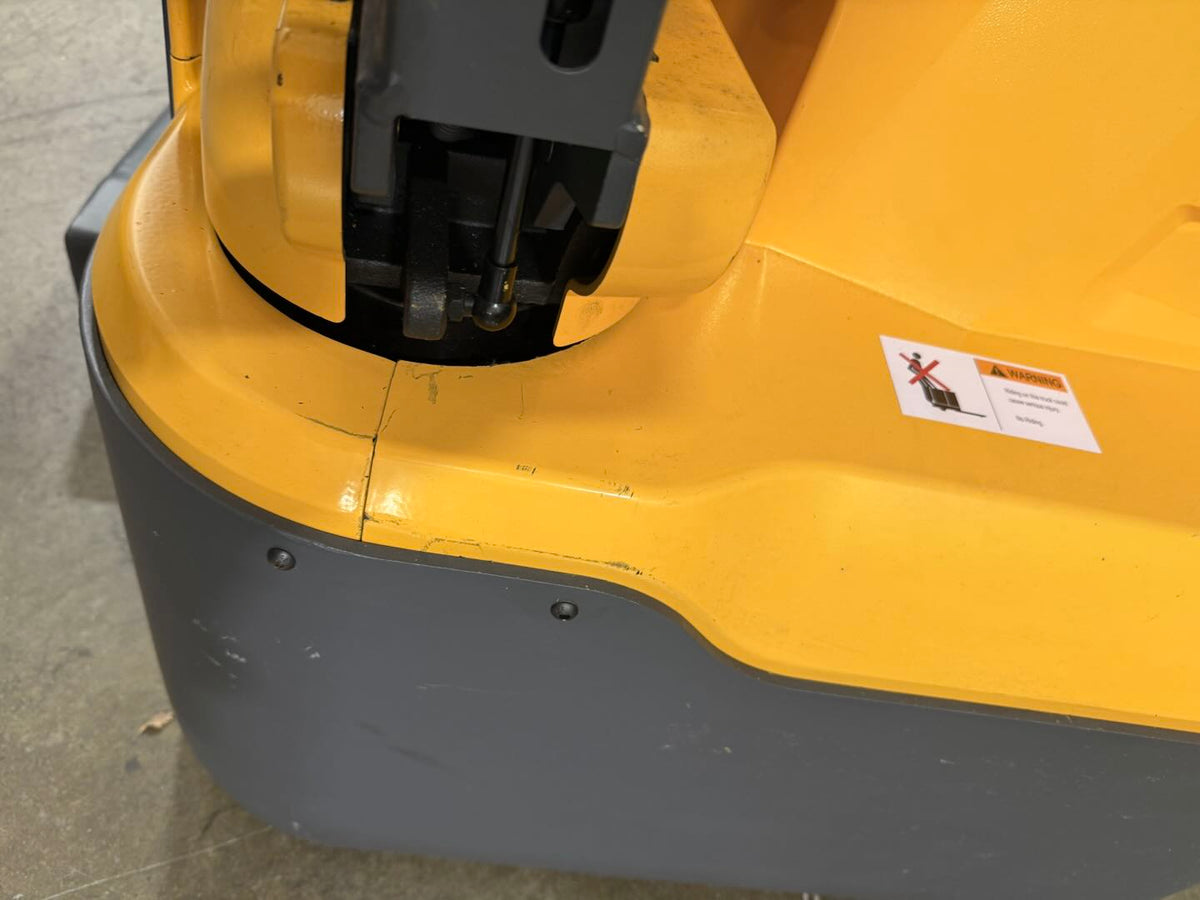

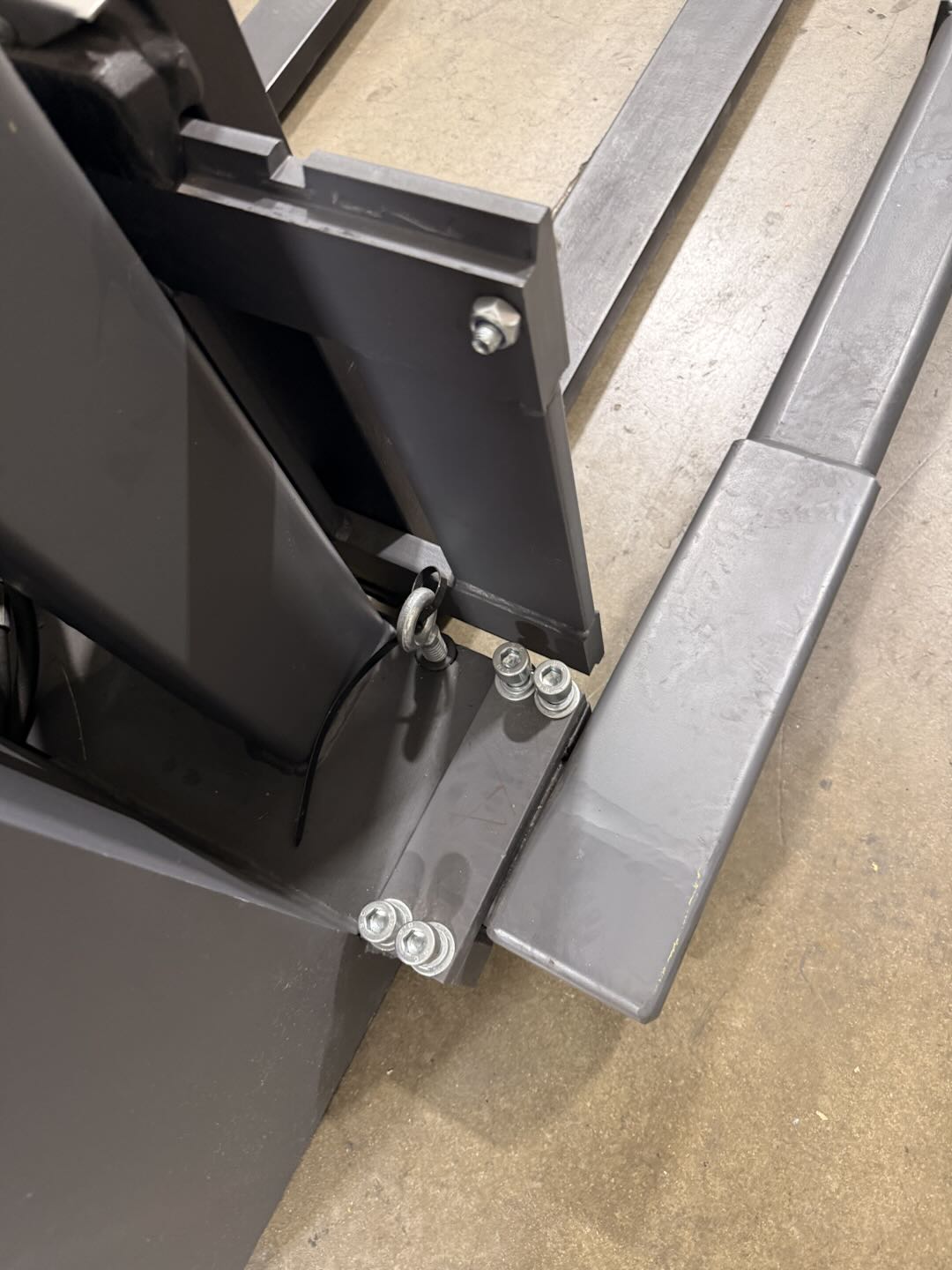

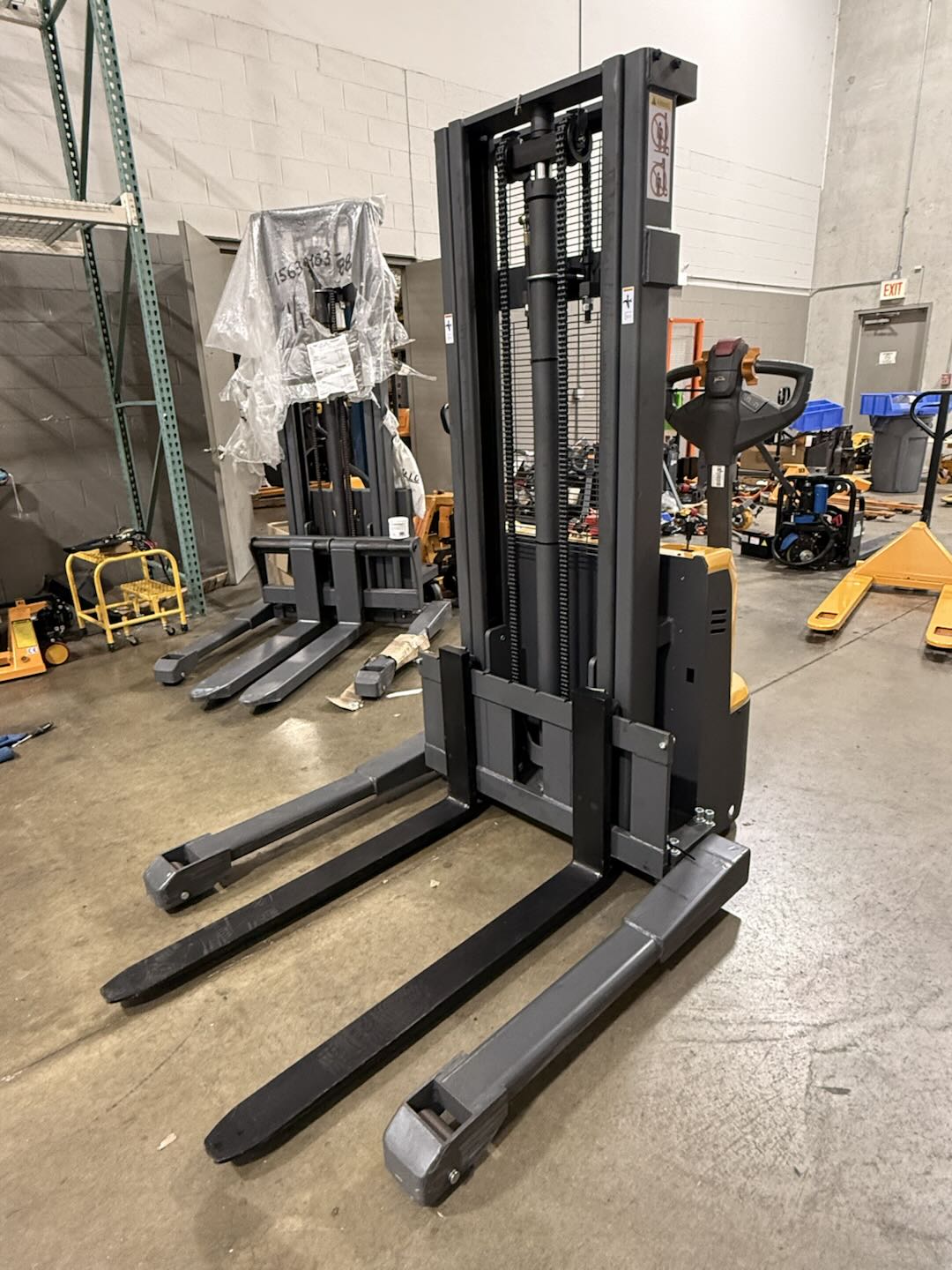

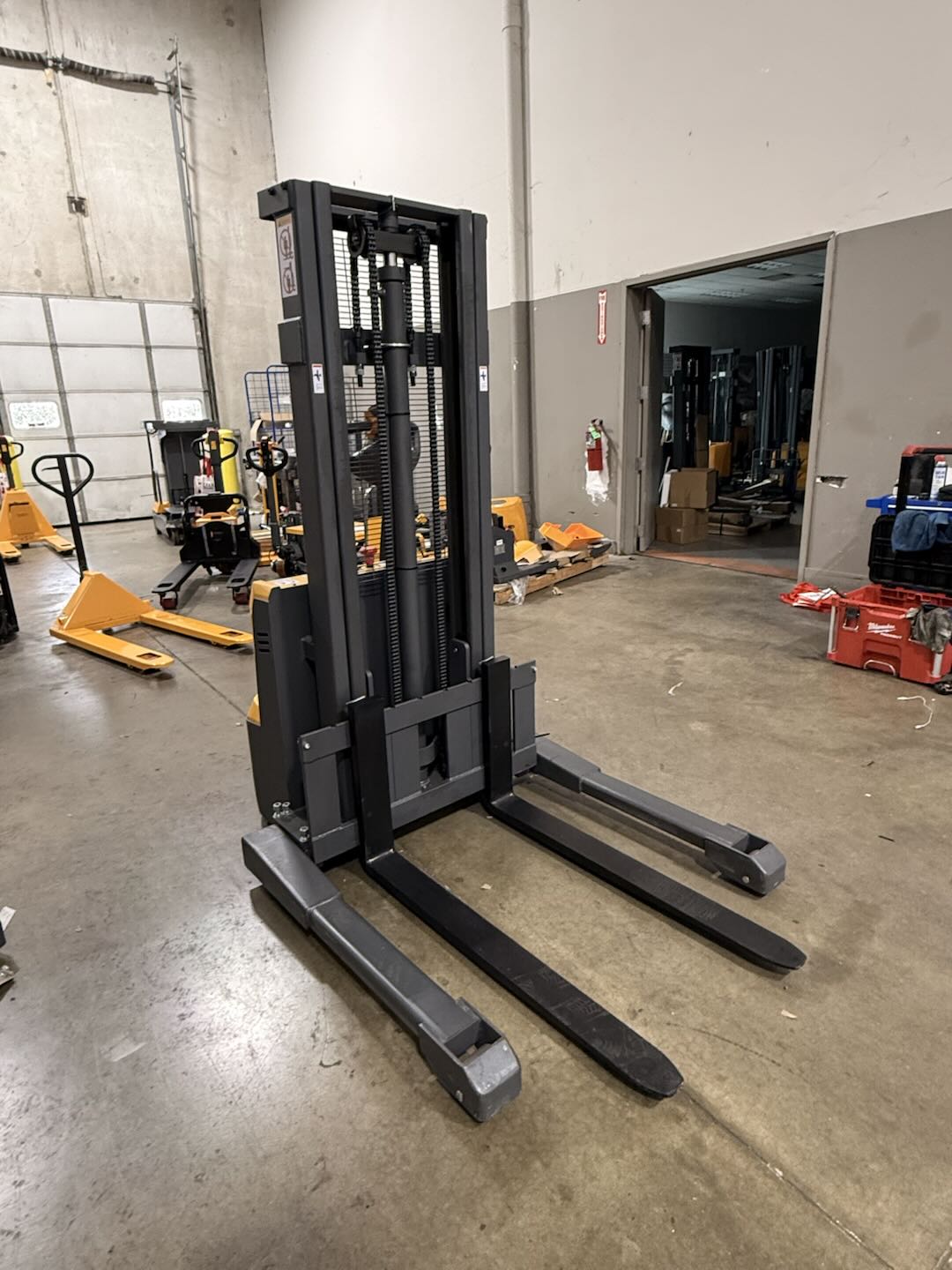

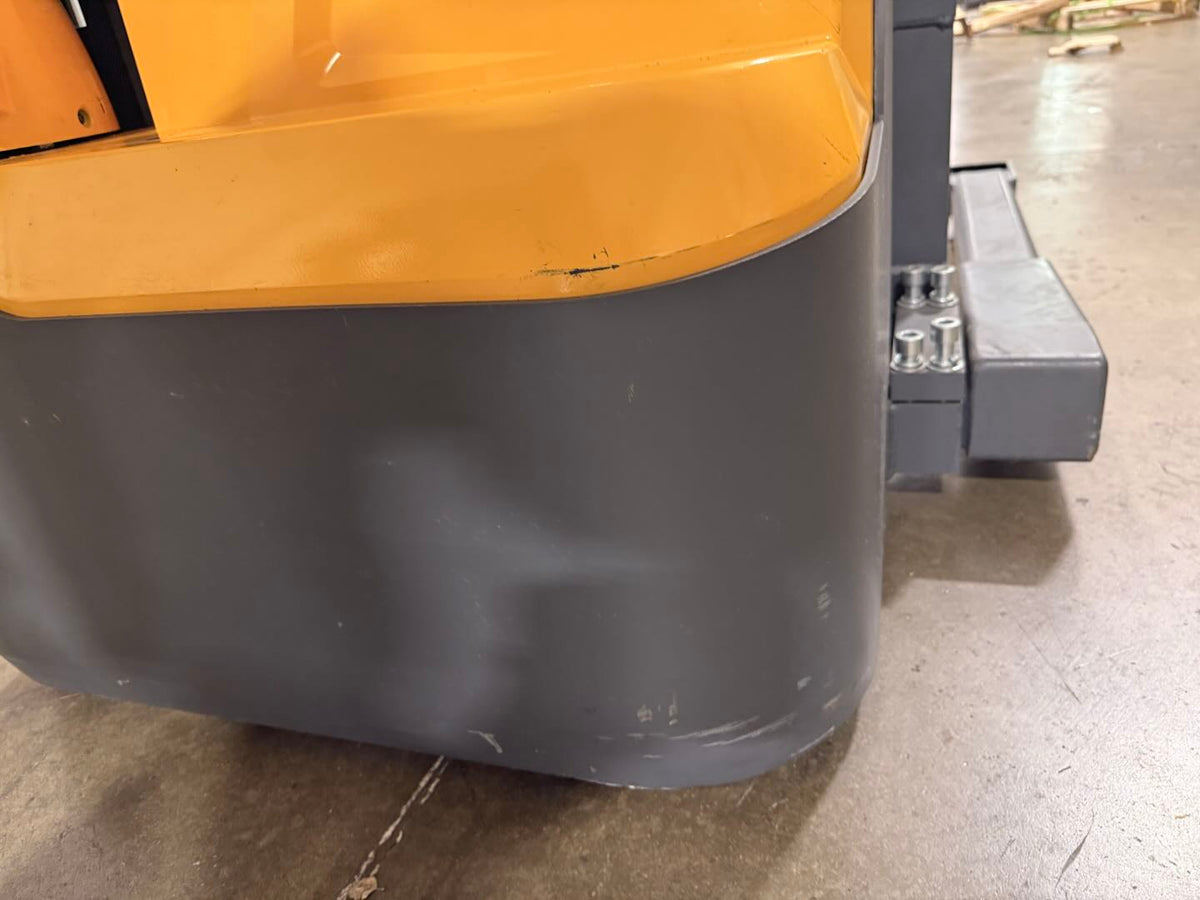

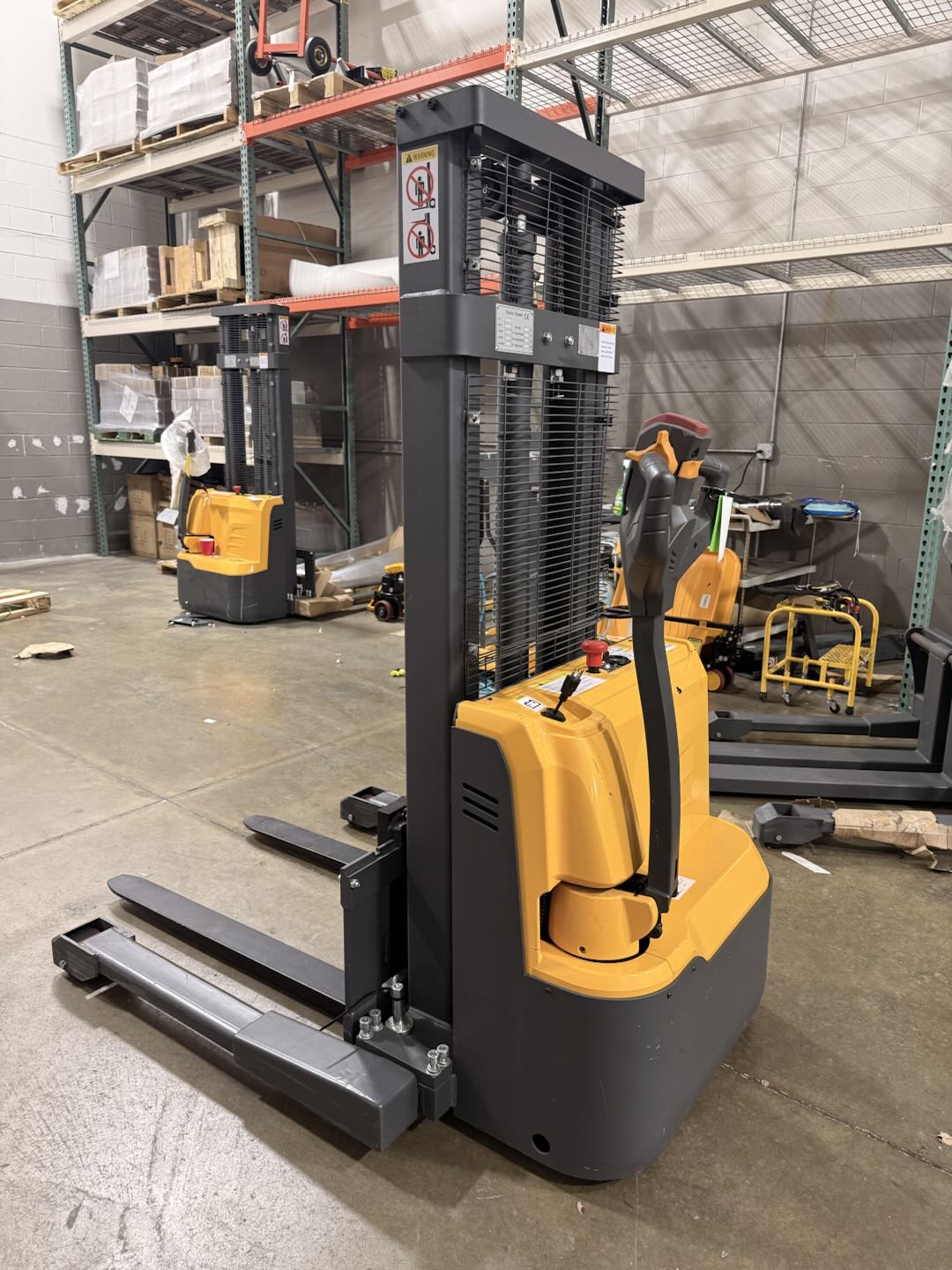

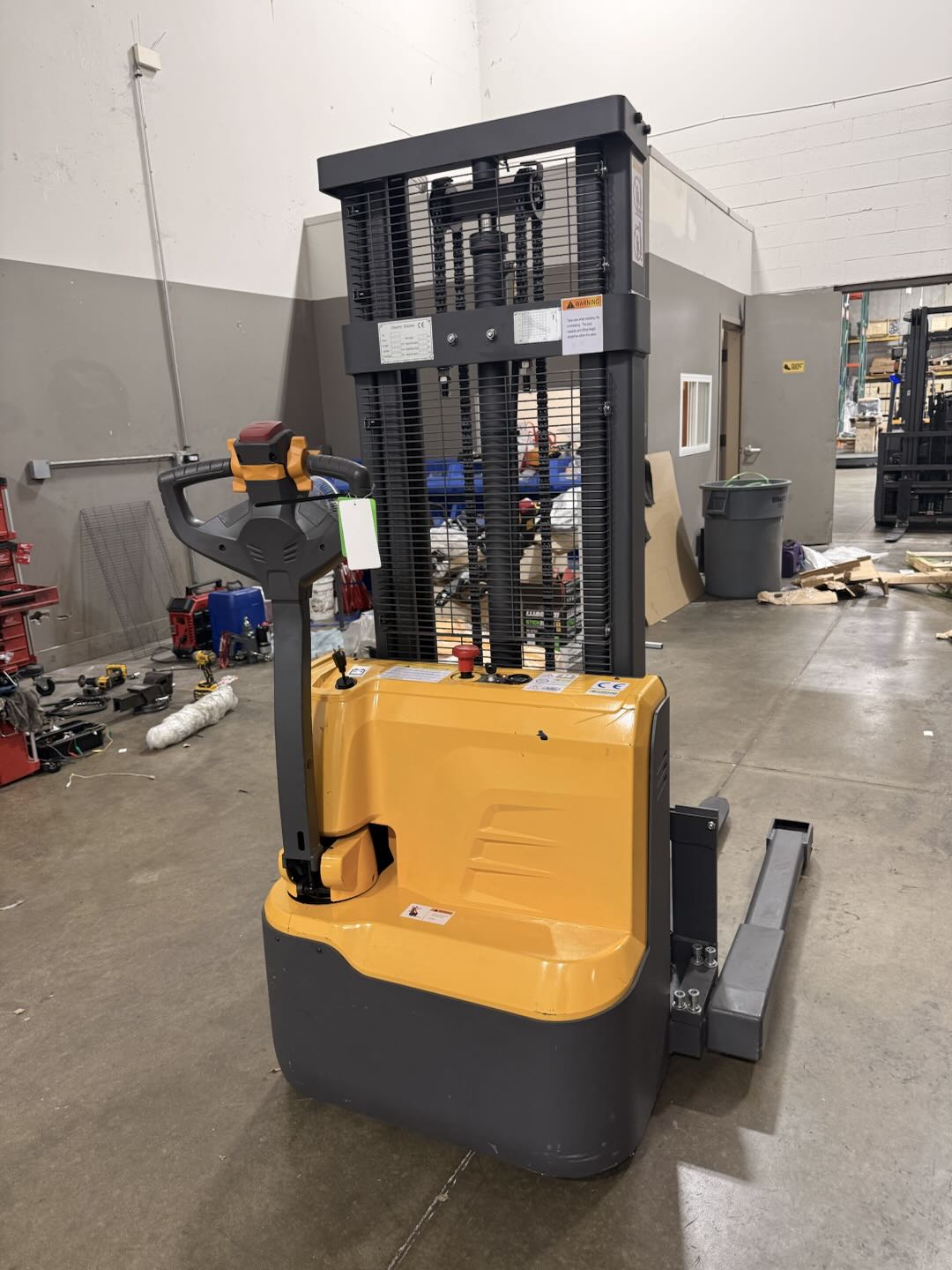

Xilin USED Electric Stacker – 2,200 lb Capacity, 98" Lift, CTD10R-E-98 – 21060100

Reference:
CTD10R-E-98-USED-21060100
Category:
Full Electric Stacker

Load capacity 2200 lbs.
Battery 24V/100AH
Fork dimensions 42X7.8-31.5in
Turning radius 60.2in
Compatible Pallet Types All
Speed (Laden/UL) 2.8 / 3.1 mph
View all specifications

Used Equipment Policy

  • 3-Month Limited Warranty

    Coverage starts on the date you receive the equipment.

  • Replacement Parts Only

    Covered replacement parts are provided at no charge. Labor is not included.

  • Final Sale

    No returns or refunds on used machine orders.

No extended warranty is available.

Specifications

Capacity
2200 lbs.
Aisle Width
93.1"
Max. Lifting Height
98"
Inside Distance Between Forks
0.1-23.6"
Fork Length
42"
Fork Overall Width
7.8-31.5"
Single Fork Width
3.9"
Compatible Pallet Types
All
Overall Height
74.6-123.8"
Overall Length
70.3"
Overall Width
46.5-62.3"
Turning Radius
60.2"
Lifting Distance
94.9"
Fork Thickness
1.4"
Fork Lowered Height
3.1"
Service Weight
1543 lbs.
Gross Weight
1553 lbs.
Package Size
47"x34"x79"
Driving Speed - Unladen
3.1 mph
Driving Speed - Laden
2.8 mph
Lifting Speed - Empty
5.9 inch/s
Lifting Speed - Loaded
4.3 inch/s
Gradeability - Empty
15%
Gradeability - Loaded
6%
Load Wheel Type
Single Wheel
Total Wheel Count
4
Battery Capacity
100AH
Battery Spec
24V/100AH
Battery Voltage
24V
Battery Type
GEL Battery

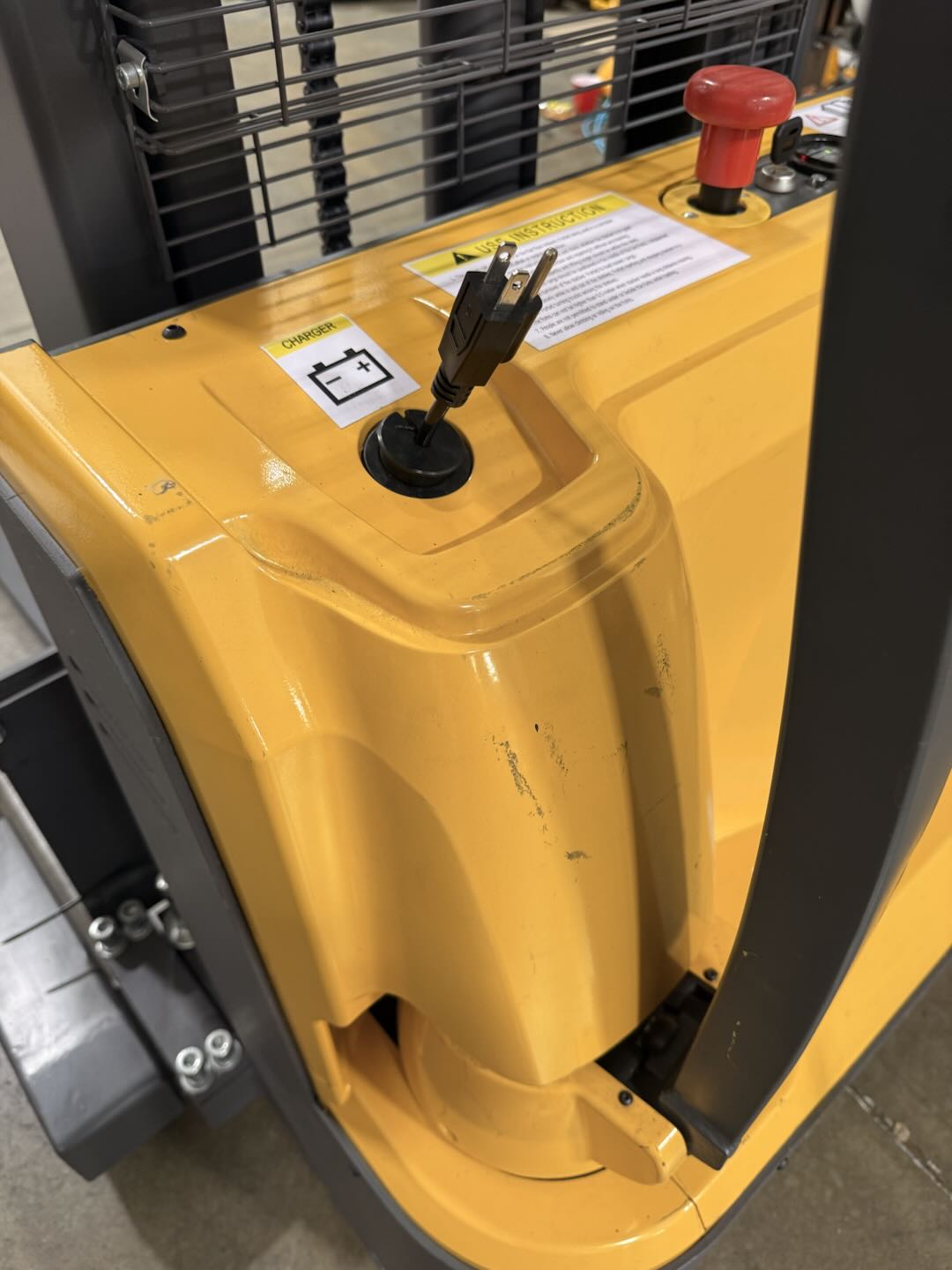

Charger
24V/10A built-in
