Xilin USED Manual Pallet Stacker – 2,200 lb Capacity, 63" Lift, SDJA1000-I – 250025439

Reference:
SDJA1000-I-USED-250025439
Category:
Manual Stacker

Load capacity 2200 lbs.
Fork dimensions 42X11.6-36.6in
Turning radius 49.6in
Compatible Pallet Types Open Bottom
View all specifications

Used Equipment Policy

  • 3-Month Limited Warranty

    Coverage starts on the date you receive the equipment.

  • Replacement Parts Only

    Covered replacement parts are provided at no charge. Labor is not included.

  • Final Sale

    No returns or refunds on used machine orders.

No extended warranty is available.

Description

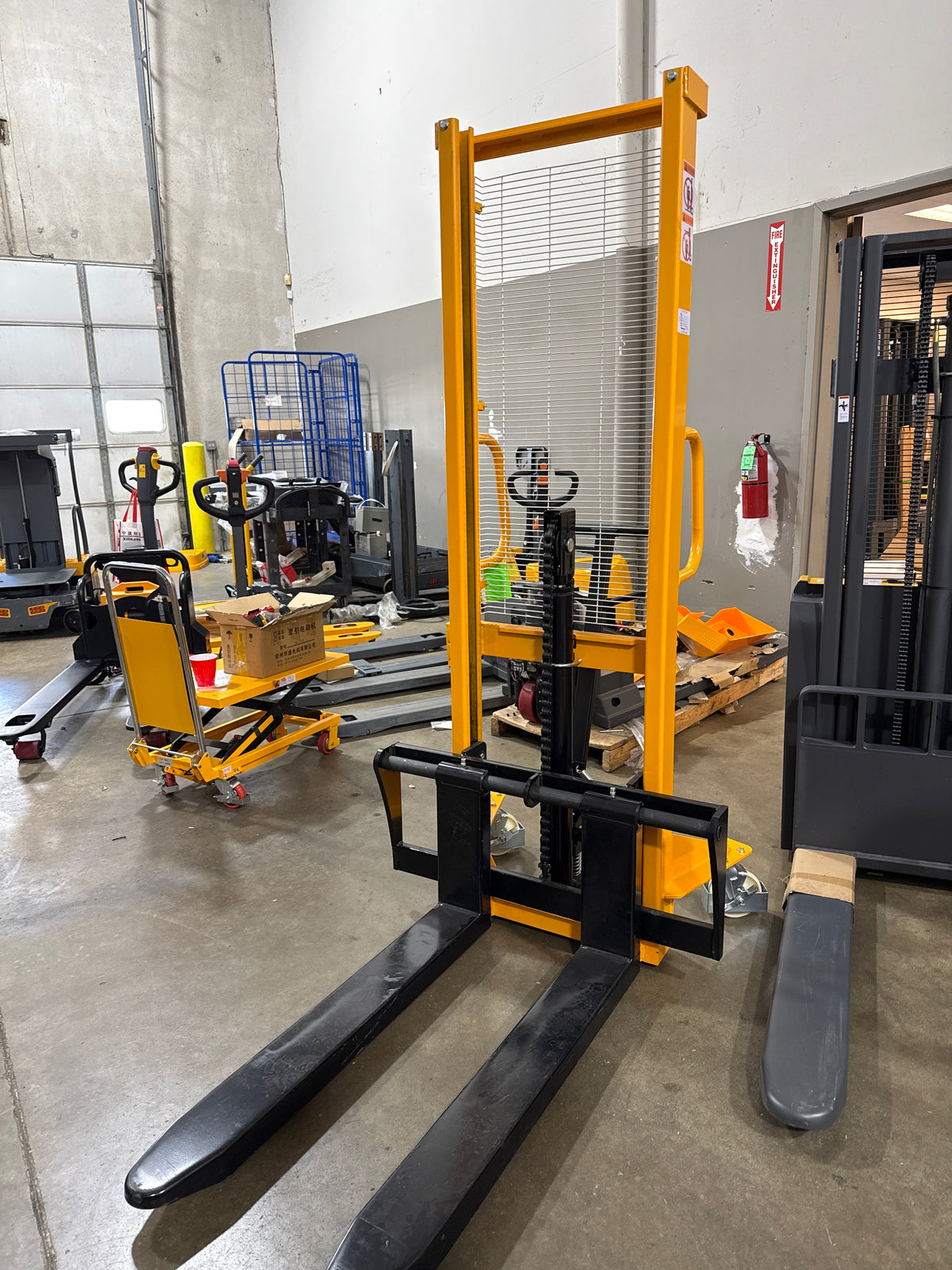

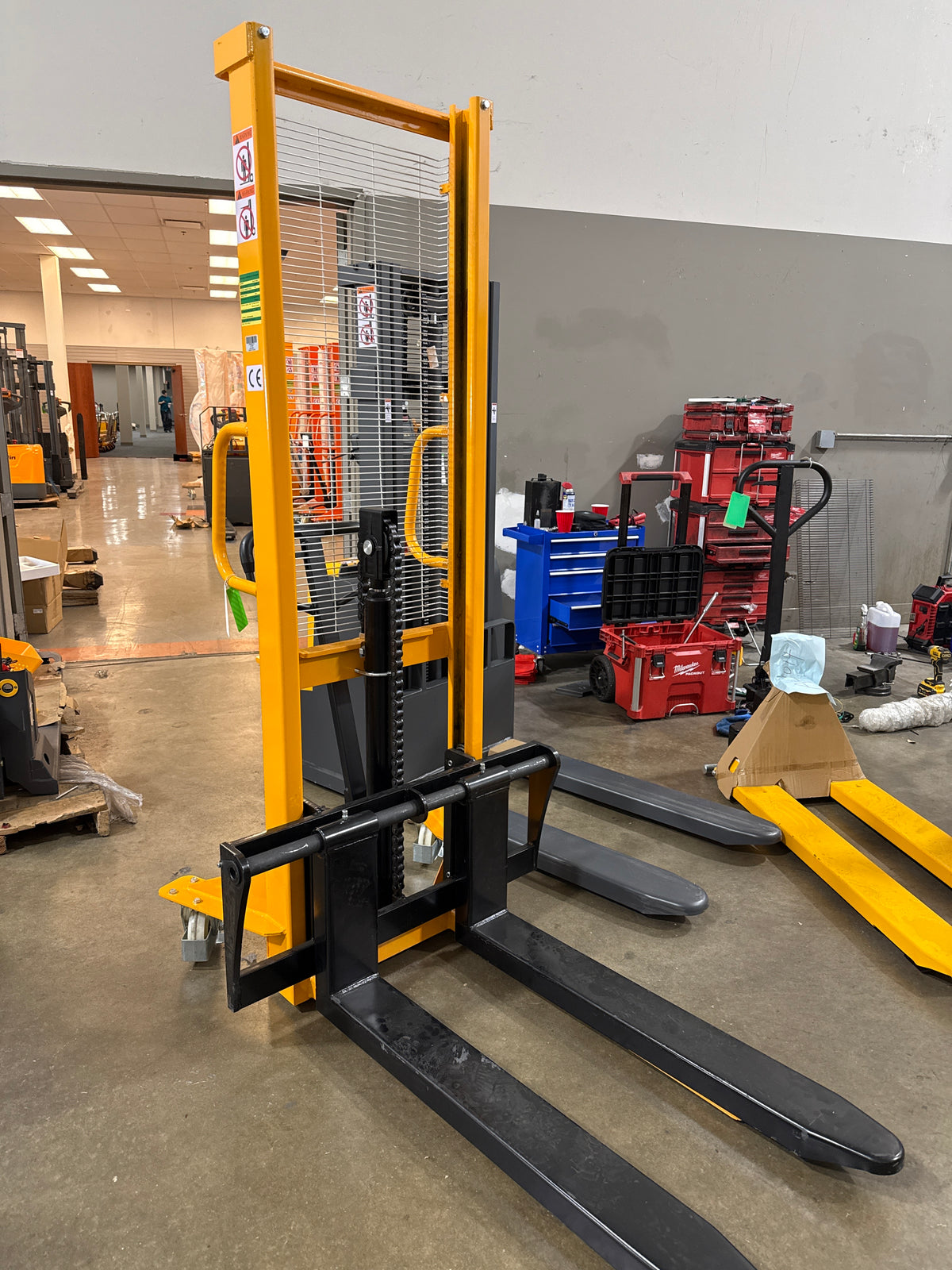

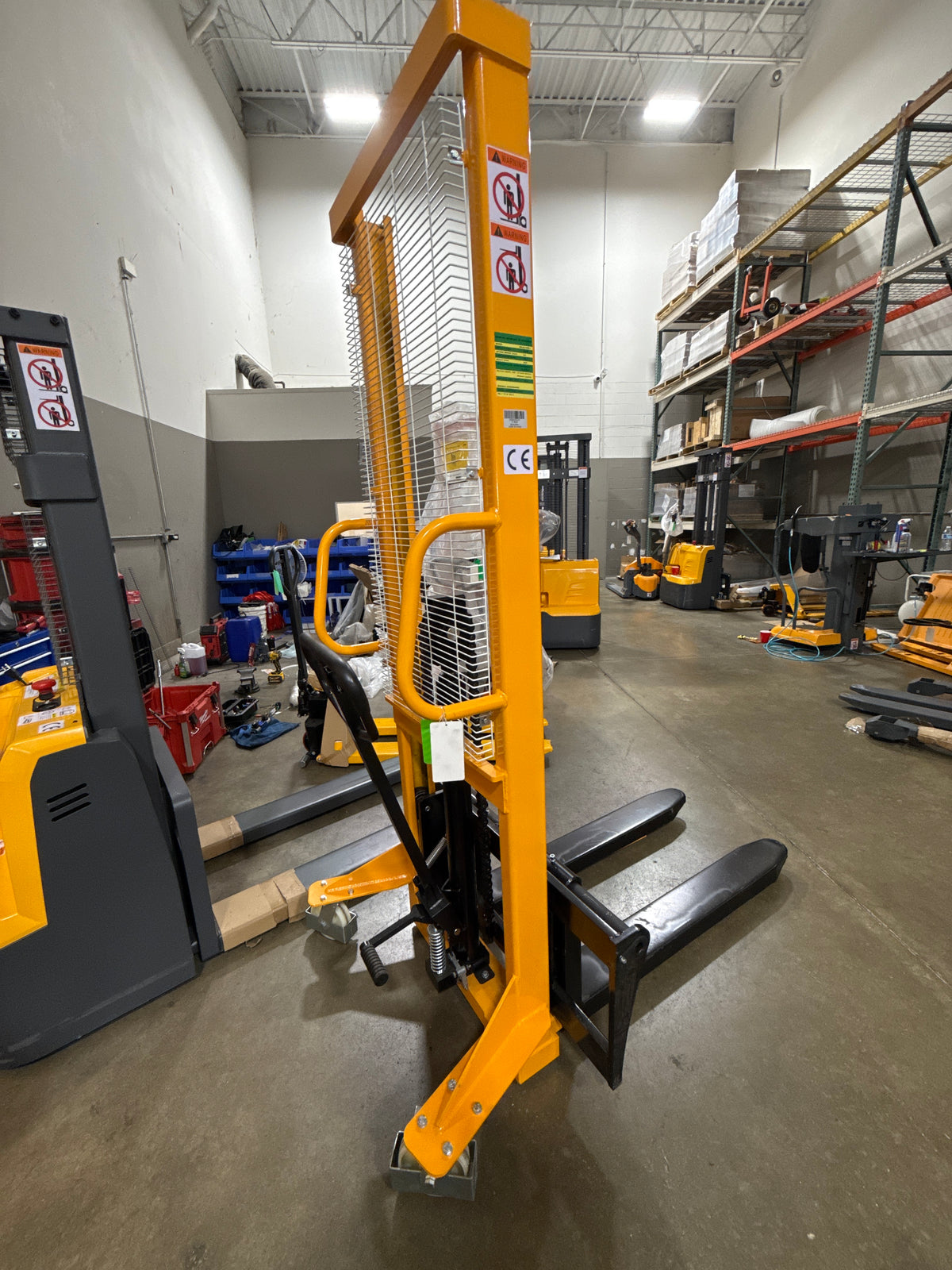

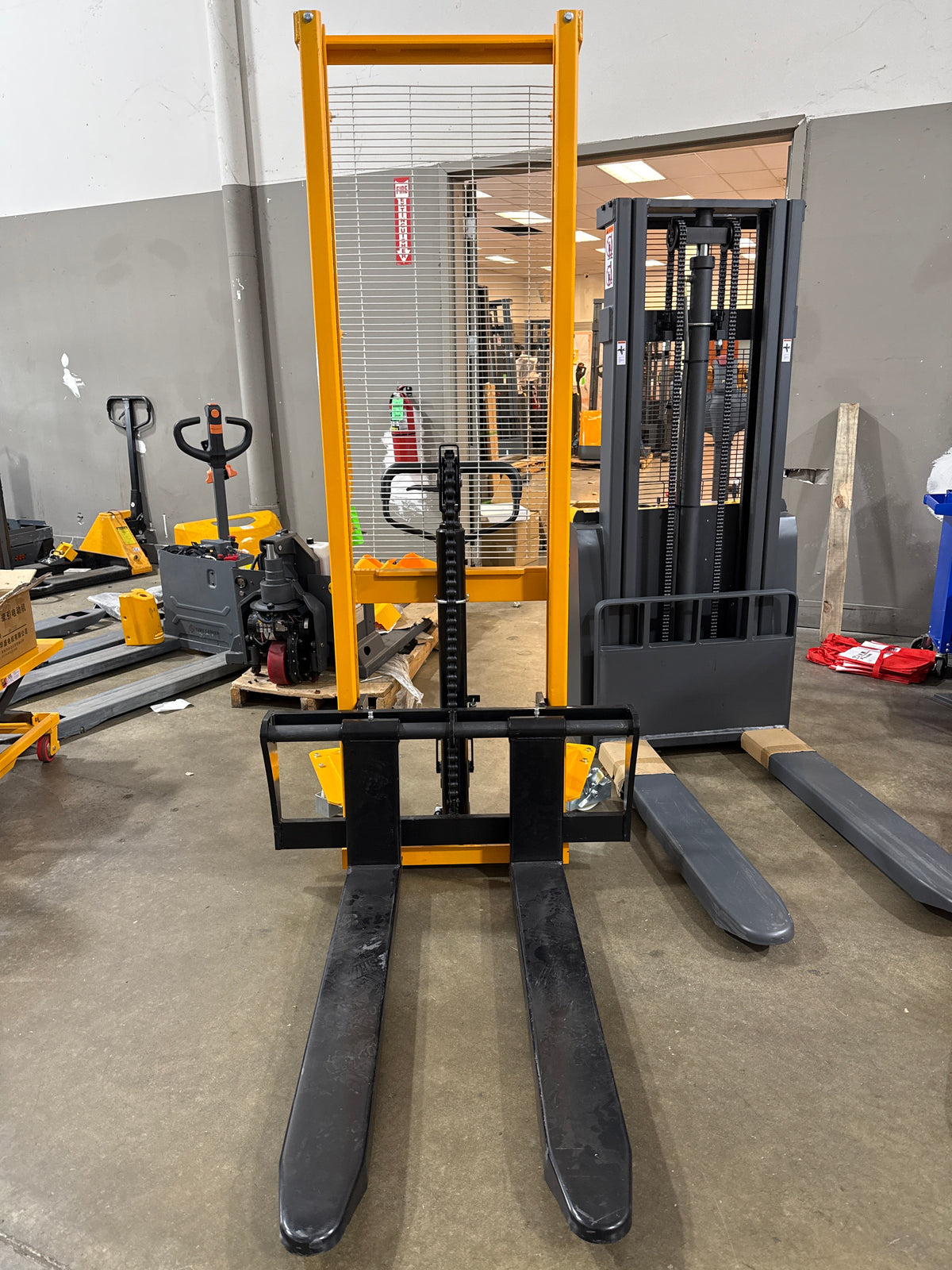

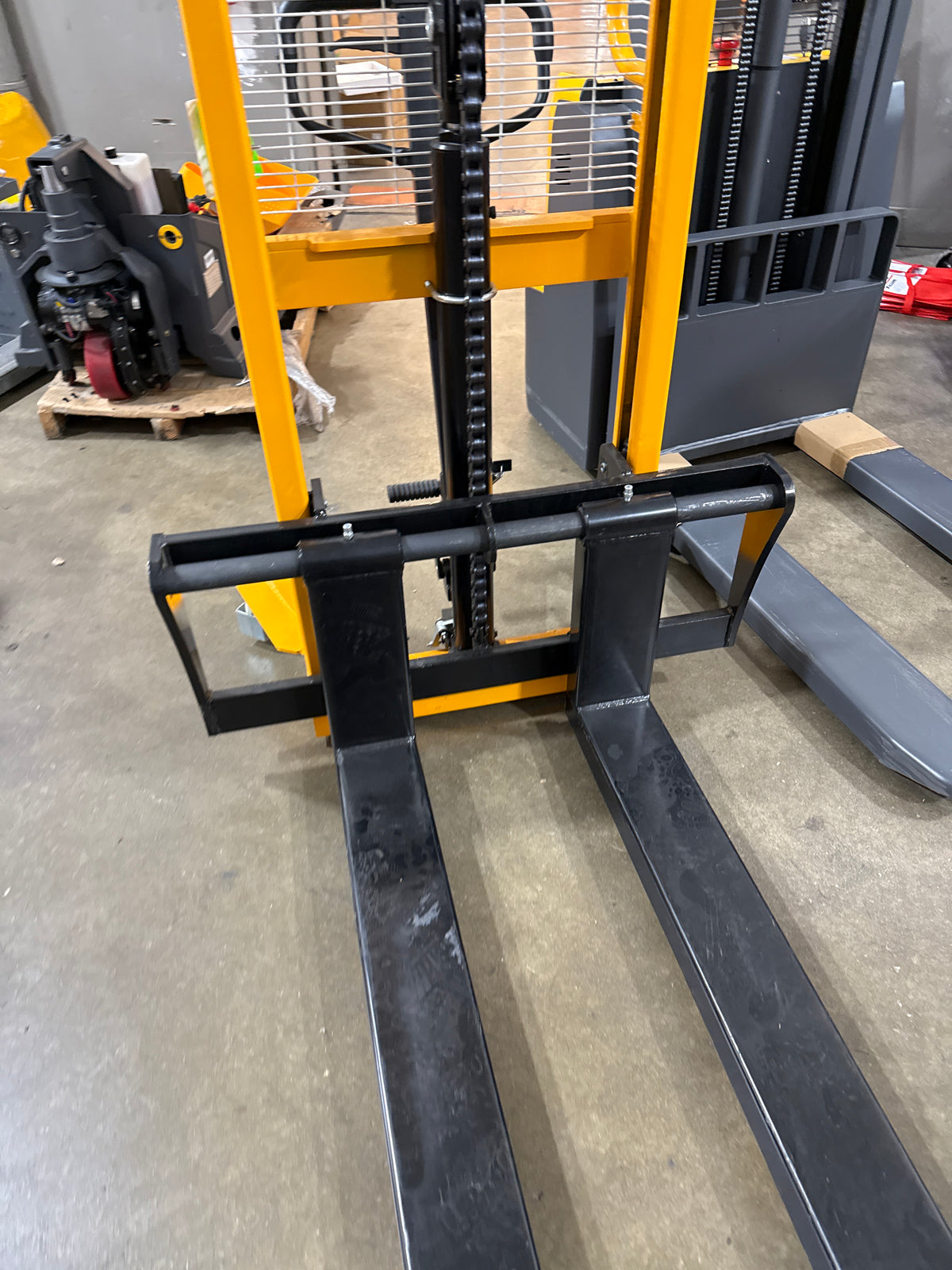

The XILIN SDJA1000-I is a manual hydraulic pallet stacker with a 2,200 lb load capacity and a 63-inch lift height. Its fixed-leg design combines raised load positioning with short-distance material transport for compatible loads in warehouses, workshops, and retail storage areas.

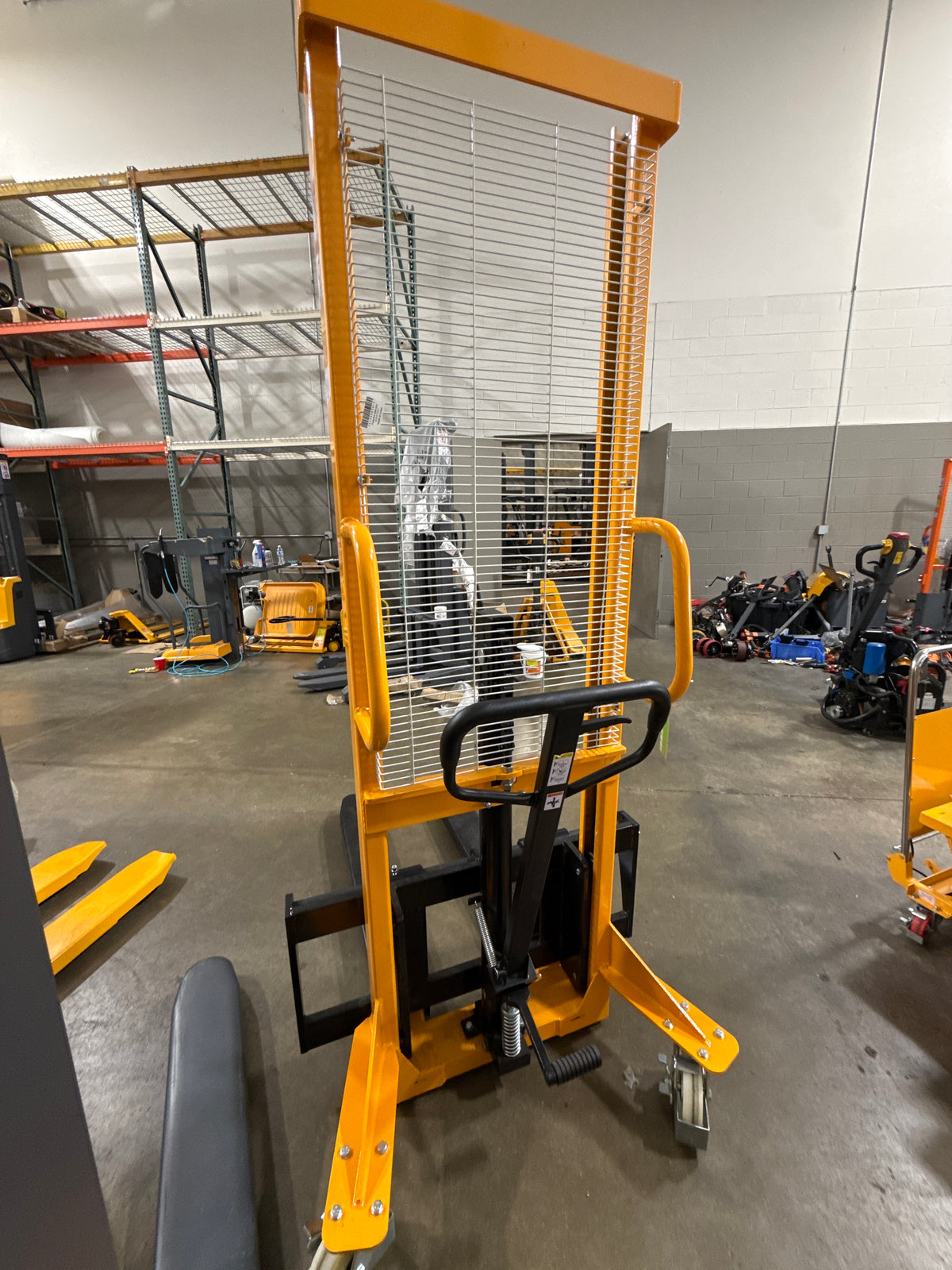

The hydraulic system can be operated with either the hand control or foot pedal, allowing the operator to choose the lifting method. A reinforced welded-steel mast supports the load, while a steel mesh guard separates the operator from moving components. Rear brake-equipped casters help secure the stacker during lifting and parking.

  • 2,200 lb capacity and 63-inch lift height
  • Fixed-leg design for compatible pallet-handling applications
  • Hand or foot hydraulic lifting with no battery required
  • Reinforced steel mast, mesh guard, and rear brake-equipped casters

Specifications

Capacity
2200 lbs.
Aisle Width
80.6"
Max. Lifting Height
63"
Inside Distance Between Forks
0.4-25.4"
Fork Length
42"
Fork Overall Width
11.6-36.6"
Single Fork Width
5.6"
Compatible Pallet Types
Open Bottom
Overall Height
81.9"
Overall Length
66.1"
Overall Width
38.2"
Turning Radius
49.6"
Lifting Distance
59.5"
Fork Thickness
2.4"
Fork Lowered Height
3.5"
Service Weight
566 lbs.
Gross Weight
576 lbs.
Package Size
66"x28"x85"
Load Wheel Type
Double Wheel
Total Wheel Count
6
Stabilizer Wheel
No
Toe Guard
Yes
