3300lbs Super light Small Lithium Battery Motorized Pallet Jack 48"x27" Fork CBD15

The CBD15 lithium battery-powered pallet truck is an efficient and durable tool designed for material handling in indoor environments with hard, flat surfaces. It offers superior safety, performance, and user-friendly features.

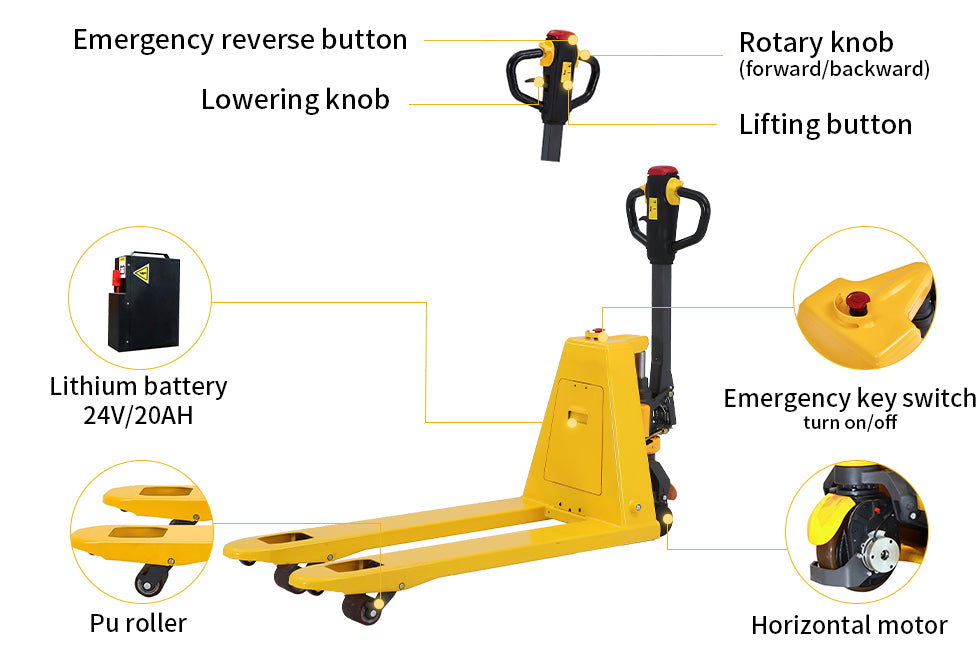

Key Features

1. Battery and Power System:

   • Battery Capacity: 24V/20Ah lithium battery for extended operation.
   • External Charger Connector: Enables separate charging, even when the battery is fully depleted.

2. Ergonomic Design:

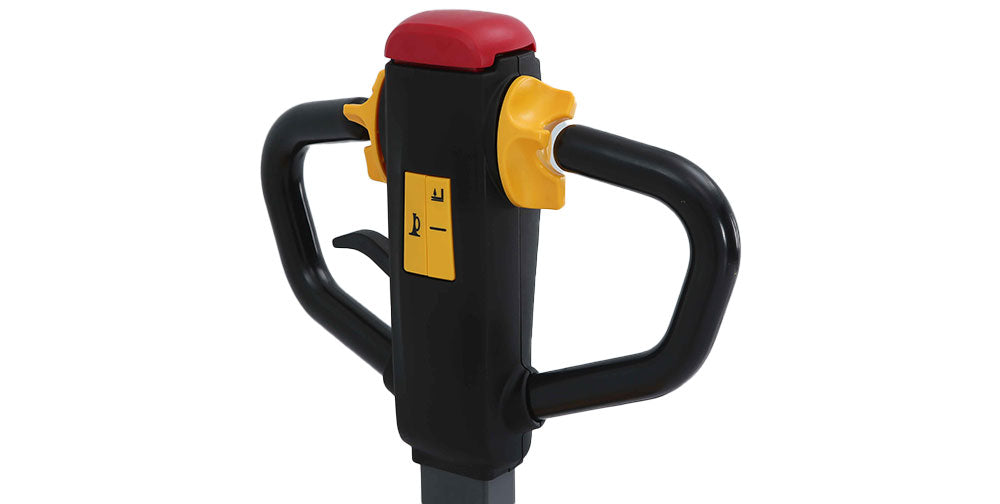

   • Ergonomic handle with a bully switch for comfortable operation.
   • High-quality emergency switch, doubling as a key switch for security.

3. Durability and Maintenance:

   • Split rocker arm ensures even stress distribution for long-term reliability.
   • Driving wheel with a horizontally mounted motor allows for easy maintenance.
   • Single fork roller for stable performance.

Safety Warnings

1. Operational Precautions:

   • Ensure the ground can support the combined weight of the truck and its load.
   • Be cautious around protruding objects that may damage the truck or cause injury.
   • Prohibit personnel in the operating area to avoid accidents, such as falling loads.

2. Operator Responsibilities:

   • Use the truck responsibly, ensuring sound judgment during operation.
   • Avoid operating with oily hands or slippery shoes.
   • Do not wear loose clothing or jewelry while operating the truck.

Operating Instructions

1. Powering On the Truck:

   • Turn on the emergency stop switch.

2. Fork Lifting and Lowering:

   • Lift: Use the lift button on the handle.
   • Lower: Hold the descent handle gently for controlled lowering.

3. Driving the Truck:

   • Rotate the handle to the driving range.
   • Slowly accelerate using the throttle; avoid sudden acceleration for safety.

4. Braking:

   • Release the accelerator for regenerative motor braking. The truck will decelerate and stop with the brake fully engaged.

5. Emergency Reverse Function:

   • Press the red emergency reverse button on the handle to immediately stop forward motion and reverse a short distance, preventing injury when obstacles are encountered.

6. Parking the Truck:

   • Release the accelerator to bring the truck to a stop.
   • Lower the forks to their minimum position.
   • Turn off the key switch.
   • Disconnect the battery power cable if the truck is parked for an extended period.

Usage Notes

• Always assess the environment for hazards or obstacles before operation.
• This truck is strictly for use on hard, flat indoor surfaces; avoid using it in unsuitable environments.
• Regular maintenance and proper handling will ensure long-term efficiency and safety.

The pallet truck is designed for ease of operation, reliability, and enhanced safety, making it an excellent choice for modern material handling applications.

Drive

Type: Electric (Lithium Battery)

Operator Type

Type: Pedestrian

Specifications

• Rated Capacity/Rated Load: 3,300 lbs
• Load Center Distance: 23.62 in
• Load Distance (Center of Drive Axle to Fork): 37.44 in / 40.16 in
• Wheelbase: 48.66 in / 51.42 in
• Service Weight: 251.33 lbs

Axle Loading

• Laden (Front/Rear): 1,021.85 lbs / 2,645.15 lbs
• Unladen (Front/Rear): 1,065.88 lbs / 2,229.13 lbs

Tyres

• Type: Polyurethane
• Front Tyre Size: Ø8.27 x 2.95 in
• Rear Tyre Size: Ø3.15 x 3.66 in / Ø3.15 x 2.76 in
• Number of Wheels (Front/Rear): 1x / 2 (optional: 4)
• Rear Tread: 15.35 in / 20.67 in

Dimensions

• Max. Lift Height: 7½ in
• Height, Drawbar in Driving Position (min./max.): 25.00 in / 47.24 in
• Height, Lowered: 3.1 in
• Overall Length: 65 in
• Length to Face of Forks: 48 in
• Overall Width: 27 in
• Fork Dimensions (Thickness x Width x Length): 2.1 x 6.3 x 48 in
• Fork Spread: 14.37 in
• Ground Clearance: 1.06 in
• Aisle Width (Pallet 1000 x 1200, crossways): 88.6 in
• Aisle Width (Pallet 800 x 1200, lengthways): 80.71 in / 82.09 in
• Turning Radius: 57.1 in

Performance

• Travel Speed (Laden/Unladen): 2.67 mph / 2.80 mph
• Lift Speed (Laden/Unladen): 0.63 in/s / 0.98 in/s
• Max. Gradeability (Laden/Unladen): 5% / 20%
• Brake Type: Electromagnetic

Motors

• Drive Motor Rating: 0.75 kW
• Lift Motor Rating: 0.5 kW

Battery

• Voltage/Capacity: 24V / 20Ah
• Battery Weight: 4.57 lb

Sound Pressure at Driver’s Seat: 70 dB(A)
