Electric Pallet Jack 3300lbs Lithium Battery Narrow Fork 45"x21" CBD15W-LI

More information
battery capacity 48V/20AH
Travel speed with/without load 48/6A
Load capacity 3300lbs
lifting height 7.5inch
lifting height 1dfe Created with Sketch. 3.3inch
Save $200.00 Save $200.00
Original price $2,649.00
Original price $2,649.00 - Original price $2,649.00
Original price $2,649.00
Current price $2,449.00
$2,449.00 - $2,449.00
Current price $2,449.00
FREE SHIPPING
Fully electric⚡️ pallet jacks,Moving and lifting are powered by electricity, Easy Hydraulic lowering.
  • 1 Year Warranty!
  • Free Delivery for commercial self-unload address
  • 48 Hours Dispatch during working days
  • Different Products Have Got 186 National Patents
  • Direct Tech Support Mon-Fri
  • RuYi Owned Brand Est. 1985
  • ISO International Certificate From CQC
  • CE/GS/TUV Certificate
  • The AAA Class Credit Award Enterprise

The Xilin Electric Pallet Jacks Features.

Adopting floating balance wheel can prevent the side swing of the truck when travelling. Travel smoothly and no swing; great anti-vibration.

● The whole balance wheel can be removed, easy to maintain.

● The rock arm mechanism integral structure which improves the structure strength effectively, meanwhile, share and adjust the even force from the fork. Reduce the obvious deflection in fork height after a long use and when loading.

● The drive wheel adopts horizontal type structure which makes the layout position of the motor higher off the ground to prevent the water、dust and greasy dirt gluing on the motor effectively and improve working switch⚙️.

●🔋 Big lithium battery 48V/20Ah.

●⚡️3 Hours Charging Time, 4-6 Hours Working Time.

● Narrow fork size: 45" Length x 21" Width.

● Reverse safety switch keeps operator safe.

● Heavier self weight with balance wheels, moving more stable.

● 24 Hours without break just need one extra battery.

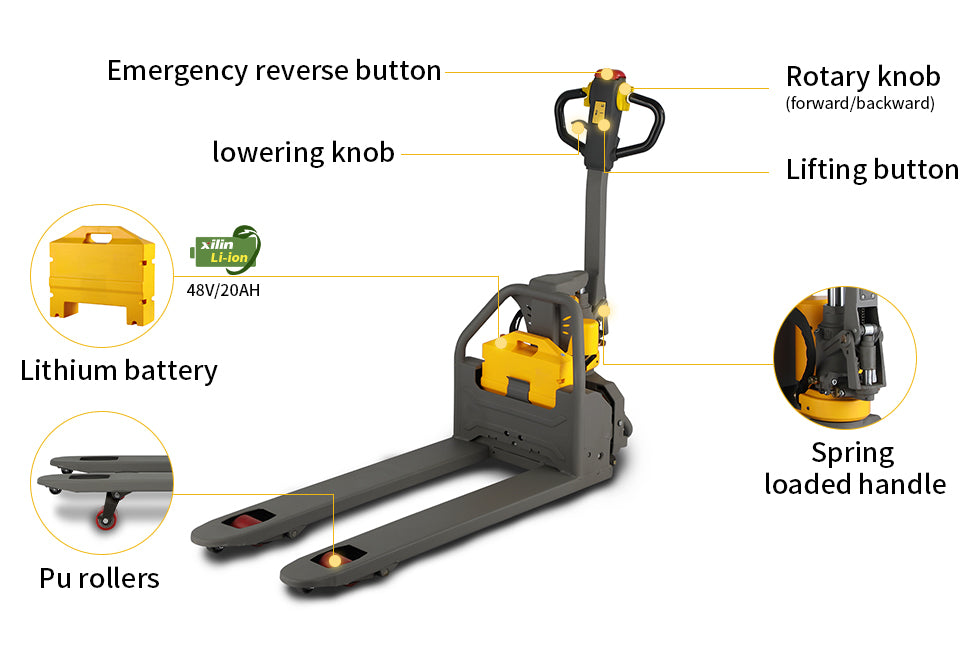

Multi-function Control Handle

Incorporates butterfly-style thumb controls, emergency reverse button, horn button and key switch for ease of use.

Less Wiring,Easy Service

Mechanical and electronic components
are easy to change and service.

Plug-in Battery Design

Makes it easier to remove and change, no need additional tools or devices.

Brushless Motor

Offers high drive speed and low
torque output. wheel can
be independently dismantled

Compact Vehicle Design

Rugged and high-performing yet light weight body provides exceptional maneuverability in tight areas.

Long Tiller with Large Hand Grip

For easy and comfortable hold,
strain-free operation.

Product Information

  • Product Overview
  • General Information
  • Dimension Drawing
Model No
CBD15W-LIX
Capacity
3300lbs
Fork Size
45"L x 21"W
Max. lift height
7.5inch
Battery Voltage
24V/20AH
Recommended Aisle Width
87.6inch
Travel Speed(laden/unladen)
2.98/3.1 mph
Truck Weight
288lbs
Specifications
Capacity 3300lbs
Fork height, lowered[h13] 3.3inch
Max. lifting distance[h3] 4.4inch
Lifting height 7.5inch
Overall width [b1] 21.0inch
Overall length 63.9inch
Height 47.2inch
Fork dimensions[s/e/l] 1.8/6.3/45.0
Turning radius[Wa] 56 inch
Distance between forks(inside) 7.87inch
Charger 48/6A built-out

Battery Powerd Pallet Jacks

SKU Load Capacity Max. Lift Height Recommended Aisle Width Battery Voltage
Price Each
CBD15 3300lbs 7.5inch 88.6inch
24V/20AH $1799
CBD15W-Li-48x27-Y 3300lbs 7.5inch 90.3inch 24V/20AH $2559
CBD15W-Li-45x21-Y 3300lbs 7.5inch
87.6inch
48V/20AH $2499
CBD15WE-19 3300lbs 7.0inch 91.7inch
24V/65AH $2399
CBD20WE-19 4400lbs
7.5inch
88.6inch
24V/105AH $2999
CBD20KD 4400lbs
7.9inch
95.2inch
24V/180AH $4999

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
a
a.m.

I bought this unit to instead our manual pallet Jack. It work much better than expected. It was easy to assemble and once the battery was charged put to work right away. It has cut my labor costs and gets truck loaded and unloaded faster. My employees are happier and asking me to buy more.
