3300lbs Blue Lithium Battery Electric Pallet Jack Narrow Fork 45"x21" CBD15W-LI

by Xilin

More information
battery capacity	48V/20AH
Travel speed with/without load	48/6A
Load capacity	3300lbs
lifting height	7.5inch
lifting height	3.3inch

Save $200.00

$2,649.00

$2,649.00 - $2,649.00

$2,649.00

$2,449.00

$2,449.00 - $2,449.00

$2,449.00

FREE SHIPPING

Quantity

1 Year Warranty!
Free Delivery for commercial self-unload address
48 Hours Dispatch during working days
Different Products Have Got 186 National Patents
Direct Tech Support Mon-Fri
RuYi Owned Brand Est. 1985
ISO International Certificate From CQC
CE/GS/TUV Certificate
The AAA Class Credit Award Enterprise

Compare Similar Items

OVERVIEW

Adopting floating balance wheel can prevent the side swing of the truck when travelling. Travel smoothly and no swing; great anti-vibration.
● The whole balance wheel can be removed, easy to maintain.
● The rock arm mechanism integral structure which improves the structure strength effectively, meanwhile, share and adjust the even force from the fork. Reduce the obvious deflection in fork height after a long use and when loading.
● The drive wheel adopts horizontal type structure which makes the layout position of the motor higher off the ground to prevent the water、dust and greasy dirt gluing on the motor effectively and improve working switch⚙️.
●🔋 Big lithium battery 48V/20Ah.
●⚡️3 Hours Charging Time, 4-6 Hours Working Time.
● Narrow fork size: 45" Length x 21" Width.
● Reverse safety switch keeps operator safe.
● Heavier self weight with balance wheels, moving more stable.
● 24 Hours without break just need one extra battery.

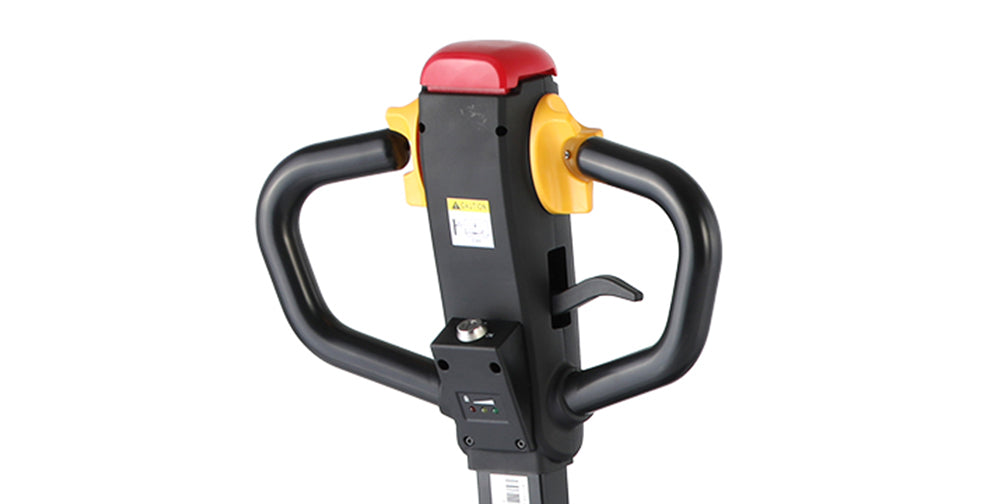

Multi-function Control Handle

Incorporates butterfly-style thumb controls, emergency reverse button, horn button and key switch for ease of use.

Less Wiring,Easy Service

Mechanical and electronic components
are easy to change and service.

Plug-in Battery Design

Makes it easier to remove and change, no need additional tools or devices.

Brushless Motor

Offers high drive speed and low
torque output. wheel can
be independently dismantled

Compact Vehicle Design

Rugged and high-performing yet light weight body provides exceptional maneuverability in tight areas.

Long Tiller with Large Hand Grip

For easy and comfortable hold,
strain-free operation.

Product Information

Product Overview
General Information
Dimension Drawing

Model No

CBD15W-LIX

Capacity

3300lbs

Fork Size

45"L x 21"W

Max. lift height

7.5inch

Battery Voltage

48V/20AH

Recommended Aisle Width

87.6inch

Travel Speed（laden/unladen）

2.98/3.1 mph

Truck Weight

288lbs

Specifications
Capacity	3300lbs
Fork height, lowered[h13]	3.3inch
Max. lifting distance[h3]	4.4inch
Lifting height	7.5inch
Overall width [b1]	21.0inch
Overall length	63.9inch
Height	47.2inch
Fork dimensions[s/e/l]	1.8/6.3/45.0
Turning radius[Wa]	56 inch
Distance between forks(inside)	7.87inch
Charger	48/6A built-out

Battery Powerd Pallet Jacks

SKU	Load Capacity	Max. Lift Height	Recommended Aisle Width	Battery Voltage	Price Each
CBD15	3300lbs	7.5inch	88.6inch	24V/20AH	$1799
CBD15W-Li-48x27-Y	3300lbs	7.5inch	90.3inch	24V/20AH	$2559
CBD15W-Li-45x21-Y	3300lbs	7.5inch	87.6inch	48V/20AH	$2499
CBD15WE-19	3300lbs	7.0inch	91.7inch	24V/65AH	$2399
CBD20WE-19	4400lbs	7.5inch	88.6inch	24V/105AH	$2999
CBD20KD	4400lbs	7.9inch	95.2inch	24V/180AH	$4999
