3300lbs 118" Economic Semi Electric Stacker Straddle Legs Adj forks CTD15BE-118

by Xilin
More information
battery capacity 12V/120AH
Travel speed with/without load 12V/15A
Load capacity 3300lbs
lifting height 118inch
lifting height 1dfe Created with Sketch. 3.5inch
Original price $4,199.00 - Original price $4,199.00
Original price $4,199.00
$4,199.00
$4,199.00 - $4,199.00
Current price $4,199.00
FREE SHIPPING

Features & Advantages

  • Adjustable forks & straddle legs.
  • Semi electric stacker: Lifting/lowering is motorized, forward/backward is manual powered.
  • Foot pedal brake for safety and ramp usage.
  • Equipped with explosion-proof valve, against of sudden drop of forks and prevent operator from harm.
  • With hydraulic leveler control lifting and lowering, speed is adjustable.
  • Easy operation for lifting and lowering.
  • Strong battery with 12V/120AH capacity and over charge design.

Features & Advantages

Manually push stacker into position. Use motor to raise and lower forks.

Rubber wrapped handle

Rubber wrapped handle makes more comfortable operation feeling.

Spring structure design

Spring structure design makes more ergonomics.

Simple operation level

Simple operation level control it easy to lift and lower, speed is adjustable.

Foot pedal brake

Foot pedal brake for safety and ramp usage.

Special Chain Design

Special Chain Design makes the steering easy and light, even if the lady operators.

GEL battery

Strong battery with 12V/120AH capacity and over charge protection.

Product Information

  • Product Overview
  • General Information

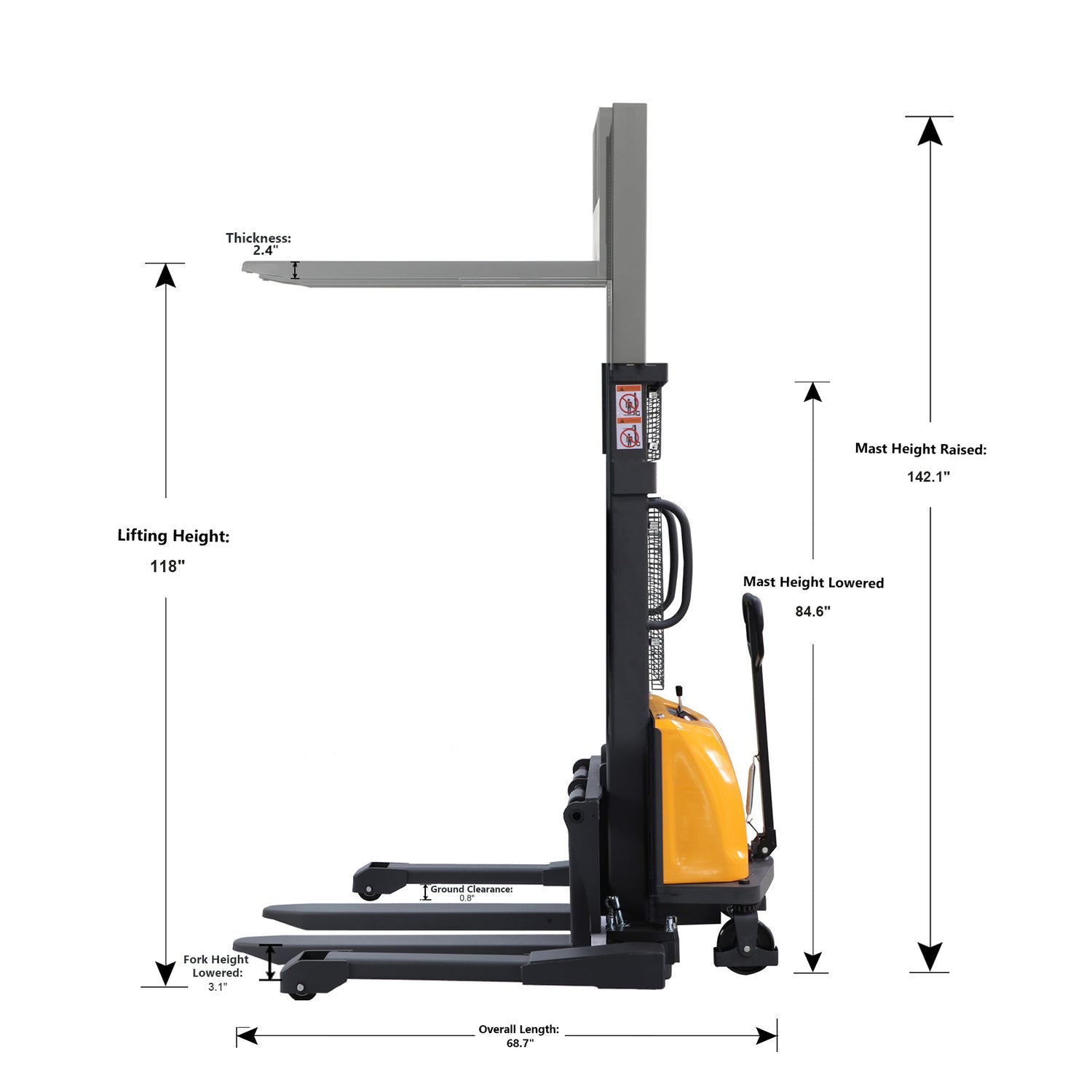

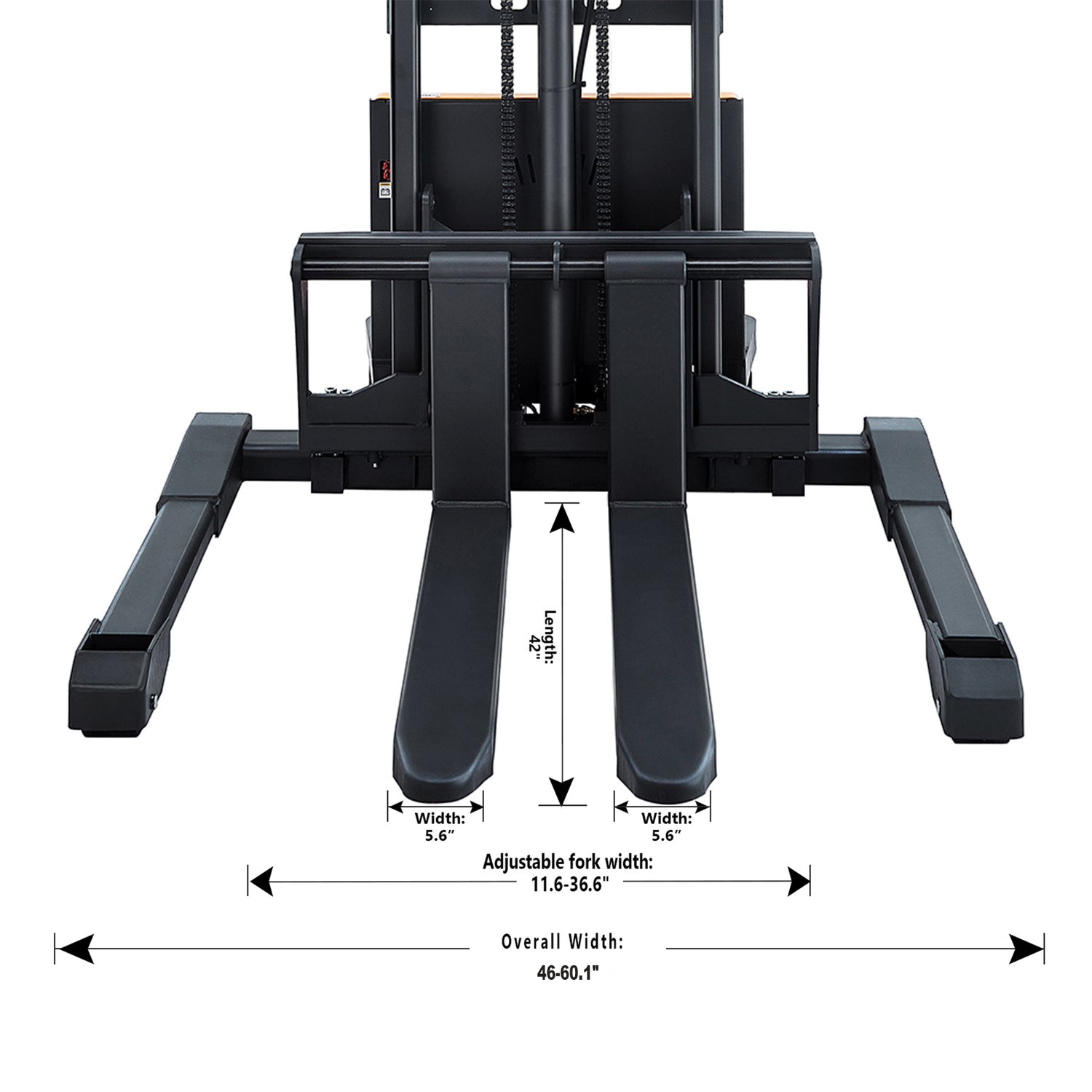

  • Dimension Drawing
Model No
CTD15BE-118
Capacity
3300lbs
Turning Radius
56.1inch
Max. lift height
118inch
Battery Voltage
12V/120AH
Lifting speed(laden/unladen)
2.0/3.2inch
Driving Speed(laden/unladen)
N/A
Lowering speed(laden/unladen)
3.9/3.5inch/s
Specifications
Recommended Aisle Width 90.0inch
Truck Weight 946lbs
Height, mast lowered[h1] 82.7inch
Height, mast extended[h4] 140.0inch
Overall width [b1] 44.5-60.3inch
Overall length 68.7inch
Width overall forks 11.8-36.6inch
Fork dimensions[s/e/l] 2.3/5.6/42inch
Fork height, lowered[h13] 3.5inch
Load centre distance[c] 15.7inch
Distance between forks(inside) 0.4-25.4inch
Charger 12V/15A built-out
